pedal assembly question

lvlistchif · Post by **lvlistchif** » Thu Jun 28, 2007 6:08 pm

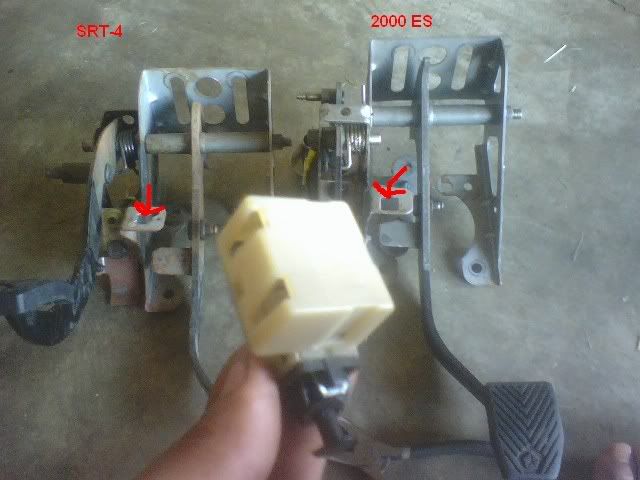

im doing an srt swap but when i got my pedals it didnt come with this plastic clip that goes where the red arrows are pointing. im wondering if the clip thats on the wiring harness on the srt-4 wiring harness is the same clip as this or do i need a whole new clip? i dont have the srt wiring harness but im about to put in the pedals and id like to know if i should put it on now or not

hansken_yo · Post by **hansken_yo** » Thu Jun 28, 2007 7:46 pm

I think they are... I didn't notice any difference between the two that I had. When I get home I'll try and compare the two. I think the only difference between the two assemblies was the clutch pedal.

BlackRoseRacing · Post by **BlackRoseRacing** » Thu Jun 28, 2007 7:53 pm

ummm....thats a pic of your brake light switch....
They are interchangable, in fact..they still use that same switch on newer vehicles...
But DCx tech's are told they can not be re-used....once removed from the vehicle they are junk....
Wether or not its true I can not say, but I will tell you that the SRT switch and the Non SRT switch are the same...

hansken_yo · Post by **hansken_yo** » Thu Jun 28, 2007 7:54 pm

I did remove mine, put it back on and the lights still work. doesn't makes sence that once they are removed they are junk....unless some can make sense of it.

BlackRoseRacing · Post by **BlackRoseRacing** » Thu Jun 28, 2007 8:11 pm

^^^
As I stated, the texhs are told they are preloaded to work once the little lever is removed...hence they cant use them again

Arro · Post by **Arro** » Thu Jun 28, 2007 9:09 pm

Is that true? Man that sounds like some BS to me, but....?

I have a set of SRT-4 pedals I planned to use when I swap in a hydraulic 5-speed... it still has the sensor on the assembly.

lvlistchif · Post by **lvlistchif** » Thu Jun 28, 2007 9:38 pm

i can understand yes the pin piece comes out but its not held in by the pin piece its held in by a plastic piece. hes sayin if the black pin piece comes out then yes it wont be useable.

hansken_yo · Post by **hansken_yo** » Thu Jun 28, 2007 10:33 pm

Exactly... I pull the whole unit out, and put it back in... no harm no foul. Now if that black pin was to come out... yeah. I can see it not working anymore.
