Fuse box layout
Fuse box layout
I am doing a swap and I bought a bay harness and the fuse box came without a cover or any fuses. So is the fuse box layout of an 04 SRT the same as an 01 R/T? If not does anyone know where I could get the layout for it? Thanks in advance.
check SRT forums. They have a plethera of info. I am sure they have a sticky for it somewhere. Google it too if possible. The car came out in 03. Im sure there is some easy info on it. Its been 5 years...
2003 Silver SXT - Totalled
2005 Silver Subaru Legacy 2.5GT Turbo -Daily
1990 White SR powered 240sx - My sliding slut.
I miss my neon at times. She treated me well and taught me a lot about cars in general. I will always have a special place in my heart for these cars. Heres to the 2gn community.
2005 Silver Subaru Legacy 2.5GT Turbo -Daily
1990 White SR powered 240sx - My sliding slut.
I miss my neon at times. She treated me well and taught me a lot about cars in general. I will always have a special place in my heart for these cars. Heres to the 2gn community.
-
occasional demons
- Junior Admin
- Posts: 20064
- Joined: Thu May 03, 2007 12:14 pm
- Location: Ashland Ohio

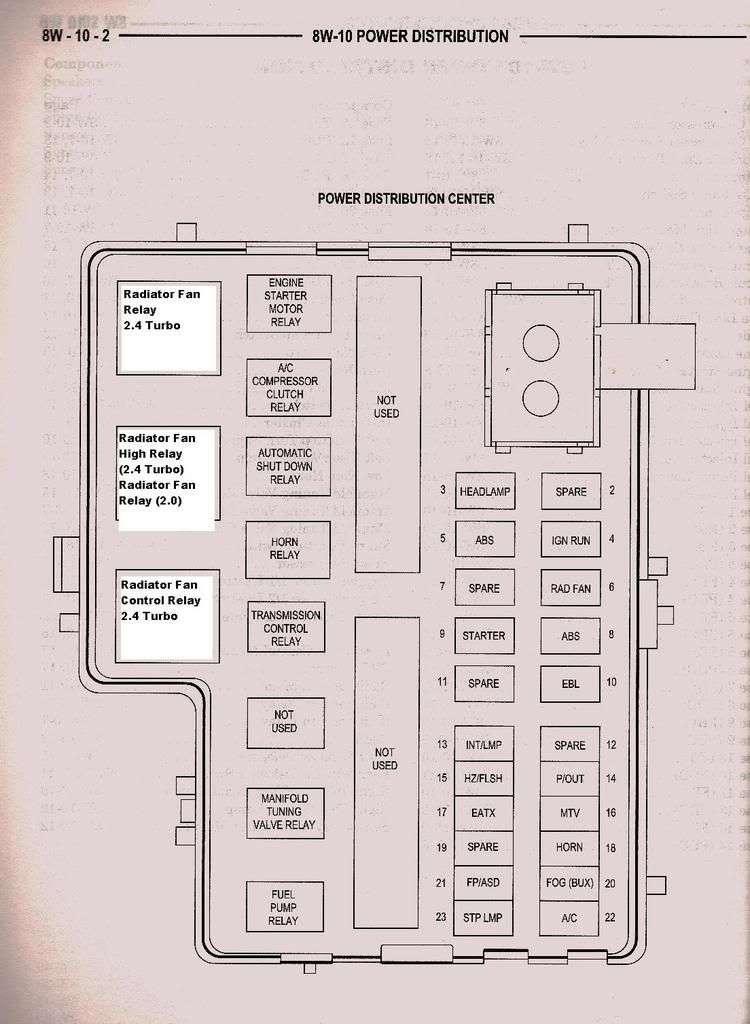

I thought I had posted the cover, but I can get that later this evening....
2003-2005
The 2000 cover is the same, but the "MTV relay" is "not used" instead.occasional demons wrote:
2003-2005
Bill
2000 Neon MTX swap with '02 R/T PCM
1999 neon coupe 2.4 swap
Probably shouldn't listen to anything your penis says, that guy's a dick.
Too much time spent here is a sign of a bad case of Ownaneonvirus.Patience, of course, is a very powerful weapon, but sometimes I start to regret that it is not a firearm.
2000 Neon MTX swap with '02 R/T PCM
1999 neon coupe 2.4 swap
