SRT-4 Vacumn Line Diagram
Posted: Wed Oct 08, 2008 8:08 pm
by mopar4life

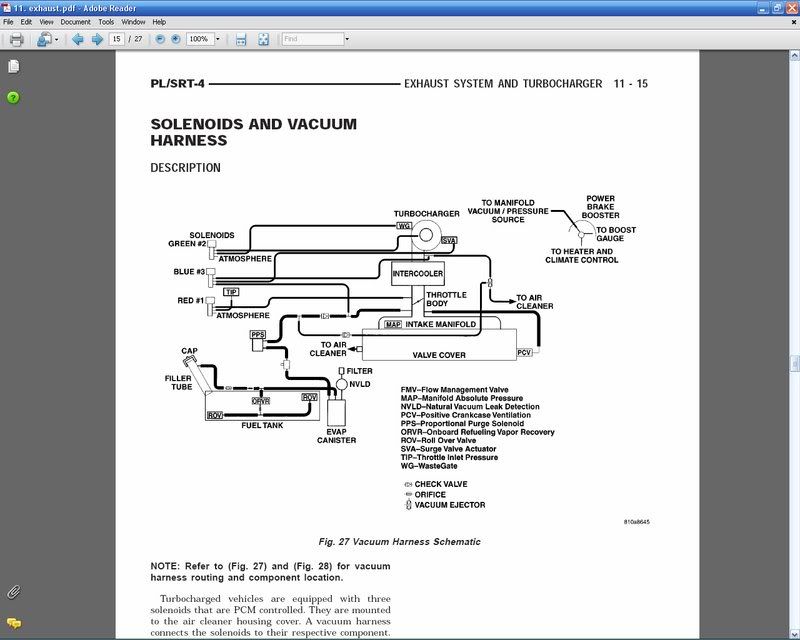

I have found a vacumn line diagram for the SRT-4 for the Turbo. This is hard to find info and Id like to get it sticked if I could. Ill be updating it with more pages from my source as time permits. Hope this helps you guys as much as its helped me.
Posted: Wed Oct 08, 2008 11:12 pm
by boostedblue
good find bro. this should help alot of people
Posted: Thu Oct 09, 2008 12:13 am
by mopar4life
No problem, its helped me alot already. Ive got about 3 pages left on the same topic there too if I need to post them. Ill try and make them bigger next time so its easier to see.
Posted: Thu Oct 09, 2008 1:40 pm
by jonnymopar
This isn't displayed on the underside of the hood on SRT-4's? All the older turbo Dodges I've owned had a nice big sticker underneath the hood with the complete vacuum diagram.
Posted: Thu Oct 09, 2008 3:03 pm
by occasional demons
It may or may not be, but if your salvage car has no hood, or you just got the components, but no body, then it is nice to have a diagram. I think there is a color one posted somewhere....
Posted: Thu Oct 09, 2008 6:54 pm
by mopar4life
jonnymopar wrote:This isn't displayed on the underside of the hood on SRT-4's? All the older turbo Dodges I've owned had a nice big sticker underneath the hood with the complete vacuum diagram.
Im pretty sure its not on SRT-4s but my buddies Conquest TSI has one under the hood.
