Srt Koyo Radiator In 05SXT ATX

Post by Caraudioholic24 » Tue Mar 16, 2010 3:47 am

I did a search and figured out that they fit. Now my question is has anyone done one on an 05 SXT ATX w/ R/T Mag intake??? Just curious since I can get my hands on one cheap. I nned to know if I should look for dual Srt fans or not. Mine has dual now but I heard the srt fits better. Any help would be awesome thanks

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Tue Mar 16, 2010 8:34 am

The SRT fans are a little lower profile IIRC. That would help quite a bit in clearance for the Magnum intake.

You do know that the Koyo radiators do not have an intergrated trans cooler, yes? You can still use it on an ATX, but you will need an external trans cooler.
If I could just figure out how to meld the Outback and the Neon into one car...


DoubtedNeon
2GN Member
Posts: 1483
Joined: Mon Jun 16, 2008 5:28 pm
Location: Larsen, Wisconsin, 54947

Post by DoubtedNeon » Tue Mar 16, 2010 9:36 am

are they smaller because of this?
Swordfish2Cowboy wrote:They left a pry bar? Well get the prints like they do on CSI, and track those fuckers down. Then cap them.
grindpunk16 wrote: You and about 2 dozen other folks want that cover. It came with the car, and it's all mine.. :twisted: :bootyshake: \:D/

occasional demons
Junior Admin
Posts: 19911
Joined: Thu May 03, 2007 12:14 pm
Location: Ashland Ohio

Post by occasional demons » Tue Mar 16, 2010 9:41 am

are they smaller because of this?

Radiator, because of the lack of cooler or fans because of thicker radiator?

Or are we talking boobs? :thumbup:
Bill
Probably shouldn't listen to anything your penis says, that guy's a dick.
Patience, of course, is a very powerful weapon, but sometimes I start to regret that it is not a firearm.
Too much time spent here is a sign of a bad case of Ownaneonvirus.

2000 Neon MTX swap with '02 R/T PCM
1999 neon coupe 2.4 swap

DoubtedNeon
2GN Member
Posts: 1483
Joined: Mon Jun 16, 2008 5:28 pm
Location: Larsen, Wisconsin, 54947

Post by DoubtedNeon » Tue Mar 16, 2010 9:51 am

b/c the toyo does not have a trans cooler integrated is it smaller?

we can talk about boobs all day my friend, but then ide miss 3 classes :lol:
Swordfish2Cowboy wrote:They left a pry bar? Well get the prints like they do on CSI, and track those fuckers down. Then cap them.
grindpunk16 wrote: You and about 2 dozen other folks want that cover. It came with the car, and it's all mine.. :twisted: :bootyshake: \:D/

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Tue Mar 16, 2010 10:21 am

You have to remember that the trans cooler is located in the drivers side end tank. The core thickness has nothing to do with that part of it. The SRT radiator does have a thicker core than the regular Neon, but that is for more cooling for the engine.
If I could just figure out how to meld the Outback and the Neon into one car...


occasional demons
Junior Admin
Posts: 19911
Joined: Thu May 03, 2007 12:14 pm
Location: Ashland Ohio

Post by occasional demons » Tue Mar 16, 2010 11:15 am

Danteneon wrote:You have to remember that the trans cooler is located in the drivers side end tank.
Don't SRTs have upper/lower tanks like the regular neons?
Bill
Probably shouldn't listen to anything your penis says, that guy's a dick.
Patience, of course, is a very powerful weapon, but sometimes I start to regret that it is not a firearm.
Too much time spent here is a sign of a bad case of Ownaneonvirus.

2000 Neon MTX swap with '02 R/T PCM
1999 neon coupe 2.4 swap

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Tue Mar 16, 2010 12:58 pm

occasional demons wrote:Don't SRTs have upper/lower tanks like the regular neons?
:scratch: Huh?

The radiator (for both SRT and non) consists of the core itself and two end tanks on the side. The ATX has a copper tube type cooler mounted in the drivers side end tank. The MTX have no additional cooler in the tank.

Unless I misunderstood your question :tardbang:
If I could just figure out how to meld the Outback and the Neon into one car...


Caraudioholic24
2GN Member
Posts: 4122
Joined: Sat Mar 22, 2008 1:56 am
Location: Cumberland R.I.

Post by Caraudioholic24 » Tue Mar 16, 2010 1:05 pm

ok sweet. So are the fans going to be pug and play sice I have the dual fan setup already???



Also whats the best ATX cooler I should get??? Thanks for the quick replys everyone

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Tue Mar 16, 2010 1:15 pm

The fans should be plug and play. You may have to change the connector on your harness for the fans at worst.

B&M makes a nice trans cooler. Try Here
If I could just figure out how to meld the Outback and the Neon into one car...


Caraudioholic24
2GN Member
Posts: 4122
Joined: Sat Mar 22, 2008 1:56 am
Location: Cumberland R.I.

Post by Caraudioholic24 » Tue Mar 16, 2010 1:39 pm

Are you referring to the first pic in the link. I like that because it has a mounting plate which should be awesome.

As far as the fans maybe Ill just keep mine. My buddy only has the rad and I really dont feel like hnting down a set of fans. Thanks again.

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Tue Mar 16, 2010 1:49 pm

You may be OK with your fans. Since all Magnums were MTX and use a single fan, I can't say for sure if you will have any interferance issues with the manifold.
If I could just figure out how to meld the Outback and the Neon into one car...


Caraudioholic24
2GN Member
Posts: 4122
Joined: Sat Mar 22, 2008 1:56 am
Location: Cumberland R.I.

Post by Caraudioholic24 » Tue Mar 16, 2010 1:53 pm

Well I have the dual fan setup now STOCK. I have an 05 SXT ATX. Im in the process of doing the mag intake swap.


That was my question was if the dual fans will hit the Intake mani. Wasnt sure if anyone on here has done one with any issues.

User avatar
LionheartedSXT
2GN Member
Posts: 905
Joined: Fri Jun 06, 2008 12:34 pm
Location: Orlando, FL

Post by LionheartedSXT » Tue Mar 16, 2010 2:52 pm

I think this may have been covered in a thread i made when I was in need of a new radiator. I was going to go with the koyo but I noticed the thickness of the radiator compared to stock plus the fans and they seem like they would definitely come in contact with my mag intake manifold. So Its up to you if you want to try it.

Something for reference if you haven't see it:
viewtopic.php?t=47569
Last edited by LionheartedSXT on Tue Mar 16, 2010 2:56 pm, edited 1 time in total.
-Chad
MoxHair wrote:pay no attention to the man behind the curtain. Its all smoke and mirrors.
- Project Log
- Feedback

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Tue Mar 16, 2010 2:53 pm

That's why I posted what I did...not sure if the dual fans will be an issue or not since the Magnum engine doesn't use them.

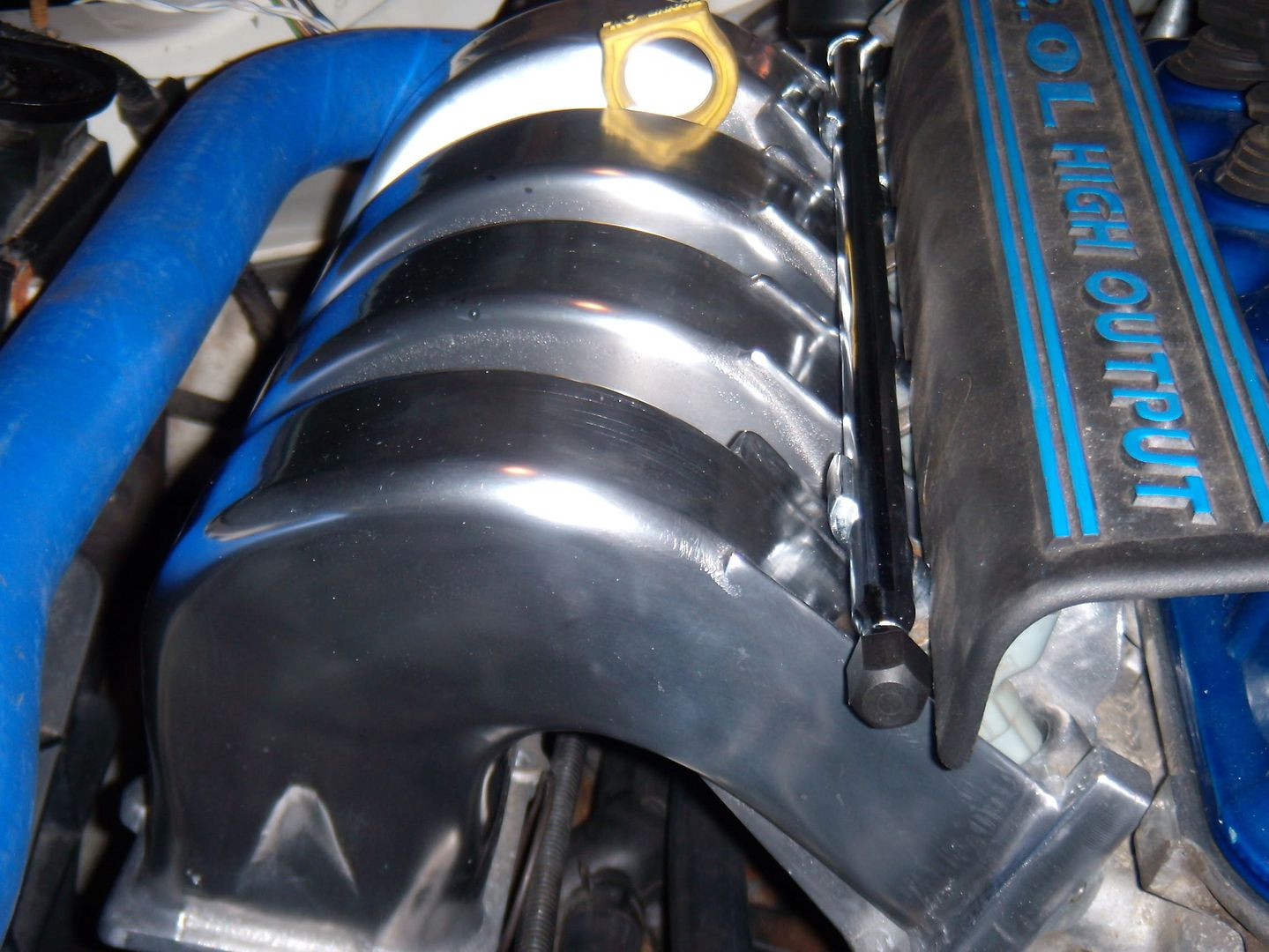

This is the best pic I could find of the room that exists with the single fan. The second fan will be close.
If I could just figure out how to meld the Outback and the Neon into one car...


occasional demons
Junior Admin
Posts: 19911
Joined: Thu May 03, 2007 12:14 pm
Location: Ashland Ohio

Post by occasional demons » Tue Mar 16, 2010 3:17 pm

Danteneon wrote:
occasional demons wrote:Don't SRTs have upper/lower tanks like the regular neons?
:scratch: Huh?

The radiator (for both SRT and non) consists of the core itself and two end tanks on the side. The ATX has a copper tube type cooler mounted in the drivers side end tank. The MTX have no additional cooler in the tank.

Unless I misunderstood your question :tardbang:

Upper tank, lower tank that is what I'm talking about. :lol:


My understanding is that side tanks run parallel to the tubes (180º), upper/lower run perpendicular. (90º)
Bill
Probably shouldn't listen to anything your penis says, that guy's a dick.
Patience, of course, is a very powerful weapon, but sometimes I start to regret that it is not a firearm.
Too much time spent here is a sign of a bad case of Ownaneonvirus.

2000 Neon MTX swap with '02 R/T PCM
1999 neon coupe 2.4 swap

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Tue Mar 16, 2010 4:08 pm

:beatstick:

Goes to show that I've been working in service too long!

OK...subsitute the word "side" in my above posts with the words "top and bottom".

I was thinking of a totally different radiator style. My bad :(
If I could just figure out how to meld the Outback and the Neon into one car...


occasional demons
Junior Admin
Posts: 19911
Joined: Thu May 03, 2007 12:14 pm
Location: Ashland Ohio

Post by occasional demons » Tue Mar 16, 2010 9:44 pm

You were having a "Sundance moment" Those haz side tanks.

Judging from the comparison pic, I think there would be major clearance issues with the SRT fan shroud. That thing is massive.
Bill
Probably shouldn't listen to anything your penis says, that guy's a dick.
Patience, of course, is a very powerful weapon, but sometimes I start to regret that it is not a firearm.
Too much time spent here is a sign of a bad case of Ownaneonvirus.

2000 Neon MTX swap with '02 R/T PCM
1999 neon coupe 2.4 swap

Caraudioholic24
2GN Member
Posts: 4122
Joined: Sat Mar 22, 2008 1:56 am
Location: Cumberland R.I.

Post by Caraudioholic24 » Tue Mar 16, 2010 10:45 pm

yea i think if i do get it im gonna stick with mine. he told me they do mak a dual fan setup if i wanted to get adventurous. a pic is on ebay. im on my phone right now so i cant send a link.

User avatar
randomZERO
2GN Member
Posts: 873
Joined: Sun Dec 02, 2007 3:34 am
Location: Baltimore

Post by randomZERO » Wed Mar 17, 2010 6:52 pm

Not trying to thread jack but if the srt koyo rad fits in a 2gen will the srt rad hoses be the same too? I want the camo samco ones.


viewtopic.php?t=33260<<<<<Pics & Mods

User avatar
fixitmattman
2GN Member
Posts: 1930
Joined: Sun Jul 24, 2005 10:05 pm
Location: North York

Post by fixitmattman » Wed Mar 17, 2010 9:07 pm

For what it's worth, I've got a KOYO oe replacement rad (not the billet) in my 00, it has the built in oil cooler, not used in my case. Although I use single fans I don't believe the doubles are any thicker than the single. Clears the mag manifold just fine.
http://www.cardomain.com/profile/fixitmattman
How to fix your car:
1. Buy a Haynes manual
2. Read Haynes maual
3. Read and search appropriate threads, trust us, it's been covered before
4. Fix car
5. Consume beer of job well done

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Wed Mar 17, 2010 10:30 pm

randomZERO wrote:Not trying to thread jack but if the srt koyo rad fits in a 2gen will the srt rad hoses be the same too? I want the camo samco ones.
The difference in the upper hose is at the thermostat housing. The bend in the hose at that end is why they wont work.
If I could just figure out how to meld the Outback and the Neon into one car...


User avatar
randomZERO
2GN Member
Posts: 873
Joined: Sun Dec 02, 2007 3:34 am
Location: Baltimore

Post by randomZERO » Wed Mar 17, 2010 10:34 pm

Your blue hoses, are they obx?


viewtopic.php?t=33260<<<<<Pics & Mods

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Wed Mar 17, 2010 10:45 pm

Nope, they are the Gates hoses.
If I could just figure out how to meld the Outback and the Neon into one car...


User avatar
randomZERO
2GN Member
Posts: 873
Joined: Sun Dec 02, 2007 3:34 am
Location: Baltimore

Post by randomZERO » Wed Mar 17, 2010 10:56 pm

I'm gonna try the red obx hoses when I get around to flushing the system since the samco ones won't work.


viewtopic.php?t=33260<<<<<Pics & Mods

Caraudioholic24
2GN Member
Posts: 4122
Joined: Sat Mar 22, 2008 1:56 am
Location: Cumberland R.I.

Post by Caraudioholic24 » Thu Mar 18, 2010 1:34 am

Yea man let me know. I just found a set of black ones on ebay and they are for A/C **SWEET**

User avatar
randomZERO
2GN Member
Posts: 873
Joined: Sun Dec 02, 2007 3:34 am
Location: Baltimore

Post by randomZERO » Thu Mar 18, 2010 2:53 am

Caraudioholic24 wrote:Yea man let me know. I just found a set of black ones on ebay and they are for A/C **SWEET**
AC?


viewtopic.php?t=33260<<<<<Pics & Mods

Caraudioholic24
2GN Member
Posts: 4122
Joined: Sat Mar 22, 2008 1:56 am
Location: Cumberland R.I.

Post by Caraudioholic24 » Thu Mar 18, 2010 3:09 am

yea apparently they make a st for a/c 9air conditioning) and a set w/o a/c. The ones with a/c are harder to find.

User avatar
randomZERO
2GN Member
Posts: 873
Joined: Sun Dec 02, 2007 3:34 am
Location: Baltimore

Post by randomZERO » Thu Mar 18, 2010 3:13 am

I am either a noob or am just baffled. I dont understand why ac and no ac would matter.


viewtopic.php?t=33260<<<<<Pics & Mods

Caraudioholic24
2GN Member
Posts: 4122
Joined: Sat Mar 22, 2008 1:56 am
Location: Cumberland R.I.

Post by Caraudioholic24 » Thu Mar 18, 2010 3:20 am

Im not totally sure. I would say judging from the pics that the lower hoses are different. ones with ac have a sharper curve than the non.

one with
http://cgi.ebay.com/ebaymotors/ws/eBayI ... gory=33601

w/o
http://cgi.ebay.com/ebaymotors/ws/eBayI ... gory=33601
