Looping heater core question.

Post by titansxt » Thu Apr 24, 2014 8:29 pm

I've gotta do this to get my car running again. Who here has done this and what size pipe/tube/whatever did you use? I'm unfamiliar with what the ID of our heater lines are.

Is it also just as simple as cutting the lines and installing a loop or is there more involved?
2003 SXT
2005 SRT-4
2gn.org member #26 :tard:
Lemon Neon member #1.
Any or all of the above statement(s) may be entirely fictional and a fabrication. :lol:
ram50rocket wrote: I must had been mistaken in thinking that NEONS.ORG was just for neons.

occasional demons
Junior Admin
Posts: 19398
Joined: Thu May 03, 2007 12:14 pm
Location: Ashland Ohio

Post by occasional demons » Thu Apr 24, 2014 9:15 pm

Chris04sxt wrote:No U bends in copper at Lowes so I had to improvise.

It certainly ain't the prettiest thing, but it will get me by for the week.


Thanks again Occasional Demons (what is your name anyways?) and Frank for all of your quick responses.
Looks like 1/2" tube. Or you could get a section of preformed heater hose that makes a 180º. Regular straight hose will just kink.
Bill
dblsg wrote:ya'll a bunch of post whores
epic

2001 Neon ES MTX with '02 R/T PCM
Help support 2GN!

titansxt
2GN Member
Posts: 2848
Joined: Wed May 12, 2004 11:24 am
Location: IL

Post by titansxt » Fri Apr 25, 2014 1:33 am

Thanks again. For others who might see this, it is best to make the bend(s) as wide as possible to keep the coolant flowing smoothly at all engine speeds.
2003 SXT
2005 SRT-4
2gn.org member #26 :tard:
Lemon Neon member #1.
Any or all of the above statement(s) may be entirely fictional and a fabrication. :lol:
ram50rocket wrote: I must had been mistaken in thinking that NEONS.ORG was just for neons.

FAC3L3SS
2GN Veteran
Posts: 6517
Joined: Thu Apr 12, 2007 8:58 pm
Location: NIN

Post by FAC3L3SS » Fri Apr 25, 2014 7:42 am

This is nearly identical to what sidepipe and I did to "fix" my heater core problem. Couple 90s soldered up and painted black.

I've had 0 coolant loss since, no leaks, and my two bends don't have that spacer in it. It's just two 90s. Works like a charm :thumbup: until next winter I suppose...

I can get pictures if anyone needs to see another version of what OD posted.
el. oh. el.

occasional demons
Junior Admin
Posts: 19398
Joined: Thu May 03, 2007 12:14 pm
Location: Ashland Ohio

Post by occasional demons » Fri Apr 25, 2014 9:41 am

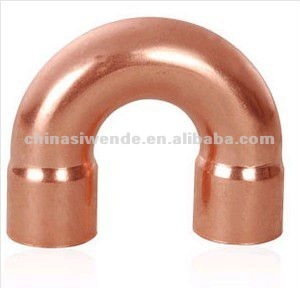

If you can find one...

Bill
dblsg wrote:ya'll a bunch of post whores
epic

2001 Neon ES MTX with '02 R/T PCM
Help support 2GN!

FAC3L3SS
2GN Veteran
Posts: 6517
Joined: Thu Apr 12, 2007 8:58 pm
Location: NIN

Post by FAC3L3SS » Fri Apr 25, 2014 2:36 pm

^ ideal! Thankfully someone had recently re-plumbed their wash closet and spare plumbing parts lying around.

Heh. Parts made from Elkhart, IN, lying around in Pittsburgh just for me to drive from Elkhart and use them.
el. oh. el.

User avatar
sidepipe87
2009 Silver Contributor
Posts: 9491
Joined: Fri May 30, 2008 5:35 pm
Location: Pittsburgh, PA
Contact:

Post by sidepipe87 » Fri Apr 25, 2014 7:01 pm

Nibco ftw!
