Just a little update...MOAR to come!!!!!!!

superdan · Post by **superdan** » Sun Jun 28, 2009 8:58 pm

Ryan came down yesterday around 11am and we worked until about that time lastnight. We installed the new console he gave since mine had a stupid switch cut into the console right by the e-brake. Then we tucked my ipod wire underneath the consol and installed my booger bushings.
Then we went a head and put my front lip on. Got that on and reinstalled the bumper. Took my battery tray out start sand blasting it and install the rest of the boogers. After that we started installing my rear lip. And as you can see we made a little modification to it

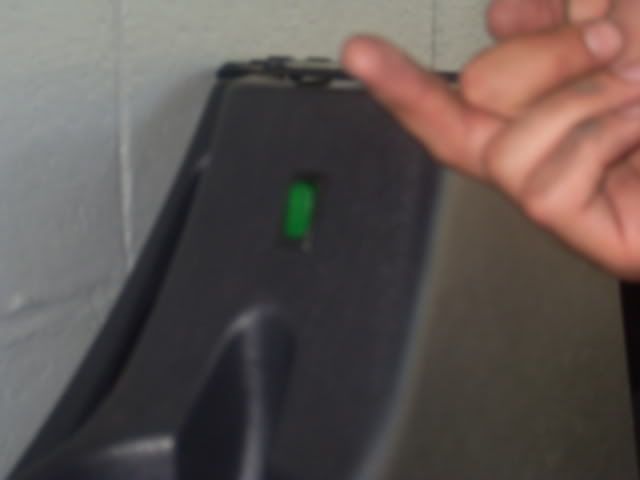

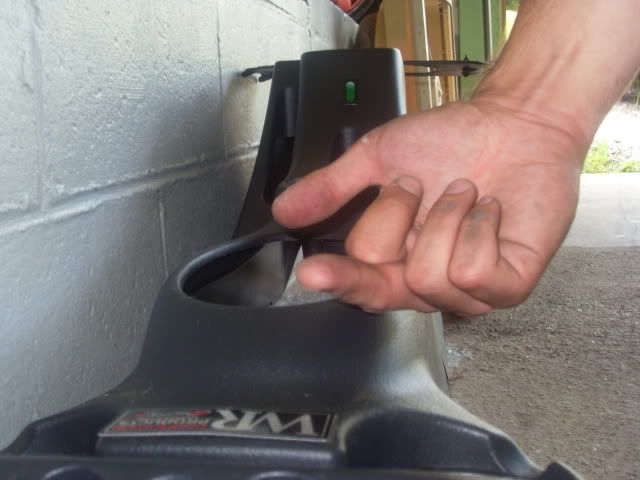

Old console with the stupid worthless (to me) switch.

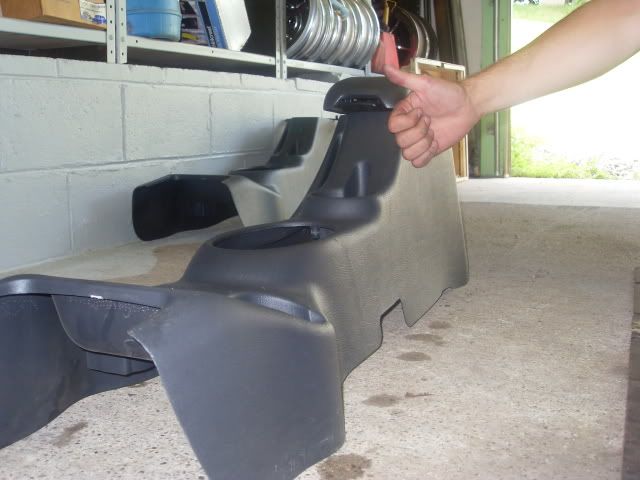

New console

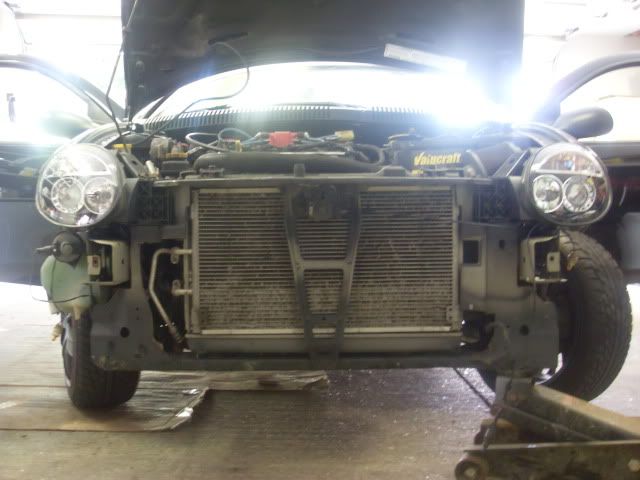

No crash bar lol dont ask it was already done when i bought the car lol

Anyone know what this is for?

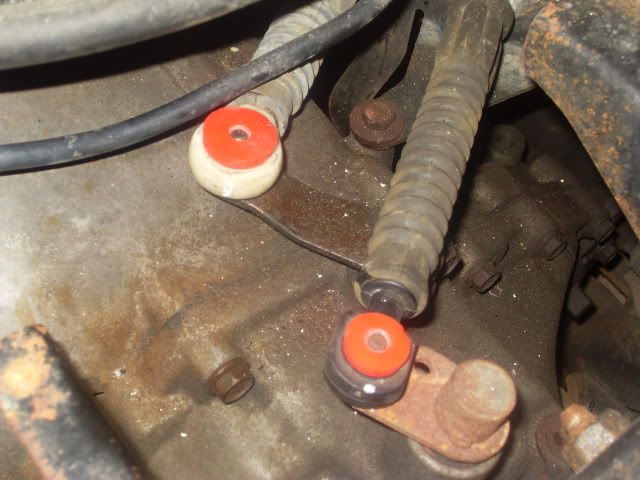

Boogers. Yes i know my tranny is dirty alone with everything else in the engine bay. Lets just say it would be better to leave my hood closed at carlisle lol

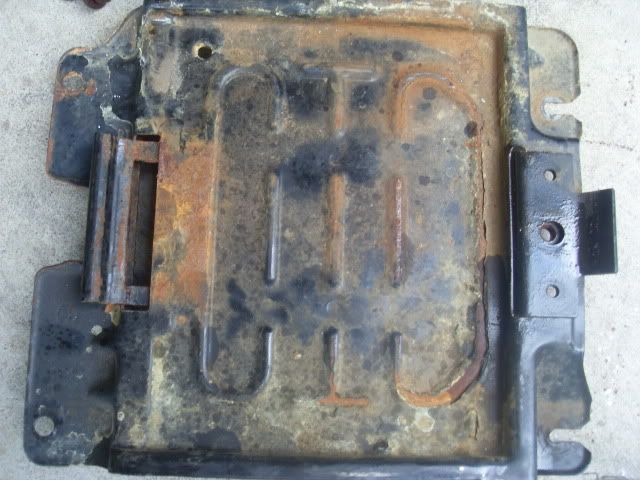

(before blasting) Nasty rusted battery tray. Didnt get a chance to finish blasting it.

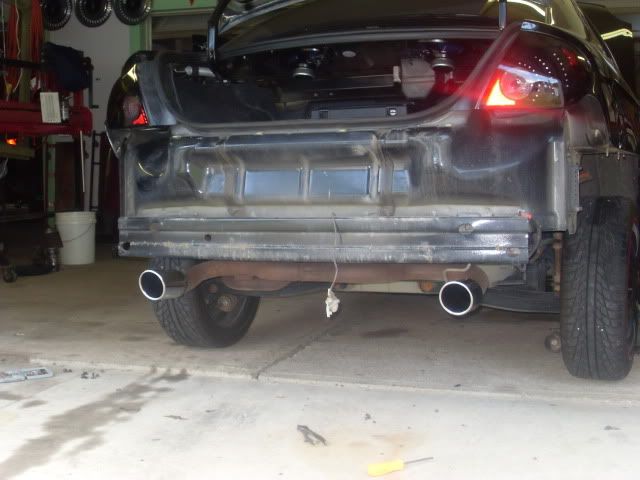

Almost finished product. I couldnt find any holes underneath to zip tie the center so we may end up just cutting it off. Am i crazy for cutting a lip kit? Probably lol

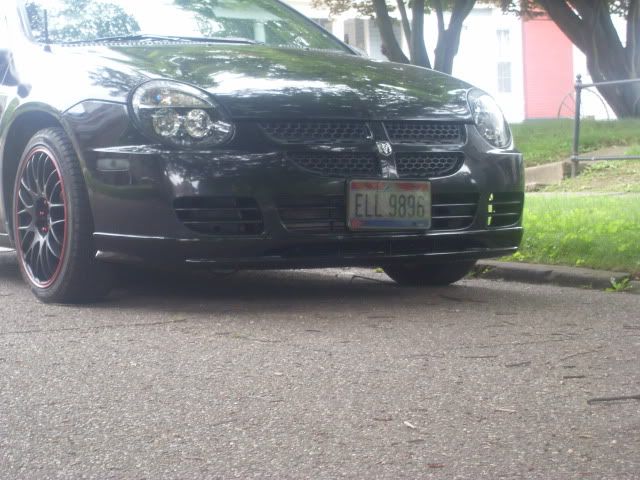

Front. 3m tape wasnt used since i am getting a foglight bumper painted as we speak. It just may not be on for carlisle. We'll see though.

comments welcome. yes i know my car needs a good buff among other TLC. Its still a work in progress. Thanks for looking guys and gals

LilSparkPlug · Post by **LilSparkPlug** » Sun Jun 28, 2009 9:02 pm

That sensor is your AAT (ambient air temperature sensor) on neons it should be located on the driver's side underneath the radiator away from the engine so it gets the most accurate outside air reading.

superdan · Post by **superdan** » Sun Jun 28, 2009 9:04 pm

So it doesnt plug into anything or does it? lol its been dangeling every since i have owened the car

LilSparkPlug · Post by **LilSparkPlug** » Sun Jun 28, 2009 9:06 pm

On the SRT it plugs into the first half of the air inlet tube before it meets the air box. According to the diagram I saw the other night, yours should just sit near the bottom of the radiator. One of the guys with a 2.0L can chime in better since I've never actually witnessed that. But it is your AAT.

superdan · Post by **superdan** » Sun Jun 28, 2009 9:23 pm

ok cool thanks lol you told me more about it than i knew

sidepipe87 · Post by **sidepipe87** » Sun Jun 28, 2009 9:33 pm

LilSparkPlug wrote:That sensor is your AAT (ambient air temperature sensor) on neons it should be located on the driver's side underneath the radiator away from the engine so it gets the most accurate outside air reading.

So it's the same sensor as an IAT? I thought, hmmmm this looks like an IAT so I pulled the one out of his intake and they both looked identical. I couldn't figure out why he had two. The other reason I thought it was weird is because I found the fog light socket on the pass side but where I thought it was on the drivers side I found that sensor. odd.

As for the rear lip... I think we're cutting it off. When I was driving behind him it looked like poo hanging down.

We also found some bonus wiring under the carpet which went through a hole in the firewall... We looked on the other side and found a black box labeled Innovate Motorsports lambda cable plugged into the 02 sensor... looks like he has a wideband 02 sensor.

Dan, you keep spelling console wrong!

neon2ner · Post by **neon2ner** » Sun Jun 28, 2009 9:52 pm

that rolled mopar lip would look sick with a diffuser stuck in there, you should try and fab one up. it looks like it's begging for one!

looks good.

scott.

superdan · Post by **superdan** » Sun Jun 28, 2009 9:56 pm

sidepipe87 wrote:We also found some bonus wiring under the carpet which went through a hole in the firewall... We looked on the other side and found a black box labeled Innovate Motorsports lambda cable plugged into the 02 sensor... looks like he has a wideband 02 sensor.

Oh yeah totally forgot about that lol

sidepipe87 wrote:Dan, you keep spelling console wrong!

i told you my "E" button doesnt work very well lol i have to pretty much punch it for it to work lol Fixed it though

sidepipe87 · Post by **sidepipe87** » Sun Jun 28, 2009 11:06 pm

hmmm.... that diffuser idea isn't a bad one...

we'll have to look into that at some point when we have time

superdan · Post by **superdan** » Sun Jun 28, 2009 11:37 pm

yeah its really not a bad idea. Would want to use the lightess metal possible without it looking like its waving when im driving lol.

measy27 · Post by **measy27** » Mon Jun 29, 2009 2:07 am

sidepipe87 wrote:
LilSparkPlug wrote:That sensor is your AAT (ambient air temperature sensor) on neons it should be located on the driver's side underneath the radiator away from the engine so it gets the most accurate outside air reading.
So it's the same sensor as an AIT? I thought, hmmmm this looks like an IAT so I pulled the one out of his intake and they both looked identical. I couldn't figure out why he had two. The other reason I thought it was weird is because I found the fog light socket on the pass side but where I thought it was on the drivers side I found that sensor. odd.

As for the rear lip... I think we're cutting it off. When I was driving behind him it looked like poo hanging down.

We also found some bonus wiring under the carpet which went through a hole in the firewall... We looked on the other side and found a black box labeled Innovate Motorsports lambda cable plugged into the 02 sensor... looks like he has a wideband 02 sensor.

Dan, you keep spelling console wrong!

I dont know how they are on 2.0s, but on SRT's, the AIT sensor looks was different than the AAT. Our AIT plugs into the Intercooler pipe where as the AAT plugs into the Intake tube.

sidepipe87 · Post by **sidepipe87** » Mon Jun 29, 2009 10:35 am

well the sensor I pulled from the intake (IAT) looked identical to this other one we found. same shape, same connector.

We also discovered Dan has SRT struts and some sort of orange lowering springs that don't give much of a drop.

LilSparkPlug · Post by **LilSparkPlug** » Mon Jun 29, 2009 10:43 am

You guys are using ALL of the wrong abbreviations.

AAT = Ambient Air Temp sensor
IAT - Inlet/Intake Air Temp sensor

Here are the locations of both sensors for the 2.0L motor

sidepipe87 · Post by **sidepipe87** » Mon Jun 29, 2009 11:05 am

Sorry. fixed the typo, mom. Air Intake Temp, Intake Air Temp. Meh, means the same thing

Thanks for the schematics. If it's broken we'll zip tie it to the rad support so it's not dangling

LilSparkPlug · Post by **LilSparkPlug** » Mon Jun 29, 2009 11:07 am

Well it just gets confusing when three people are using three different abbreviations for the same sensor LOL. Clarifying it will help you guys figure out exactly what you're looking at.

I just use Chrysler's abbreviations since I find it easier.

sidepipe87 · Post by **sidepipe87** » Mon Jun 29, 2009 11:08 am

I'm just being an ass

superdan · Post by **superdan** » Mon Jun 29, 2009 11:09 am

haha yeah it was getting really damn confusing....

*slowly steps backwards then runs away*

sidepipe87 · Post by **sidepipe87** » Mon Jun 29, 2009 11:09 am

^shut up Dan! I'll whoop your ass!

Dylan-00Blue · Post by **Dylan-00Blue** » Mon Jun 29, 2009 11:12 am

the sensor is only meant for the stock intake system it dangles after you switch to a cai

superdan · Post by **superdan** » Mon Jun 29, 2009 11:12 am

bitch.....my neighborhood would beat the shit out of yours anyday

sidepipe87 · Post by **sidepipe87** » Mon Jun 29, 2009 11:13 am

Dylan-00Blue wrote:the sensor is only meant for the stock intake system it dangles after you switch to a cai

Well I think you're talking about the top one IAT, not the lower one. And that's not true. Most intakes have provisions for it. Mine does

no way soon... I live in the ghetto.

Get off the internet and call up Innovate about getting t00n software!

superdan · Post by **superdan** » Mon Jun 29, 2009 1:39 pm

im talking to the guys at Tenzo as we speek about my center caps....then i will call innovate

sidepipe87 · Post by **sidepipe87** » Mon Jun 29, 2009 2:08 pm

they ain't goin do sheet bout them. we're gonna have to modify them I'll bet. If they replace them, that'd be awesome but I doubt they have deeper ones

LilSparkPlug · Post by **LilSparkPlug** » Mon Jun 29, 2009 5:17 pm

LOL at you two having a convo in this thread! And yeah...the AAT is never in the intake on a 2.0L. More confusion!

So you have a wideband 02 sensor in the exhaust?

superdan · Post by **superdan** » Mon Jun 29, 2009 5:21 pm

sidepipe87 wrote:they ain't goin do sheet bout them. we're gonna have to modify them I'll bet. If they replace them, that'd be awesome but I doubt they have deeper ones

Tenzo said they would send one to me but first i had to call wheelsnext and tell them so they would call Tenzo and Tenzo would directly ship them to me...lol but of course wheelsnet had me on hold for 15min so i just hung up lol

lilsparkplug wrote:LOL at you two having a convo in this thread! And yeah...the AAT is never in the intake on a 2.0L. More confusion!

So you have a wideband 02 sensor in the exhaust?

yeah its in the exhaust mani

sidepipe87 · Post by **sidepipe87** » Mon Jun 29, 2009 5:31 pm

Sweet. Did you explain to them that they aren't deep enough? (that's what she said) Hopefully they sent some that will fit.

Yeah, it appears as though he has got a wideband 02. At least all indications would point to that.

superdan · Post by **superdan** » Mon Jun 29, 2009 5:33 pm

sidepipe87 wrote:Sweet. Did you explain to them that they aren't deep enough? (that's what she said) Hopefully they sent some that will fit.

Yeah, it appears as though he has got a wideband 02. At least all indications would point to that.

yeah only difference is the new ones will be black instead of red which doesnt bother me really. and they didnt send them yet. im going to try and call wheelsnext again. if they dont answer im calling tenzo and giving them my info

ZeroChad · Post by **ZeroChad** » Mon Jun 29, 2009 5:43 pm

I hate rusty battery trays. I just redid mine too. Looking great man.

Well, the AAT sensor on a neon is just used for the temperature readout on the rearview mirror. It doesn't deal with the engine tuning at all. Heck, my car just has the connector, no sensor. It is the same type of sensor as the IAT.

sidepipe87 · Post by **sidepipe87** » Tue Jun 30, 2009 7:04 pm

^Yeah that's what I noticed. I took a pic of how mine is mounted to the core support

That's sweet. Will they send you all four, or just two? We should still try to mod those ones you have if they only send 2. I'm 99% sure it will work.

dblsg · Post by **dblsg** » Tue Jun 30, 2009 8:52 pm

Black IS the best color!
