Turbo pictures!
Posted: Thu Feb 09, 2006 4:15 pm
by Kevin_GP

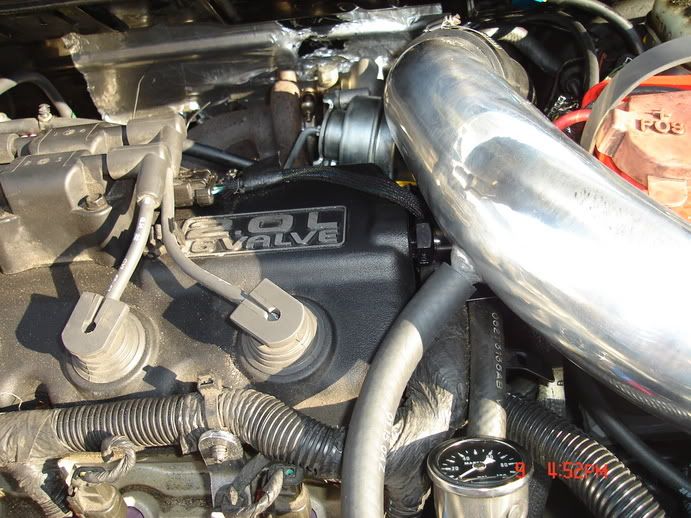

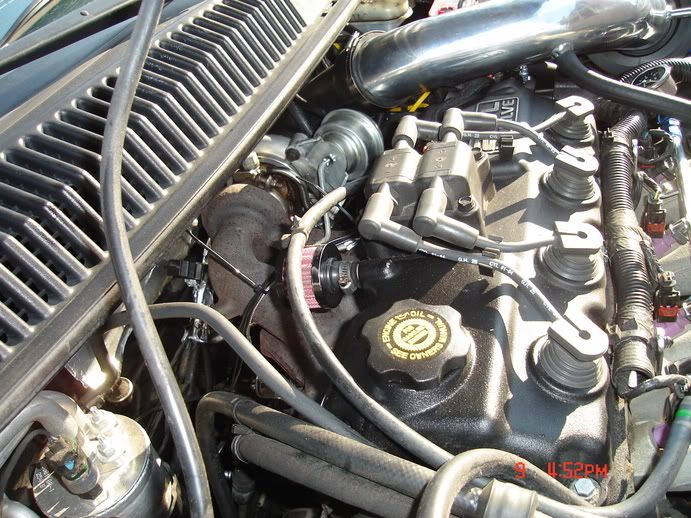

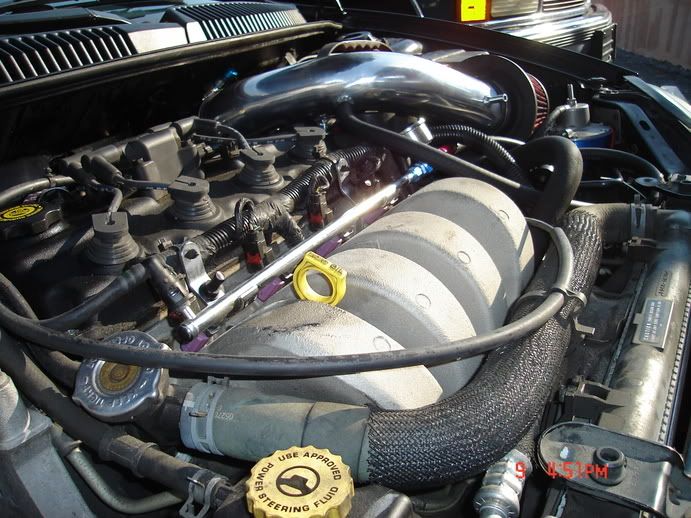

My engine is really dirty but I dont see a point in cleaning it. Function>Form. Also my vacuum lines are a mess right now, I will fix it when I find out where everything will end up.
Here is an outside shot in case you forgot what it looks like
Now for the mods....
SRT-4--- turbo/ wastegate / intercooler / hotside pipe / stage 0 injectors
Fuel system--- Vortech SFMU / Spoolboy mod with -6 return/ -6 feed / drilled out stock fuel rail / Jegs fuel pressure gauge
Intercooler---- Custom mandral 90 from hotside to intercooler / Custom mandral cold side pipe / Turbo XS RFL BOV
Exhaust--- Stock SRT-4 02 pipe / Ebay 3 inch catless down pipe / 2.5 trubendz exhaust

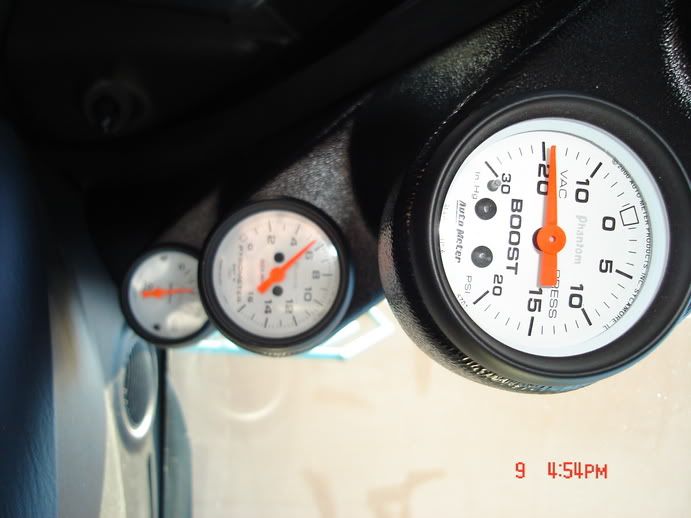

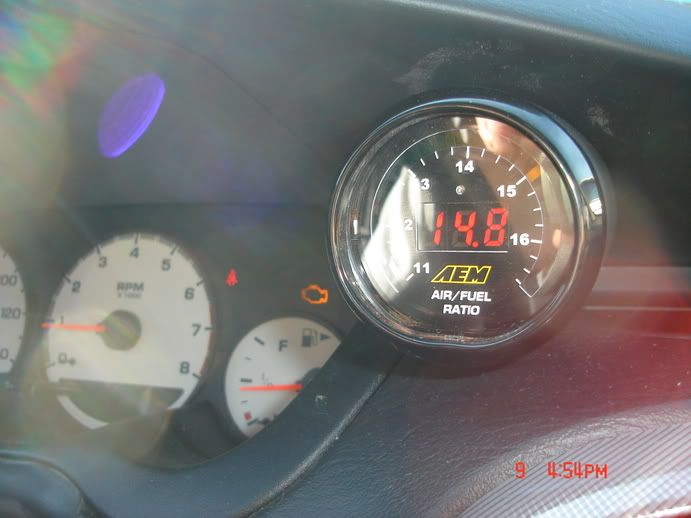

Gauges--- AEM wideband / Autometer phantom EGT, Boost, Oil pressure
Misc---- Turbo XS manual boost controller / Missing link / Ebay POS intake
Still need to install my clutch. Thats pretty much it.
Posted: Thu Feb 09, 2006 5:24 pm
by Louie
car looks nice, engine bay is cluttered tho
nice
Posted: Thu Feb 09, 2006 5:34 pm
by KrackstaR
looks hot emmm!
Posted: Thu Feb 09, 2006 5:37 pm
by dominiaa
very nice, I'd like to see a video
Posted: Thu Feb 09, 2006 5:41 pm
by quicksilvr
Nicely done! Like you said, it's a bit messy, but if it runs, then that's what really matters.
Did you just make your custom hotside and coldside pipes from aluminum? Can a hotside pipe even be made of aluminum? My brother is going to be doing pretty much the same setup, with but with slightly different fuel setup, and a head shim. Also, what again is "Missing Link"? A MAP clamp? Something like that?
Posted: Thu Feb 09, 2006 5:47 pm
by Louie
its a map sensor check valve. stops the map from seeing boost. mpx sells them
Posted: Thu Feb 09, 2006 5:53 pm
by Kevin_GP
Did you just make your custom hotside and coldside pipes from aluminum? Can a hotside pipe even be made of aluminum?
Well, I used part of the hotside pipe from a stock srt-4. It fits like crap and would not suggest you use it. I bought an aluminum 90 degree bend and had to do some hammering to get it to fit right. A plan 90 wont make the bend past the power steering pump (i think thats what was in the way). The cold side pipe is also aluminum and I had the muffler shop bend me up one. Now the problem with the cold side pipe is that you cannot make the bend in the stock TB location. I bought a sillicone 90 and cut it down to make it fit. I will fix the cluttered engine by moving the battery to the trunk, my next task.
Posted: Thu Feb 09, 2006 6:12 pm
by grambo
congrats on BOOST! Hooray for you.
Posted: Thu Feb 09, 2006 6:15 pm
by J-Villa
what code are you throwing?
Posted: Thu Feb 09, 2006 6:36 pm
by Kevin_GP
Well I know I have a code for not having a cat, and another for my underdrive pulley. Not sure about the other ones.
Posted: Thu Feb 09, 2006 7:50 pm
by 03sxt
Wow, does the hood close with that intake?!
Pics look nice, man! I'll only be able to hear the blow off under the hood of my car in distant dreams while I sleep.
Posted: Thu Feb 09, 2006 10:12 pm
by kirktalife
awsome forsure, good job man wish i could do that to mine, its nice to dream.
Posted: Thu Feb 09, 2006 10:51 pm
by apk2k6
How much did all of that cost you? I'm trying to get an estimate
Posted: Fri Feb 10, 2006 4:59 pm
by rt_neon04
ur checkin engine light is on...lol
Posted: Sun Feb 12, 2006 1:21 pm
by Kevin_GP
How much did all of that cost you? I'm trying to get an estimate
Between 2000 and 2500, im not sure the exact amount. There are alot of things I could have skimped on to save cost but I dont think its worth it to cut corners. If you do turbo you will have enough problems as it is, theres no point in buying cheap stuff to make it worst. I know alot of people say it but all the cost is in the little things.
Wow, does the hood close with that intake?!
Pics look nice, man! I'll only be able to hear the blow off under the hood of my car in distant dreams while I sleep.
Heh, barely, the intake is going to come off till I move my heater hoses, my car sounds like a snake now
