fog switch problems

Fuzzyneon · Post by **Fuzzyneon** » Fri Oct 24, 2008 2:26 pm

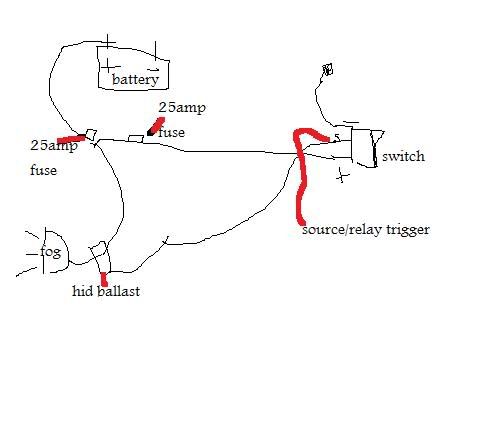

thats how its wired i keep popping the fuses i cannot figure it out its very fustrating anyone have a better look at this mabe something im missing?

Danteneon · Post by **Danteneon** » Fri Oct 24, 2008 2:56 pm

It looks like you are pulling power off the battery with a 25a fuse directly to the ballast, and you have the switch hooked to the ground of the fogs? If so, you are trying to send power to the ground side of the fogs. Unless I'm missing something

Themaggots · Post by **Themaggots** » Fri Oct 24, 2008 3:05 pm

I won't get in the details about how a relay works but the Switch in the car simply acts as a contact to "tell" the relay to let the current through. So I think what happened with your wiring is that you were getting "Positive" current twice to your ballast.

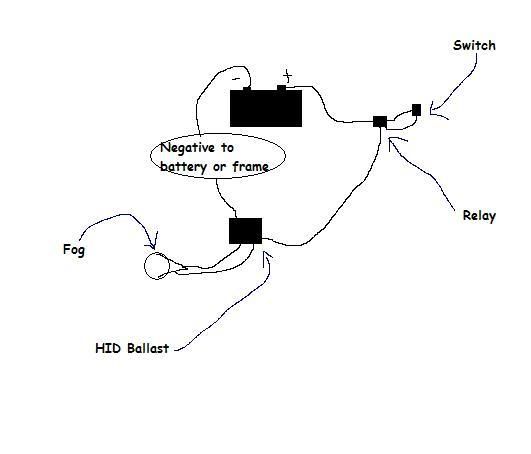

My picture is how I'd wire it up, missing the Fuse but yeah, you should get the basic idea.

Fuzzyneon · Post by **Fuzzyneon** » Fri Oct 24, 2008 3:21 pm

i have the relay grounded and i have the switch powered with the fused side of the power to the switch i had no issues before i tried a switch i just had it wired to my parking lights but i have keyless and didnt want my fogs blinking. every since i wired my switch i been have fuse issues
