where is the blower motor resistor... asap need for safety

sullivan · Post by **sullivan** » Mon Oct 27, 2008 3:27 pm

hey so i tested my blower motor, and i got the new resistor.... but where exactly is it located?

Danteneon · Post by **Danteneon** » Mon Oct 27, 2008 4:29 pm

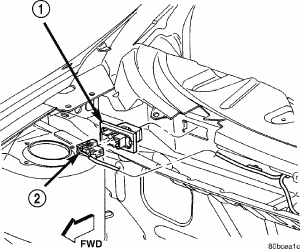

Here you go...

sullivan · Post by **sullivan** » Mon Oct 27, 2008 6:31 pm

i love you... in a non homo way!

sullivan · Post by **sullivan** » Tue Oct 28, 2008 11:04 am

ok. well i got the new resistor in... still no beans... is there a way to test the controls?

Danteneon · Post by **Danteneon** » Tue Oct 28, 2008 11:26 am

How did you test the blower motor? Was it getting power? If so, the resistor wouldn't be bad. If power is going to the motor and it doesn't work, the motor is bad. If it is getting power, is power going to the resistor? If not keep going upstream till you find the culprit.

The last thing you want to do is keep throwing parts at it. That gets expensive

Post by **occasional demons** » Tue Oct 28, 2008 11:30 am

If I get a chance tonight I'll try to scan the e diagram for it.

Danteneon · Post by **Danteneon** » Tue Oct 28, 2008 11:47 am

Damn, I'm a

sometimes...

Thanks OD, what would I do without you

sullivan · Post by **sullivan** » Tue Oct 28, 2008 4:27 pm

ok heres what i did in order-
1) checked all fuses (cabin and under hood)
2) checked Blower motor( hooked it up to 12 volt supply)
3) replaced Resistor
4) still no heat!

Danteneon · Post by **Danteneon** » Tue Oct 28, 2008 5:10 pm

Hmmm, let's back up a bit.

When you say you have no heat, do you mean the blower works but it doesn't blow warm?

When you gave the blower motor 12 volts, did it blow? And if so was the air warm? If not, was the car to operating temperature?

I'm trying to find out if this is just a no blower problem or a no heat problem.

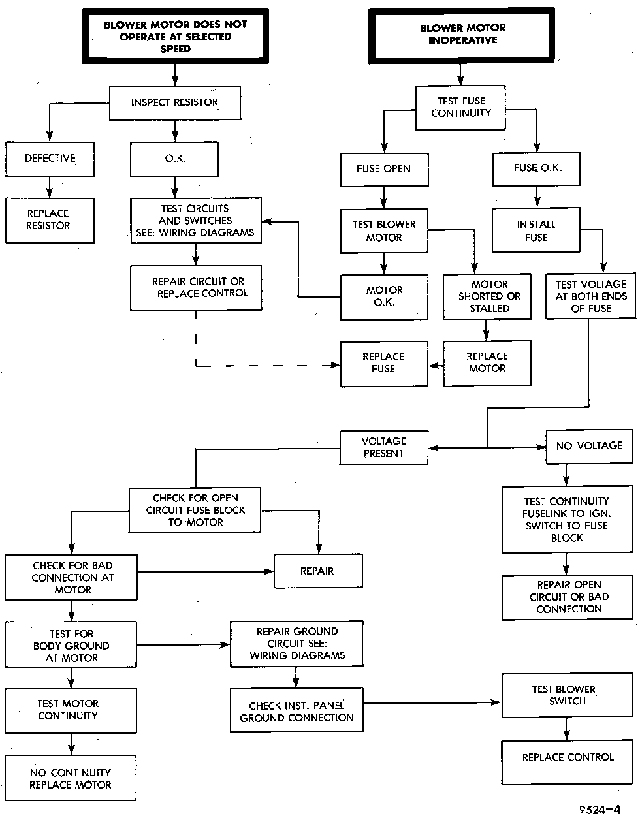

Did the above flow chart make sense to you?

sullivan · Post by **sullivan** » Tue Oct 28, 2008 9:23 pm

ok Basically when i bought the car 2 weeks ago the entire ac/heat system worked flawless... then one day it stopped working( no heat no air no matter how i set it it wouldnt work. so i checked the blower, it worked fine( still works fine) replaced the resistor. and now im thinking its the actual controls. because if checked all the fuses.

Danteneon · Post by **Danteneon** » Wed Oct 29, 2008 9:41 am

sullivan wrote:ok Basically when i bought the car 2 weeks ago the entire ac/heat system worked flawless... then one day it stopped working( no heat no air no matter how i set it it wouldnt work. so i checked the blower, it worked fine( still works fine) replaced the resistor. and now im thinking its the actual controls. because if checked all the fuses.

When you say it worked fine and still works fine, do you mean when you put power to it yourself only?

sullivan · Post by **sullivan** » Wed Oct 29, 2008 11:04 am

i tested the blower motor with a seperate 12v source...... if that makes sense

Danteneon · Post by **Danteneon** » Wed Oct 29, 2008 11:28 am

It does. So now you have to follow the flow chart to find out what component is bad. I would be very surprised if the control head was bad.

sullivan · Post by **sullivan** » Wed Oct 29, 2008 11:37 am

ok thanx again for all the help. ill fallow the chart after school

sullivan · Post by **sullivan** » Wed Oct 29, 2008 12:26 pm

ok checked a few things... no power getting to fuse 6 (blower motor) in the cabin

Post by **occasional demons** » Wed Oct 29, 2008 12:43 pm

Fuse #6, #7, and #8 all get power from the same wire. A22 12 BK/OR Connecter C1, position 8 from the run positon on the ignition switch. Should be a 12 gauge black w/orange tracer. If you have power to 7 and 8, there may be something defective in the #6 fuse connection.
Edit:
You have yahoo mail.
If my pc here ever finishes attaching. If not it will be later from home.

sullivan · Post by **sullivan** » Wed Oct 29, 2008 2:32 pm

haha thanks... now if i could only remember my yahoo password

sullivan · Post by **sullivan** » Wed Oct 29, 2008 8:12 pm

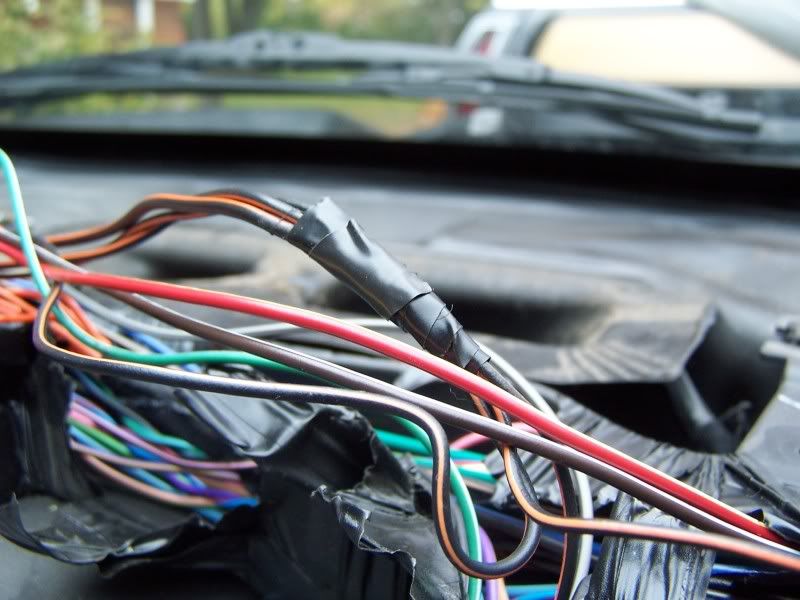

ok so i ended up fallowing the wire, and found the wire had came unsoldered... so i recconected and taped it up thanks for all the help everyone

Post by **occasional demons** » Thu Oct 30, 2008 7:21 am

Nothing like burying it under the dash cover!

Danteneon · Post by **Danteneon** » Thu Oct 30, 2008 9:18 am

Yay! Glad to hear you have heat again
