pinouts

Questions about AMPs, headunits, speakers, subs, security systems, ect... Anything to do with audio or security, those questions all go here.
Post Reply
User avatar
vincer20
2GN Member
Posts: 125
Joined: Sat Jul 05, 2008 4:47 pm

pinouts

Post by vincer20 » Tue Nov 30, 2010 8:53 pm

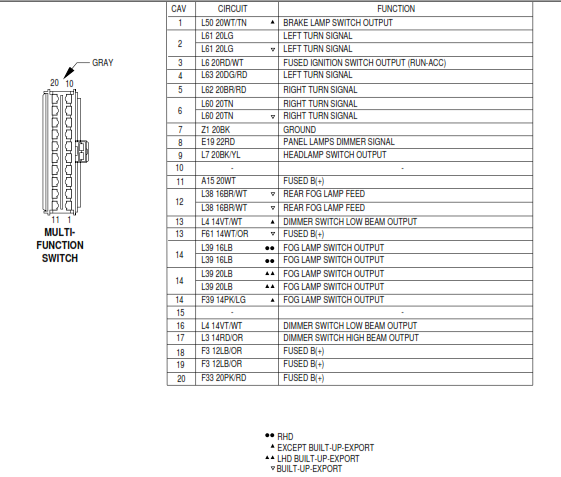

does anyone have the pinout for the ignition switch and mfs?
Top
ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:
Contact ZeroChad

Post by ZeroChad » Wed Dec 01, 2010 1:49 am

Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)
Top
User avatar
vincer20
2GN Member
Posts: 125
Joined: Sat Jul 05, 2008 4:47 pm

Post by vincer20 » Wed Dec 01, 2010 7:54 am

sweet. btw where do you get these at.
Top
ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:
Contact ZeroChad

Post by ZeroChad » Wed Dec 01, 2010 7:39 pm

Its from the Full Service Manual. You can find them on ebay now and then, or through a 'digital' download.
Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)
Top
Jenni
2GN Member
Posts: 2499
Joined: Tue Aug 23, 2005 1:33 pm
Location: Berlin, Germany

Post by Jenni » Thu Dec 02, 2010 5:53 am

subscribe to the german board and you can download all from the how-to section
www.neonowners.de
Top
User avatar
vincer20
2GN Member
Posts: 125
Joined: Sat Jul 05, 2008 4:47 pm

Post by vincer20 » Thu Dec 02, 2010 8:01 am

thx guys
