compass/temp mirror intallation help

Post by IMChampion » Wed Apr 04, 2012 8:42 pm

Hi,

I'm got a compass/temp miroor from an 2001 RT that I want to install on my 2004 neon...

With this thread I fond where get signal for 6 of 8 wire that I have to run to the mirror...

The 2 wires that I don't know where to plug are "Ambien temperature sensor signal" and "Sensor ground" I know that the sensor is present on 2003 + because NGC computer need it, my question is, do you lnow if this signal is somewher on the dash? Do I have to splice wire and connect them directly on wire near the sensor on the front bumber?

Thank you for your help!!
IMChampion

96' SOHC MTX, 2 doors
14.910 @ 93.22 MPH at 1/4
Sold

2004 Dodge SX 2.0 E-Blue
16.559 @ 83.54 MPH at 1/4
Slow

User avatar
sidepipe87
2009 Silver Contributor
Posts: 9491
Joined: Fri May 30, 2008 5:35 pm
Location: Pittsburgh, PA
Contact:

Post by sidepipe87 » Thu Apr 05, 2012 7:48 am

Good thread. Im trying to add a gentex compass/temp mirror and need to know this as well
PM me for your 03+ PCM SKIM/VIN flashing needs. Neon PCMs Plus

IMChampion
n00b
Posts: 19
Joined: Sun Jan 15, 2006 11:24 am

Post by IMChampion » Thu Apr 05, 2012 11:07 am

Oups, I forgot to paste le link of the thread I was talking about yesterday:

viewtopic.php?t=48796&highlight=temp+compass+pinout
IMChampion

96' SOHC MTX, 2 doors
14.910 @ 93.22 MPH at 1/4
Sold

2004 Dodge SX 2.0 E-Blue
16.559 @ 83.54 MPH at 1/4
Slow

Hudson_Neon
2GN Member
Posts: 3371
Joined: Wed Mar 14, 2007 4:50 pm

Post by Hudson_Neon » Thu Apr 05, 2012 1:35 pm

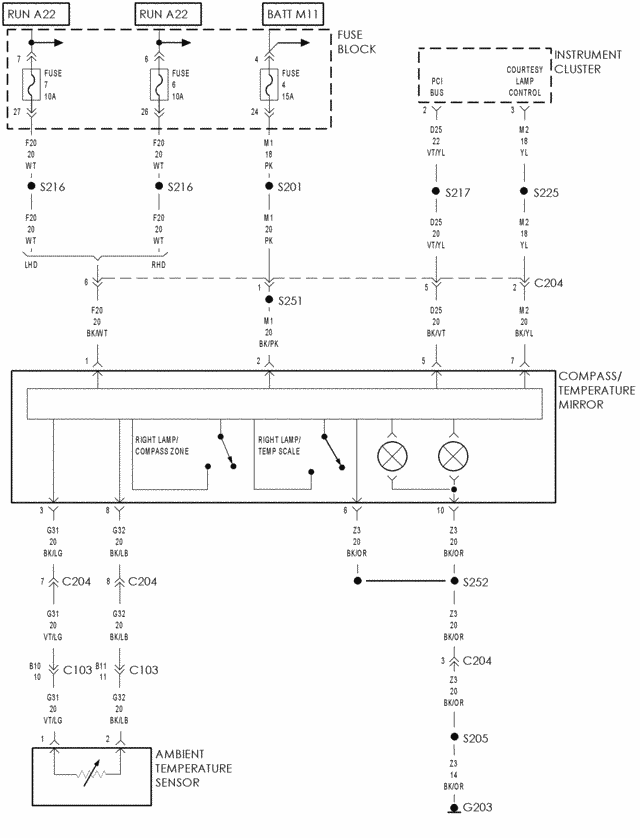

i'm gonna bank on that those wires won't be under the dash. but all you have to do is run the wires from the sensor into the car. here's the wiring diagram for the ambient air temp sensor
that s113 splice does share a sensor ground with the clock spring, but i wouldn't risk messing around with that. other than that, the wires go straight to the PCM, so they're probably not super long

User avatar
sidepipe87
2009 Silver Contributor
Posts: 9491
Joined: Fri May 30, 2008 5:35 pm
Location: Pittsburgh, PA
Contact:

Post by sidepipe87 » Thu Apr 05, 2012 1:47 pm

Actually, im fairly certain they are in the car... i think its plug and play if you have the harness that runs from the dash, up the pillar and to the mirror. Caraudioholic should know

IMChampion
n00b
Posts: 19
Joined: Sun Jan 15, 2006 11:24 am

Post by IMChampion » Thu Apr 05, 2012 3:24 pm

Thanks all... Actually Caraudioholic is working for me on
PM!!

I think to an other solution.. I have an extra sensor on a box, do you think it will work if I fix it near the other ambient on the front of the car and wire it directly to the mirror?

Thank you

***** I will show you my diagram when all will be working!!
IMChampion

96' SOHC MTX, 2 doors
14.910 @ 93.22 MPH at 1/4
Sold

2004 Dodge SX 2.0 E-Blue
16.559 @ 83.54 MPH at 1/4
Slow

IMChampion
n00b
Posts: 19
Joined: Sun Jan 15, 2006 11:24 am

Post by IMChampion » Thu Apr 05, 2012 10:19 pm

I look in the repair manual tonight, I saw that the mirror get his data (ambient temp) from NGC Bus of the computer and I don't have connect ambien temp sensor to the mirror, I will wire it tomorrow and will let you know!
IMChampion

96' SOHC MTX, 2 doors
14.910 @ 93.22 MPH at 1/4
Sold

2004 Dodge SX 2.0 E-Blue
16.559 @ 83.54 MPH at 1/4
Slow

Hudson_Neon
2GN Member
Posts: 3371
Joined: Wed Mar 14, 2007 4:50 pm

Post by Hudson_Neon » Thu Apr 05, 2012 10:41 pm

IMChampion wrote:I look in the repair manual tonight, I saw that the mirror get his data (ambient temp) from NGC Bus of the computer and I don't have connect ambien temp sensor to the mirror, I will wire it tomorrow and will let you know!
Weird, I win...

IMChampion
n00b
Posts: 19
Joined: Sun Jan 15, 2006 11:24 am

Post by IMChampion » Fri Apr 06, 2012 3:15 pm

The mirror is installed and wired! What I wrote on my last post is real, we don't have to connect sensor to the mirror, the mirror get his informations througt the PCI BUS from NGC computer.

I still have an issue:
Mi mirror is working, but each time a retart my car, my zone setting and an Celcius/faraneight settings are lost... I'm canadian so I set it to C, each time I retart my car it is back on F. Exept this details, it's a great thing!

If someone avec an idea for the "memery" on the mirror tell me!

I will create an how to plug it over the week end.
IMChampion

96' SOHC MTX, 2 doors
14.910 @ 93.22 MPH at 1/4
Sold

2004 Dodge SX 2.0 E-Blue
16.559 @ 83.54 MPH at 1/4
Slow

Hudson_Neon
2GN Member
Posts: 3371
Joined: Wed Mar 14, 2007 4:50 pm

Post by Hudson_Neon » Fri Apr 06, 2012 3:28 pm

IMChampion wrote:I still have an issue:
Mi mirror is working, but each time a retart my car, my zone setting and an Celcius/faraneight settings are lost... I'm canadian so I set it to C, each time I retart my car it is back on F. Exept this details, it's a great thing!
problem solved... just learn fahrenheit. :rofl:

occasional demons
Junior Admin
Posts: 19177
Joined: Thu May 03, 2007 12:14 pm
Location: Ashland Ohio

Post by occasional demons » Fri Apr 06, 2012 9:44 pm

IMChampion wrote:
If someone avec an idea for the "memery" on the mirror tell me!
From the thread you linked:

If the pink - black pink wire (from fuse 4/Batt M11) is not constant power, it will not retain memory.

Bill
dblsg wrote:ya'll a bunch of post whores
epic

2001 Neon ES MTX with '02 R/T PCM
Help support 2GN!

Hudson_Neon
2GN Member
Posts: 3371
Joined: Wed Mar 14, 2007 4:50 pm

Post by Hudson_Neon » Fri Apr 06, 2012 10:42 pm

But bill, that's from a car that came with the wiring for the mirror. That aside, the mirror should have some memory, otherwise it would constantly be turned on and if sat long enough it would drain the battery

occasional demons
Junior Admin
Posts: 19177
Joined: Thu May 03, 2007 12:14 pm
Location: Ashland Ohio

Post by occasional demons » Fri Apr 06, 2012 11:44 pm

Pin 1 turns the mirror on/off with the ign. Pin 2 needs the constant 12v power for the memory.

It is just like a car radio. There are two power inputs: One for ign switched, and one constant 12v for memory.
Bill
dblsg wrote:ya'll a bunch of post whores
epic

2001 Neon ES MTX with '02 R/T PCM
Help support 2GN!

Hudson_Neon
2GN Member
Posts: 3371
Joined: Wed Mar 14, 2007 4:50 pm

Post by Hudson_Neon » Sat Apr 07, 2012 8:45 am

fair enough. can i blame my lapse in judgement on the fact that i had been drinking for 7 hours by the time i posted that? lol

IMChampion
n00b
Posts: 19
Joined: Sun Jan 15, 2006 11:24 am

Post by IMChampion » Sat Apr 07, 2012 8:50 pm

occasional demons wrote:Pin 1 turns the mirror on/off with the ign. Pin 2 needs the constant 12v power for the memory.

It is just like a car radio. There are two power inputs: One for ign switched, and one constant 12v for memory.

Yes I'm sure that pin 2 has constant 12V, I did a test and connect it directly to the battery with groung direct to the body and mirror lost his memory...

Does someone can do a test for me? Put your mirro en Celcius (hold right button 5 second) and then stop start your car, if it is still un Celcius, stop you car, unplug the connector behind your mirror for 10 second, replug it and restart your car and tell me if your mirror is still in Celcius.

Thak you
IMChampion

96' SOHC MTX, 2 doors
14.910 @ 93.22 MPH at 1/4
Sold

2004 Dodge SX 2.0 E-Blue
16.559 @ 83.54 MPH at 1/4
Slow

Caraudioholic24
2GN Member
Posts: 4108
Joined: Sat Mar 22, 2008 1:56 am
Location: Cumberland R.I.

Post by Caraudioholic24 » Fri Apr 20, 2012 2:07 am

Does the lights light up on the mirror when the door is open and the car is off.... that will tell you if you are getting constant power to the mirror...

I haven't had a chance to try that for you... but I did calibrate and change the zone for the mirror and it remembers that...
