REQ Radio

Post by catalyst » Wed Jun 13, 2012 10:32 pm

REQ, it's the new style radio. Can we talk about if this style radio will fit?

How much modification would be needed?

http://www.ebay.com/itm/2007-2010-Chrys ... _983wt_932

I think a saws all, a bracket or two and an adapter would make it fit.
2005 Red SRT4
Stage 2, Maddog 72-4
Still needs a paint job
Official "I'm Going to Drive My Neon till it Dies" Club #87

User avatar
jmoddes
2GN Member
Posts: 65
Joined: Mon Jun 04, 2012 11:07 am
Location: United States

Post by jmoddes » Wed Jun 13, 2012 11:21 pm

main question, how wide is it, the depth looks like there is NO issue

the height is a double din meaning that there will be some REALLY simply modification that you can do in a number of different ways. the plugs you'll have to
1) get a harness that plugs into it,
2)then figure out what each prong does and custom wire everything yourself (would take me about an hour to do all the wires with the proper schematic. and that is also soldering, taping and making it look near factory work)


Think that's all i have to say for now. BTW, looks SUPER wide.. wider than neons.
-jmoddes (@gmail)
00 Neon
65 Classic

Car\Facebook\My Lights

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Thu Jun 14, 2012 9:39 am

The basic body of the radio is pretty much the same size (DIN and 1/2). It just uses a square face opening vs. the oval one our cars have. As far as depth from the mounting flange to the face, I'm not sure if that is the same or not.

I have some of these style radios at home. I can get some comparison pics for ya.

Now for the bad news...all these newer radios work off a CAN Bus communication system. Our cars use the older J1850 system. There is no way (that I know of) to make the radios function in our cars. There are adaptors to make Hi speed CAN Bus work in Low speed CAN Bus, but not in J1850. Sorry.
If I could just figure out how to meld the Outback and the Neon into one car...


User avatar
catalyst
2GN Member
Posts: 447
Joined: Fri May 25, 2007 9:03 pm
Location: GA

Post by catalyst » Thu Jun 14, 2012 4:54 pm

Aww sad face @ Danteneon. So the radio itself would just not work with our computer? They should just be USB now... can that be done? can to usb to J1850?

My current radio broke so I'm thinking of different options that have a stock look.
2005 Red SRT4
Stage 2, Maddog 72-4
Still needs a paint job
Official "I'm Going to Drive My Neon till it Dies" Club #87

User avatar
NEON PARABOLA
2GN Member
Posts: 1079
Joined: Wed Jul 09, 2008 11:07 pm
Location: Omaha,Nebraska

Post by NEON PARABOLA » Thu Jun 14, 2012 5:00 pm

I think as good as you're going to get with stock is the rb1, or rb4. they are pretty sweet
-Sean
Official "I'm driving my neon till' it dies #28

BLK 03' NEON SXT 150,000 MILES

Jenni
2GN Member
Posts: 2499
Joined: Tue Aug 23, 2005 1:33 pm
Location: Berlin, Germany

Post by Jenni » Thu Jun 14, 2012 5:43 pm

buy an aftermarket radio...

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Fri Jun 15, 2012 10:39 am

Are you looking for USB interface for a particular function? I.E. Ipod/MP3, flash drive, re-charge port? All of those can be integrated with a stock Neon head unit.
If I could just figure out how to meld the Outback and the Neon into one car...


User avatar
catalyst
2GN Member
Posts: 447
Joined: Fri May 25, 2007 9:03 pm
Location: GA

Post by catalyst » Fri Jun 15, 2012 10:40 am

I went best buy and the clerk said I should just have to buy a new harness just the same as buying an aftermarket radio... sounds too different from what Dante said. Wouldn't it work like making and older printer talk to a newer computer? serial io to usb?
2005 Red SRT4
Stage 2, Maddog 72-4
Still needs a paint job
Official "I'm Going to Drive My Neon till it Dies" Club #87

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Fri Jun 15, 2012 10:49 am

He be wrong...very wrong.

It isn't so much an interface problem where the pins on one type of connector have to match another, but rather the car is speaking remedial Spanish and the radio only understands hi-speed Swahili.

Here is a pretty good page describing the highlights of the Can bus system.

http://www.aa1car.com/library/can_systems.htm

The older J1850 just sends and receives data across one wire at a much lower bit rate. A Can bus radio will not work on the older system (and vice-versa).
If I could just figure out how to meld the Outback and the Neon into one car...


User avatar
catalyst
2GN Member
Posts: 447
Joined: Fri May 25, 2007 9:03 pm
Location: GA

Post by catalyst » Fri Jun 15, 2012 10:58 am

Are you looking for USB interface for a particular function? I.E. Ipod/MP3, flash drive, re-charge port? All of those can be integrated with a stock Neon head unit.
I am, yes, but my wife is old fashioned and wants CDs... I'm also lazy and I don't want to burn all my old CDs.
2005 Red SRT4
Stage 2, Maddog 72-4
Still needs a paint job
Official "I'm Going to Drive My Neon till it Dies" Club #87

User avatar
catalyst
2GN Member
Posts: 447
Joined: Fri May 25, 2007 9:03 pm
Location: GA

Post by catalyst » Fri Jun 15, 2012 11:14 am

Dang it. I wonder if it would be fesable to make a small closed CAN system just for the radio... Probably not. Can the RB1/4 play MP3 CDs?
2005 Red SRT4
Stage 2, Maddog 72-4
Still needs a paint job
Official "I'm Going to Drive My Neon till it Dies" Club #87

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Fri Jun 15, 2012 11:21 am

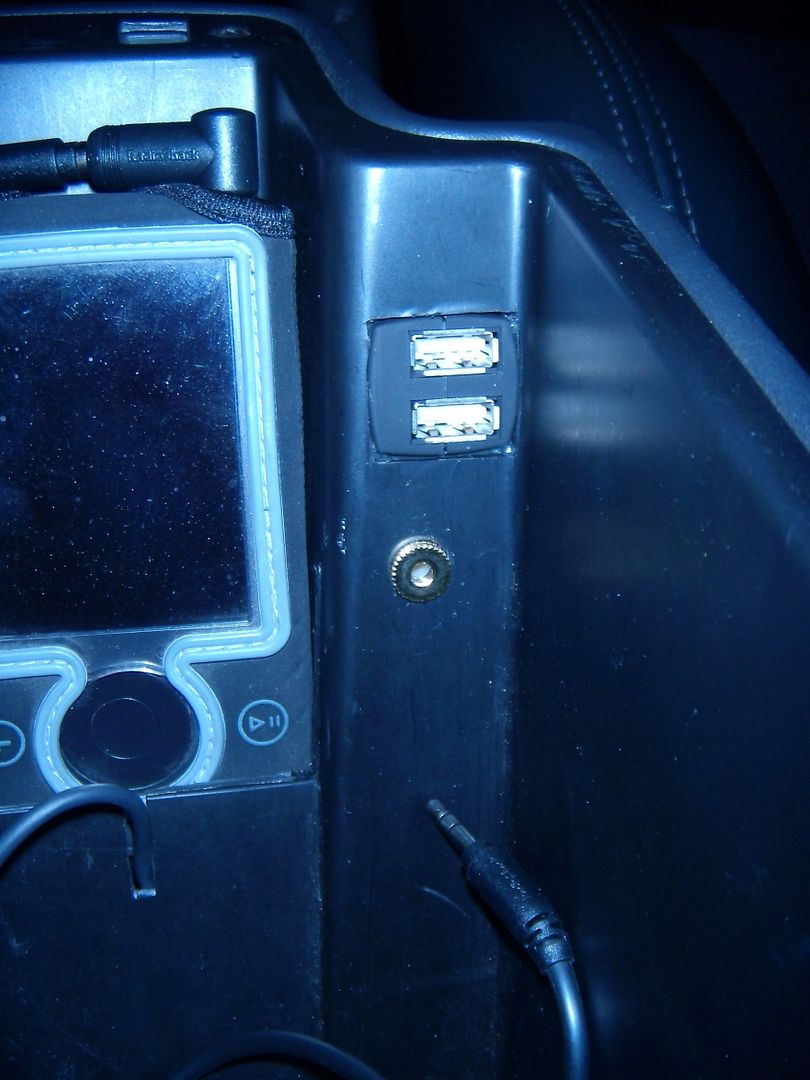

I guess you didn't see the center console mod I did?


The RB1 and RB4 will play CDs, but the nav will not work while doing so. That was the reason for the mod I did. The RB1 has a AUX setting (for 6 disc changers) so you can listen to CDs and have nav at the same time. I don't do CDs any more, so I bought an interface that plus into the CD changer port in the back of the radio. The interface has a RCA audio in (that I adapted over to 1/8" phono) to plug my Zune into. The USB ports are hard wired into the ACC circuit of the car to provide charging to whatever I need.

Oh, did you like my language based metaphor? I picked it just for you, being a Pseudo-polyglot and all. :D
If I could just figure out how to meld the Outback and the Neon into one car...


occasional demons
Junior Admin
Posts: 19148
Joined: Thu May 03, 2007 12:14 pm
Location: Ashland Ohio

Post by occasional demons » Fri Jun 15, 2012 11:28 am

It may turn on, and function? Not sure on this, but it should power on at least. If there is some kind of security lock out, it may not function at all.

But it wouldn't communicate with other systems in the car. Blue tooth, GPS etc...

I installed my USB power ports in the cubby hole area, with a face plate. Great for the GPS, phone, etc that can use a USB cable to charge, so much cleaner than cig lighter sized power outlets.
Bill
dblsg wrote:ya'll a bunch of post whores
epic

2001 Neon ES MTX with '02 R/T PCM
Help support 2GN!

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Fri Jun 15, 2012 11:32 am

Can bus is funny. If you install a low speed radio into a hi speed car, it can keep the car from starting. No lie.

I have messed around quite a bit with the new protocol radios trying to get the MyGig to work in the 07 Caliber. There is a company that makes an adaptor to allow the newer (low speed)radios work in the first gen Can bus cars. But for J1850 you are full out of luck.
If I could just figure out how to meld the Outback and the Neon into one car...


occasional demons
Junior Admin
Posts: 19148
Joined: Thu May 03, 2007 12:14 pm
Location: Ashland Ohio

Post by occasional demons » Fri Jun 15, 2012 11:37 am

I have a feeling if you could make it work, the cost would be more than the radio is worth - new from the dealer. :lol:
Bill
dblsg wrote:ya'll a bunch of post whores
epic

2001 Neon ES MTX with '02 R/T PCM
Help support 2GN!

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Fri Jun 15, 2012 11:39 am

Probably. :lol:
If I could just figure out how to meld the Outback and the Neon into one car...


User avatar
catalyst
2GN Member
Posts: 447
Joined: Fri May 25, 2007 9:03 pm
Location: GA

Post by catalyst » Fri Jun 15, 2012 11:47 am

I see. I guess I'll go the RB1/4 route and modify it to usb/aux. I'll probably pm you some questions Dante.

Yes I did like your language referance.
2005 Red SRT4
Stage 2, Maddog 72-4
Still needs a paint job
Official "I'm Going to Drive My Neon till it Dies" Club #87

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Fri Jun 15, 2012 11:52 am

Feel free to ask. I'll help any way I can :thumbup:
