Specs of OEM Wheels

Posted: Sat Mar 08, 2008 11:22 am
by ZeroChad
I'd like to make a thread dedicated to stock wheel weights, if anyone has any info on weight or type please post.

OEM Neon Wheels
  • Steelies ----------- 17lb --------- 14x5.5 5x100
    Steelies ----------- ???? -------- 15x6, 5x100
    01-02 RT (Silverstones) ---------- 18.2lb ------ 16x6, 5x100, 40 offset
    03-05 RT (Fat Fives) ---------- 16.7lb -------- 16x6, 5x100, 40 offset
    SRT4 --------------- 21lb -------- 17x6, 5x100, 45 offset
    SRT4 ACR (BBS) --------- 19lb -------- 16x7, 5x100, 40 offset
    Snowflakes (5 spoke 2000-2002) ------- 16.02lb----- 15x6, 5x100, 40 offset
    Snowflakes (7 Spoke 2003-2005) ------ 17.625lb -- 15x6, 5x100, 40 offset
    Machined SXT ---- ???? -------- 15x6
    others ------------- ???? ------- ?????

Other Mopar Wheels
  • 90-91 Fifth Avenue ------------- 12.2lb
    89-92 Imperial 14" ------------ 12.424lb - 14x5.5 or 14x6?
    PT 7 Spoke ---------------------- 17-18lb? - 16x6
    PT 5 Spoke ---------------------- 19.4lb? --- 16x6
    1gn Steel ------------------------ 16.607lb 14x?
    1gn r/t alloy --------------------- 14lb 6.0oz
    1gn Sport Alloy ------------------ 15.6lb
    1gn Bubble Alloy ---------------- ???lb
    Mopar SCCA --------------------- ???lb 14x7
    'Trunk kit' neon wheel ---------- ???lb 15x6


Other Popular Aftermarket Wheels
  • Rota Slipstream ---------------- 12.75lb -- 15x7
    Rota Slipstream ---------------- 13.9lb --- 16x7
Other wheels can be found HERE

Posted: Sat Mar 08, 2008 11:40 am
by yellowpatrol
Ooooh weights of the wheels. I thought you meant the balancers.

Posted: Sat Mar 08, 2008 11:45 am
by ZeroChad
Oh, good call. lol *Changes the title*

Posted: Sat Mar 08, 2008 1:46 pm
by NickKo
How about "other" OEM wheels???

In other words.... including OEM wheels that came on 'other' factory MoPars, that didn't come on 2nd Gen Neons, but will fit .....

One such example that I can think of would be the factory aluminum 14" rims that came on '89-92 Chrysler Imperials (lightest of all, 11-12 lbs ?)
They'll bolt right up .....

-Nick

Posted: Sat Mar 08, 2008 3:38 pm
by [DJ]Tomski
SRT4 --------------- 21 lbs
SRT4 ACR --------- 19 lbs

i found this site: http://www.superhonda.com/tech/wheel_weights.html
it shows the weights for a lot of aftermarket rims.

according to the site, rims from an '02 ACR weight 16.5 lbs

Posted: Sat Mar 08, 2008 4:08 pm
by ZeroChad
Cool, thanks for the info. I've updated the list and created a section for other wheels that will work as well.

Anyone know the steelie weight?

Posted: Sat Mar 08, 2008 7:52 pm
by Jerome Adams
the 7 spoke stock sxt are 17-17.5 based off the bathroom scale.

I got a set in my garage I can take to the post office and get an exact weight if you want.

Posted: Sat Mar 08, 2008 10:20 pm
by ZeroChad
If your up for it, then sure. It may benefit people down the road. The 01-02 R/t is off of Diabl0's scale.

Posted: Sat Mar 08, 2008 11:05 pm
by racer12306
01-02 ACR wheels = snowflakes

Posted: Sat Mar 08, 2008 11:52 pm
by yellowpatrol
I like this topic. Now we just need widths and diameters.

Re: Weight of OEM Wheels

Posted: Sat Mar 08, 2008 11:56 pm
by racer12306
ZeroChad wrote:I'd like to make a thread dedicated to stock wheel weights, if anyone has any info on weight or type please post.

OEM Neon Wheels
  • Steelies ----------- ? 14x5.5 and 15x6
    01-02 RT ---------- 16x6 18.2lbs
    01-02 ACR -------- 15x616.5lb
    03-05 RT ---------- 16x6 ?
    SRT4 --------------- 17x6 21lb
    SRT4 ACR --------- 16x7 19lb
    Snowflakes ------- 15x6 ?
    7 Spoke SXT ------ 15x6 17-17.5lb
    Machined SXT ---- 15x6 ?
    others ------------ ?

Other Mopar Wheels
  • 89-92 Imperial 14" probably 14x5.5 or 14x6 -------- 11-12 lbs?

Posted: Sun Mar 09, 2008 4:48 pm
by cgneon
the snowflakes were about 15-16lbs, should do with tires as well for a ballpark weight all together.. i can give srt w/tires when i get home in a few days//.. just picked a set up..

Posted: Sun Mar 09, 2008 4:57 pm
by yellowpatrol
Well since different size tires can fit the same rim you would have a lot of work to do.

Posted: Sun Mar 09, 2008 5:18 pm
by cgneon
yeah it might not be worth it, hence why i said "ballpark/avg" total weight.. if you wanna get crazy could factor in rotational mass with sprung/unsprung weight but that would make a long as post... although a good one...

Posted: Sun Mar 09, 2008 9:32 pm
by glasswars
Excellent thread. I call sticky.

Posted: Mon Mar 10, 2008 8:34 pm
by Jerome Adams
Yeah, it got sticky!

I took a stock 7 spoke sxt to the post office and with valve stems and fancy chrome valve stem covers and the scale said 17lb 10.2 oz (or 17.625lbs) If I weren't on crutches I would have brought all 4 and got an average for y'all

IIRC my 15x7 Rotas were 12lb 12 or 13 oz without valve stems so I shaved a good 4 1/2lbs + per wheel... and I can feel it (not to mention getting an inch wider with a 35mm offset...so sexy!)


I am searching the other.org and found this

http://forums.neons.org/viewtopic.php?t ... snowflakes

I know I saw a pic of a snowflake on a scale...trying to find it...found it...16.205lbs

http://forums.neons.org/viewtopic.php?t ... snowflakes

Posted: Mon Mar 10, 2008 9:24 pm
by ZeroChad
Updating it now, dang getting things to line up is tricky.
Jerome Adams wrote:Yeah, it got sticky!

IIRC my 15x7 Rotas were 12lb 12 or 13 oz without valve stems so I shaved a good 4 1/2lbs + per wheel... and I can feel it (not to mention getting an inch wider with a 35mm offset...so sexy!)
Thanks for the info! I'll go ahead and create a "Popular Wheels" section on the bottom as well.

Any updates or links to pictures are welcome!

Posted: Mon Mar 10, 2008 10:53 pm
by TN.Frank
This thread is useless without pics. :roll:

Posted: Mon Mar 10, 2008 11:20 pm
by racer12306
Google Image Search. All the pictures you need. Also, the weights are hyperlinks, some of them have pictures.

Posted: Tue Mar 11, 2008 12:43 am
by Danteneon
racer12306 wrote:01-02 ACR wheels = snowflakes
:withstupid: I'm glad someone else saw that too :)

Good idea on the weight listings! You never know when you may need this info.

Posted: Tue Mar 11, 2008 1:19 am
by ZeroChad
I'll update the names to be links to pictures, and the weights to be links to the source/scale reading tommorow.

Posted: Thu Mar 13, 2008 5:28 pm
by fusion210
NickKo wrote: One such example that I can think of would be the factory aluminum 14" rims that came on '89-92 Chrysler Imperials (lightest of all, 11-12 lbs ?)
They'll bolt right up .....

-Nick

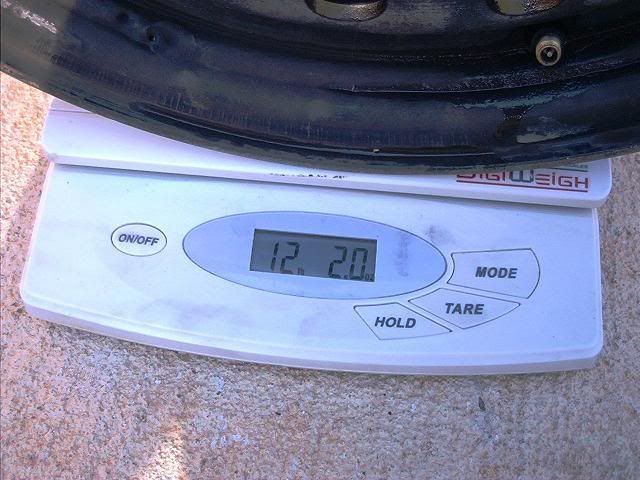

90-91. Also on Fifth Avenues
12lbs 2.0 oz
The first gen steel wheel is ~16lbs 10.1oz
First gen r/t alloy first gen 14lbs 6.0oz
First gen sport alloy (cory@modern's weight) 15.6lbs
First gen 'bubble' alloy ???lbs
Mopar SCCA 14x7 ???lbs
'Trunk kit' neon wheel 15x6 ???lbs

Posted: Thu Aug 06, 2009 12:11 pm
by Maddog
Odd...I've weighed 7 spoke SXT wheels on 2 different occasions, from 2 different sets, and gotten 16.67 pounds each time.

I can get a pic of said wheel on the scale, for visual proof - I'll edit this post tomorrow.

I'll also get a pic of the 89-92 Imperial wheel, as well as the 1gn bubble alloy, if I can find one w/out a tire on it.

Ok, couldn't find a 1gn bubble alloy (they got sold), but I did weigh and pic 3 - best when viewd w/MS Picture and Fax Viewer (allows zoom):

1gn 14" steelie, 16.607#:

89-92 chrysler Imperial 14" alloy, 12.424# (has center cap):

2gn 7 Spoke Alloy, 16.708#:
The difference in my previously stated weight is that this wheel has a balance weight on it; the other did not.

Edit for pix

Posted: Mon Aug 10, 2009 10:03 am
by ZeroChad
Updated! Also included a link at the end to wheelweights.net

Posted: Mon Jan 04, 2010 2:28 am
by DroopDaddy408
Post ress.
What about the chrome plated snowflake and 7 spokers? Do they weigh the same as non-chrome?

14 inch imperial and fifth avenue wheels

Posted: Sun Nov 28, 2010 10:41 pm
by gearbanger4
So, i was looking at this thread awhile back and was/still am interested in these wheels. Does anyone have a picture of these 14 inch aluminum wheels installed?

Also, what is the width of this wheel and typical tire size? Hard to believe any decent width/performance tire would fit on these wheel, despite the decent subtraction in weight that would result.

Just curious what to expect before i drop the $$ on them.

thanks

Re: 14 inch imperial and fifth avenue wheels

Posted: Mon Nov 29, 2010 12:06 am
by NickKo
gearbanger4 wrote:So, i was looking at this thread awhile back and was/still am interested in these wheels. Does anyone have a picture of these 14 inch aluminum wheels installed?

Also, what is the width of this wheel and typical tire size? Hard to believe any decent width/performance tire would fit on these wheel, despite the decent subtraction in weight that would result.

Just curious what to expect before i drop the $$ on them.

thanks
I actually have a set installed on one of my Neons now. :)
I run these with my snow tires.

You would not know the difference in appearance, since I am running these with hubcaps.
They look absolutely stock that way. :-**


The size of the Imperial aluminum rims, is the same as a stock 14in. steel wheel on a Neon.



I'll see if I can't get a picture of these mounted on my car, later, during daylight.

OH.... Just for reference..... I believe the picture of the aluminum rim posted by 'Maddog' above, is actually one of my own. ( I loaned it to him, to get it weighed.)


- Nick
