Post by srtjesse » Sat Jul 17, 2010 6:13 pm

cool deal take lots of pics man

2004 white dodge neon 2.4 DOHC swapped
2004 red dodge neon srt-4 gone :(
2000 flat black plymouth neon 2.0 DOHC swapped gone :(
2002 silver dodge neon parts car R.I.P
2000 green dodge neon parts car R.I.P

ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:

Post by ZeroChad » Sun Jul 25, 2010 9:14 pm

Posting some pics from the MPx meet up in the picture post forum in a few here. Had a great time! I was able to get the cruise tuned pretty well on the highway, still needs some work though.

Here's a few quick pics of my car from the meet.
Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)

NeonOn19s
2GN Member
Posts: 2074
Joined: Mon Nov 07, 2005 11:44 am
Location: Spring,TX

Post by NeonOn19s » Mon Jul 26, 2010 10:11 pm

car looked great man... It was good to meet ya.
| Nathan |


Official "I'm Going to Drive My Neon til it Dies" Club Member # 72
Semper Fi!!! USMC

ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:

Post by ZeroChad » Tue Jul 27, 2010 1:42 am

Likewise! Your car needs to get out more man! lol. Hopefully, I'll see ya around again some time.
Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)

ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:

Post by ZeroChad » Fri Jul 30, 2010 12:24 am

Still a work in progress, but I'm starting to get some things zero'd in where I want them. I'm thinking on saturday I'm going to try and get O2 and IAC PID control nailed down and maybe Accel enrichment if I have enough time.

It's kind of addicting, this tuning thing.

Some days I make changes in the right direction, and other just waste time. I was originally running a lot more timing WOT, but I toned it down, and the upper end has greatly improved.
Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)

heydockyle
2011 Silver Contributor
Posts: 4829
Joined: Mon Jul 14, 2008 6:09 pm
Location: Uniontown, Pennsylvania

Post by heydockyle » Fri Jul 30, 2010 1:35 pm

I'd be just like you. I'd be changing shit constantly.
05 OB SRT-4 - AGP Stg 3 Delta 44 Turbo w/ Supporting mods
98 Platinum Coupe - 2.4 Swap
98 Flame Red Sedan - DD Slow
98 Sport Coupe - Totaled
05 SXT - Sold

hybrid-Srt2001
2GN Member
Posts: 2759
Joined: Mon May 28, 2007 6:06 am
Location: reno/cali
Contact:

Post by hybrid-Srt2001 » Fri Jul 30, 2010 1:41 pm

i would be afraid of blowing shit up. still need to find a tuner for ms here in california.
[/quote]Yup it definately needs to go lower. If its not scrapeing constantly why you are driving then its not low enough bro. :lol:[/quote]

ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:

Post by ZeroChad » Sat Jul 31, 2010 10:39 pm

Changing those number is adicting addicting man.

Dude, I actually ran into the previous owner of your ACR that you rolled. He lives here in Austin and went to the MPx meet. We were talking there, and he brought up that he bought his old ACR from Grambo....then i connected the dots and let him know that was his car in the video...lol.


Well I think I've got the PID 02 and IAC working. Its not perfect, but she seems to be running okay. So without further ado, he's a 2-3 gear pull in its current tune.

VIDEO LINK
Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)

heydockyle
2011 Silver Contributor
Posts: 4829
Joined: Mon Jul 14, 2008 6:09 pm
Location: Uniontown, Pennsylvania

Post by heydockyle » Sat Jul 31, 2010 11:20 pm

Is that a 3.55 trans? I'm thinking yea. If so you need 3.94, but I think you are going boost so nvm lol.
05 OB SRT-4 - AGP Stg 3 Delta 44 Turbo w/ Supporting mods
98 Platinum Coupe - 2.4 Swap
98 Flame Red Sedan - DD Slow
98 Sport Coupe - Totaled
05 SXT - Sold

neonpla
2GN Member
Posts: 2571
Joined: Tue Aug 03, 2004 2:27 am
Location: Killeen, TX

Post by neonpla » Sat Jul 31, 2010 11:33 pm

ZeroChad wrote:Changing those number is adicting addicting man.

Dude, I actually ran into the previous owner of your ACR that you rolled. He lives here in Austin and went to the MPx meet. We were talking there, and he brought up that he bought his old ACR from Grambo....then i connected the dots and let him know that was his car in the video...lol.


Well I think I've got the PID 02 and IAC working. Its not perfect, but she seems to be running okay. So without further ado, he's a 2-3 gear pull in its current tune.

VIDEO LINK

I know that guy, he has an evo right? He sold his ACR to a midwest guy and the guy gave it to his wife as a DD.

nice vid......but you forgot to yell VTAK!!!!
2008 Jeep Wrangler Unlimited
2005 Dodge Neon SRT4

ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:

Post by ZeroChad » Sun Aug 01, 2010 12:15 am

Yeah its a 3.55. You don't realize how freaking long those gears are until you remove the rev limiter. I'm sure if I went with a 3.94 and a bigger cam, it would scream NA. Its perfect now for going turbo though. The off boost torque is going to be nice.

Luis - Yeah, its the EVO guy! Haha, I'll have to say that at 5k in the next vid when the butterflys kick on.
Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)

neonslg09
2GN Veteran
Posts: 5590
Joined: Wed May 06, 2009 7:17 pm
Location: Fredericksburg, Virginia

Post by neonslg09 » Sun Aug 01, 2010 12:39 pm

Damn, I got to 62mph in 2nd in my car. Great vid :) I bet it feels sooooo awesomeeee.

ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:

Post by ZeroChad » Sun Aug 01, 2010 5:07 pm

Dude. It's so awesome not to have her bog down from lack of fuel anymore.
Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)

neonpla
2GN Member
Posts: 2571
Joined: Tue Aug 03, 2004 2:27 am
Location: Killeen, TX

Post by neonpla » Sat Aug 07, 2010 9:29 am

CHAD!!!!!
2008 Jeep Wrangler Unlimited
2005 Dodge Neon SRT4

esteinmaier
Supporting Vendor
Posts: 3324
Joined: Fri Dec 09, 2005 3:40 pm

Post by esteinmaier » Sat Aug 07, 2010 10:56 am

Glad you're having fun! Yea, I'm shifting at 8600 right now, likely up to about 9k when I get it all back together. That puts 2nd gear around 90mph. It's kinda funny to do full highway rolls in 2nd.
ASP - First NGC SOHC in the 13s and the 12s. First SOHC neon over 500whp. First NGC Neon on MS.
Winston Churchill wrote:Yes, Madam, I am drunk, but in the morning I shall be sober and you will still be ugly.

User avatar
MyNeonSaysHi
2GN Veteran
Posts: 11517
Joined: Mon May 23, 2005 8:46 pm
Location: Kansas

Post by MyNeonSaysHi » Sat Aug 07, 2010 11:15 am

I was hopping to see the factory RPM gauge buried... :( 7500RPM is no joke though.

08 Acura TL-S
05 Neon SRT-4

ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:

Post by ZeroChad » Sat Aug 07, 2010 12:24 pm

I've gone up past 7500 a few times now...its still a little untuned up there. I wish I would have removed the stock rev limiter sooner! Its so nice to shift and stay in the power band. When she's boosted, I'll probably do something similar Erik, but right now its feeling best to shift around 7.5k.

PWM IAC is getting close to perfect. I'm still getting some idle oscillation now and then though. Haven't made much of an effort at acell enrichment yet either.



LUIS!!!! - Have fun on your trip man. Take tons of pics.
Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)

esteinmaier
Supporting Vendor
Posts: 3324
Joined: Fri Dec 09, 2005 3:40 pm

Post by esteinmaier » Sat Aug 07, 2010 12:26 pm

You're actually using FIDLE? And it's not causing you nightmares with sync loss? That's great to know. I guess it's time for me to try again.
ASP - First NGC SOHC in the 13s and the 12s. First SOHC neon over 500whp. First NGC Neon on MS.
Winston Churchill wrote:Yes, Madam, I am drunk, but in the morning I shall be sober and you will still be ugly.

ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:

Post by ZeroChad » Sat Aug 07, 2010 12:47 pm

Yup! Had it working great using PWM warmup and the 3.03u code. Just had a few stalling issues now and then with heavy powersteering usage. That seems to have gone away now with closed loop's correction.
Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)

esteinmaier
Supporting Vendor
Posts: 3324
Joined: Fri Dec 09, 2005 3:40 pm

Post by esteinmaier » Sat Aug 07, 2010 4:31 pm

I haven't screwed with it since MS2's infancy, so I guess I've been shy of it for no good reason.
ASP - First NGC SOHC in the 13s and the 12s. First SOHC neon over 500whp. First NGC Neon on MS.
Winston Churchill wrote:Yes, Madam, I am drunk, but in the morning I shall be sober and you will still be ugly.

ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:

Post by ZeroChad » Sat Aug 07, 2010 11:25 pm

Added a bitchin index on pg 1.
Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)

User avatar
sullivan
2GN Member
Posts: 1103
Joined: Tue Oct 14, 2008 8:41 pm
Location: Sarnia,Ontario. Canada

Post by sullivan » Sun Aug 08, 2010 3:56 pm

why ms? like am i missing something here your running a na motor still right?


and wanna build me an MS unit with harness ready to go??? if your up for it lets talk $$ in pm... very interested
My AIM Username is sullivan_is_back@hotmail.com (yes @hotmail.com)

03blackrt
2GN Member
Posts: 3993
Joined: Fri Mar 24, 2006 2:53 pm

Post by 03blackrt » Sun Aug 08, 2010 4:32 pm

Nice! Looks like it pulls strong. :thumbup:

I want to see a COMP 400 + MS N/A dyno sheet.

ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:

Post by ZeroChad » Sun Aug 08, 2010 5:38 pm

I might start looking into building units for people. I really need to take a look at component pricing first. I'll let you know when I do Sullivan. I'm running high compression, and e85. With MS, the motor runs so much better, its ridiculous. There is absolutely no bogging now, plus I'm getting much better mpg with e85 leaned out for cruising. Really though, I love electronics projects, so this was right up my alley.

03 thanks. I plan on it man! I have a base dyno from before I installed MS, and the canton oil pan. It'll be a pretty good comparison of the change! Plus, it'll be nice to compare after I go turbo :evil1:



Updates:

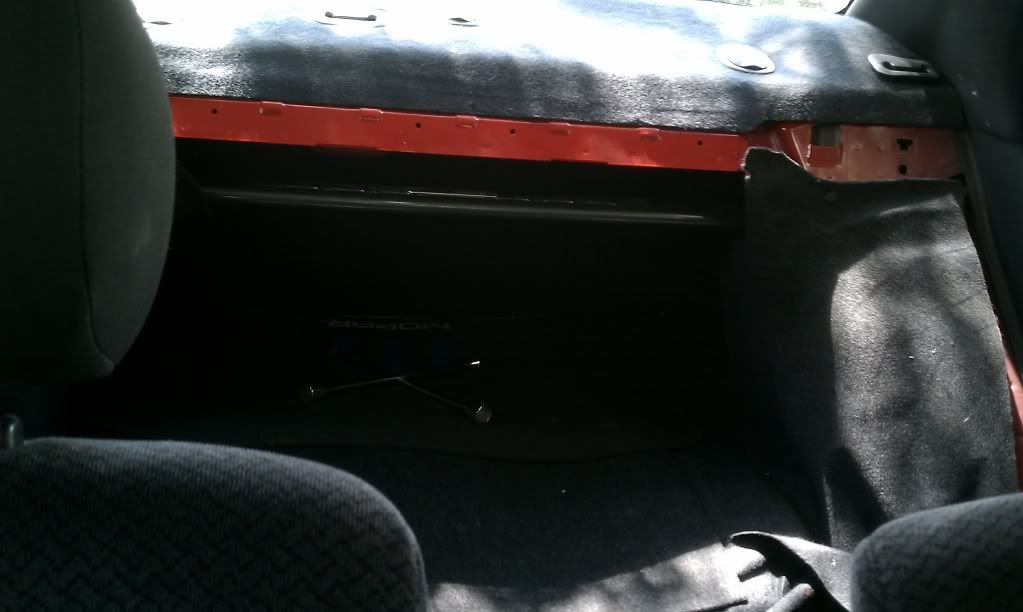

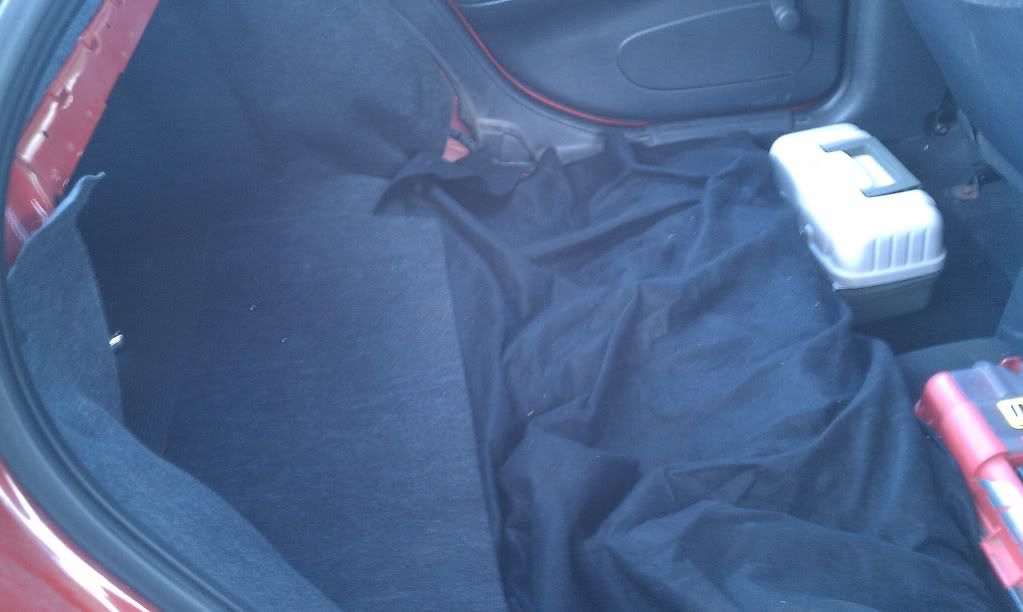

Took the car to the pay n spray today. Cleaned her up again. I also removed the rest of the backseat/seatbelts. I still haven't riveted down the fabric yet. This is because I ordered some 4ga wire to relocate my battery to the trunk. Once the wire is run, then I'll finish it up.

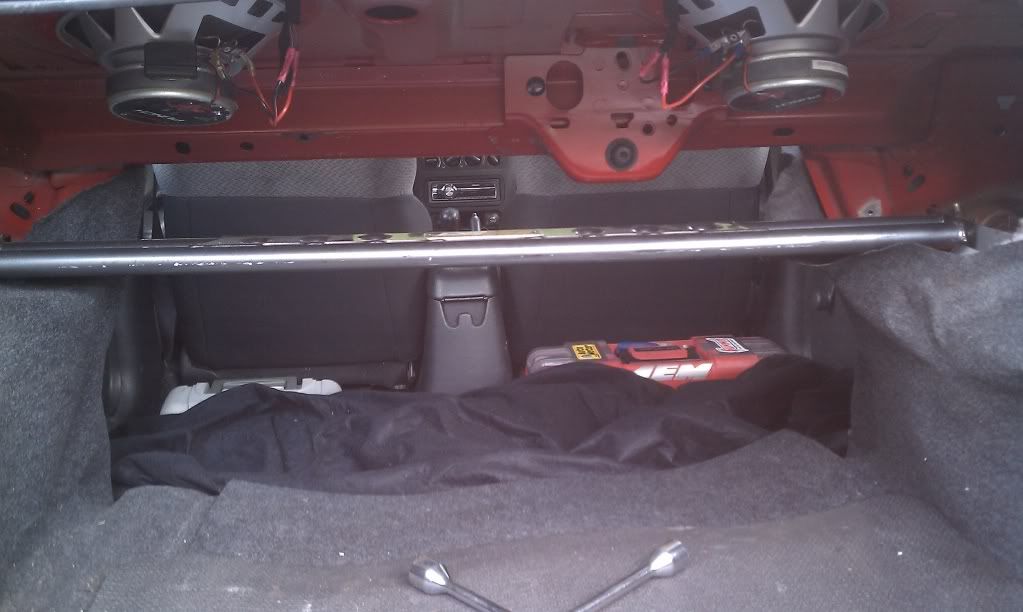

Pics of the trunk area. Pardon the 8Mpx cell phone pics...lol

Oh, also, on the way home I suddenly lost power steering. (I had to throw a belt on it to pass inspection). Well I pulled over and opened the hood. No PS belt at all. it must have flown off. I think my car was trying to tell me something. The alternator belt is looking pretty freakin shredded too. It seems like I can never install those right. Either too much tension and it shreds, or too little and it slips.
Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)

ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:

Post by ZeroChad » Fri Aug 13, 2010 11:31 pm

Good News everyone! My car is driving better than I ever imagined it could. I had my fuel tables tuned great. It was running so good, I doubted that accel enrichment could do anything more for it. My first attempt at accel enrichment pissed me off. It dumped way to much fuel and bogged. Basically, it is suppose to squirt in fuel right when you start accelerating so you don't lean out until your MAPdot readings fall down.

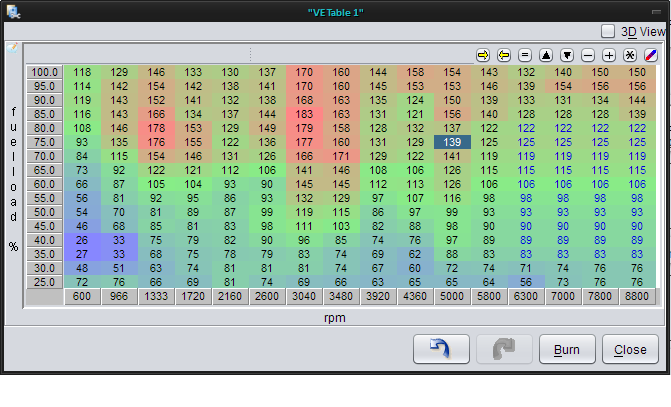

Well, I looked at my logs, and my idle pulse width is about 1ms...I lowered the pw graph substantially, and was able to get it tuned perfect. The car runs so freaking smooth its ridiculous...


I've also made a list of the things I'll be doing the next few weeks. I think I'm almost done tweaking MS now. I just want to play with the WOT AFR and ign advance.


ToDo List
[..] Rivet in Fabric (bought supplies)
[..] Trunk battery relocation (wire came in)
[..] Remove Power steering
[..] Install new Alt belt
[..] Remove PS crap

MS stuff
[X] Swap Injectors
[x] Nail down new VE table (1/2 way there)
[x] Mess with startup/Idle (long process to get perfect)

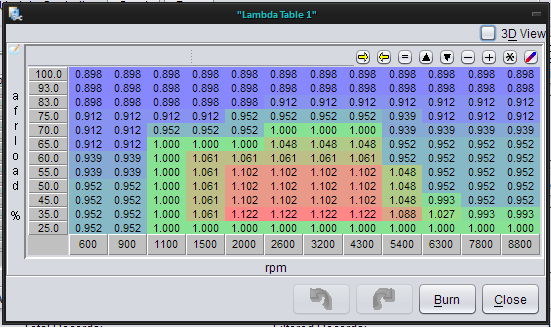

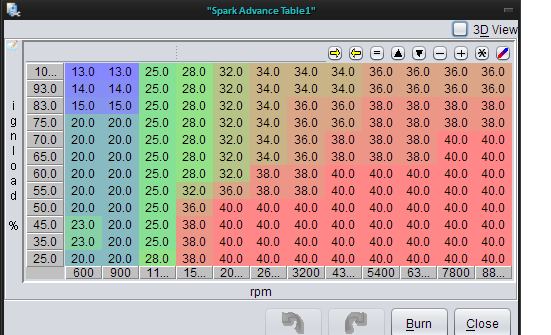

[..] Play with Ign advance and AFR
[x] Dial in 02 and IAC PID control

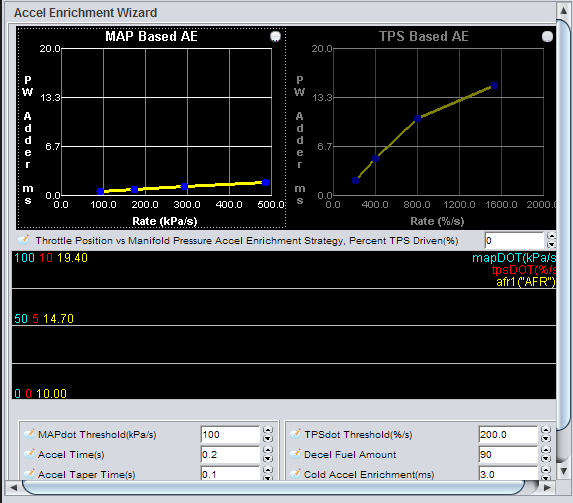

[x] Accel enrichments.
[..] Launch control / Two Step. (need to connect wire)

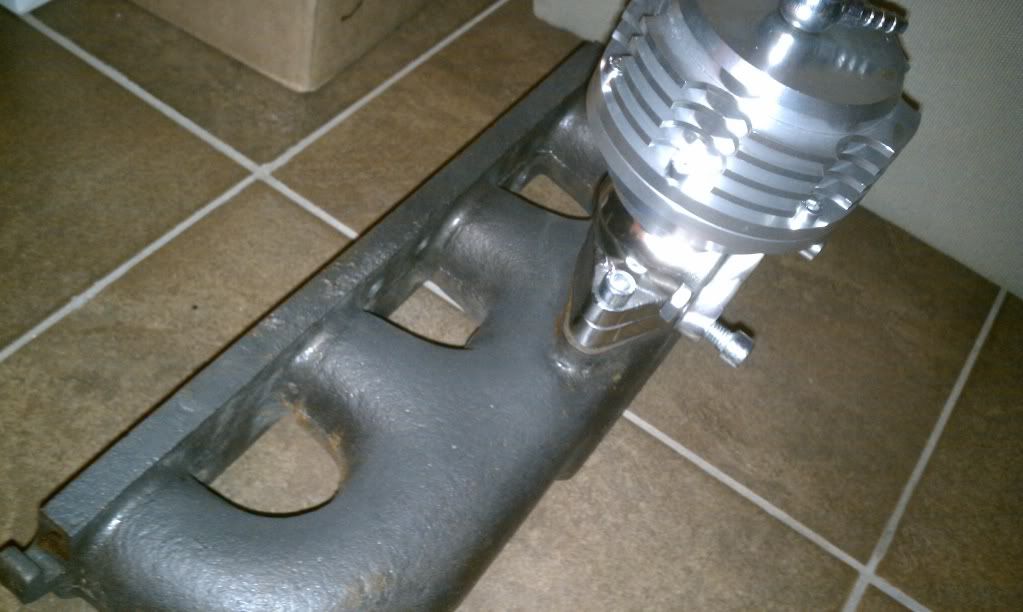

Oh, and a little teaser pic.
Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)

Tam
2GN Member
Posts: 3090
Joined: Wed Jul 09, 2008 2:41 am
Location: New Orleans, Louisiana

Post by Tam » Sat Aug 14, 2010 1:06 am

Damn, I just saw that video, and that's really impressive. I should see how high I can go in 2nd.

ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:

Post by ZeroChad » Sat Aug 14, 2010 11:16 pm

Thanks Tam! Its really a blast to drive now. I think I could go 63ish in second before?
Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)

neonpla
2GN Member
Posts: 2571
Joined: Tue Aug 03, 2004 2:27 am
Location: Killeen, TX

Post by neonpla » Sun Aug 15, 2010 12:33 am

excited to see what's next!
2008 Jeep Wrangler Unlimited
2005 Dodge Neon SRT4

ZeroChad
2009 Gold Contributor
Posts: 3165
Joined: Sat Sep 01, 2007 11:08 pm
Location: Austin, Tx
Contact:

Post by ZeroChad » Thu Aug 19, 2010 8:13 pm

So I was drilling holes in my "backseat" to rivet down some fabric, and I think I went into my gas tank.

Yup. Nice e85 vapors all over lol. I'm dumb. Oh well, I guess the fuel setup gets done next. I think I'm going to snag a fuel cell from summit and install it in place of my spare. They're cheaper than I was expecting. Probably going to install a 1:1 FPR, return line, and 2 inline walboros so I'll have plenty of fuel for the e85.
Old Neon Log | Feedback

2000 - Corvette Coupe
2002 - Neon SE Fully Built (scrapped)

User avatar
eastwoodsn352
2GN Member
Posts: 1793
Joined: Sat Jun 03, 2006 3:26 pm
Location: Seattle, WA
Contact:

Post by eastwoodsn352 » Thu Aug 19, 2010 8:37 pm

Good job on making a vent hole in the gas tank :-D I heard that they do it in the JDMs for an extra 50HP so that was a good mod!
Official "I'm Going to Drive My Neon till it Dies" Club #100-or until I get a big boy job.
My Feedback: viewtopic.php?t=10552
