"body style conversion log"-->Dual Exhaust!

Post by nunley » Wed Aug 22, 2007 3:43 am

Introduction

hello. My name is Matt and I'm new here.

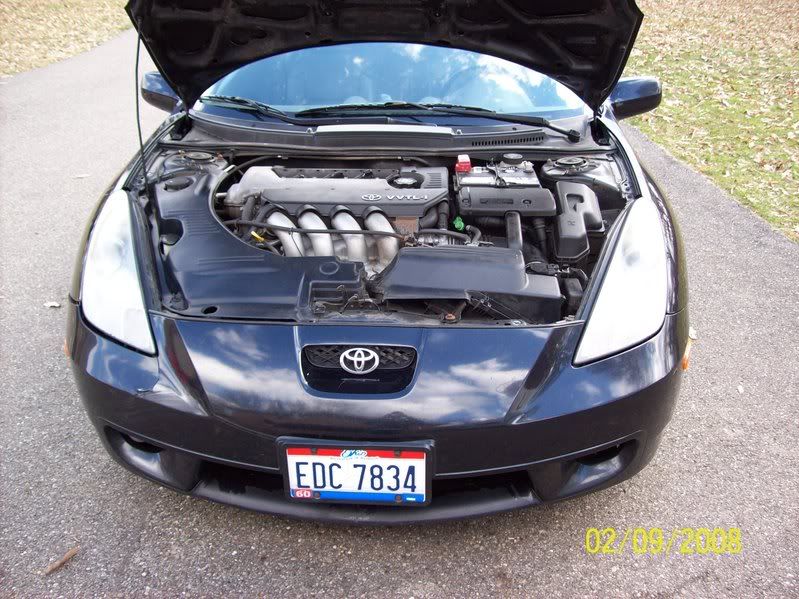

I had a 1990 celica GT. I was going to turbo it but ran out of dough. It had a trd metal HG, 2-bar map sensor, green top supra injectors, 3s-gte oil pan, ect.
sold it. bought a blown up 1990 Talon Turbo AWD with bent valves. replaced the cylender head. No shaft play. I ran the poop out of it until my head warped. The rebuilt head I bought wasen't even milled within spec. I was pissed.

ANYWAY. I needed to sell the talon fast,but noone had money, so I traded my overheating and leaking p.o.s. talon for a nearly mint 2000 Dodge Neon. It had no options at all and 160xxx miles! That's alot, I know


If the finished product looks anything like this crappy photoshop I'll be very pleased!

Current Project

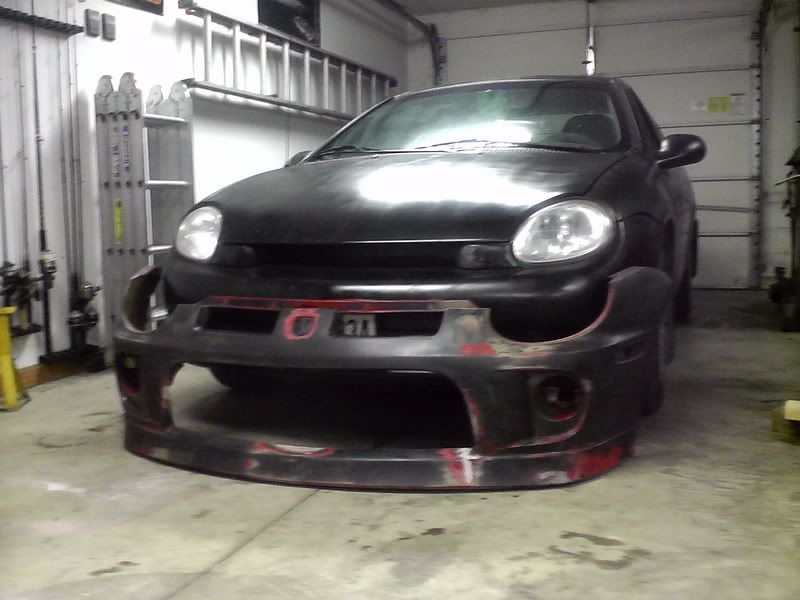

this is an idealized image of how it started, only it was much uglier.

I hated that poopie beige color so much, I spray painted the whole thing black, including the turn signals. The paint looks like crap, but I did a good job masking it off. :thumbup:

I hated the looks of it, but after my experience with fast turbo cars, I decided that I need to keep the neon through college because it is very reliable and drinks gas through a sippy-cup. avg. 33mpg.

But If I'm keeping it for a while, I want it to look better.

So this is my SRT/03 base model Frankenstein budget body conversion!

so far I have purchased:
SRT tail lamps *installed* . I found these on "2GN.ORG "For Sale" Thread. :)


Got this piece of crap for $30, but I'm using fiberglass and body filler all over it right now. I will make it work. Found it on 2GN.ORG. :thumbup:
I'm only a poor college student. I can't go get a new one! :beatstick: so don't bring it up,please.

Bought this from Jfman on SRTFORUMS.COM . Fairly cheap for a nice SRT rear bumper.

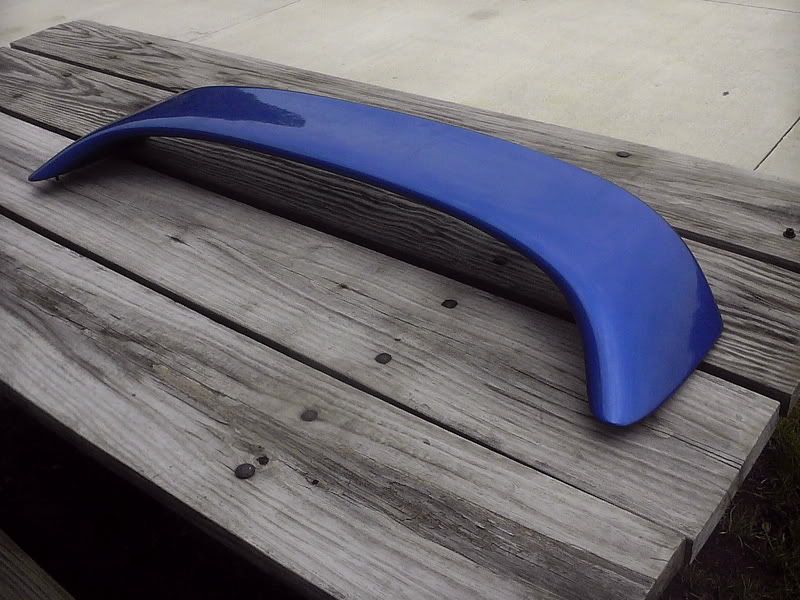

I won this spoiler on eBay for $28! the srt spoilers are too loud for my tastes anyhow. The auction said it was from an E.Blue neon "SX"



SPOILER INSTALL

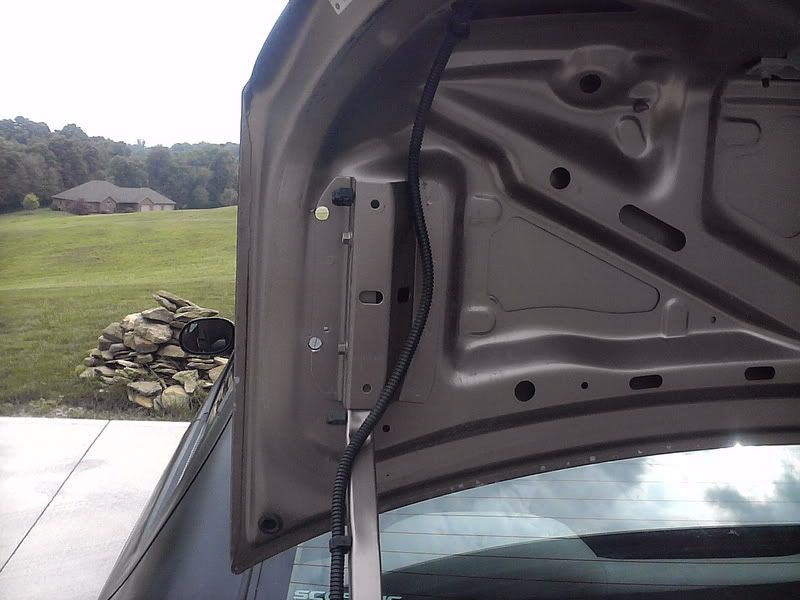

Maybe you have read that Installing a spoiler on a Non-spoiler trunk is easy. It isn't . They say there are Idications for the holes left by the factory. I didn't find any. Maybe that only applies to 2003 and newer trunks, or I'm just plain BLIND :tardbang:

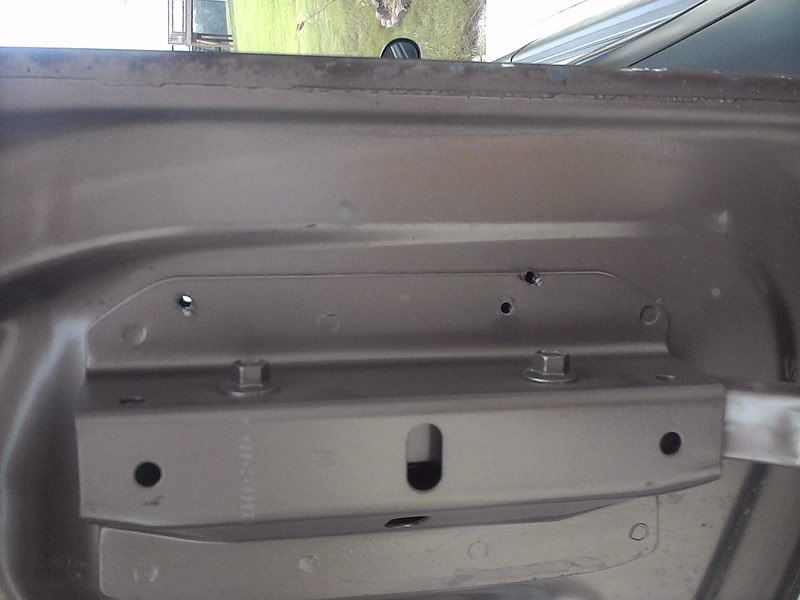

The two front posts seemed to line up with two spot welds on the trunk hinge.
They were about 1/4in. too narrow to fit. {notice the small third hole in the picture}

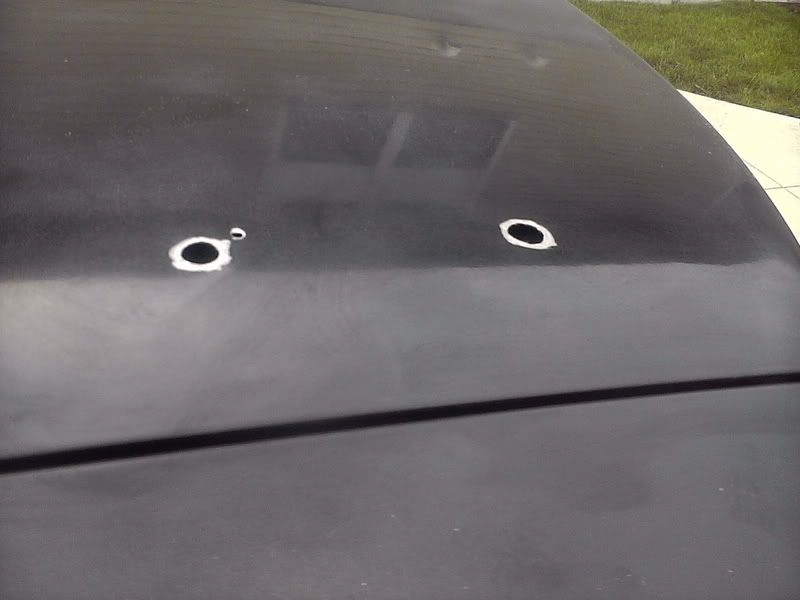

So I closed the trunk and used those two holes as references. I drilled new holes at equal distance just further from those indicator holes.
Now the upper posts lined up!. With the upper posts in the holes, I jiggled the back of the spoiler so that the two rear posts scratched the paint, marking where to drill the final two holes. It lined up great!


Heres the second problem:

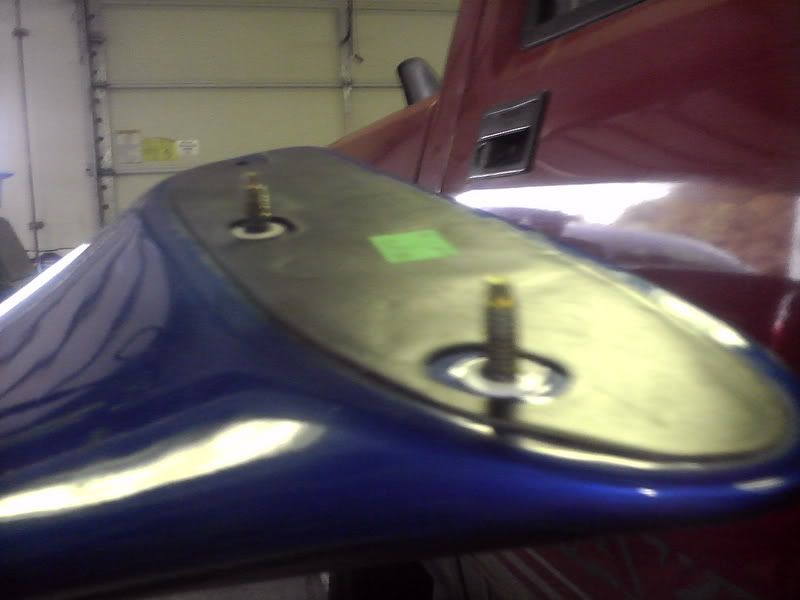

The spoiler posts are too short to even go all of the way through the deck! The OEM nuts couldn't reach

here's my solution:

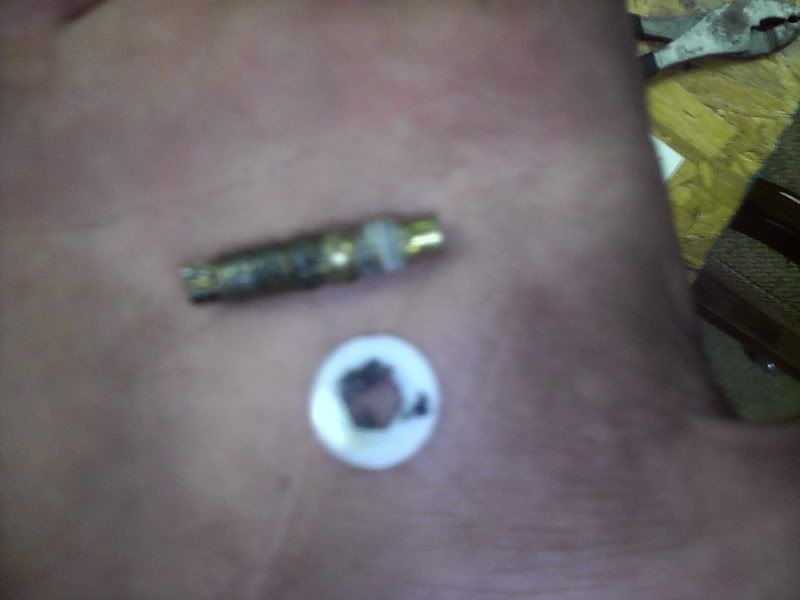

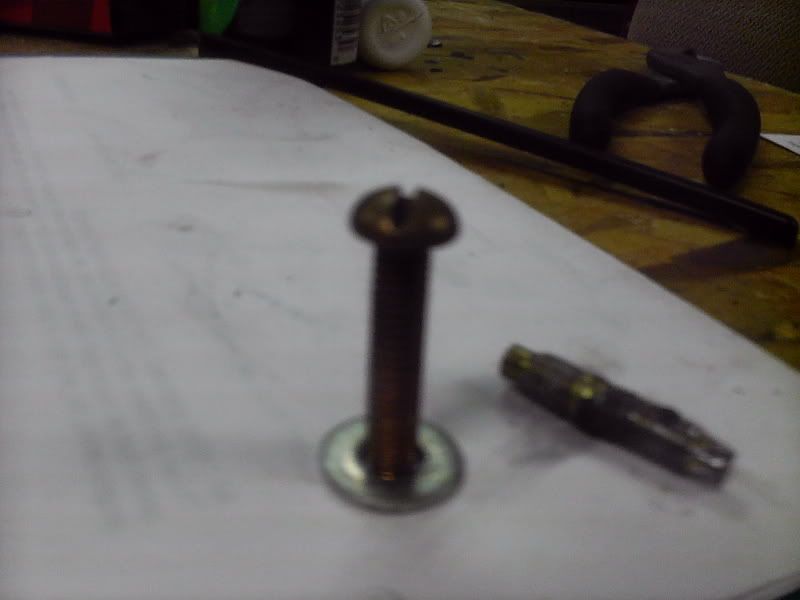

Remove the posts with some big pliers. They simply unscrew.

You will be left with threaded holes in the spoiler. Now you can secure it from underneath with appropriate sized screws and washers:

Use plenty of gasket maker (silicone) around your holes!

Screw your spoiler in loosely then close the trunk and set it exactly where you want it.
Tighten the screws with some thread locker for good insurance against vibration (*cough*subwoofers)

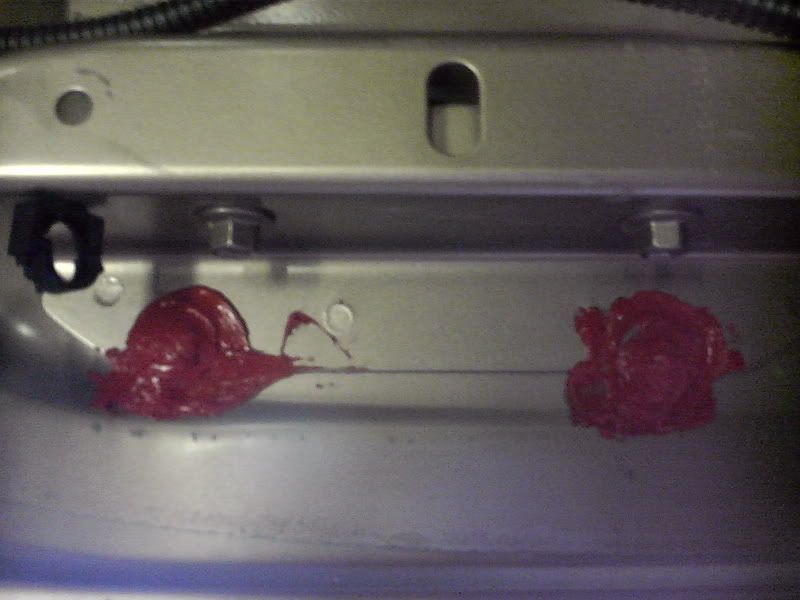

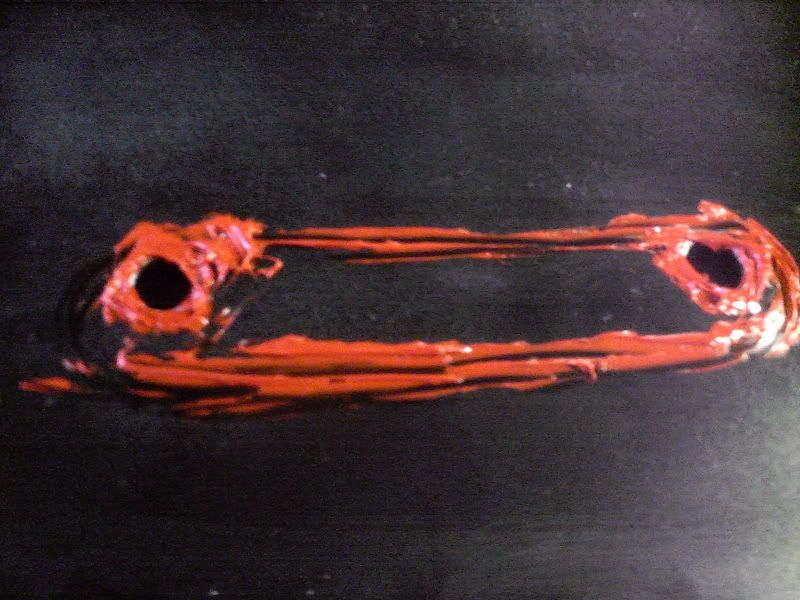

then use more gasket maker on the inner holes:

Let it dry overnight, then replace the carpet and enjoy!
Image Image Image

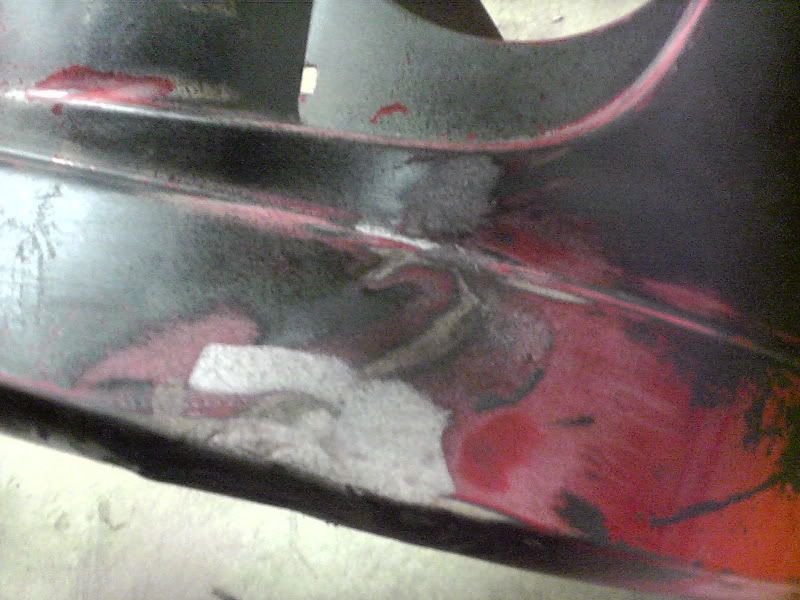

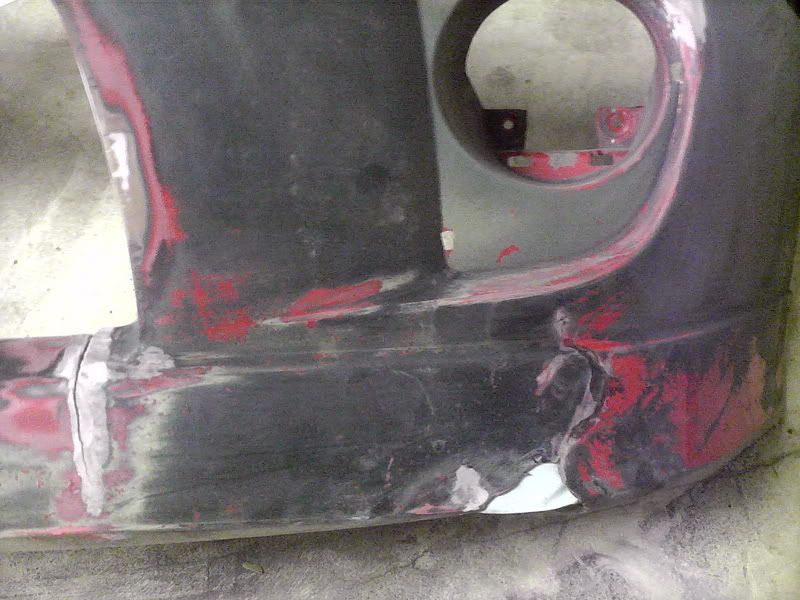

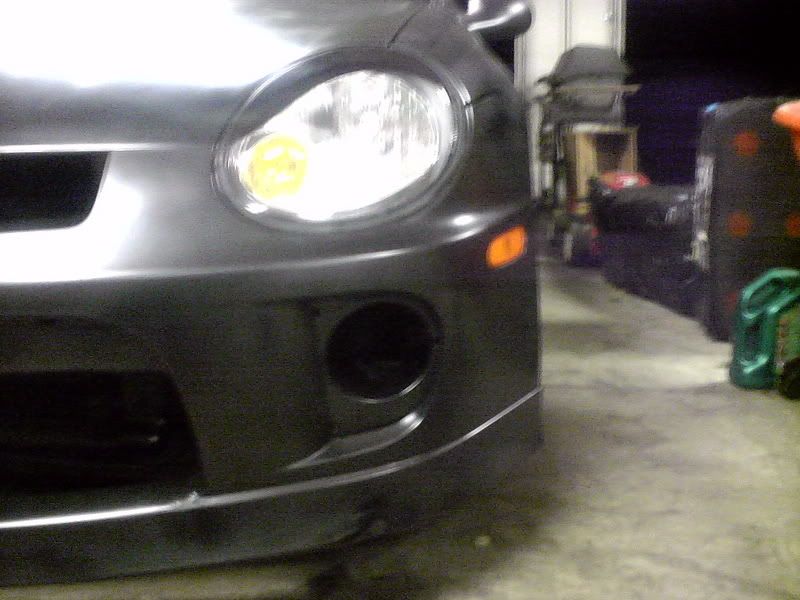

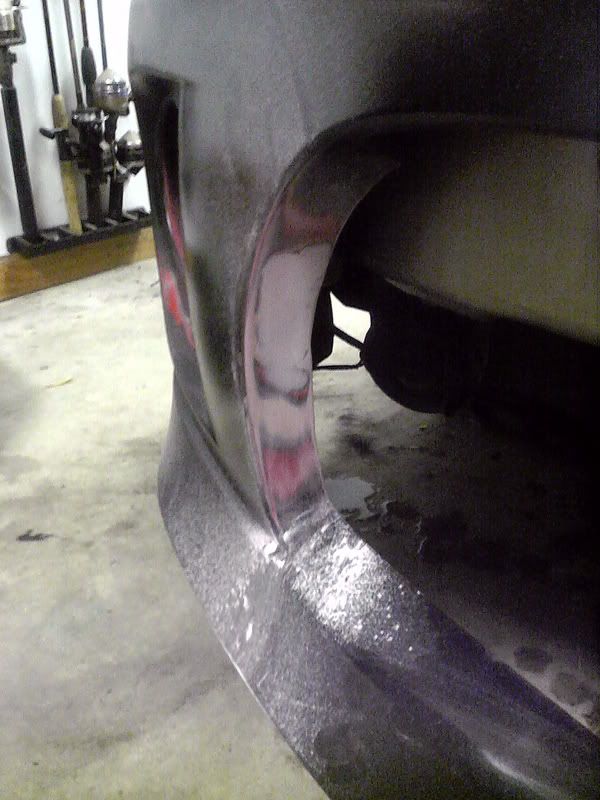

I have fiberglassed over the missing chip off the bumper:

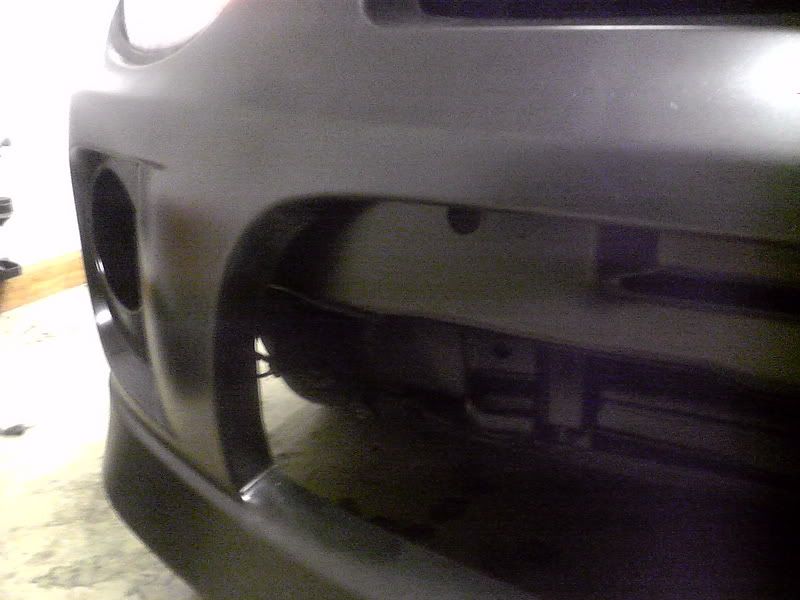

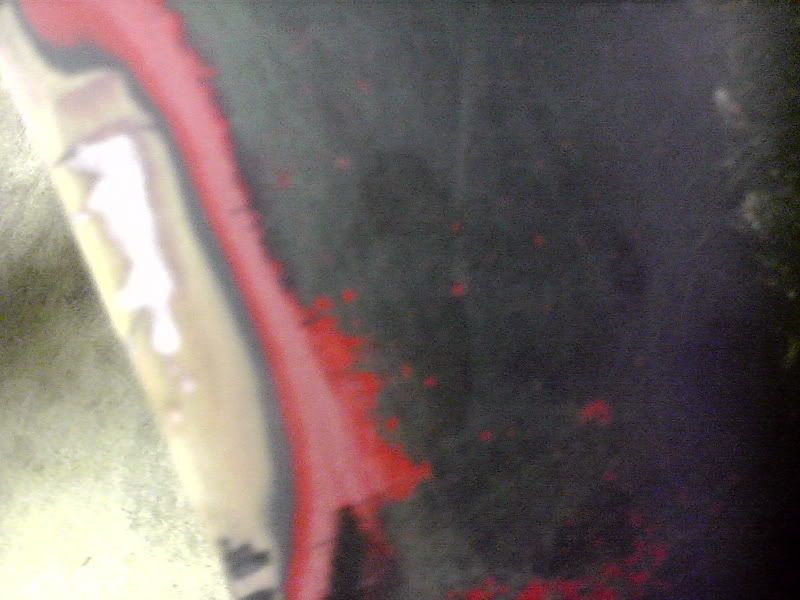

I filled in the bottom cut-out where the vertical crosshair used to be:

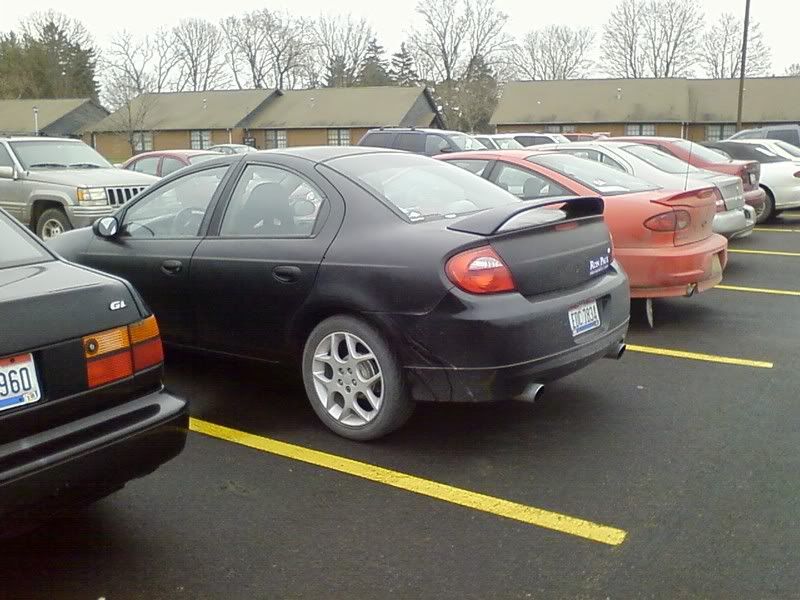

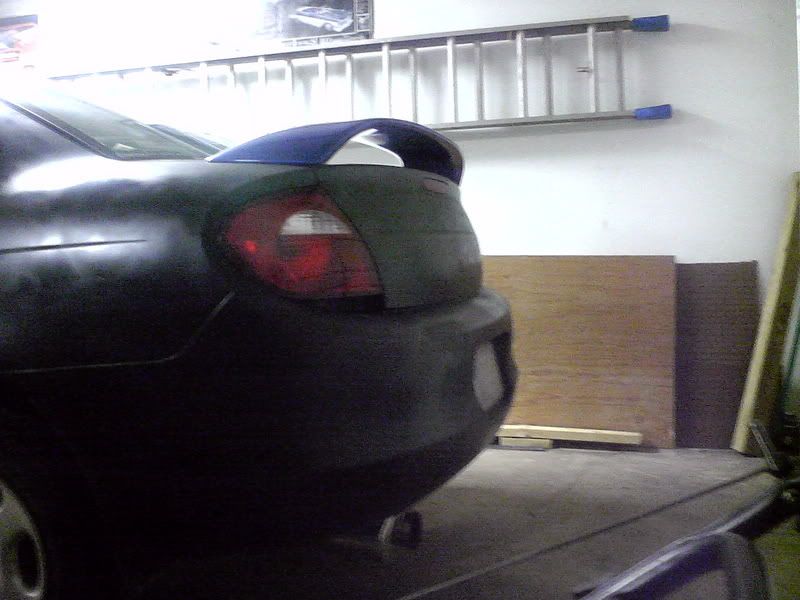

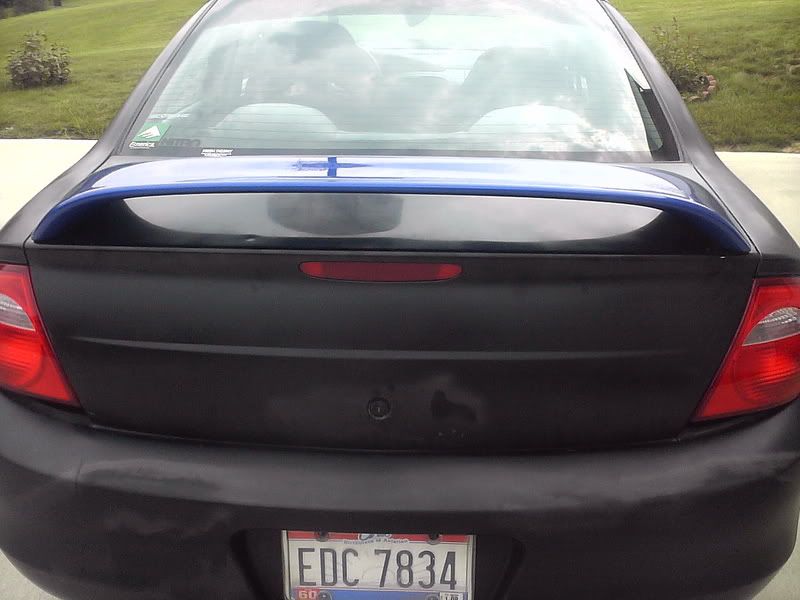

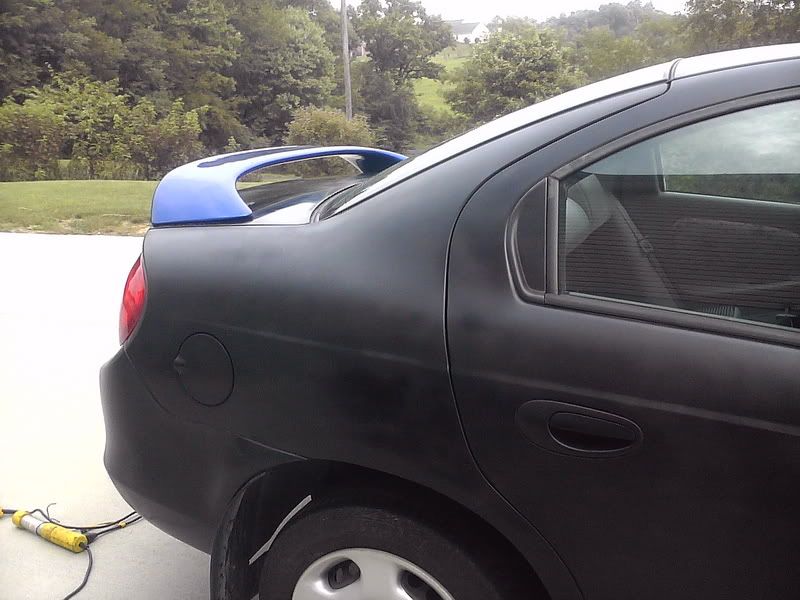

Here are some more pics: (I love my spoiler!)

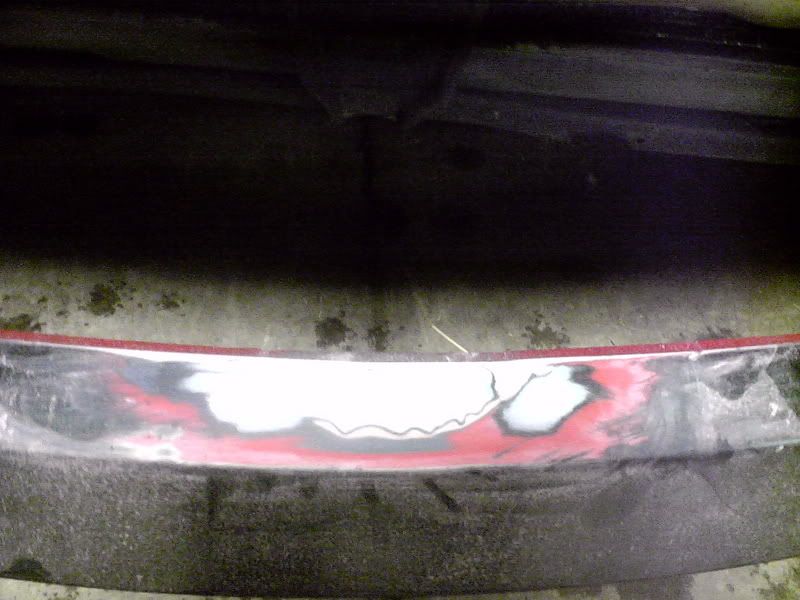

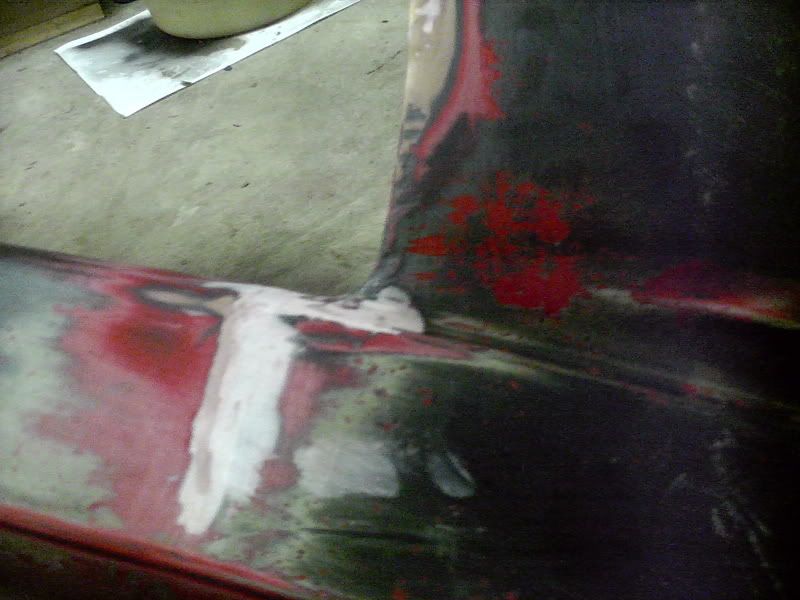

Image The long crack is repaired. I found superglue holds plastic cracks together better than anything, it's just difficult to sand hardened superglue.

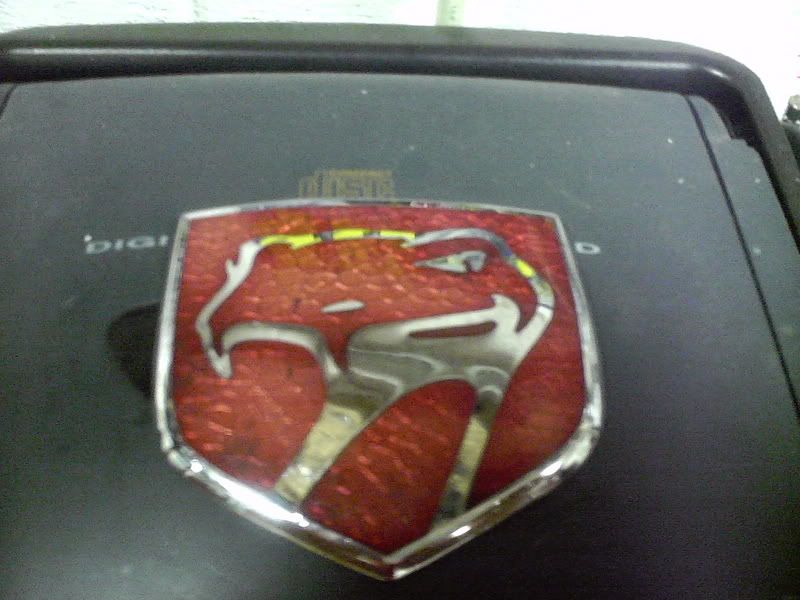

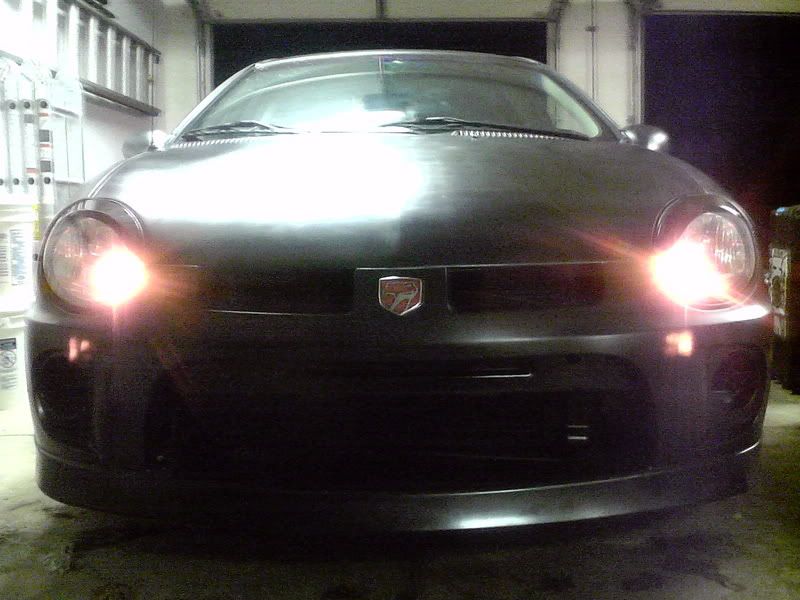

Image I will definately be using this sweet viper badge. I bet the red would look cool on an Electric Blue paint! :rockon:

Even my mom likes the spoiler, haha

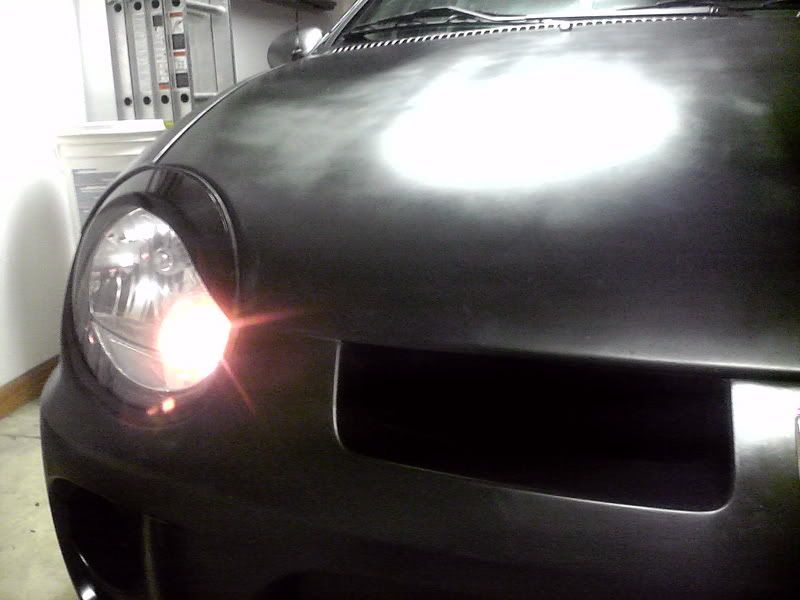

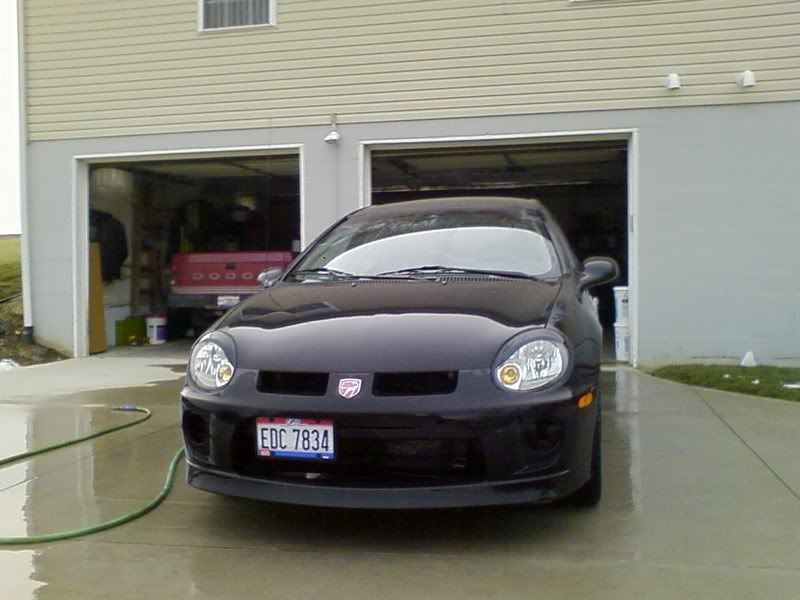

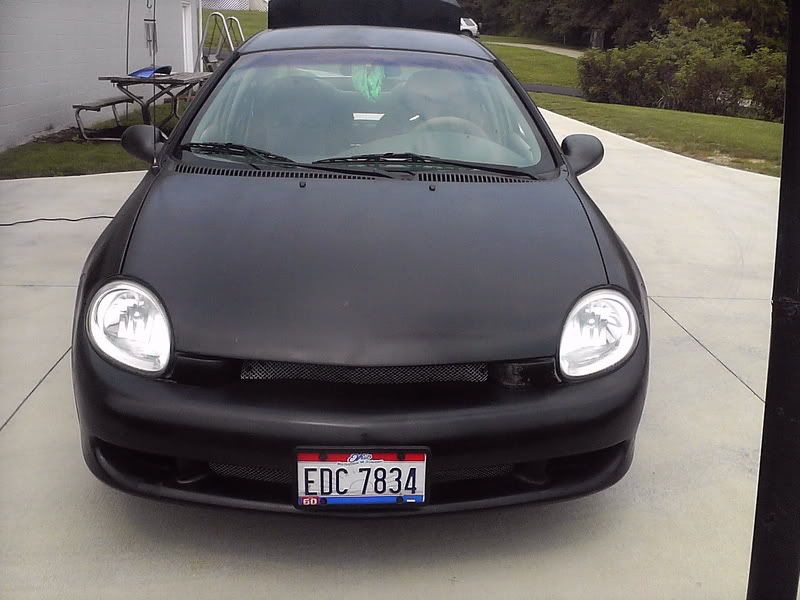

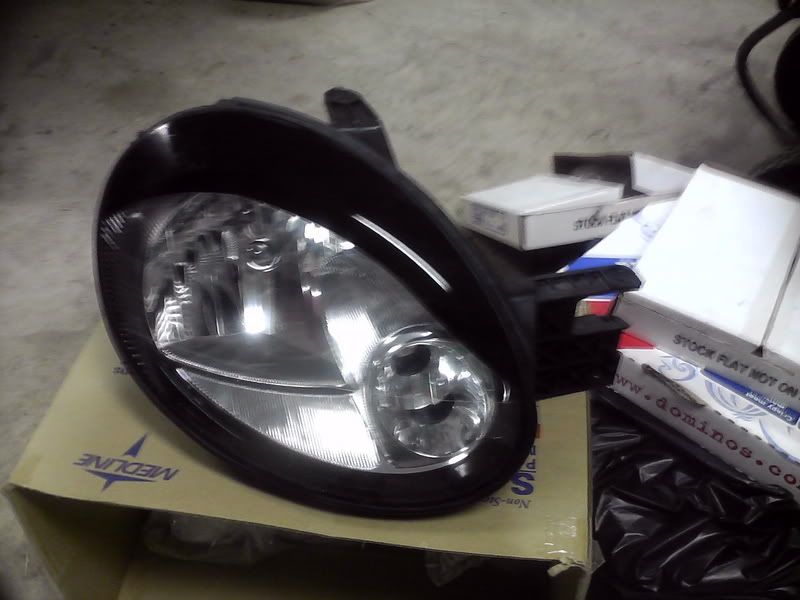

I'm still waiting for the rear bumper and headlights before I paint it

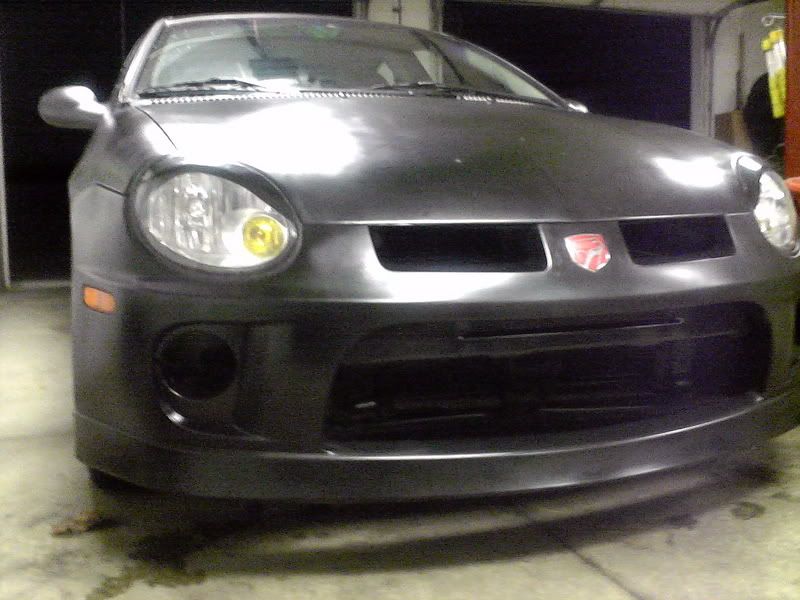

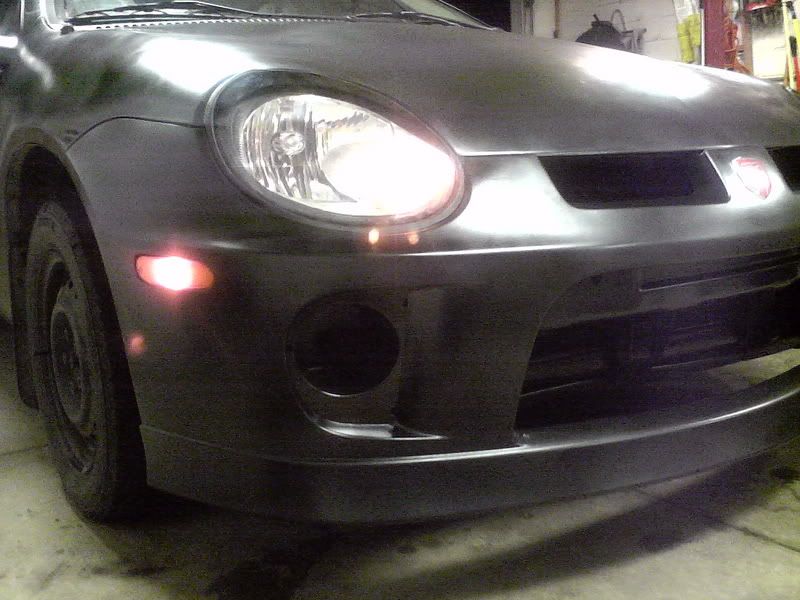

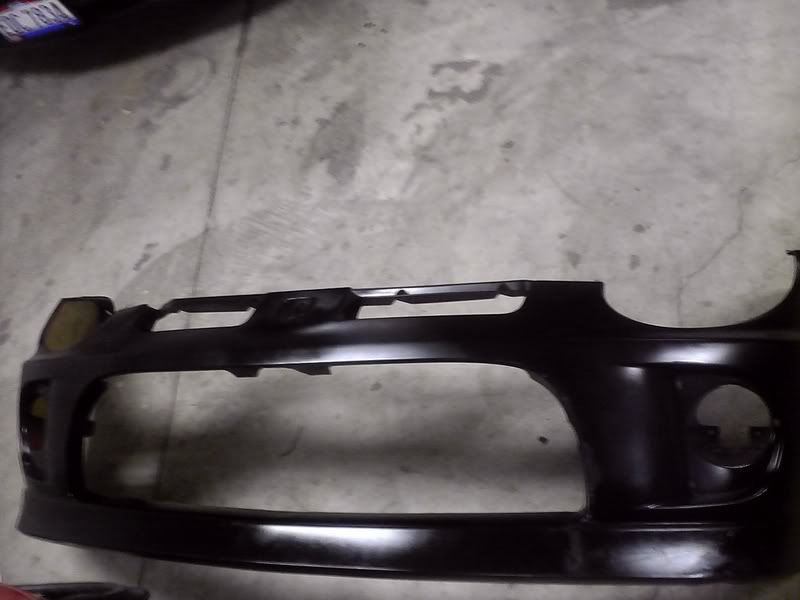

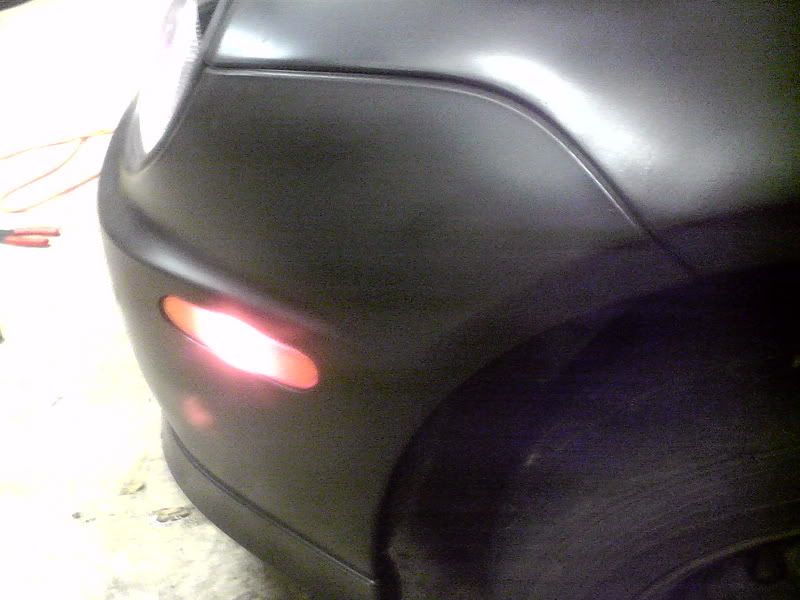

I sprayed the first coat of black duplicolor on the front bumper yesterday.

I'll get a real paintjob later, but this will do until then.
I'll be getting some wheels soon so look out for that.

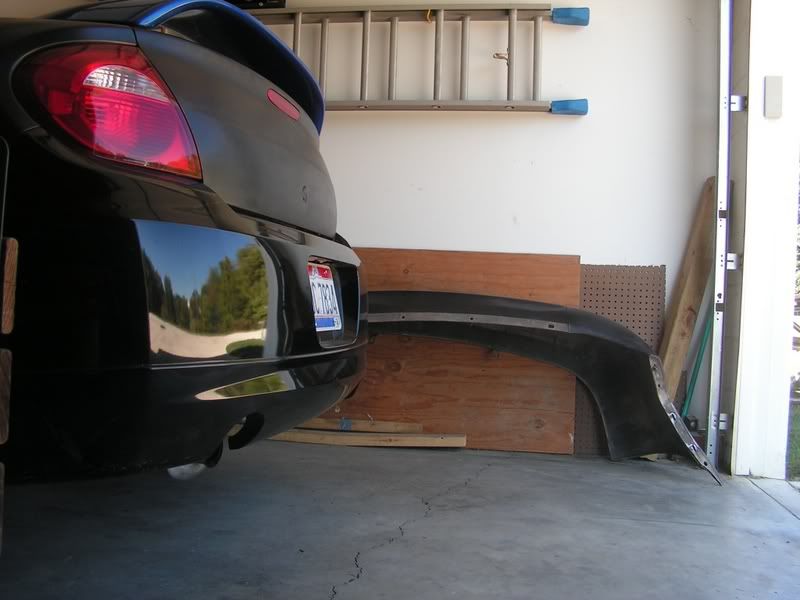

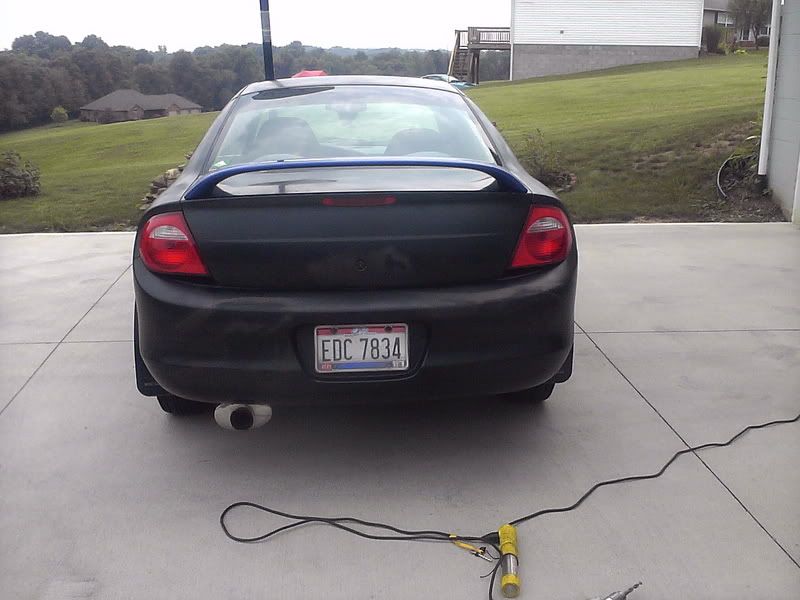

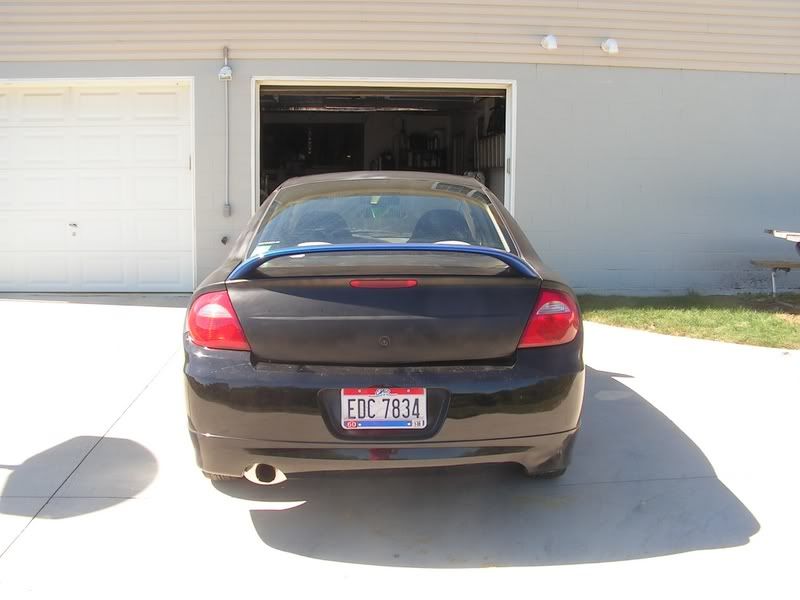

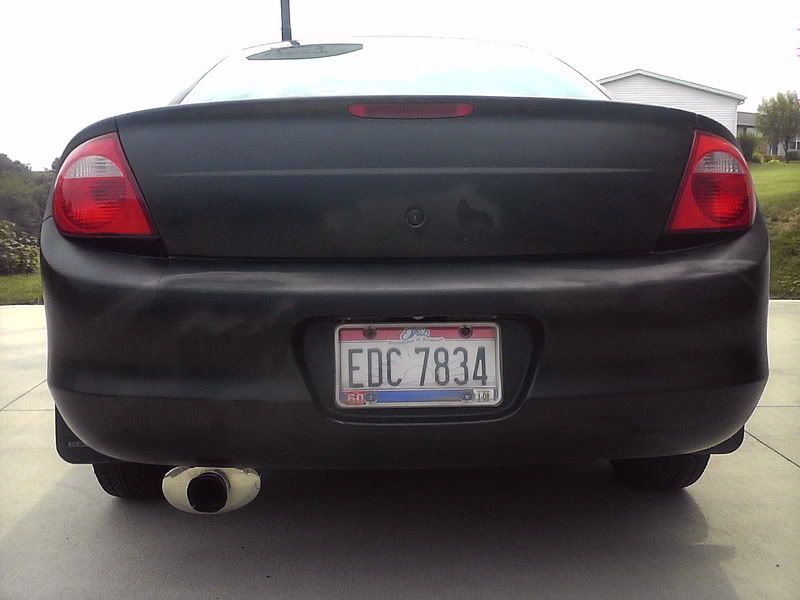

The rear bumper is on now:
It definately makes that crappy muffler look better. It doesn't even stick out now





I also reupholtered my door panels in desert camo.


My old rear bumper, old front bumper, and old headlamps are for sale by the way :D

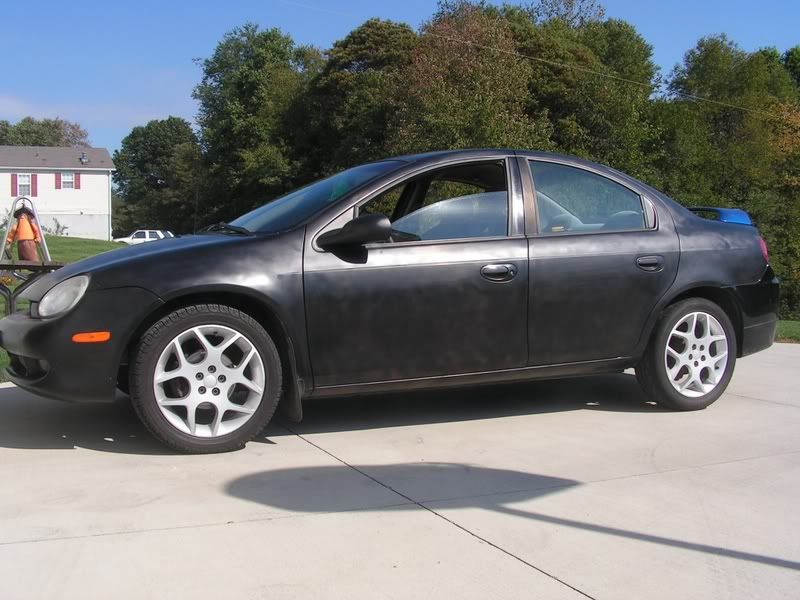

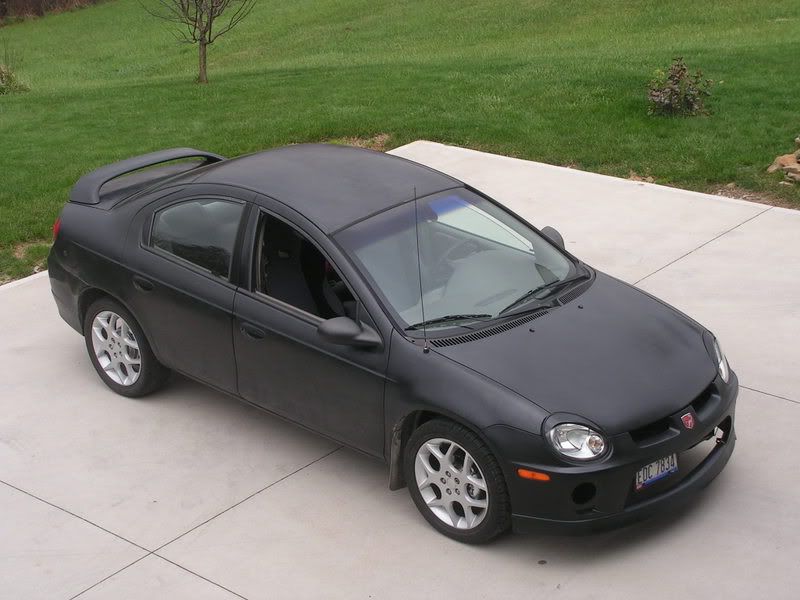

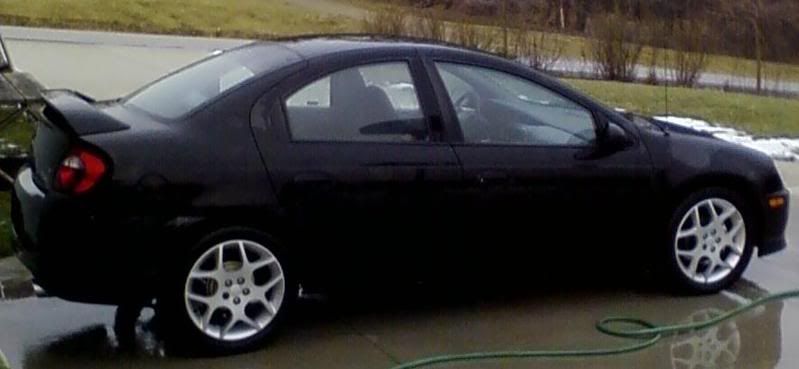

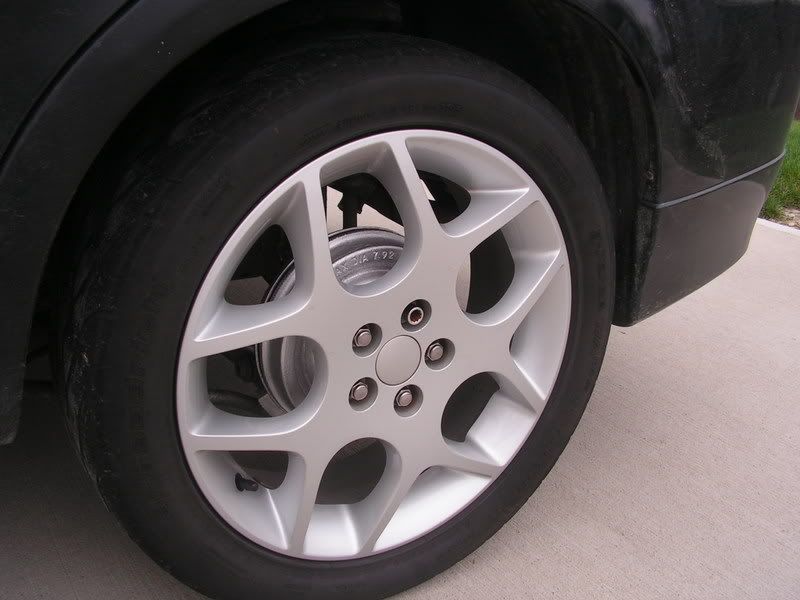

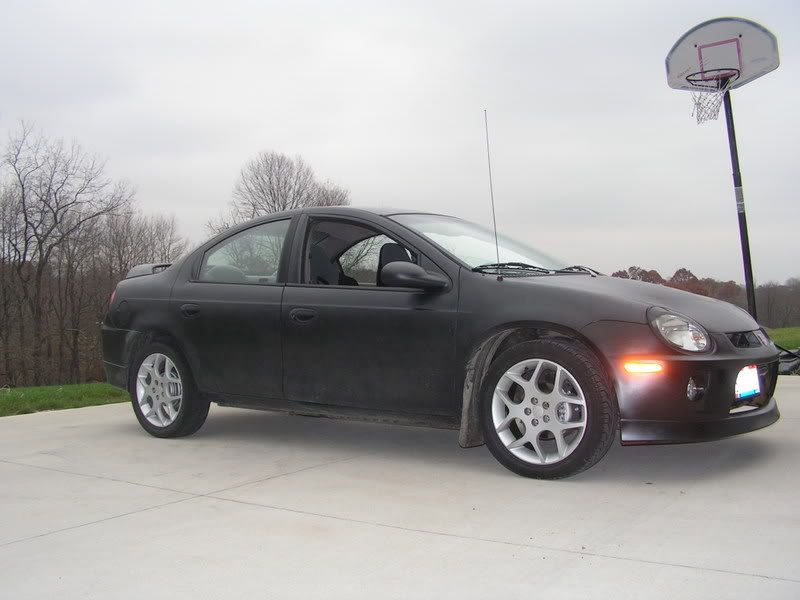

picked up some SRT-4 wheels. I found them on Columbus Craigslist for $350 with two new hankook tires and two worn KDW's.

I DID NOT need SRT-4 struts. The front needed no modifications. the rear strut perches needed 10 minutes with my grinder. In my opinion it's worth a little work to save a lot of money buying new struts. I won't be interested in that until I lower it.

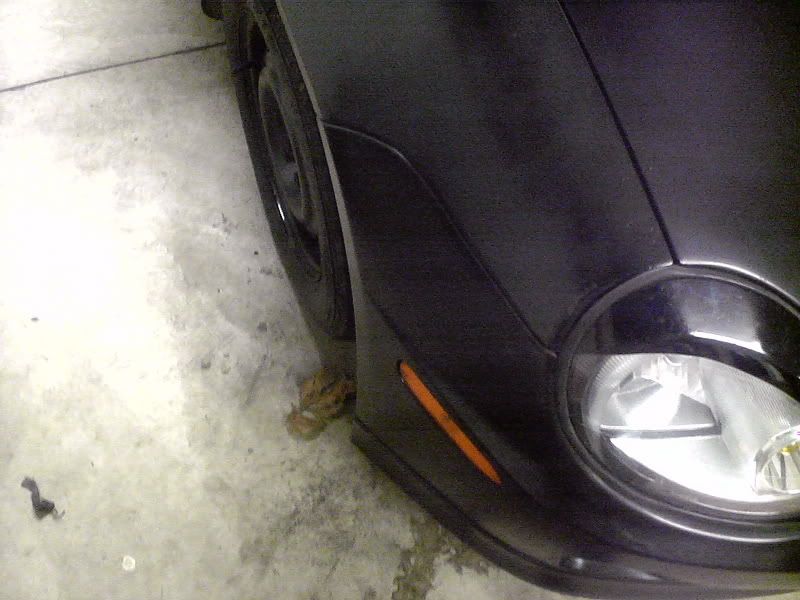

the front tire gap:

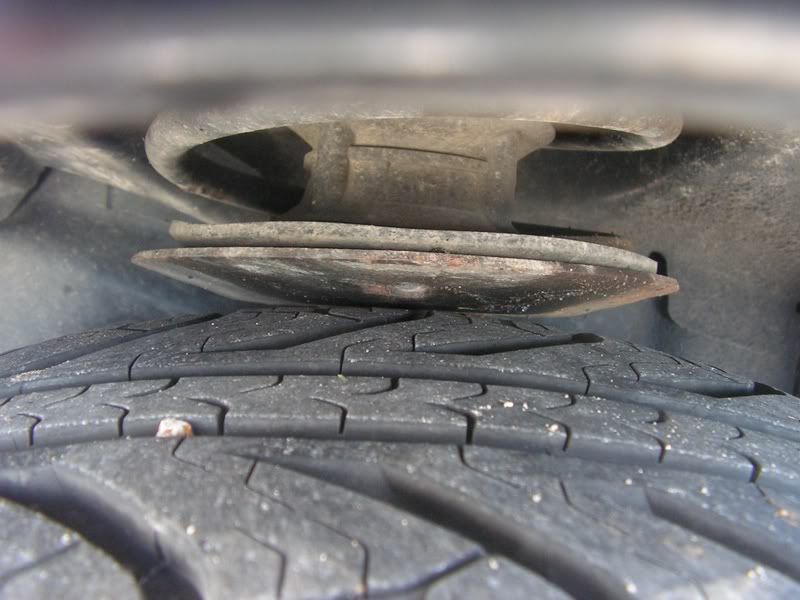

the rear tire gap, after grinding the "bump" off:


yes, those are 205/50/R-17. no 45's. no 40's.


I didn't have to move the washer bottle, but it's close:

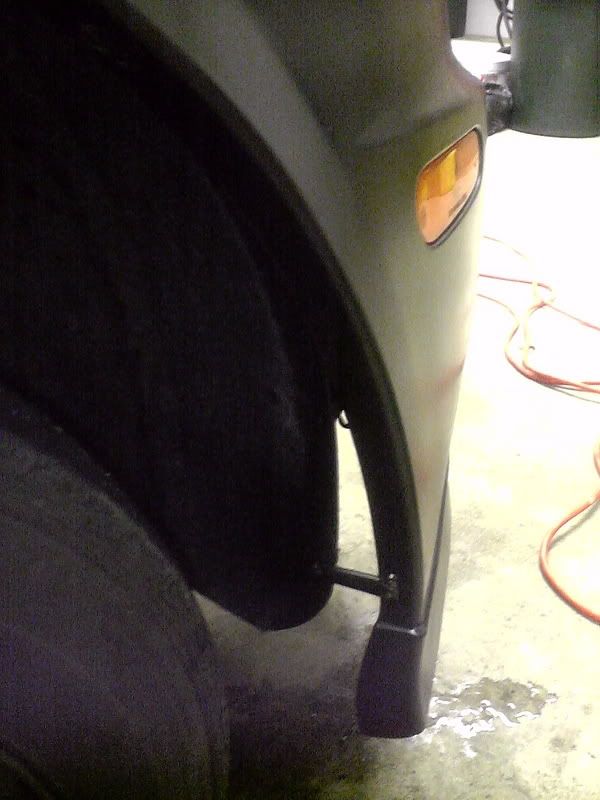

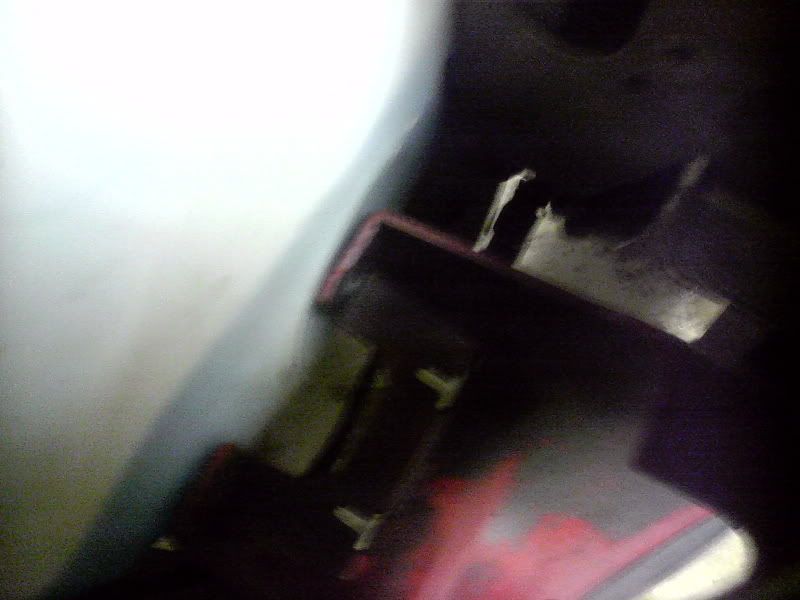

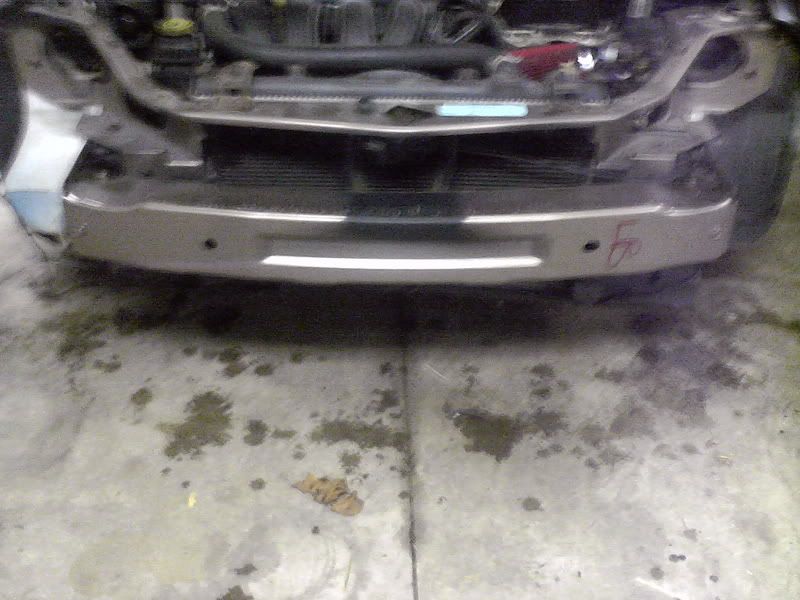

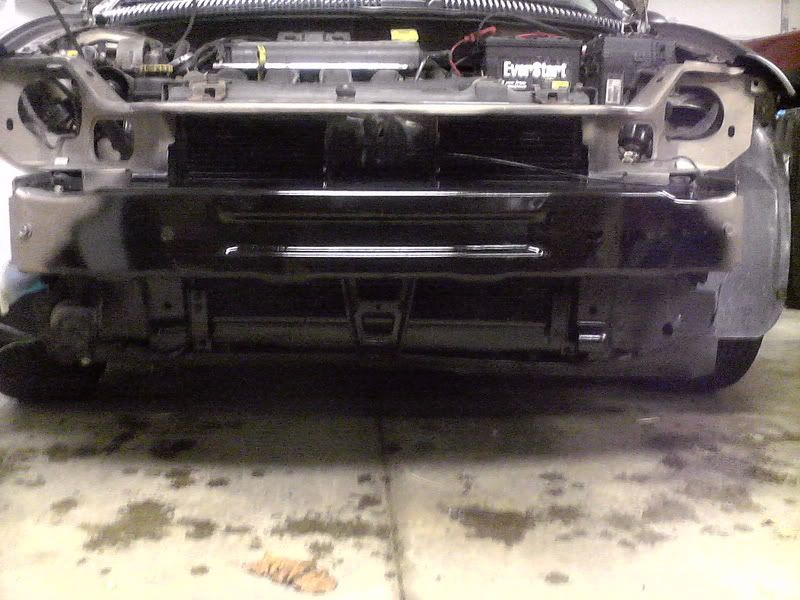

bumper expanding brackets

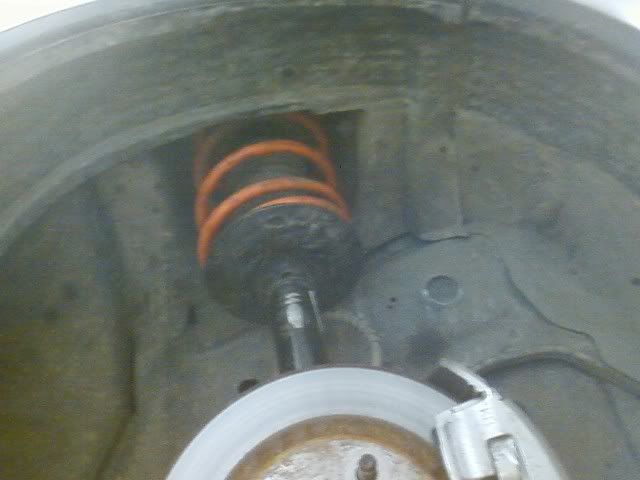

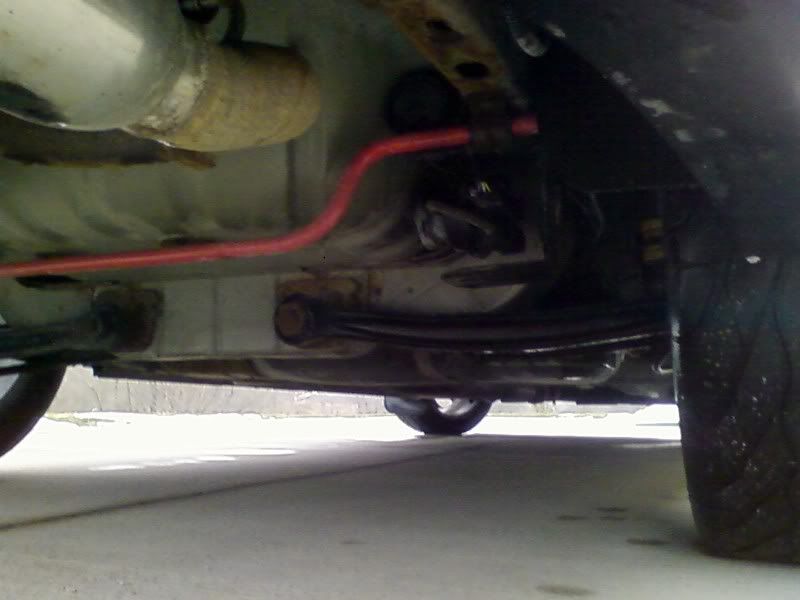

I painted the brakes and bolted on an SRT-4 rear section. Yes, it is very loud, but it sounds soo mean when it backfires.

Last edited by nunley on Tue Nov 20, 2007 8:03 pm, edited 10 times in total.

NeonOn19s
2GN Member
Posts: 2074
Joined: Mon Nov 07, 2005 11:44 am
Location: Spring,TX

Post by NeonOn19s » Wed Aug 22, 2007 10:11 am

keep up the good work.... keep the pics comming...
| Nathan |


Official "I'm Going to Drive My Neon til it Dies" Club Member # 72
Semper Fi!!! USMC

User avatar
hansken_yo
2GN Veteran
Posts: 5148
Joined: Wed Oct 11, 2006 10:54 am
Location: Washington

Post by hansken_yo » Wed Aug 22, 2007 2:34 pm

looks like you have quite the project.... keep up the postings.
| - John || Project Log || Official I'm Going To Drive My Neon Till It Dies Club #000001 |
Everyone knows that for breasts to be "perfect" they need to be within reach.

slaw
2GN Member
Posts: 1915
Joined: Tue Apr 03, 2007 6:05 am
Location: new milford CT

Post by slaw » Wed Aug 22, 2007 3:42 pm

not a fan of the flat black
but a deffinite improvement over stock

deep1ca
2GN Member
Posts: 498
Joined: Sat Jun 23, 2007 8:19 pm
Location: Ottawa , Ontario , Canada

Post by deep1ca » Thu Aug 23, 2007 3:23 pm

Good stuff, i also plan on doing a 03+ conversion soon, keep the it coming.

yellowpatrol
2GN Member
Posts: 2847
Joined: Mon Jan 01, 2007 8:12 pm
Location: Kansas City

Post by yellowpatrol » Thu Aug 23, 2007 4:12 pm

can't wait to see it finished
FEEDBACK
Adionik wrote:On a 100% stock SRT engine i've seen detonation on 93 octane, I know what i'm talking about.

User avatar
nunley
2GN Member
Posts: 82
Joined: Mon Aug 13, 2007 10:28 am
Location: OH

l

Post by nunley » Sat Aug 25, 2007 7:58 pm

Last edited by nunley on Wed Nov 07, 2007 12:13 am, edited 3 times in total.

User avatar
INVUJerry
2GN Veteran
Posts: 6604
Joined: Mon Nov 21, 2005 9:55 pm
Location: Hanover, PA
Contact:

Post by INVUJerry » Sat Aug 25, 2007 8:35 pm

I liked the cinnamon color before, but to each their own. Hurry up and get it prof. painted! And get a diff muffler too, that one just dosen't look good there.
So many neons so little time.

atom
2GN Member
Posts: 638
Joined: Tue Apr 04, 2006 8:27 pm
Location: Pittsburgh, PA

Post by atom » Sat Aug 25, 2007 9:09 pm

Wow, I love your project because it is so similiar to my own car in ways. Like when you try to do something and it doesn't fit so you start smashing things then you glue them all back together real nice looking. Well, thats close anyways...

2003silverneonsxt
2GN Member
Posts: 3002
Joined: Sat Oct 02, 2004 2:48 pm
Location: Lebanon PA
Contact:

Post by 2003silverneonsxt » Sat Aug 25, 2007 9:18 pm

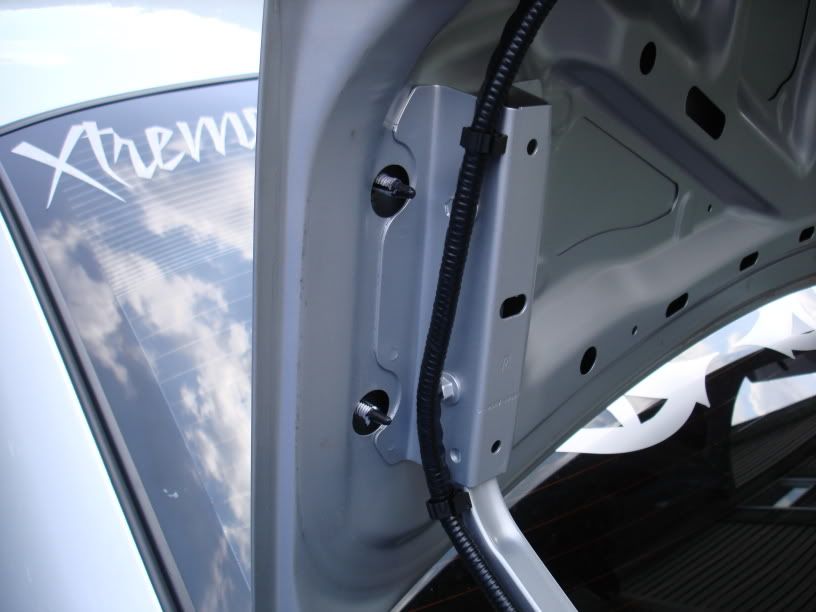

just fyi ..this is where the spoiler was suppose to go :) (just bout where u have urs i think)


but u did good figuring it out urself

and u said the "nuts" dont fit up in there..they do..ur suppose to use a 10 mm deep socket to put them in and out.. atleast that what i use (i think its 10mm)
hmmmmm

User avatar
nunley
2GN Member
Posts: 82
Joined: Mon Aug 13, 2007 10:28 am
Location: OH

Post by nunley » Sun Aug 26, 2007 1:22 am

2003silverneonsxt wrote:just fyi ..this is where the spoiler was suppose to go :) (just bout where u have urs i think)



but u did good figuring it out urself

I expected it to be that easy, but my 2000 trunk did NOT have those cutaways like the new trunk style:


That is why I posted my spoiler install in the form of a write-up, for those who lack the convenient cut away spots and bottom nut-access holes. :thumbup:
and u said the "nuts" dont fit up in there..they do..ur suppose to use a 10 mm deep socket to put them in and out.. atleast that what i use (i think its 10mm)
Again, my trunk didn't have the larger round hole in the bottom layer of metal to access the nuts, and had I used my larger drill bit to allow room for a socket, I'd have drilled out through the top skin metal layer on the trunk.

I knew the junkyard near me had a 2g trunk with the spoiler holes already drilled, but this way I could also position the spoiler further back than an oem placement, which you can notice in the last spoiler pic.


I should have clarified this more haha

invujerry wrote:I liked the cinnamon color before, but to each their own. Hurry up and get it prof. painted! And get a diff muffler too, that one just dosen't look good there.

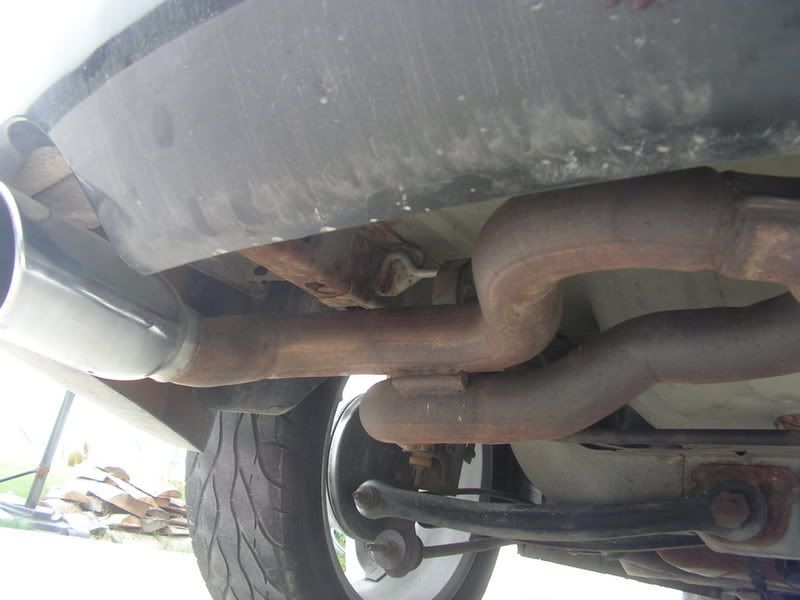

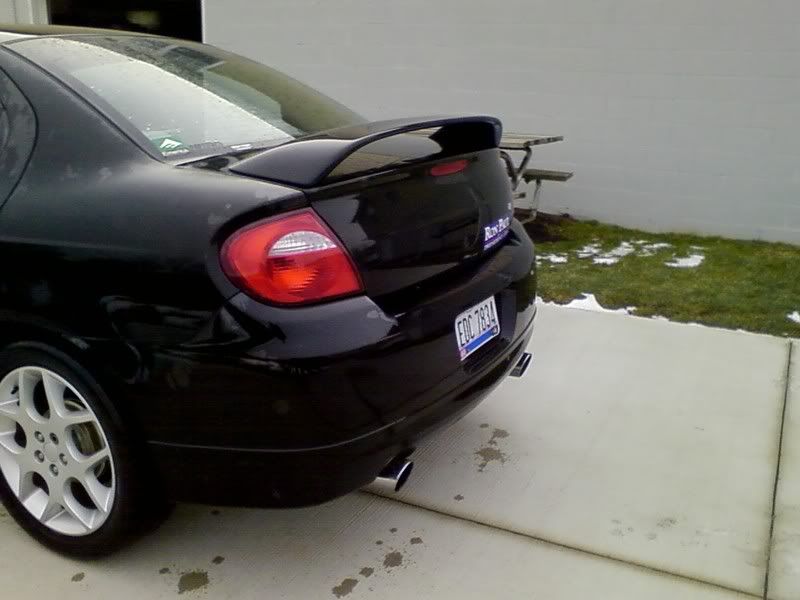

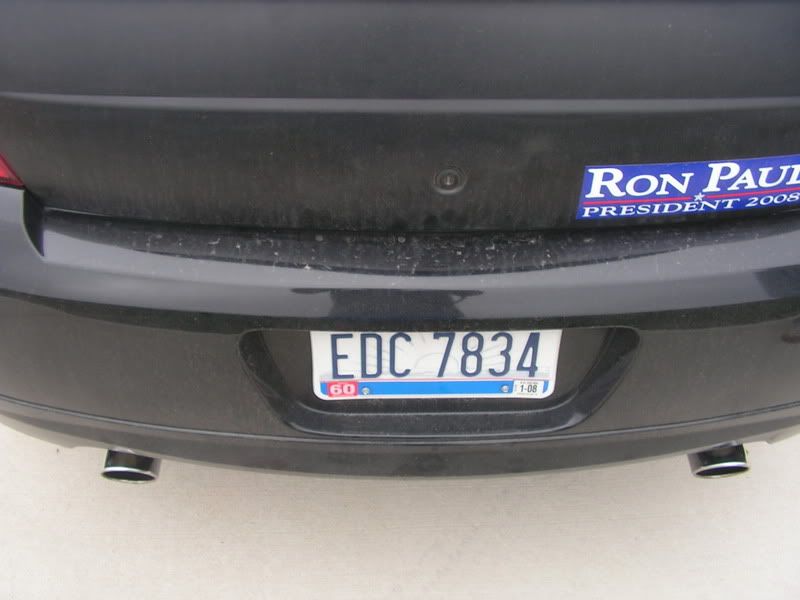

I'm in the market for a dual exhaust. stock or aftermarket as long as it's cheap!
The one you see is an APC unit from eBay for $19.99 shipped. It looks crappy b/c I axed the 4.5" flame-design tip off with my hack saw :D ; I hate pointless large muffler tips

User avatar
nunley
2GN Member
Posts: 82
Joined: Mon Aug 13, 2007 10:28 am
Location: OH

Post by nunley » Tue Sep 11, 2007 2:35 pm

Update:

don't buy from JFMAN on srtforums!
My rear bumper hasn't even been shipped yet :cussing:

yellowpatrol
2GN Member
Posts: 2847
Joined: Mon Jan 01, 2007 8:12 pm
Location: Kansas City

Post by yellowpatrol » Wed Sep 12, 2007 1:32 am

Good to know. You may want to leave feedback in the feedback section of this forum for those who haven't read this topic.
FEEDBACK
Adionik wrote:On a 100% stock SRT engine i've seen detonation on 93 octane, I know what i'm talking about.

User avatar
nunley
2GN Member
Posts: 82
Joined: Mon Aug 13, 2007 10:28 am
Location: OH

Post by nunley » Mon Sep 17, 2007 8:10 pm

Last edited by nunley on Tue Nov 06, 2007 10:41 pm, edited 2 times in total.

anomalous0
2GN Member
Posts: 457
Joined: Sun Oct 22, 2006 7:23 pm
Location: Arizona

Post by anomalous0 » Mon Sep 17, 2007 8:44 pm

Honestly, I think you should have left it cinnamon and gone for performance. That beige/cinnamon is the ultimate sleeper color. Turbo that mofo and no one will ever see it coming.
"If you haven't bled on it, it's not your car"

deep1ca
2GN Member
Posts: 498
Joined: Sat Jun 23, 2007 8:19 pm
Location: Ottawa , Ontario , Canada

Post by deep1ca » Tue Sep 18, 2007 1:19 am

So thats what happened 2 that srt front bumper ... he sold it to you one day after I emailed him telling him i'd take it :beatstick:

But looking good!

User avatar
nunley
2GN Member
Posts: 82
Joined: Mon Aug 13, 2007 10:28 am
Location: OH

Post by nunley » Sun Sep 23, 2007 3:23 pm

Last edited by nunley on Wed Nov 07, 2007 12:15 am, edited 3 times in total.

User avatar
nunley
2GN Member
Posts: 82
Joined: Mon Aug 13, 2007 10:28 am
Location: OH

Post by nunley » Tue Oct 02, 2007 12:13 pm

Last edited by nunley on Wed Nov 07, 2007 12:15 am, edited 2 times in total.

User avatar
Andpto
2GN Member
Posts: 462
Joined: Mon Mar 26, 2007 10:24 am
Location: Columbus, MS

Post by Andpto » Mon Oct 08, 2007 5:43 pm

its that the stock suspension?
-Andres
2000 Plymouth Neon SOLD
2005 Dodge Neon SRT-4

User avatar
nunley
2GN Member
Posts: 82
Joined: Mon Aug 13, 2007 10:28 am
Location: OH

Post by nunley » Mon Oct 08, 2007 9:02 pm

Andpto wrote:its that the stock suspension?
yes.
If I would have bought spacers for the rear, I wouldn't have needed to modify anything.

Taller tires really make my brakes feel weak. I guess that's the tradeoff for better mpg haha. :thefinger:

User avatar
nunley
2GN Member
Posts: 82
Joined: Mon Aug 13, 2007 10:28 am
Location: OH

Post by nunley » Mon Nov 05, 2007 10:08 pm

Last edited by nunley on Wed Nov 07, 2007 12:14 am, edited 2 times in total.

bstc00
2GN Member
Posts: 1505
Joined: Wed Aug 29, 2007 9:55 pm
Location: auburn hills

Post by bstc00 » Mon Nov 05, 2007 10:34 pm

thats starting to come together. keep it up looking nice!!

User avatar
nunley
2GN Member
Posts: 82
Joined: Mon Aug 13, 2007 10:28 am
Location: OH

Post by nunley » Wed Nov 21, 2007 12:36 am

How much is this car worth after I get it painted?
opinions?

User avatar
z3roneo
2GN Member
Posts: 3543
Joined: Mon Jan 31, 2005 12:08 am
Location: Humble,Tx
Contact:

Post by z3roneo » Wed Nov 21, 2007 8:52 am

Looking good.. now throw some rt side skirts on it...
2000 2.4L Turbocharged Neon (The Monster)
2005 5.7L Hemi Jeep Grand Cherokee (SRT8 Clone)



supertrick_05
2GN Member
Posts: 4225
Joined: Thu Jul 21, 2005 9:09 pm
Location: Duluth, MN
Contact:

Post by supertrick_05 » Sat Dec 29, 2007 2:23 pm

Sorry z3roneo, but I gotta say, stick with finding some SRT sides...they flow better with the SRT front and rear IMO.

Anyways, that car is looking great! I just hope that the fiberglass on the stock plastic bumper works for you...but I imagine it will crack overtime. For your sake, I hope not!

BTW, I'd stick with the cinnamon color...it will look like ass when you paint it a totally different color than stock, and open up the hood to see that the engine bay is still cinnamon. Besides, I think it's a cool color! You could even two-tone or stripe it with another color that goes good with the stock color.
-Brodie
2002 Dodge Neon ACR - Needs LOTS of love, but I'm gonna slowly get her to where she deserves to be :)

User avatar
INVUJerry
2GN Veteran
Posts: 6604
Joined: Mon Nov 21, 2005 9:55 pm
Location: Hanover, PA
Contact:

Post by INVUJerry » Sat Dec 29, 2007 2:40 pm

You know, this is coming together alot better than I thought it would! I love the Ron Paul sticker too!
So many neons so little time.

slaw
2GN Member
Posts: 1915
Joined: Tue Apr 03, 2007 6:05 am
Location: new milford CT

Post by slaw » Sat Dec 29, 2007 11:17 pm

i like the srt bumper on it, looks good but needs black rims imo

yellowpatrol
2GN Member
Posts: 2847
Joined: Mon Jan 01, 2007 8:12 pm
Location: Kansas City

Post by yellowpatrol » Thu Feb 21, 2008 11:13 am

Any updates?
FEEDBACK
Adionik wrote:On a 100% stock SRT engine i've seen detonation on 93 octane, I know what i'm talking about.

User avatar
nunley
2GN Member
Posts: 82
Joined: Mon Aug 13, 2007 10:28 am
Location: OH

Post by nunley » Thu Mar 06, 2008 10:28 pm

I Sold the Car. I ran out of money to finish the project.
Someone offered me $3,700, and I couldn't refuse that!!!

final pictures of srt struts,lowering springs,and swaybars before I sold it.

pics of my new car :) (only $3,550) 2000 celica GT-S. Bone Stock. Fully Loaded 6-speed, leather, 180hp, sunroof...


My New Dream Car:

yellowpatrol
2GN Member
Posts: 2847
Joined: Mon Jan 01, 2007 8:12 pm
Location: Kansas City

Post by yellowpatrol » Fri Mar 07, 2008 12:08 am

Awwwww
FEEDBACK
Adionik wrote:On a 100% stock SRT engine i've seen detonation on 93 octane, I know what i'm talking about.

Post Reply

Return to “Progress/Project Log”
