Template to make Omega bumper flares

SlvrACR · Post by **SlvrACR** » Wed Aug 29, 2007 6:58 am

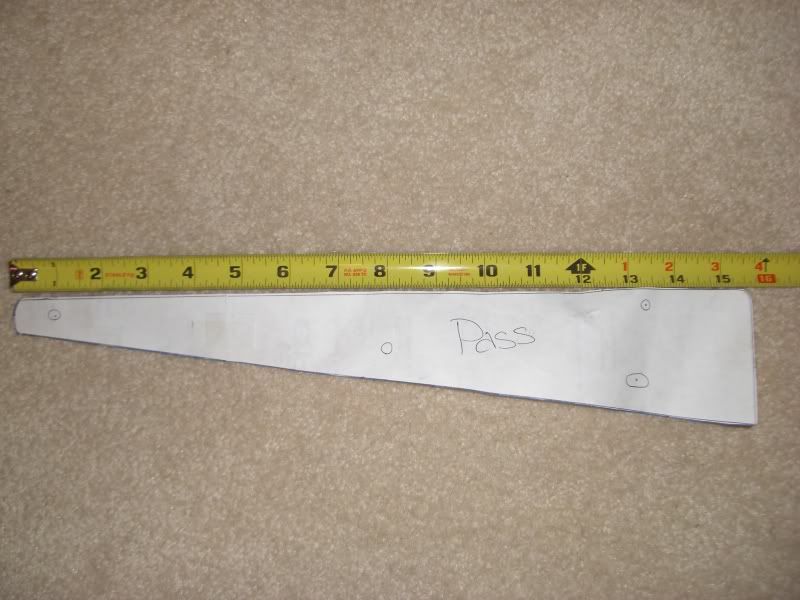

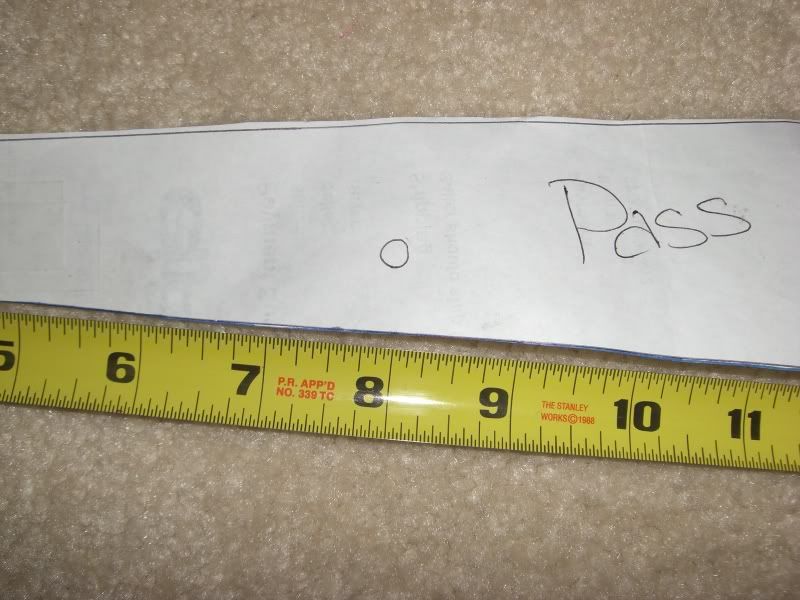

Here is the pics. To make the other side just flip it over. I used a sheet of stainless from HomeDepot for $15 and you can make 2 sets. If you need any more pics let me know.

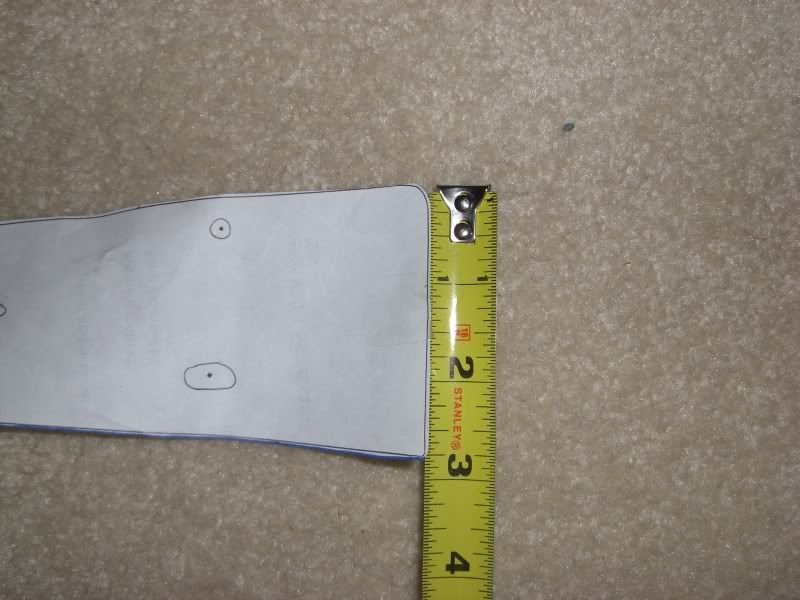

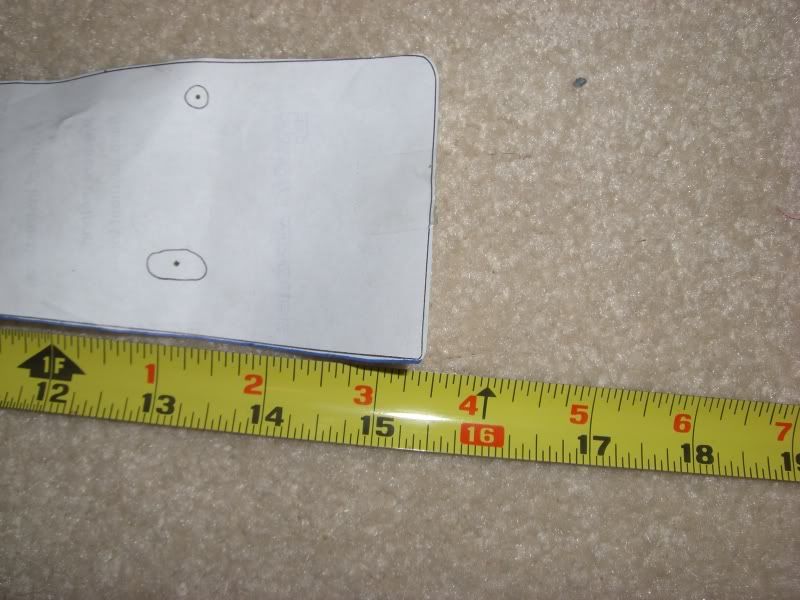

Here is what the end looks like.

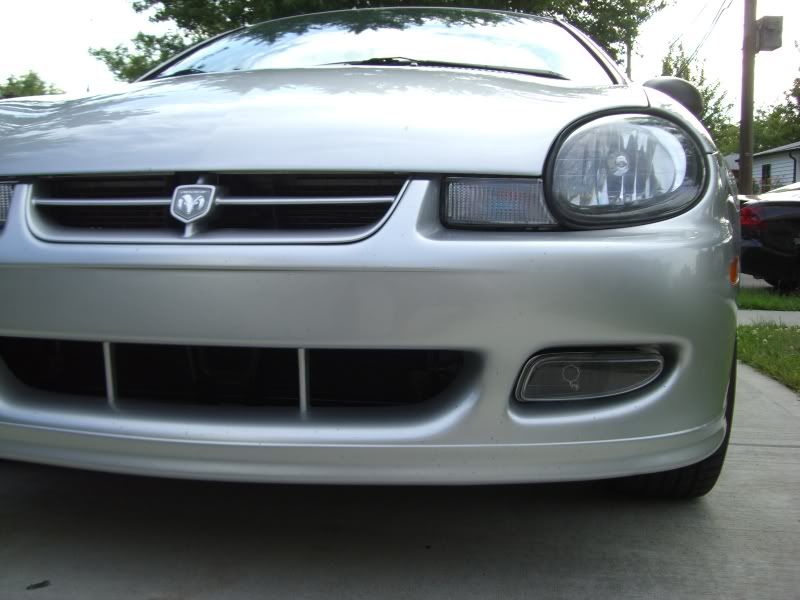

See the diff? Mine doesnt have them and my brothers does. I have 225 tires and he only has 205

The how-to install them

http://www.srtforums.com/forums/showthread.php?t=260695[/img]

Post by **Diablo0** » Wed Aug 29, 2007 10:26 am

Thank you, a few of the local guys have them here and I was debating on getting or making them to see how well it's turn out and look.

JFTL · Post by **JFTL** » Wed Aug 29, 2007 10:30 am

So, essentially this just pushes the bumper out to the sides a little ? Interesting....
I may have to see about someone making a set for me because I'm not a metal fab'er by any means.

Thanks for idea

I think I like it!

Kevin

z3roneo · Post by **z3roneo** » Wed Aug 29, 2007 11:30 am

Yay.... looks like I found something to do this weekend...

How thick should the metal be??

2k1MotorSport · Post by **2k1MotorSport** » Wed Aug 29, 2007 12:04 pm

JFTL wrote:I may have to see about someone making a set for me because I'm not a metal fab'er by any means.

of course you could just make them and sell them as a group buy...

kc2005ptgt · Post by **kc2005ptgt** » Wed Aug 29, 2007 2:46 pm

ooooh, ok, so you screw these into the holes in the body that are presently there and then screw the bumper into the new flares... nice, I LIKE it.

SlvrACR · Post by **SlvrACR** » Wed Aug 29, 2007 3:24 pm

Since I spent the money on the set and posted to info someone that does a GB should be sending me a set LOL
I dont remember the size I used sorry. The thicker the better. The ones I have direct from Omega are very thin

hul kogan · Post by **hul kogan** » Wed Aug 29, 2007 10:41 pm

hmm, these are interesting. cool idea. thanks for the info.

kc2005ptgt · Post by **kc2005ptgt** » Wed Sep 05, 2007 2:23 pm

how far in are the holes to be drilled, how big is the top part of the flare, and how far apart are the holes from each other?

cebosk8 · Post by **cebosk8** » Wed Sep 05, 2007 2:33 pm

But with this not deformed the bumper a long time ago for use this?

Post by **Canada** » Wed Sep 05, 2007 4:02 pm

I think you're asking, that the bumper may be too formed in its way already for this to work?

It does work, very well, it helps to flatten out the bumper to cover plus sized wheel/tire combo, plus some people just like the look.

03blackrt · Post by **03blackrt** » Thu Sep 06, 2007 11:41 pm

I got me a new project to try out.

Time to brake out me ye ole CAD program for smurfs and giggles

WykedHellFire · Post by **WykedHellFire** » Thu Sep 06, 2007 11:57 pm

03blackrt wrote:I got me a new project to try out.

Time to brake out me ye ole CAD program for smurfs and giggles

for some reason when I read that I thought of beerfest.

/threadhijack

03sxt · Post by **03sxt** » Sun Sep 09, 2007 5:57 pm

Very nice! Thanks for sharing the measurements!

[DJ]Tomski · Post by **[DJ]Tomski** » Wed Mar 26, 2008 2:31 pm

anyone do this to an 03-05 with a mopar lip kit? i don't see why it wouldn't work but i wanna make sure before i attempt to make this.

Izero · Post by **Izero** » Tue Aug 05, 2008 9:25 pm

.... how would we go about pushing the fenders out a little more though....? I want an even and smooth look down the side of my car... i dont want the bumper to be the only thing sticking out that far....

LilSparkPlug · Post by **LilSparkPlug** » Tue Aug 05, 2008 9:31 pm

The bumper doesn't stick out that far. The bumper ends up sitting flush with the fender instead of sucking inwards towards the bottom. See here:

My car with, Matt's car w/out:

contagious18 · Post by **contagious18** » Tue Aug 05, 2008 9:39 pm

interesting is dat just a sheet of metal

Izero · Post by **Izero** » Tue Aug 05, 2008 10:52 pm

yea im trying to figure out what it is too... and how thick it is, so i can attempt to make one....

contagious18 · Post by **contagious18** » Tue Aug 05, 2008 10:54 pm

yea, im trying to figure out also

Izero · Post by **Izero** » Tue Aug 05, 2008 11:45 pm

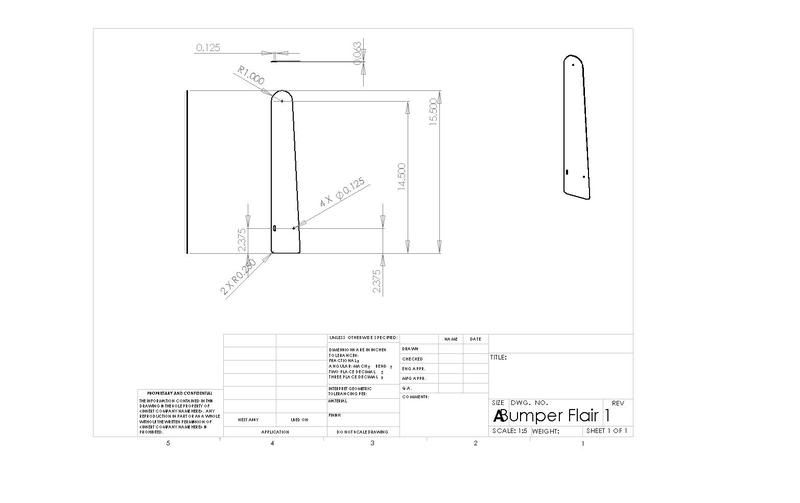

ok so this is my make-shift drawing from the dimensions shown..... anyone know if they are all 100% correct or what?

Izero · Post by **Izero** » Sun Aug 10, 2008 8:14 pm

so i guess ill take that as a no...?

MoxHair · Post by **MoxHair** » Sun Aug 10, 2008 8:32 pm

I like the look of the tires sticking out a bit. Makes it look more aggressive.. eh..

srtjesse · Post by **srtjesse** » Wed Aug 13, 2008 6:39 pm

wow this is nice ill be looking into this

Izero · Post by **Izero** » Wed Aug 13, 2008 7:12 pm

yea well i wanna make it too but i need to know if my measurements are correct or not....

Izero · Post by **Izero** » Sun Aug 24, 2008 5:09 pm

well I went ahead and made myself a set for the front, if you wanna see the results go check out my progress thread... I used Aluminum instead of stainless steel... so if anyone wants me to make them a set toss me a PM, it will be $25 shipped for the front set... haven't made the rears yet...

SlvrACR · Post by **SlvrACR** » Sun Aug 24, 2008 6:56 pm

LOL making money off a design i posted for free. Your welcome. Glad I bought them to help you out.

Post by **racer12306** » Sun Aug 24, 2008 7:02 pm

Izero wrote:well I went ahead and made myself a set for the front, if you wanna see the results go check out my progress thread... I used Aluminum instead of stainless steel... so if anyone wants me to make them a set toss me a PM, it will be $25 shipped for the front set... haven't made the rears yet...

If you are going to become a vendor of these, you should...

1. Send all required information to Diablo0
2. Wait for approval
3. Post a thread in the Vendor Section

Unless you have a bunch of these made up already you will probably considered a made to order vendor. If you have a bunch made up and are selling them, you will still need to post a thread in the proper section.

Izero · Post by **Izero** » Mon Aug 25, 2008 12:49 am

I intend to... gotta stop and get more materials and I'll go through the motions thanks

SlvrACR wrote:LOL making money off a design i posted for free. Your welcome. Glad I bought them to help you out.

Gotta pay for school somehow...? :-\ and its not like I'm charging an arm and a leg to do it... barely making a profit on these specially since I'm using Aluminum instead of stainless steel, I like the properties of Aluminum vs. stainless, regardless of cost... I think I'm actually gonna refine the design a little more... Make it a little more Hidden, as well as maybe make a few different widths, just like the real ones...

sidenote: I'm actually working on a design for retro-fitting the LED tails into a 00-02 Tail Light housing too... just waiting for a good deal on the tails so I don't feel terrible about hacking up a set of expensive tail lights to begin with... but If no one else has done it, then I guess I'll be the first? I hope.... I just gotta figure out what the best way to physically attach the LEDs to the 00-02 housing, then it would be all set...

Swordfish2Cowboy · Post by **Swordfish2Cowboy** » Wed Apr 15, 2009 4:20 pm

SlvrACR wrote:Here is the pics. To make the other side just flip it over. I used a sheet of stainless from HomeDepot for $15 and you can make 2 sets. If you need any more pics let me know.

The first pic, the metal looks curved, but on the template they're not curved at all. Is that just an illusion because of the way the metal is bending, or what?

Izero wrote:ok so this is my make-shift drawing from the dimensions shown..... anyone know if they are all 100% correct or what?

You're missing a few measurements. Also, the bottom edge is straight on the diagram, but the picture has them slanted. Is that supposed to be your version of looking at it at an angle, or what?
