need help with vac system!!!

speedyrb29 · Post by **speedyrb29** » Thu Aug 30, 2007 12:33 am

ok nearing the end of my swap and dont kno abouth them vac lines. all are hooked up and have a place to go except 2.

1 is comming off of a T with the green washers it looks like pointing towards the drivers cabin. and has a weird locking mech on the end of it. idk where it gose!?!?!

and the other 1 is from the lil surge valve? under the master cylinder boltd onto the frame. its the stock neon vac line that gose behind the fuse box. am i sapposed to cap it since i have the srt engine in there?

or could these to lines be 1 in the same and im sapposed to update to the srt surge valve??

seisephiroth · Post by **seisephiroth** » Thu Aug 30, 2007 12:54 am

you need to get a FSM

image copyright of DCx

speedyrb29 · Post by **speedyrb29** » Thu Aug 30, 2007 12:57 am

ive been looking at that but cant figure out what 1 of them lines is the 1 i have un connected.

seisephiroth · Post by **seisephiroth** » Thu Aug 30, 2007 1:01 am

did you get the SRT evap system? cause if I'm reading right thats where the line your talking about goes, to the evap solenoid aka PPS

speedyrb29 · Post by **speedyrb29** » Thu Aug 30, 2007 1:09 am

i dont belive i did. right now i just have the engine, engine harness and engine bay harness in.

would i need that to succesfully swap or could i intergrate in into the system i have now?

speedyrb29 · Post by **speedyrb29** » Thu Aug 30, 2007 3:13 am

if ne one could take a quick pic of the vac setup near the brake booster(where the T is under it. kinda under tha battery) i would be greatfull!

2001DodgeNeonSe · Post by **2001DodgeNeonSe** » Sun Sep 02, 2007 10:27 pm

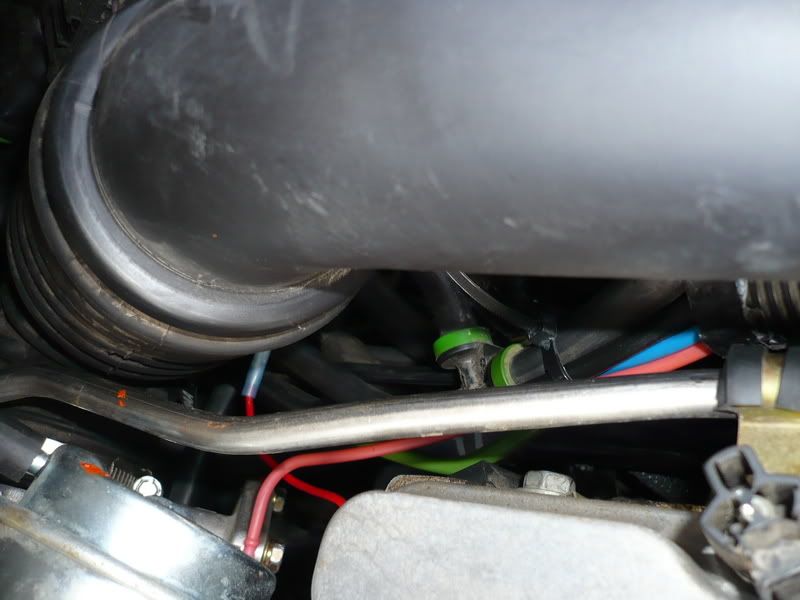

I dont know if this helps, but heres a pic.

datadave49 · Post by **datadave49** » Sun Sep 02, 2007 10:43 pm

Hey Hey
I am a the same point in my swap and I have the Solenoids vacuum pix but some thing is not the same and the pps from the stock noen can stay so I hear I have one connector that looks like the same as the gasl line and I don't see were it could go on the stock neon Oh I have a 05 srt drive train and a 2000 body
Dave
