my srt piece together

heyitsstock · Post by **heyitsstock** » Thu Aug 30, 2007 10:41 am

alright so i got some of my parts for my srt build i just need some help with some things

currently i have

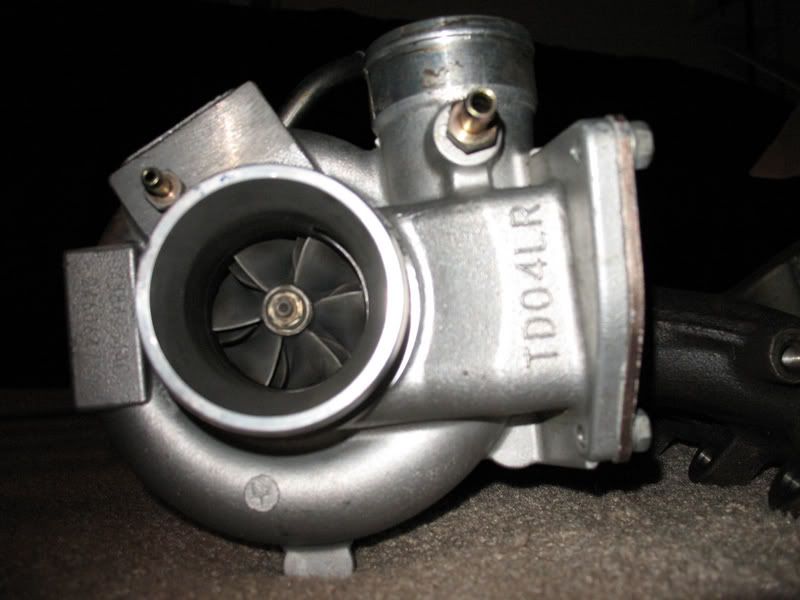

the srt turbo and mani
stock ic
a fuel return
o2 pipe
stage 0 injectors (not sure if i need them yet)
and thats it.... i also have either the hot or cold side for the ic

i know i need the piping for the ic which is gonna suck because i have a atx
i need a boost a/f wide band and exhust temp? i kno the boost and a/f wideband are important what are some other fairly important guages?
how am i looking?

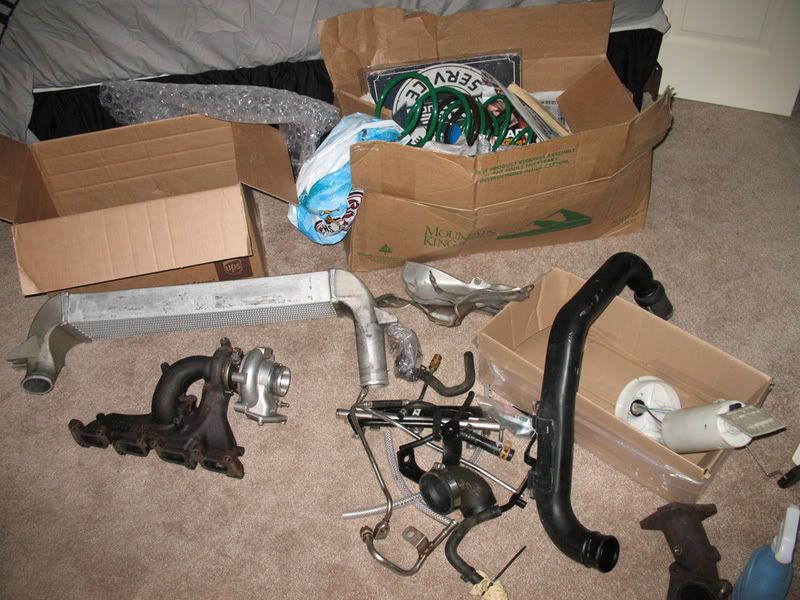

u see the ic and turbomani set up, to the right is a long ic pipe (hot or cold?) my o2 houseing, and my fuel return

jphillips · Post by **jphillips** » Thu Aug 30, 2007 11:23 am

doesn't look like it's part of the IC piping at all, but a CAI for the turbo inlet.

turbodudey · Post by **turbodudey** » Thu Aug 30, 2007 12:20 pm

heyitsstock wrote:i kno the boost and a/f wideband are important what are some other fairly important guages?

Fuel pressure, and oil pressure are good gauges to have. An EGT gauge can be handy, but it's not a necessity.

heyitsstock wrote:u see the ic and turbomani set up, to the right is a long ic pipe (hot or cold?)

That's the hotside pipe. (most of it anyway) It probably won't fit up very well just the way it is. I know people have modified the stock piping to work. (not sure if it's been done on an ATX car before though) Either way you're going to have to fab up some custom pipes.

esteinmaier · Post by **esteinmaier** » Thu Aug 30, 2007 1:10 pm

I didn't notice anything to control the fuel pressure such as a RRFPR FMU or a standalone. Do you have that covered?

Kevin_GP · Post by **Kevin_GP** » Thu Aug 30, 2007 2:24 pm

Looks like you need an adaptor plate, some way to modify the srt-4 oil lines, a oil return line, an intake, alot of vacuum lines (vacuum block), map clamp or aobe, and some kind of fuel management. Also the hotside pipe fits like crap, so you are going to need alot of piping.

heyitsstock · Post by **heyitsstock** » Thu Aug 30, 2007 7:01 pm

yea the adapter i have to get again....

modify the srt oil lines?

fuel management i was thinking the chill factory rrfpr

map clamp or aobe?

remember im new at this i have read a decent amount but until its in my hands i dont understand.....

this is a project of collecting parts while im at school...... im not starting the engine rip apart until i fully understand the mechanics of this set up

dysphagia · Post by **dysphagia** » Thu Aug 30, 2007 7:19 pm

don't use a map clamp, use a safc if you absolutely must go cheap on fuel control.

Kevin_GP · Post by **Kevin_GP** » Thu Aug 30, 2007 7:19 pm

The stock oil feed is not in the same location on a 2.0 as it is on a 2.4. So the oil lines you have will need to be modified. Obviously your oil pan does not have a oil return fitting in it, so either you need to get one welded in or use a bulkhead fitting with stat-o-seals. A map clamp hides boost from your map sensor so your computer doesn't freak out.

heyitsstock · Post by **heyitsstock** » Thu Aug 30, 2007 7:53 pm

gotcha... i fiqured most of those lines i couldnt use.....i knew about the oil pan.....

the map clamp i understand but little confused on how to go about it.... search time

lambostealth · Post by **lambostealth** » Thu Aug 30, 2007 8:00 pm

Missing links work well, synapseengineering.com

heyitsstock · Post by **heyitsstock** » Tue Sep 04, 2007 11:13 pm

alright... dman i havent felt this noobish in a while.... ok guys bear with with me

lambo i checked out that boost bypass... cool so i got the boost heading away from the mapsensor...

i read the modifying the oil and coolant line..... seems alright

i think now i have to work on fuel return.... which im really lost on...

i have to get the intercooler piping.. could i swing a universal kit.. or should i have an exhust shop fix me up with some???...

i need a bov

edit yea i just read the srt how too sticky...... i am so confused basically becasue i have never done this before and i have nothing to look at....

am i in over my head?

soul_sword34 · Post by **soul_sword34** » Tue Sep 04, 2007 11:55 pm

heyitsstock wrote:alright... dman i havent felt this noobish in a while.... ok guys bear with with me

lambo i checked out that boost bypass... cool so i got the boost heading away from the mapsensor...

i read the modifying the oil and coolant line..... seems alright

i think now i have to work on fuel return.... which im really lost on...

i have to get the intercooler piping.. could i swing a universal kit.. or should i have an exhust shop fix me up with some???...

i need a bov

edit yea i just read the srt how too sticky...... i am so confused basically becasue i have never done this before and i have nothing to look at....

am i in over my head?

Hence why I'm starting N/A with a little juice

Kevin_GP · Post by **Kevin_GP** » Wed Sep 05, 2007 9:53 am

heyitsstock wrote:
am i in over my head?

If you plan on doing this soon, yes, way over your head. You just need a while to research and make sure you have no questions. Even if you don't have questions, you will run into a bunch of snags when you install, so lots more research. All the info is out there.

heyitsstock · Post by **heyitsstock** » Wed Sep 05, 2007 11:08 am

mmm no i dont plan on doing it soon.... im a school .... anyother good info sources?

z3roneo · Post by **z3roneo** » Wed Sep 05, 2007 11:32 am

Check on neons.org on how some peeps modified the stock srt oil lines to work on there setup and fuel setup.... i see alot of searching and researching for you buddy.... i know it took me awhile on searching before I started hunting parts down for my setup...

heyitsstock · Post by **heyitsstock** » Wed Sep 05, 2007 1:23 pm

^^ ur carwash picture is my macs background aahha

but yea i have an idea of whats going on but again im so in the dark... i have to get over to neons.org

to see what info is over there

z3roneo · Post by **z3roneo** » Wed Sep 05, 2007 1:27 pm

heyitsstock wrote:^^ ur carwash picture is my macs background aahha

Cbussilver01es · Post by **Cbussilver01es** » Wed Sep 05, 2007 1:55 pm

Im surprised Dave or Josh havent chimed and offered some insight

A lil research will take you a long way, hell after a good year or two of researching I feel that Im pretty confident on how to install it myself, and yet Im still learning. Going over to the .org has helped a decent amount too.
EDIT:

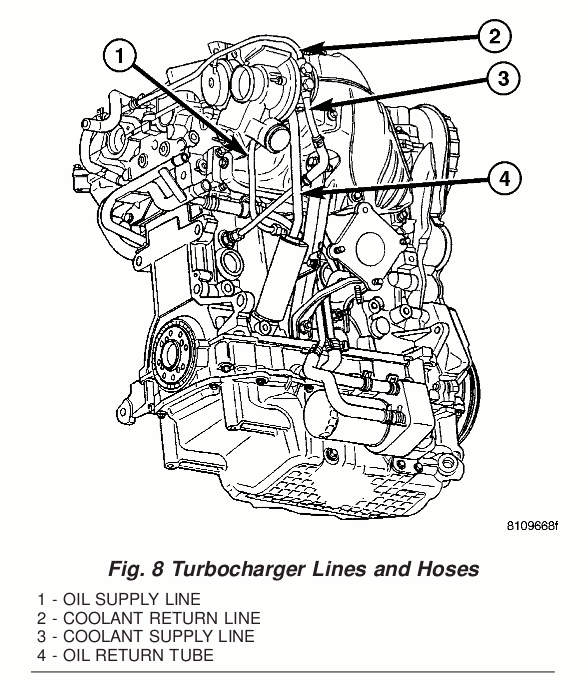

Kevin_GP wrote:The stock oil feed is not in the same location on a 2.0 as it is on a 2.4. So the oil lines you have will need to be modified.

See
v

Kevin_GP · Post by **Kevin_GP** » Wed Sep 05, 2007 4:32 pm

Cbussilver01es wrote:Im surprised Dave or Josh havent chimed and offered some insight A lil research will take you a long way, hell after a good year or two of researching I feel that Im pretty confident on how to install it myself, and yet Im still learning. Going over to the .org has helped a decent amount too.
EDIT:
Kevin_GP wrote:The stock oil feed is not in the same location on a 2.0 as it is on a 2.4. So the oil lines you have will need to be modified.
See
v

The adapter plate pushes the turbo back about an inch, and the oil feed will be off. Also, I should add that if you are piecing together a turbo, it would be a good idea to run a oil psi gauge, so you would need to run a T anyway. I know the oil feed holes are in about the same location, but I could not get the stock line to fit without modifying it.

Cbussilver01es · Post by **Cbussilver01es** » Wed Sep 05, 2007 10:12 pm

Kevin speaks the truth!

Kevin_GP · Post by **Kevin_GP** » Wed Sep 05, 2007 10:22 pm

Cbussilver01es wrote:Kevin speaks the truth!

haha, I just learned the hard way and want to make it easier for everyone else.

Cbussilver01es · Post by **Cbussilver01es** » Thu Sep 06, 2007 3:24 pm

lol I feel you man, in your case, thats definitely taking one for the team!

heyitsstock · Post by **heyitsstock** » Thu Sep 06, 2007 3:36 pm

alright so for a rrfpr how much is a used one run? .... i have seen between 100 and 200? is that about right?

i fiqure ill work on understanding and getting fuel set up first... since that a big part of an effective turbo set up

ok so u have ur spool boy modified canaster with the upgraded pump ....the out goes to the filter then to the fuel rail then to the rrfpr (which drops the fuels psi back to around zero) then it come back into the in on the canaster?

am i on the right track

Cbussilver01es · Post by **Cbussilver01es** » Thu Sep 06, 2007 5:25 pm

heyitsstock wrote:the out goes to the filter then to the fuel rail then to the rrfpr (which drops the fuels psi back to around zero) then it come back into the in on the canaster?

am i on the right track

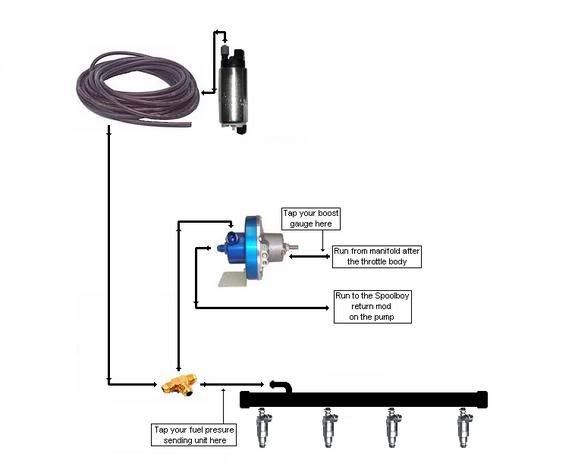

Taken straight from 1gn.

Hope it helps!

heyitsstock · Post by **heyitsstock** » Thu Sep 06, 2007 7:24 pm

ahaha that one is way more civilized than the one i found lol

quicksilvr · Post by **quicksilvr** » Sat Sep 08, 2007 9:27 am

Cbussilver01es wrote:
heyitsstock wrote:the out goes to the filter then to the fuel rail then to the rrfpr (which drops the fuels psi back to around zero) then it come back into the in on the canaster?

am i on the right track
Taken straight from 1gn.

Hope it helps!

Here's another picture of RRFPR setup.

Here's a sweet setup in an actual car

And here's a couple more random pictures just for fun. Cause picturz r fun!

heyitsstock · Post by **heyitsstock** » Sat Sep 08, 2007 10:03 am

sweeeeeeeet

Kevin_GP · Post by **Kevin_GP** » Sat Sep 08, 2007 11:26 am

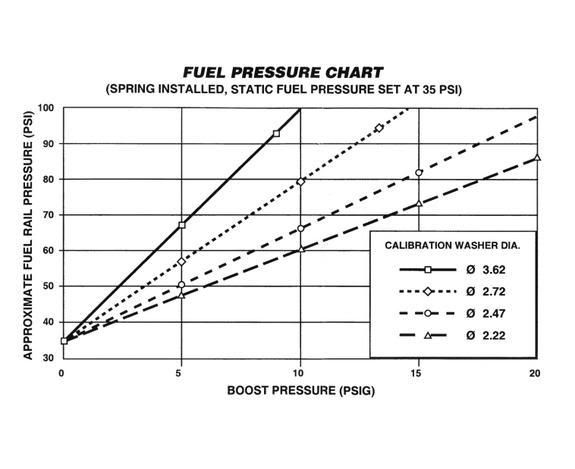

This chart is very important if you have a vortech SFMU, or having a way of knowing your rate of gain.

Cbussilver01es · Post by **Cbussilver01es** » Sun Sep 09, 2007 4:13 am

quicksilvr wrote:

I've seen matts car multiple times in person

Thing is I didnt know that he was running his setup that way because of his Megasquirt. but then again with a big turbo like he has in that r/t you prolly would,

heyitsstock · Post by **heyitsstock** » Sun Sep 09, 2007 7:20 pm

so i was think about getting my oil pressure boost and wide band gauges...

i know its the least of my setup but i fiqured its something that can keep my interest high...

i dont know why there would be a problem with it but can these be installed any time.... like i dont have to have a turbo to run the gauges correct,

the boost gauge is also a vac gauge
oilpressure can be installed iknow
and same with the wideband?

also

im trying to read into this APEXI SAFC.....

so with the spoolboy mod , do you need the safc or not.... im gathering you dont?......because u can just tune the setup using the wideband gauge

but would the safc be easier ?

hmmmmm
