where to weld O2 bung on magnum header?

daver · Post by **daver** » Fri Jun 13, 2008 12:18 am

Anybody have pictures of where they welded an O2 bung to their magnum header for installation in a non-originally magnum application?

I know many individuals have done this, just wondering if anybody has any pics of the precise location on the collector?

Post by **occasional demons** » Fri Jun 13, 2008 7:54 am

Unless someone beats me to it, I'll try to get pics tonight. I have one from ebay I haven't installed yet.

Jerome Adams · Post by **Jerome Adams** » Fri Jun 13, 2008 8:50 pm

thought I had a pic of the one I sold but I guess not. I had it welded in just in front of the flange on the right side of the header (if it were on the car and you standing at the front bumper looking at it). Or if you want you can put it on one of the runners but I wanted it sampling all 4 runners, not just one.

Post by **occasional demons** » Fri Jun 13, 2008 10:00 pm

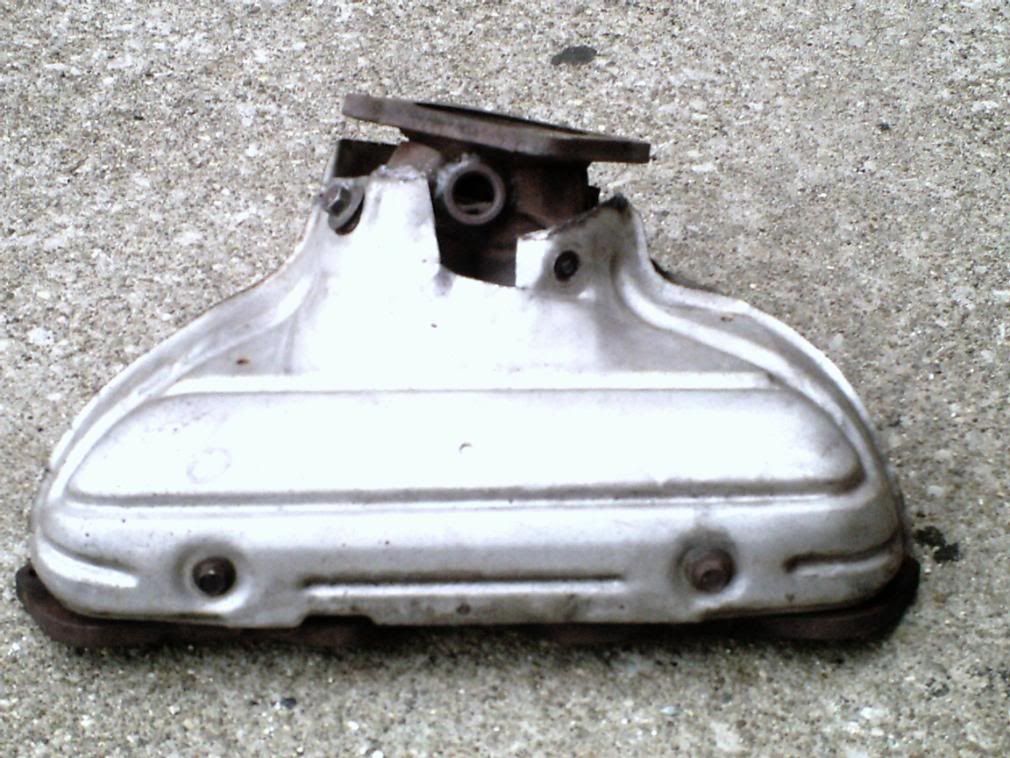

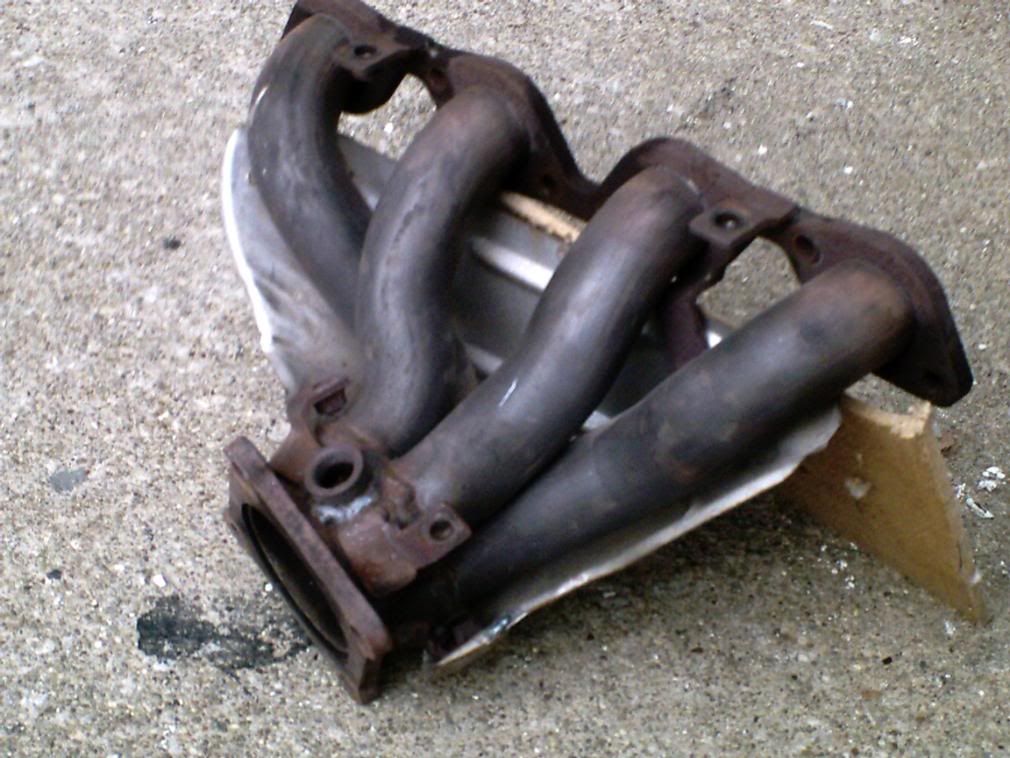

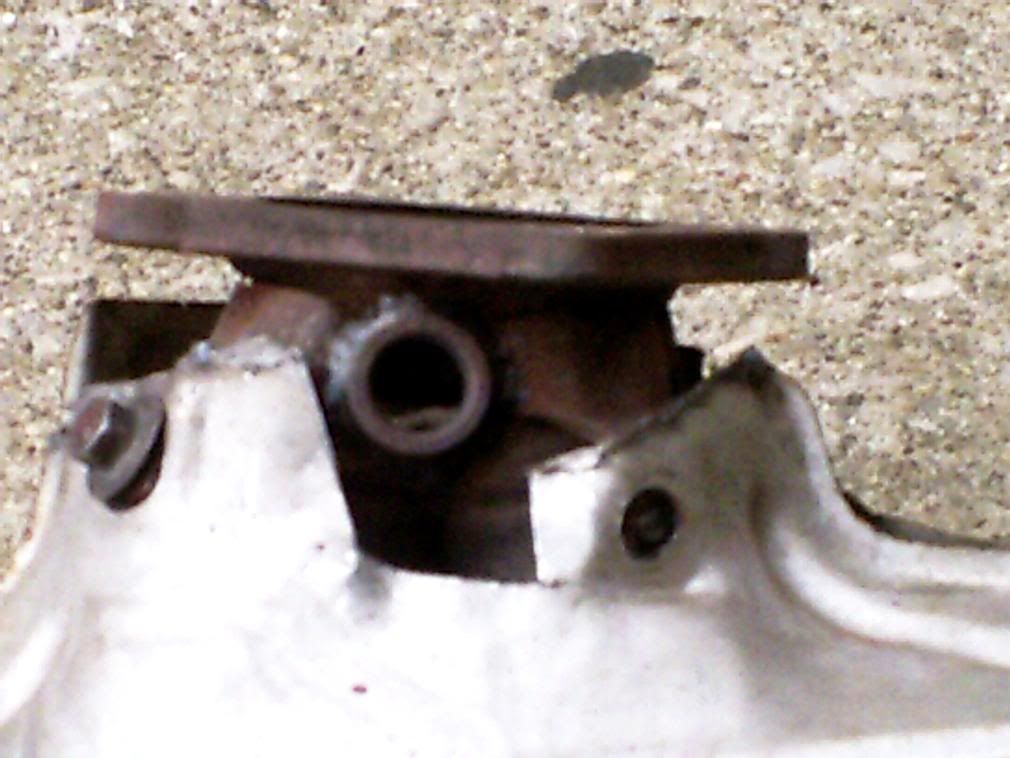

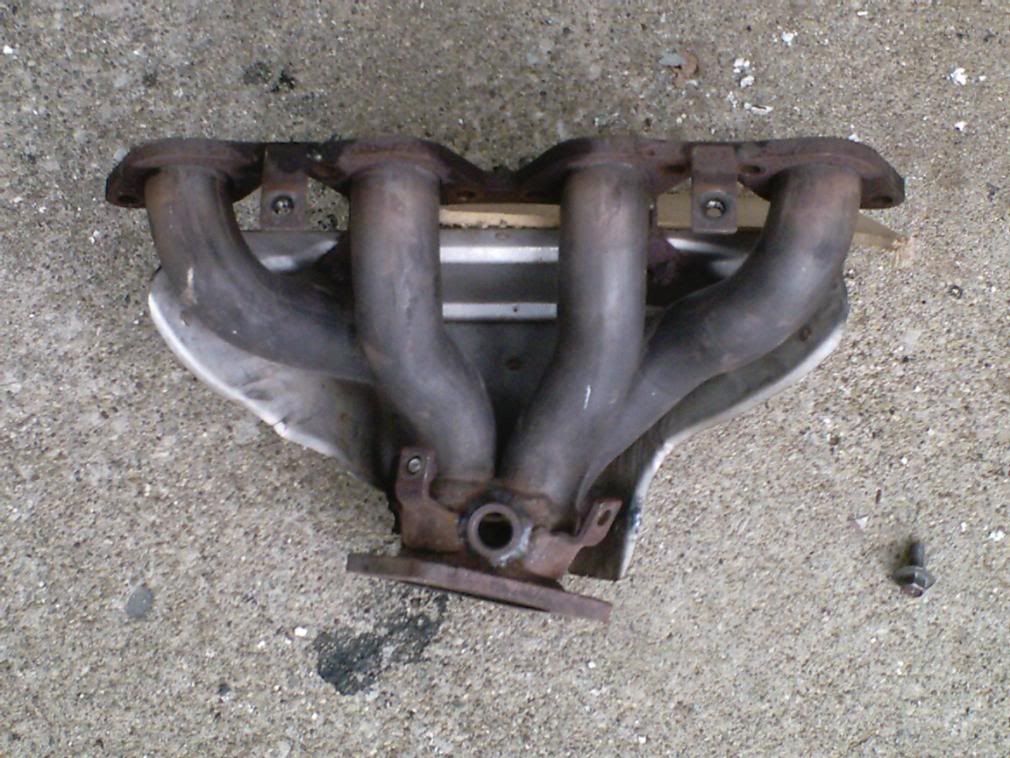

There you go. Had to wait for the storm to pass to upload.
