Someone help please with vacuum stuff**

[Nutmeg]

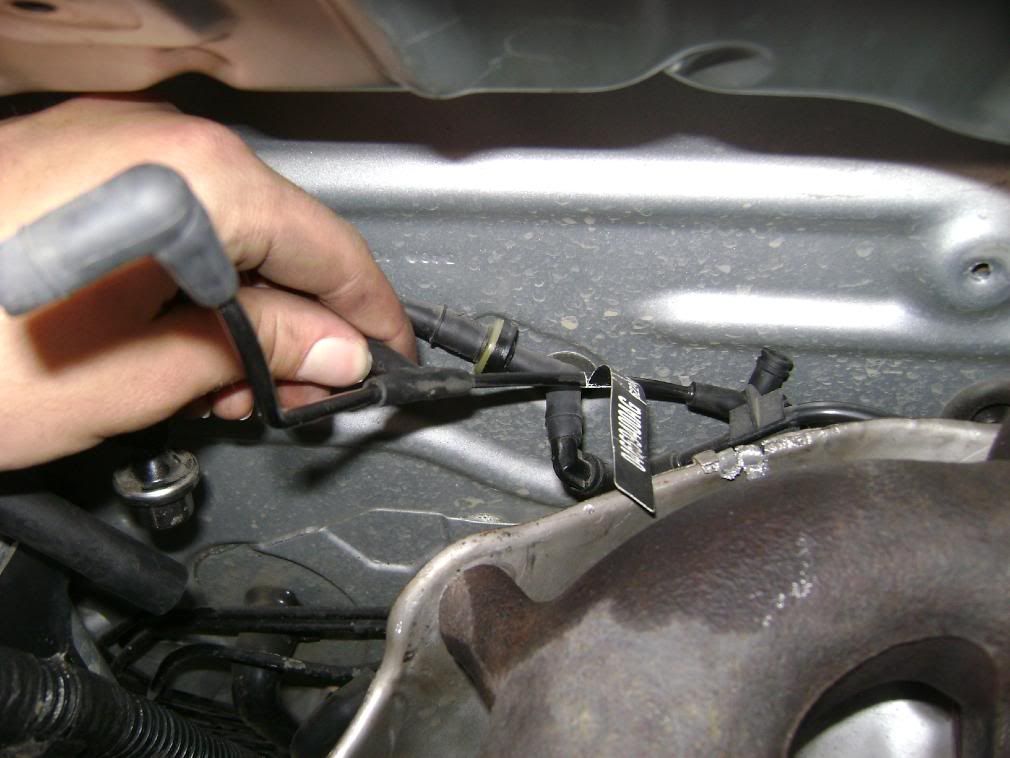

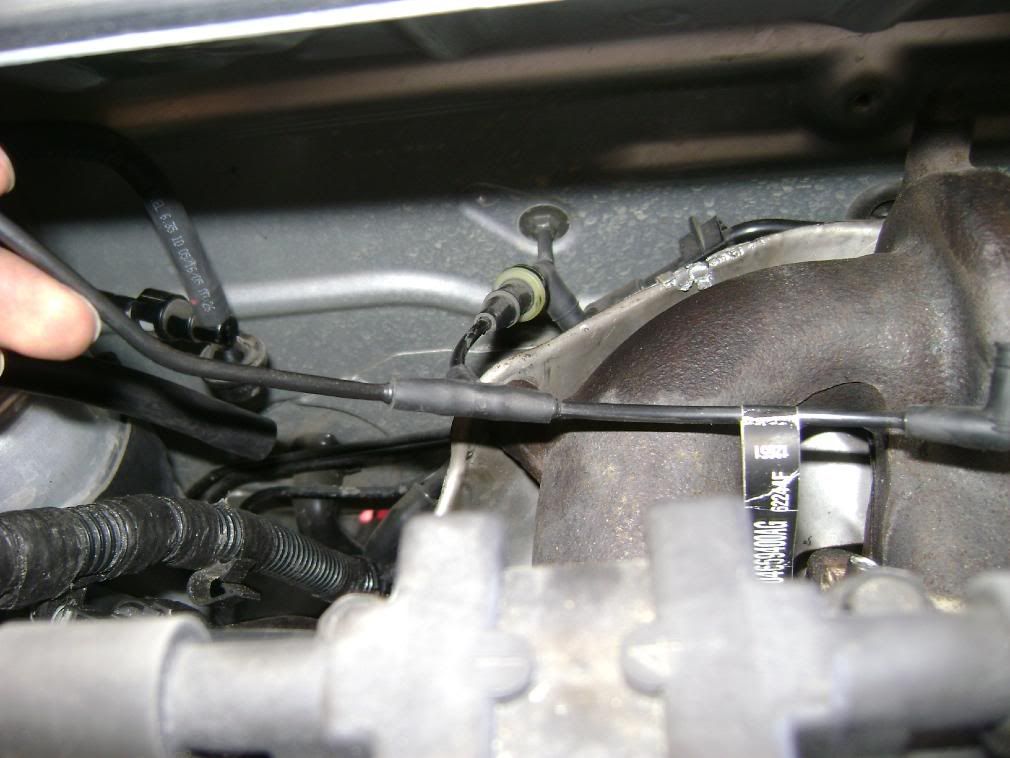

Okay, so this is getting pretty old. I'm trying to route some vacuum lines. Well, all of them. I have the diagrams I need, but there are a bunch of various lines as well coming from the firewall area. First...

I took out the black vacuum box for cruise control, but I know have several open vac lines. What should I do about these?

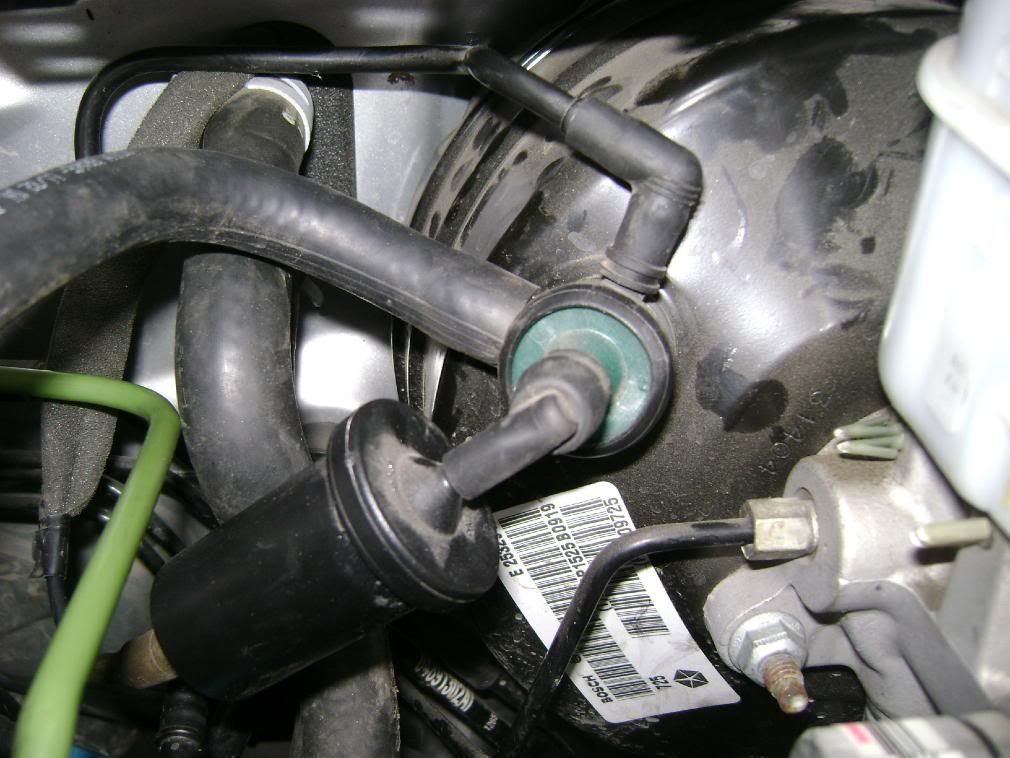

Okay, now on the brake master cylinder, there are three hoses coming off, all attached to one location. Correct me if I'm wrong: one goes to the climate control, one goes to the boost gauge, and one is for the manifold pressure? I'm actually completely lost. What do I do?


I'm sure it's just something simple, but I have a huge headache from this stuff.


Oh, also, there are two big plugs, one from each engine and engine bay harnesses, and then there is a smaller plug coming off near them. I think it's the battery temperature sensor, but I don't have anything on the battery to plug it into. Ideas?

Does anyone know where I can get the little rubber grommet that goes in the cold side pipe for the temp sensor to plug into? I don't have one.

[krc21]

all i know is the one coming out the left goes to the intake manifold...

[yellowpatrol]

What year is the engine harness?

[Nutmeg]

Erm, it's a 2004.

[NiteHawk]

the one that goes through the firewall there is the one for the hvac, the big one is for the manifold. the other could be used for the boost gauge

[welchspro]

try checking out an auto parts store for the grommet. i found a small package of several different sized ones. you should be able to find one that works

[2002TuRboNeoN]

not sure wher eu live but carquest has them i know autozone also has them if u can brign in the charge pipe and ask them for a grommet that fits snug....mine for soem reason is slipping out and goign into the damn charge pipe id get it a little bigger than snug so that doesnt happen 2 u
