2.0L SOHC all-motor build (a second try)

03blackrt · Post by **03blackrt** » Tue Dec 02, 2008 7:36 pm

I figure it’s about time to restart my all-motor project. I have a few more projects going on, but I want to get this done by spring time (april/may).

Current parts list…

- Chrysler 2.0L Block (4667642AC) *disassembled*

- Mopar Lower Gasket Kit (4798967AF) *have*

- Mopar Main Bearing (4856733AB) x4 *have*
- Mopar Thrust Bearing (4856734AB) *have*

- Mopar Water Pump (4667660AB) *have*

- Mopar Oil Pump (4667884AC) *have*

- Mopar Oil Dipstick Tube (4667352) *have*

- Mopar Crankshaft Sprocket (4667604) *have*

- JE Forged Aluminum Pistons, Wrist Pins, 0.040" Overbore (223604) *have*
- Total Seal Piston Rings, 0.040" Overbore (X9574) *ordered 11/17/08*
- Eagle Forged Steel Connecting Rods (CRS5472N3D) *have*
- Mopar Rod Bearing (4728997AB) x4 *have*

- OBX 6.25 Quart Oil Pan (OP10603) *have*

Once I get the piston rings I’ll send the block out to be bored and hot tanked. After assembling the bottom end I'll get work on the top end.

ZeroChad · Post by **ZeroChad** » Tue Dec 02, 2008 8:01 pm

What compression are you going to run? Are you going to try decking the head again?

Good luck with the build. What are your end goals?

hybrid-Srt2001 · Post by **hybrid-Srt2001** » Tue Dec 02, 2008 8:55 pm

looks like a good list. Check my log out sometime, I'm doing a very sililar build minus the forged bits

03blackrt · Post by **03blackrt** » Tue Dec 02, 2008 10:33 pm

ZeroChad wrote:What compression are you going to run? Are you going to try decking the head again?

EDIT: Apparently they are 10.5:1 SOHC pistons. I'll be running a thinner head gasket to get 11:1.

ZeroChad wrote: What are your end goals?

I'd like 200whp all-motor, alot more with nitrous!

03blackrt · Post by **03blackrt** » Mon Dec 08, 2008 12:59 pm

I got my Total Seal rings today. I orderd a gapless 2nd ring set (part number X9574) but got a convetional ring set (part number CR9574). Took them three weeks to get me the wrong rings.

I'll be sending them back.

LilSparkPlug · Post by **LilSparkPlug** » Mon Dec 08, 2008 1:55 pm

What tards. Don't you hate that?! Seems like a good build I'll be watching

.

Adionik · Post by **Adionik** » Mon Dec 08, 2008 3:51 pm

Good job on getting forged internals...

03blackrt · Post by **03blackrt** » Thu Dec 11, 2008 2:37 pm

Block color choice…

1) Street Hemi Orange (4349216AB)

2) Turquoise (4120752AB)

Used on all B/RB big block engines during 1962-71 with the exception of the 1969-71 high-performance 383/440 engines. Those engines were painted Street Hemi orange.

3) Blue (4349217AB)

Used on all production engines from 1972-83 (except 2.2L), and on most 318 engines from the late 1960s through 1972.

4) Red (4349218AB)

Used on all 273 and 360 engines from 1964-69, 340 engines from 1968-69, and most mid-1960s 318 engines.

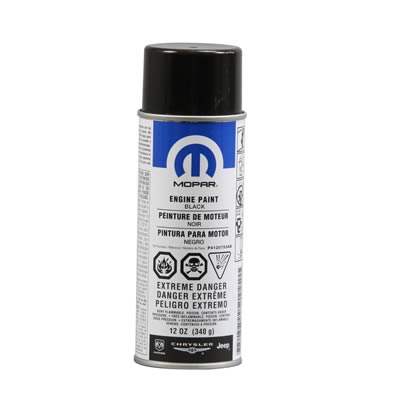

5) Black (4120753AB)

Which color?

Danteneon · Post by **Danteneon** » Thu Dec 11, 2008 3:01 pm

I think it would depend on the color scheme you are going with under the hood. What kind of look are you after?

03blackrt · Post by **03blackrt** » Thu Dec 11, 2008 3:08 pm

I don't know what kind of look I'm going after. Just something nice and clean; something that says "Mopar". The block and oil pan will be painted this color.

Danteneon · Post by **Danteneon** » Thu Dec 11, 2008 3:51 pm

I've always been partial to the Hemi Orange. I had a Deep Amethyst Omni that I had planed to plop a HO engine into. But I went with black in the end. The HO works with some colors better than others.

INVUJerry · Post by **INVUJerry** » Thu Dec 11, 2008 7:03 pm

That's awesome man. I can't wait to see how your build goes, I just bought that 12.5:1 motor with the crane 005. We'll see how my build goes.

Again, you and me. You should come to carlisle!! Good luck bro!!

03blackrt · Post by **03blackrt** » Tue Dec 16, 2008 8:14 pm

I have not yet gotten a response from the supplier about the rings.
