Cluster connector

Post by occasional demons » Thu Jan 08, 2009 12:36 pm

Are the '00 clusters the same pin outs as the '01 -'02's?
Thanks!
Bill
dblsg wrote:ya'll a bunch of post whores
epic

2001 Neon ES MTX with '02 R/T PCM
Help support 2GN!

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Thu Jan 08, 2009 1:27 pm

There are two differences between the 2000/2001 & the 2002 pin-out. I highlighted them in yellow...

2000-2002

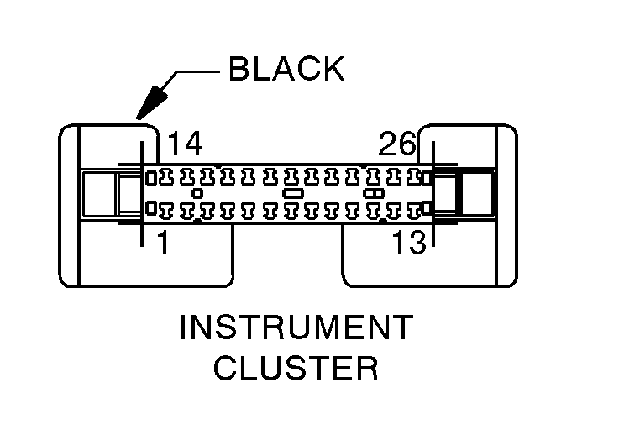

INSTRUMENT CLUSTER - BLACK 26 WAY
CAV..CIRCUIT...........FUNCTION
1 - -
2.......D25 22VT/YL....PCI BUS
3.......M2 18YL..........COURTESY LAMP CONTROL
4.......L39 20LB.........(FRONT FOG LAMPS) FOG LAMP SWITCH OUTPUT
5.......G69 20BK/OR...VTSS INDICATOR DRIVER
6.......E19 22RD.........PANEL LAMPS DIMMER SIGNAL
7.......G4 18DB...........FUEL LEVEL SENSOR SIGNAL
8 - -
9.......G5 20DB/WT.....FUSED IGNITION SWITCH OUTPUT (RUN-START) *2002 only
10.....Z3 16BK/OR......GROUND
11 - -
12.....E2 22OR...........PANEL LAMPS DRIVER
13.....M9 20DB/OR.....PASSENGER DOOR AJAR/RKE SENSE
14.....L7 20BK/YL.......HEADLAMP SWITCH OUTPUT
15.....G5 20DB/WT.....FUSED IGNITION SWITCH OUTPUT (RUN-START)
15.....G5 18TN...........(EXCEPT RKE) FUSED IGNITION SWITCH OUTPUT (RUN-START)
16.....L161 18LG/OR...LEFT TURN SIGNAL
17.....L160 18TN/RD...RIGHT TURN SIGNAL
18.....L61 20LG...........LEFT TURN SIGNAL
19.....L60 20TN...........RIGHT TURN SIGNAL
20.....L4 16VT/WT.......DIMMER SWITCH LOW BEAM OUTPUT
21.....M1 20PK............FUSED B(+)
22.....G9 18GY/BK.......RED BRAKE WARNING INDICATOR DRIVER *2000 & 2001 only
22.....G11 20WT/BK....RED BRAKE WARNING INDICATOR DRIVER *2002 only
23.....G26 22LB...........KEY-IN IGNITION SWITCH SENSE
24.....G75 18TN/BK...........LEFT FRONT DOOR AJAR SWITCH SENSE
25.....G10 20LG/RD.....SEAT BELT SWITCH SENSE
26.....L3 16RD/OR.......DIMMER SWITCH HIGH BEAM OUTPUT

Hope that helps.

*Edited by OD
If I could just figure out how to meld the Outback and the Neon into one car...


srtgtr34
2GN Member
Posts: 896
Joined: Tue Jul 01, 2008 8:52 am
Location: Cleveland

Post by srtgtr34 » Thu Jan 08, 2009 7:46 pm

hmm, just wondering but since I put a cluster with a tach in my car since it didn't come with one, is that the reason why my dome light won't turn off? Because I have a cluster from a different year? I had to take the bulb out and be in the dark at night when I open my doors. It does work right when I have the stock cluster in so maybe some of the pins don't line up...

jT
2GN Member
Posts: 1099
Joined: Tue Jul 04, 2006 2:37 am

Post by jT » Thu Jan 08, 2009 8:02 pm

i forget what year my tach cluster came from but my dome works fine in my 2000..

are you sure your dim switch isnt turned all the way on so the dome is on constantly

srtgtr34
2GN Member
Posts: 896
Joined: Tue Jul 01, 2008 8:52 am
Location: Cleveland

Post by srtgtr34 » Thu Jan 08, 2009 8:41 pm

jT wrote:i forget what year my tach cluster came from but my dome works fine in my 2000..

are you sure your dim switch isnt turned all the way on so the dome is on constantly
It is now because I don't have the bulb in, but I never thought of that when I had the problem. I'll check it out tomorrow, I really want to upgrade to led up there.

occasional demons
Junior Admin
Posts: 19203
Joined: Thu May 03, 2007 12:14 pm
Location: Ashland Ohio

Post by occasional demons » Fri Jan 09, 2009 12:30 am

Thanks Dante! More than enough info! As always, you are da man!
Just bought the connector w/wires for 9 bucks.
Bill
dblsg wrote:ya'll a bunch of post whores
epic

2001 Neon ES MTX with '02 R/T PCM
Help support 2GN!

User avatar
Danteneon
Former Moderator
Posts: 9591
Joined: Thu Dec 20, 2007 5:13 pm
Location: Manassas, VA

Post by Danteneon » Fri Jan 09, 2009 11:05 am

Sweet :thumbup:
