Engine vacuum diagram for a 2000?

spencersummerfield · Post by **spencersummerfield** » Sat Jan 10, 2009 11:43 pm

Can someone please post a pic from under there hood of a 2000 Neon for the engine vacuum diagram.

My hood doesn't have one as it was replaced before i had the car.

any help is appreciated.

Thanks.

Danteneon · Post by **Danteneon** » Mon Jan 12, 2009 10:39 am

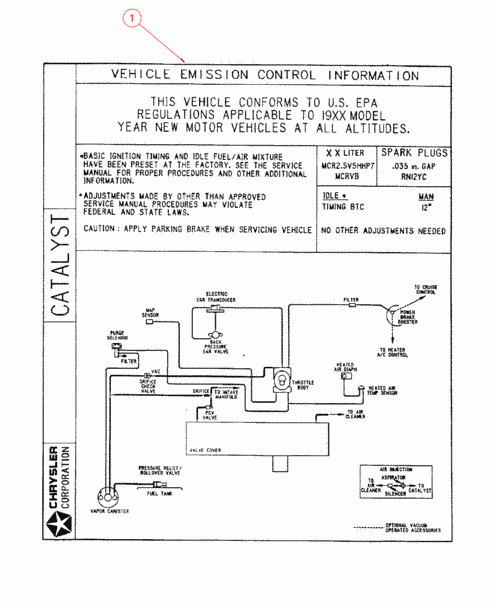

This is the best pic I can get from the parts or service catalogs...

It isn't specific to that year however

*Edit* Wow...that thing is worthless...it is a hold over from the 2.2

Post by **occasional demons** » Mon Jan 12, 2009 11:16 am

These are '01 numbers, so it still doesn't help, But you could prolly order the year specific one from your friendly neighborhood dealer.

#5274 762AA 1 ECB DGC Domestic [NAA] Federal
#4891 270AA 1 ECB DGC Domestic [NAE] California
#4891 267AA 1 ECB, DD5 Domestic [NAS] 50 States
ECH
#4891 268AA 1 ECB DGC Canada [NAA] Federal
#4891 269AA 1 ECB DGC Canada [NAE] California
#4891 268AA 1 ECB, DD5 Canada [NAS] 50 States
ECH
#4891 271AA 1 ECB, International [NAA] [NA1] [NA3] Federal, Export,
ECH European III

They list at about $3.40

Edit: Dante, yeah, notice the 19XX

Damn parts reference pics!
I'll have to look at mine just to see if they actually have a diagram on it! I don't recall it being that large.

spencersummerfield · Post by **spencersummerfield** » Mon Jan 12, 2009 1:12 pm

I was very suprised that the FSM didn't have anything.

Post by **occasional demons** » Mon Jan 12, 2009 2:11 pm

I'm not. FSM's aren't nearly as detailed as they used to be. The FSM for my '87 raider pwns the FSM's I've bought since.

edit: From the '04 FSM: DESCRIPTION - VEHICLE EMISSION CONTROL
INFORMATION LABEL
All models have a Vehicle Emission Control Information
(VECI) Label. Chrysler permanently attaches
the label in the engine compartment. It cannot be
removed without defacing information and destroying
the label.
The label contains the vehicle’s emission specifications
and vacuum hose routings. All hoses must be
connected and routed according to the label.
editII
Try looking in evaporative emmisions section. The '04 FSM shows the vacuum diagram there.

So the label should have it.

spencersummerfield · Post by **spencersummerfield** » Mon Jan 12, 2009 2:48 pm

This is the only diagram there.
