I dont need no stinkin' body shop!

Mopar_Korean · Post by **Mopar_Korean** » Thu Mar 19, 2009 11:14 pm

Well as some of you may recall my Neon had a quite a lot of front end damage from the winter. I understeered into some landscaping rocks at an intersection and busted my radiator and pushed the core support back about 5 inches. During the cold months I just rocked a 1st gen radiator without a fan. But now its getting warmer and shes starting to overheat when just sitting in the drive through.

So instead of taking her to the bodyshop I used to work at and spending time on the frame rack I decided to rebuild the lower core support to my specs. So enough jabbering, Here are some pics, Im only half way done. Expect more tomorrow.

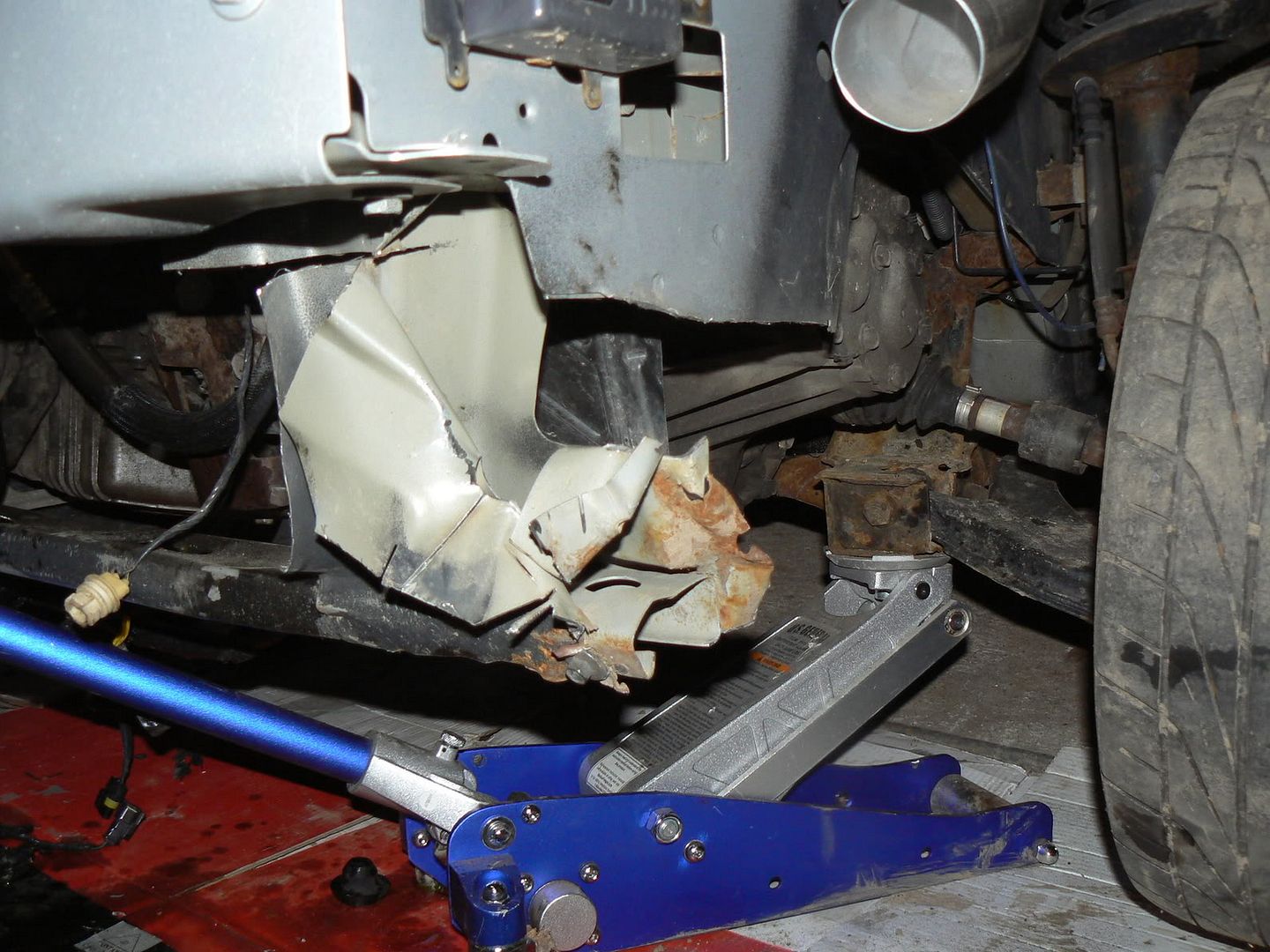

Before (notice all the bent metal that should be flat)

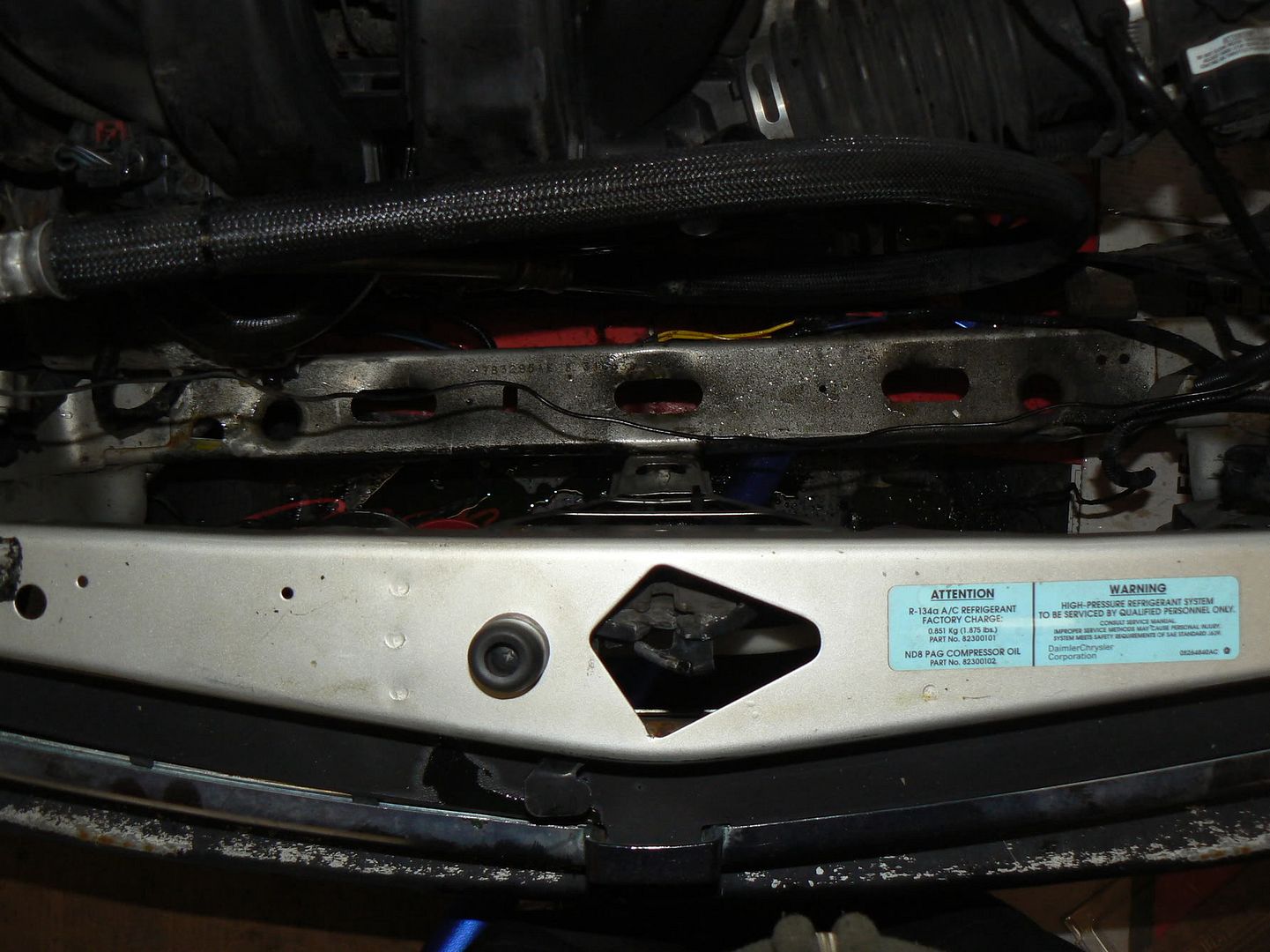

See how the bottom core support isnt directly under the upper core support/latch area?

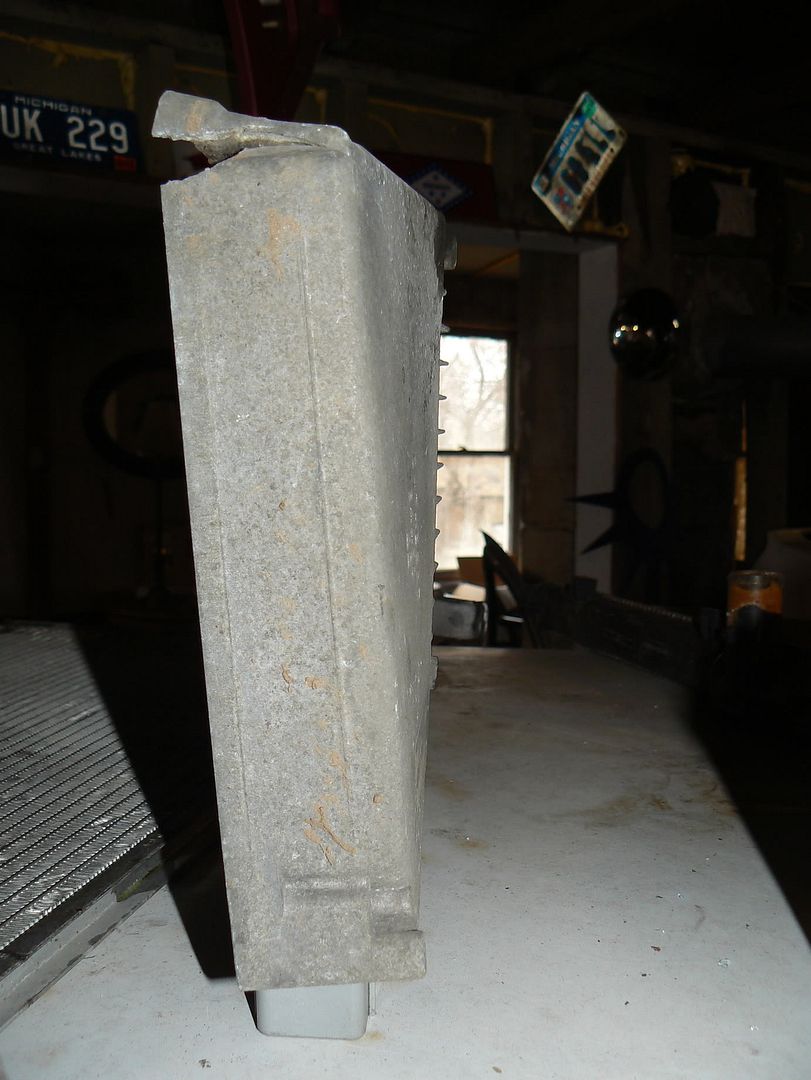

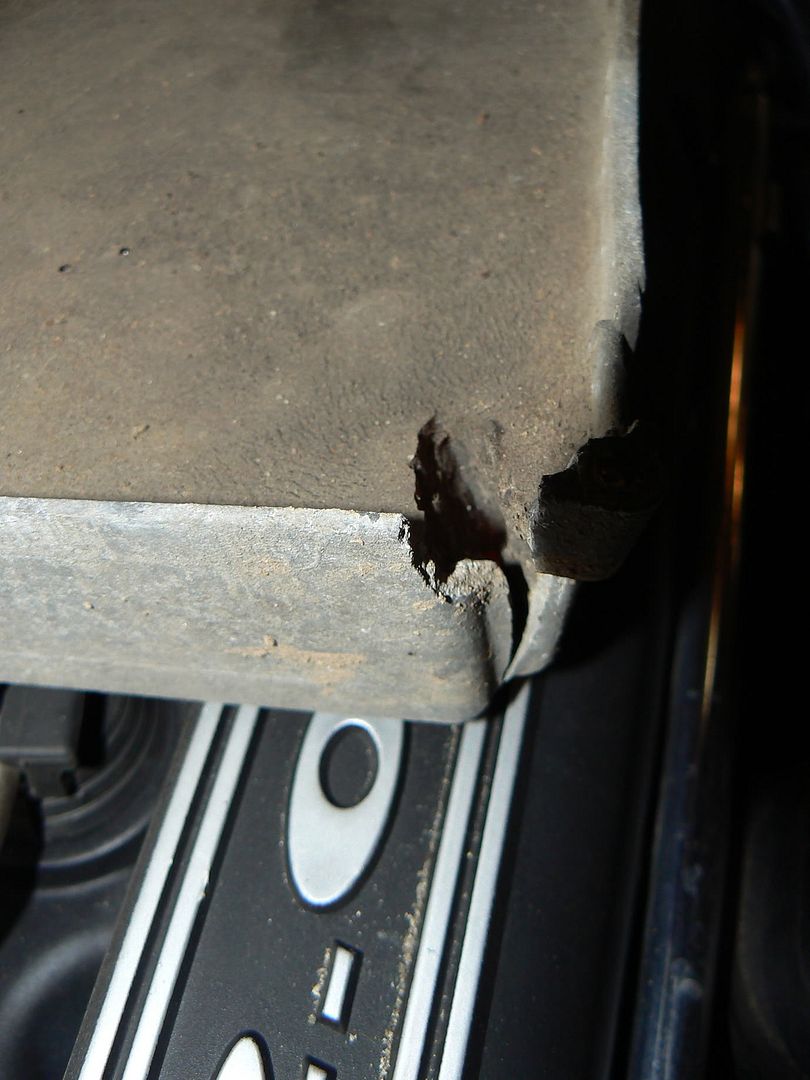

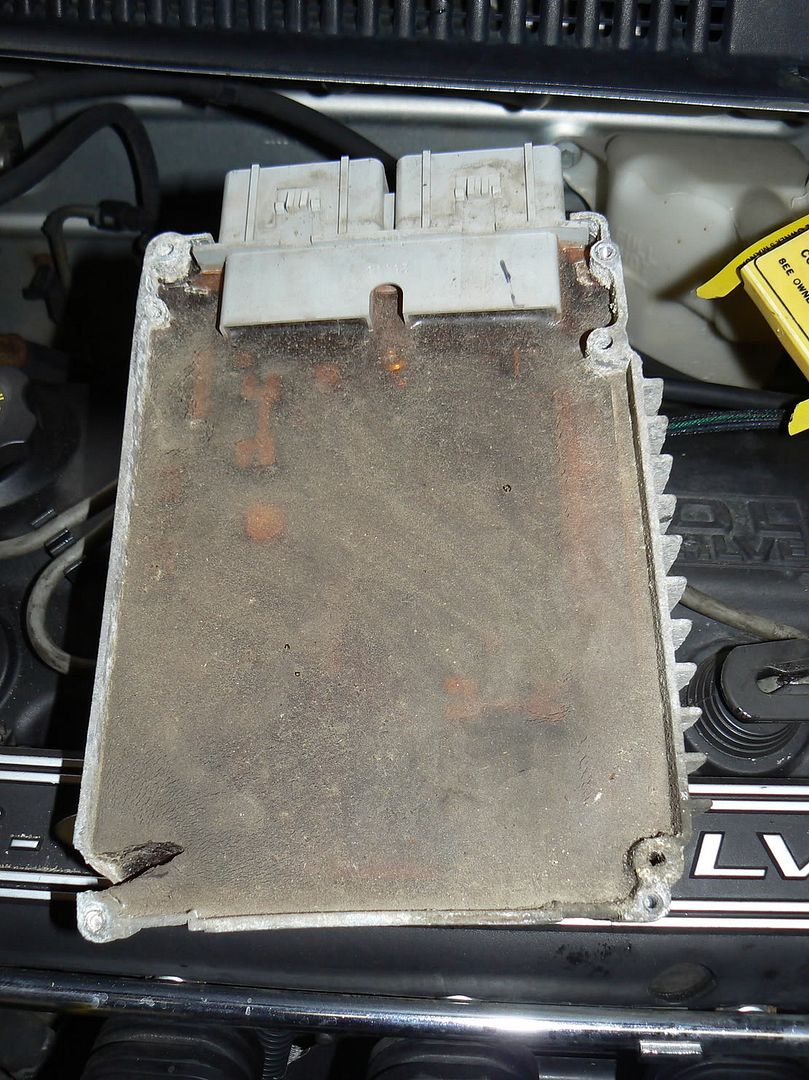

Bent and cracked ECU

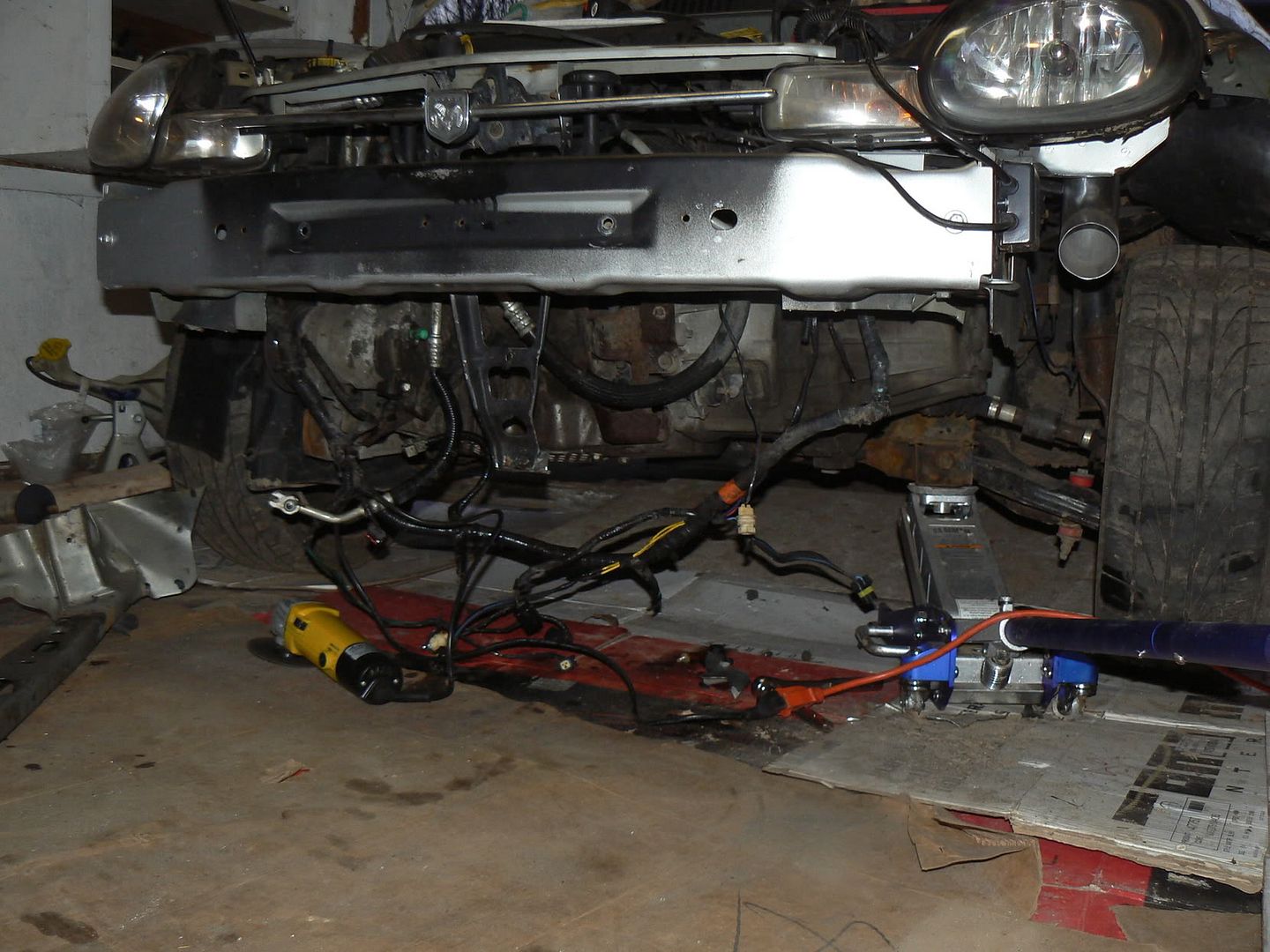

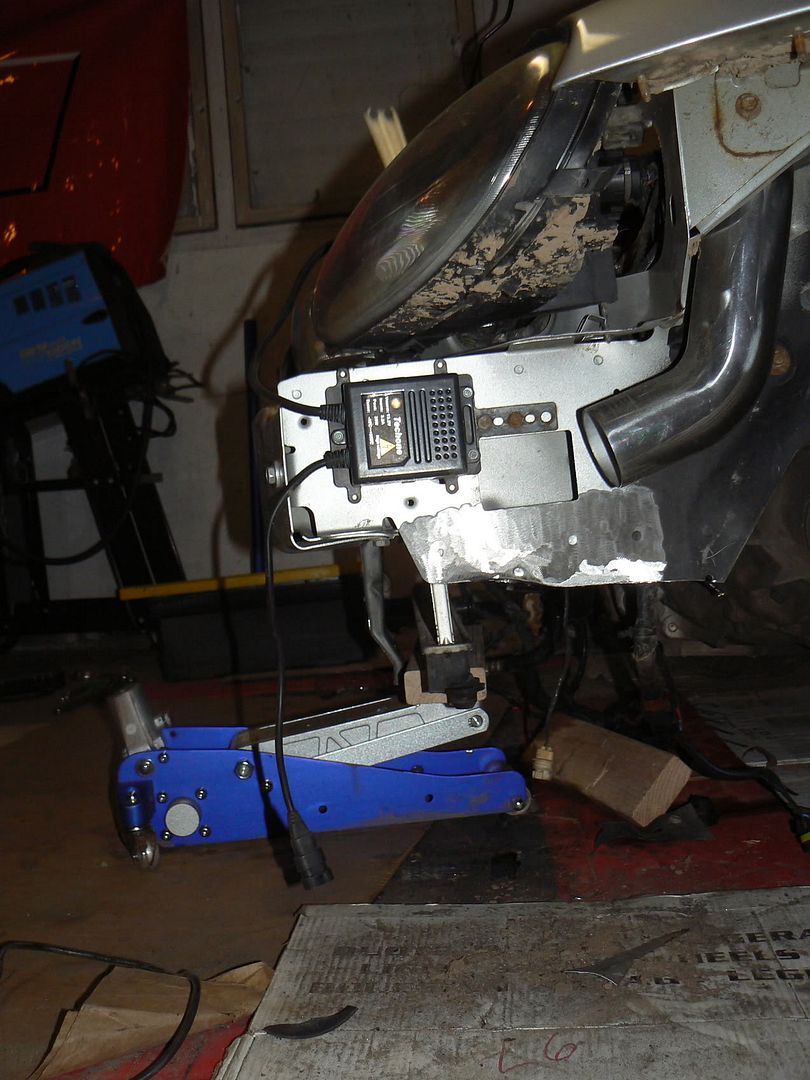

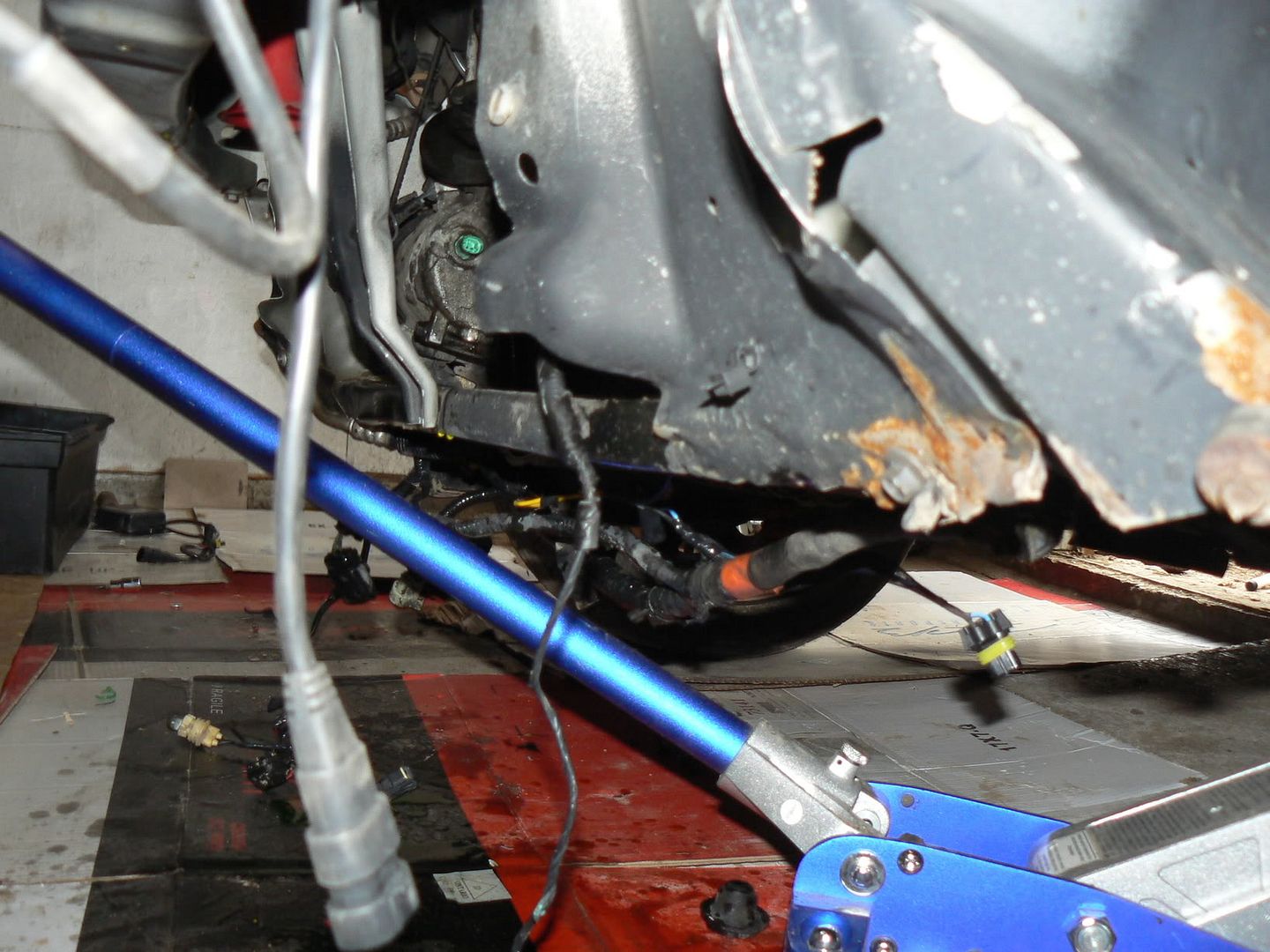

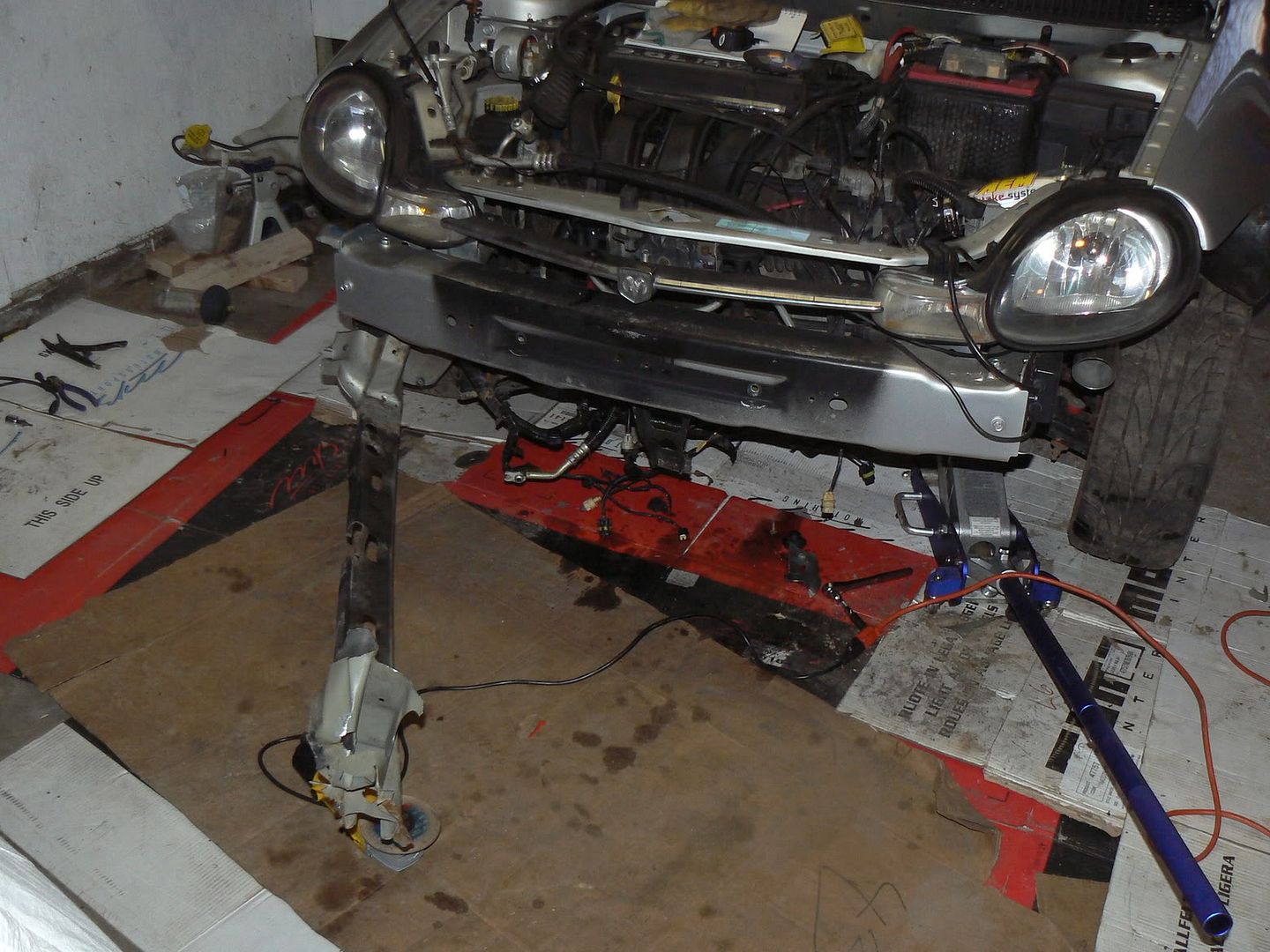

Some deconstruction pics

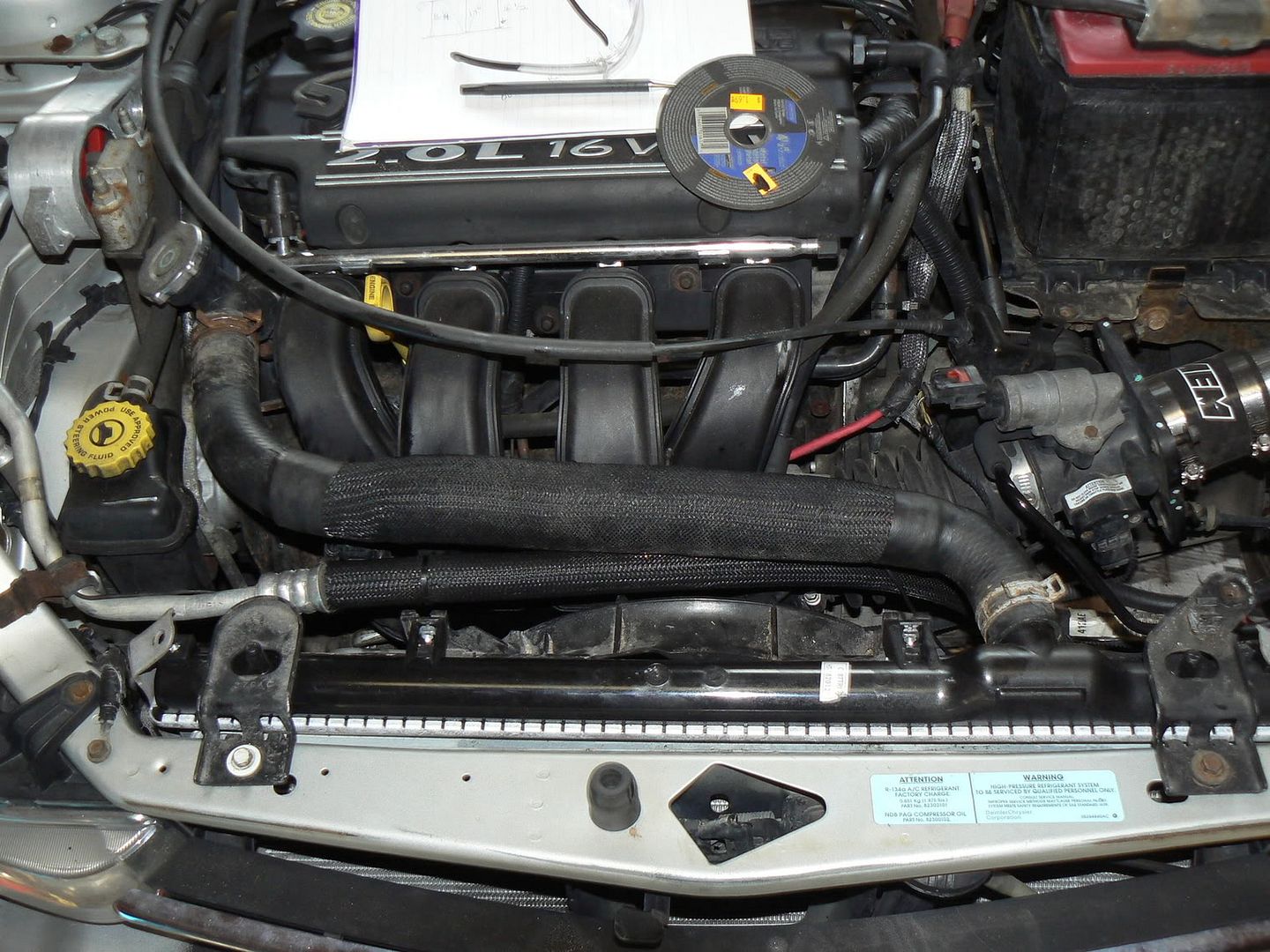

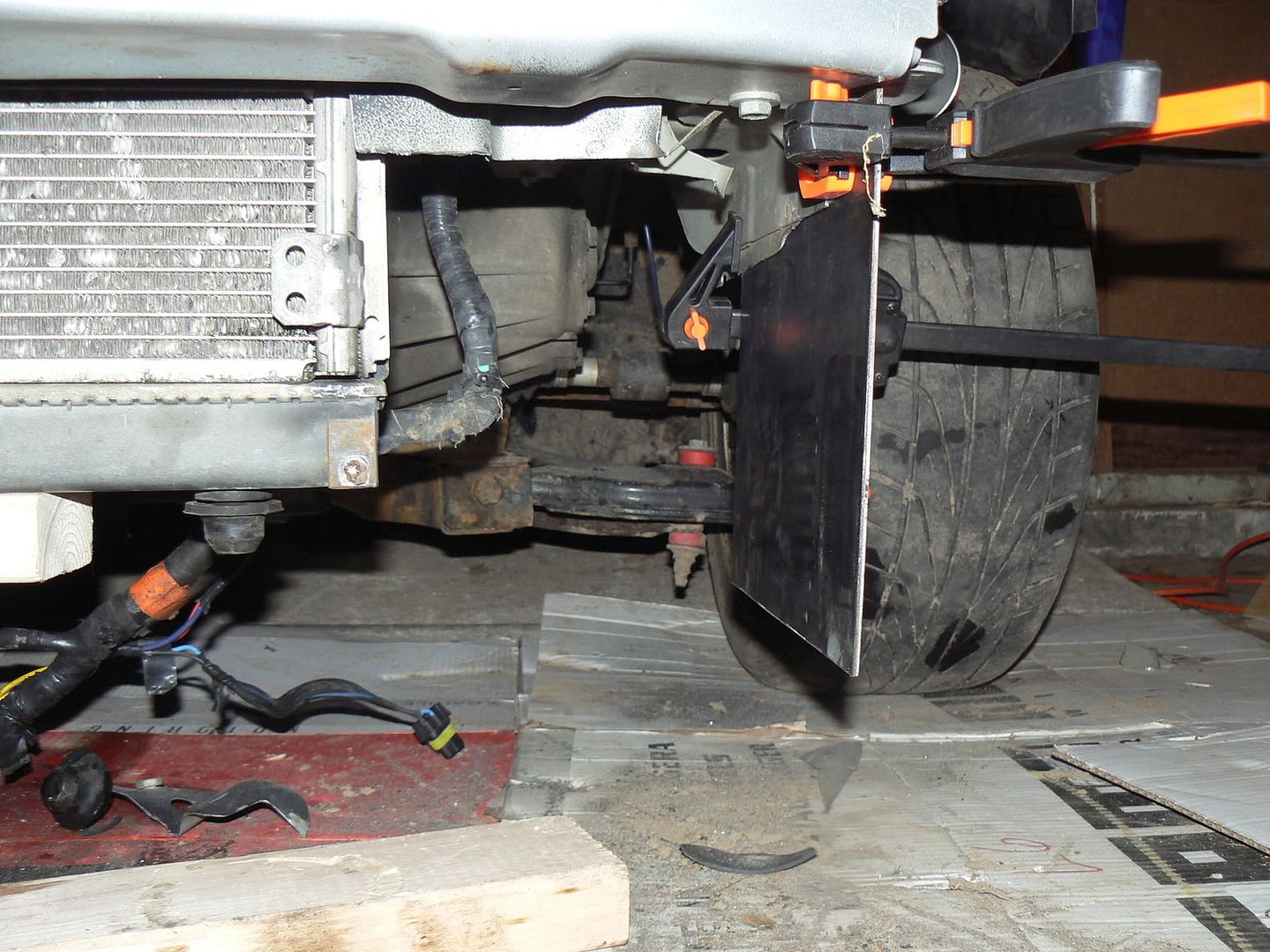

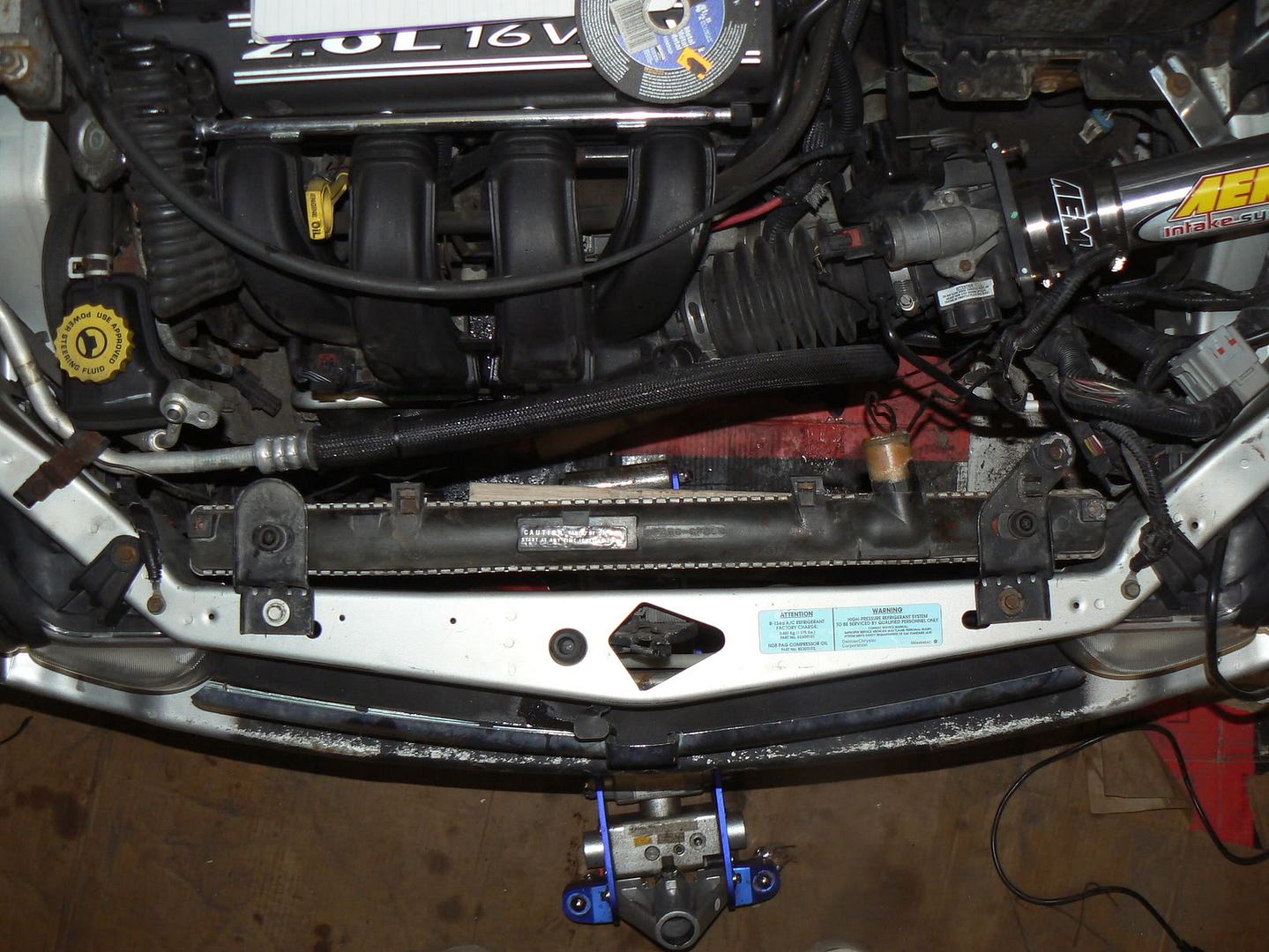

Mocking up the radiator, fan, and condenser placement.

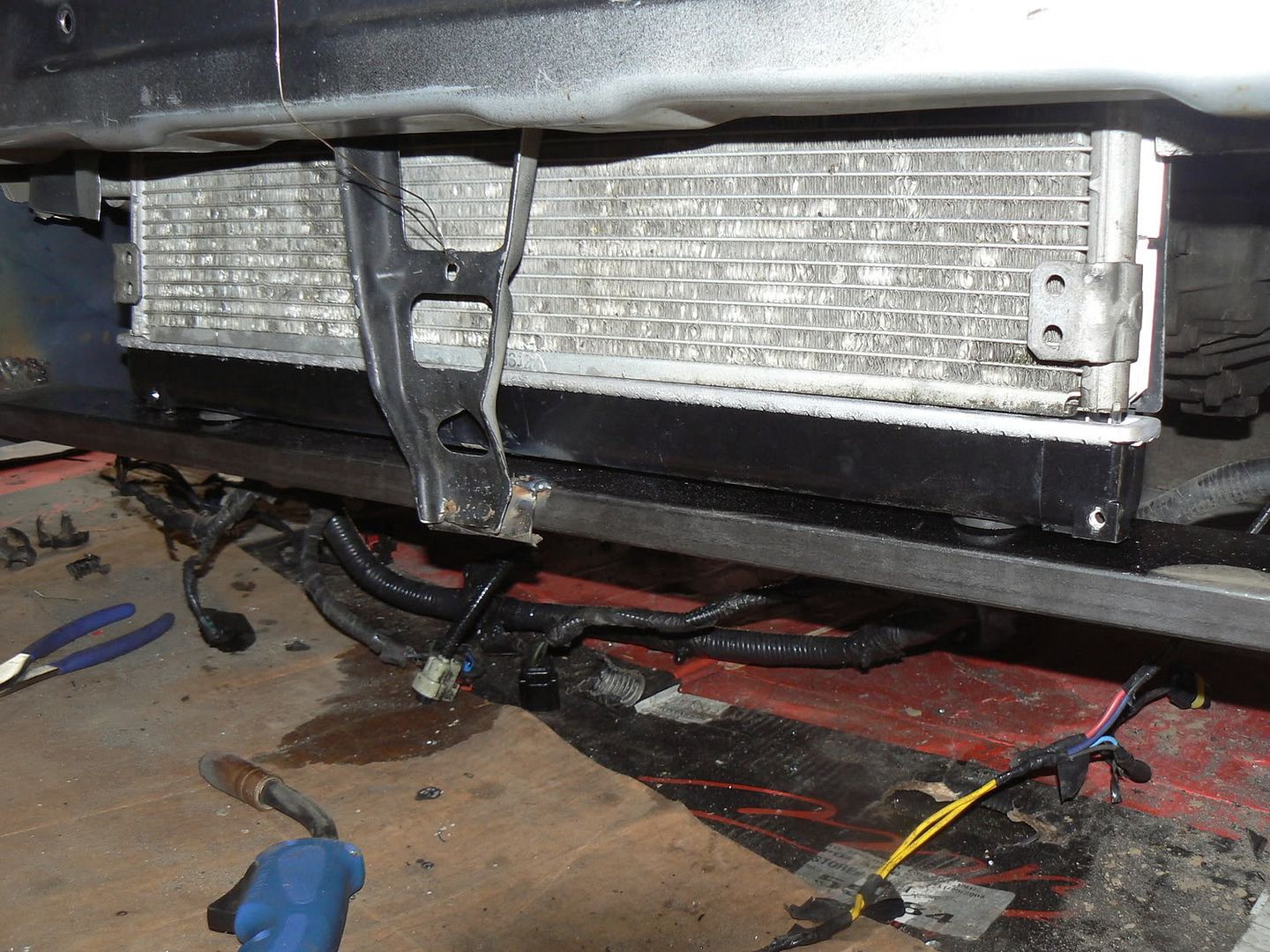

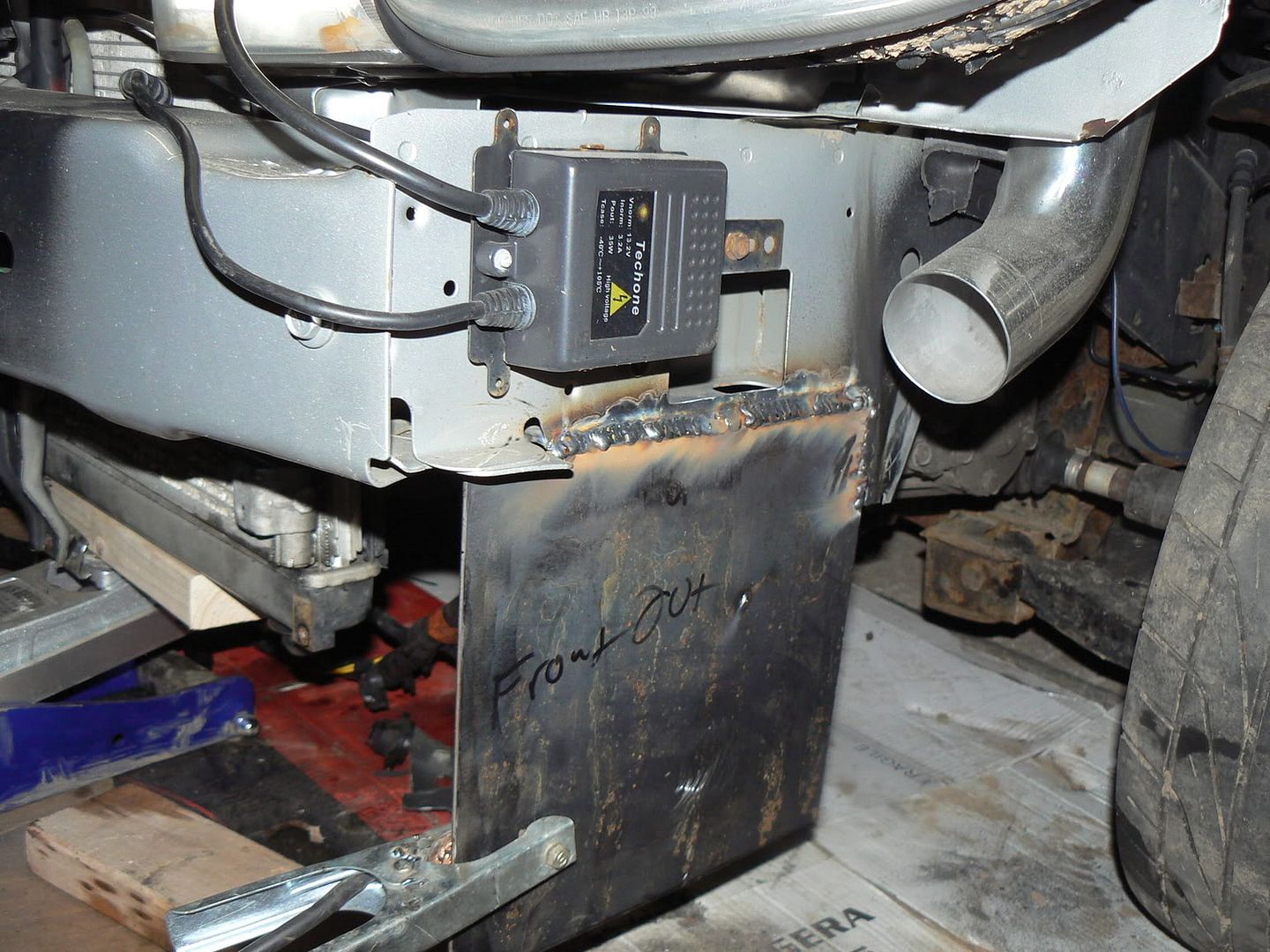

Mocking up the new plate steel. Notice I said plate and not sheet metal.

Its beefy!

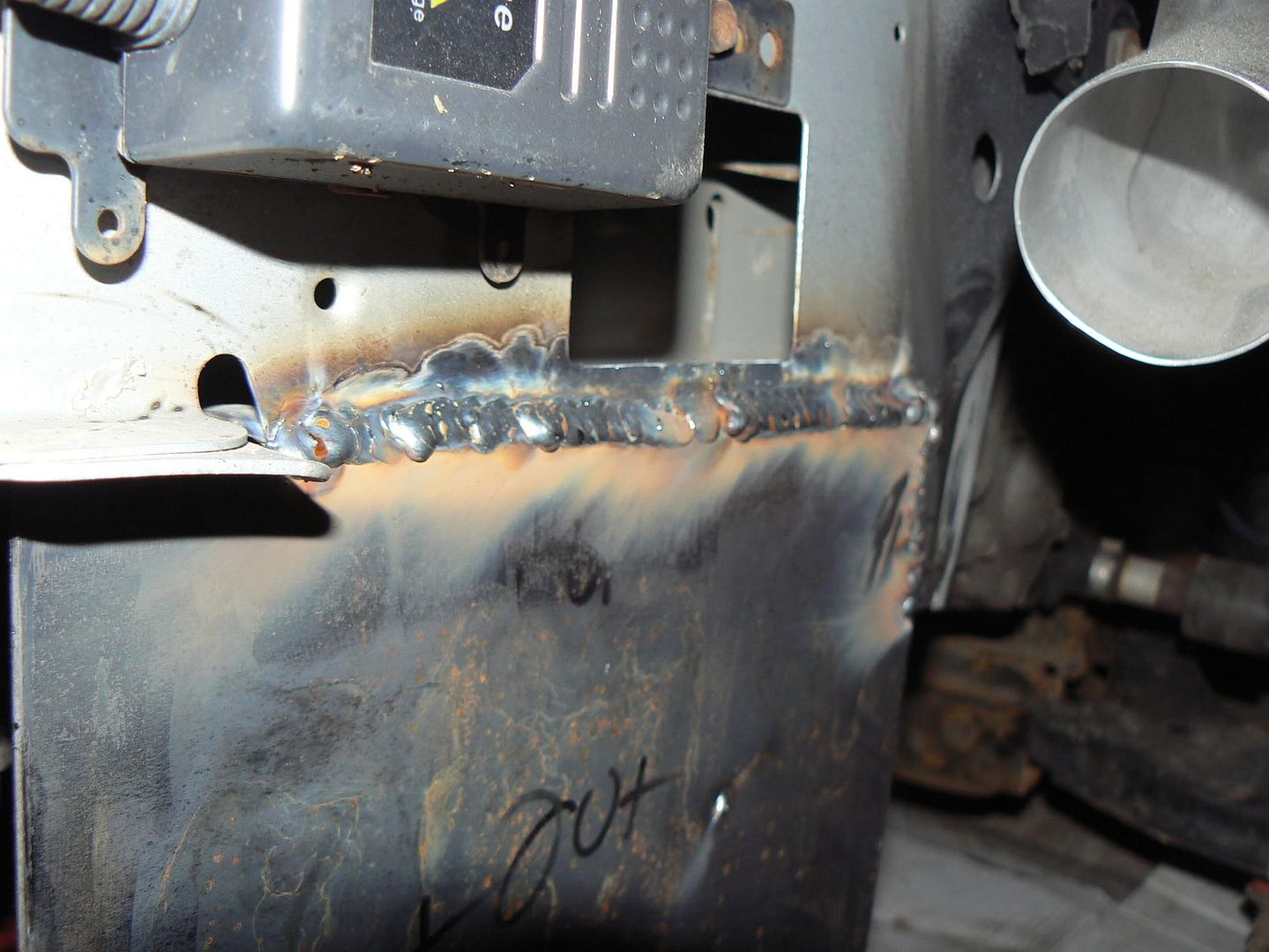

Welded, Not the best welds ever but this is coming from a guy that has never had a class or training. All I have is a book to tell me how its done.

Come back tomorrow for more now ya hear!

JeffM · Post by **JeffM** » Thu Mar 19, 2009 11:45 pm

It's like watching facial reconstructive surgery

I will deffinately be back for more

jetas · Post by **jetas** » Fri Mar 20, 2009 1:54 am

JeffM wrote:It's like watching a monkey do facial reconstructive surgery

Fixxed!!

Me wants to see more

NickKo · Post by **NickKo** » Fri Mar 20, 2009 8:46 am

Nice work !!

"If it breaks, make it bigger".

True !!

- Nick

Tam · Post by **Tam** » Fri Mar 20, 2009 9:17 am

Woah, nice repair. Are you gonna be getting a new PCM? or does that one work fine?

I'll be back to see more.

seisephiroth · Post by **seisephiroth** » Fri Mar 20, 2009 5:30 pm

Mopar_Korean · Post by **Mopar_Korean** » Fri Mar 20, 2009 6:32 pm

Well Its almost done. Im just letting the rubberized undercoating stuff dry and then I have to fill up on coolant an a test drive. Im still using the bent ECU. Im surprised it still works. Maybe I can use that as an excuse to get an AFX/R unit

More pics to come soon!

sullivan · Post by **sullivan** » Fri Mar 20, 2009 6:40 pm

my ecu is bent and split the wxact same way yours is.... previous owner must have had a similar incadent. i finally got mine straightened last time i had the motor out.

Mopar_Korean · Post by **Mopar_Korean** » Fri Mar 20, 2009 9:35 pm

Alrighty, I just got back from the test drive and everything works great. Here are some more pics.

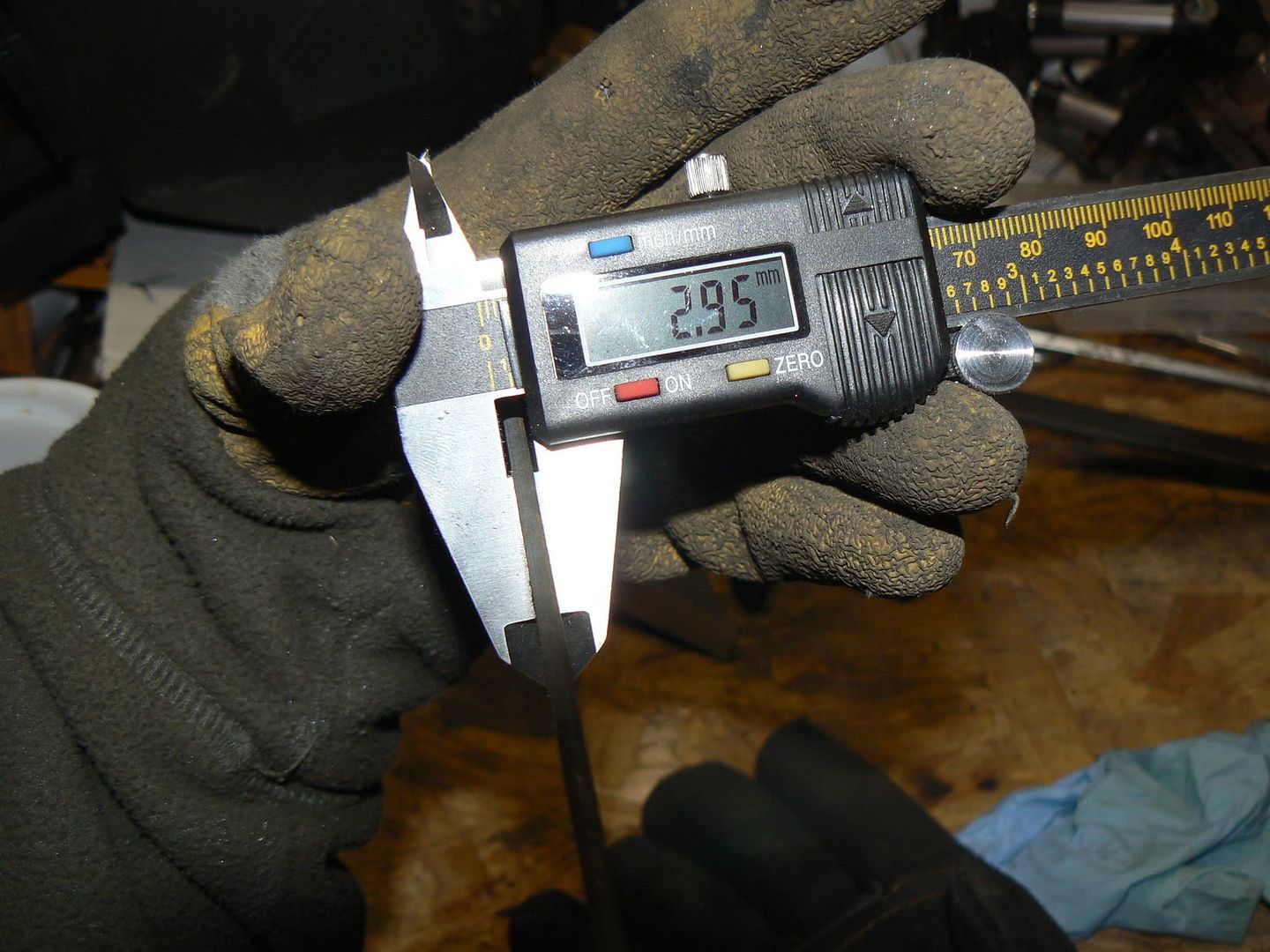

To show you what Im working with this is the thickness of the plate steel.
2.95mm

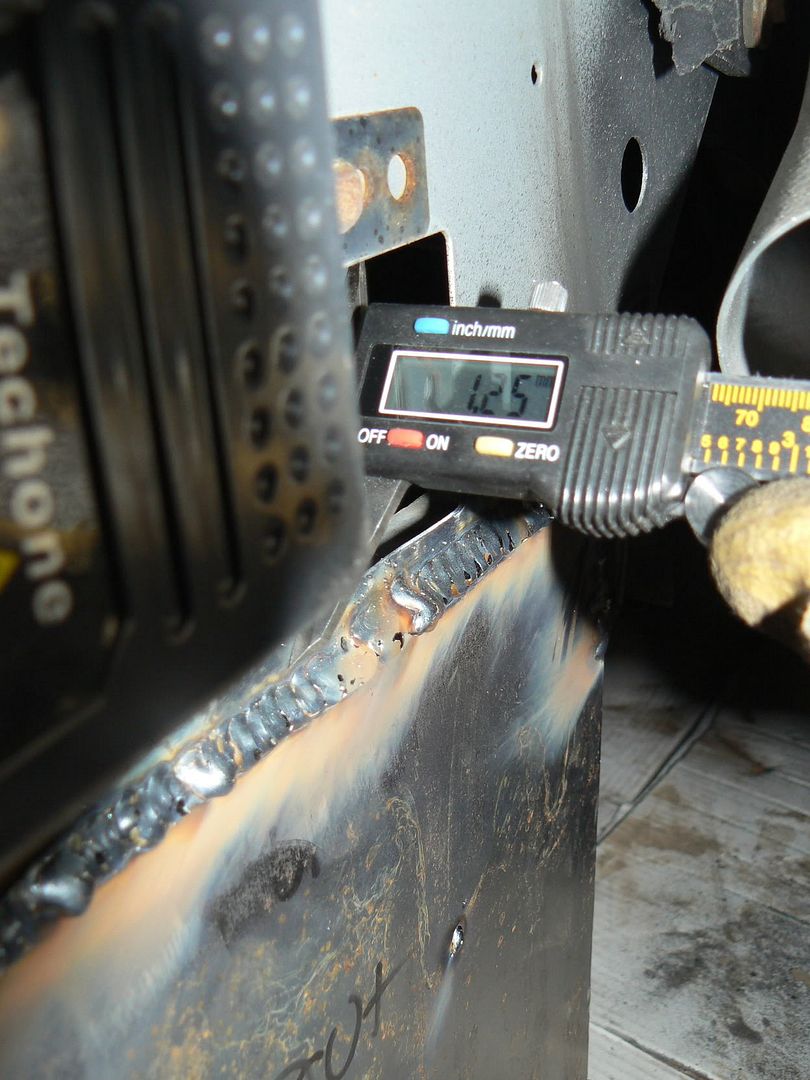

OEM sheet metal thickness.
1.25mm

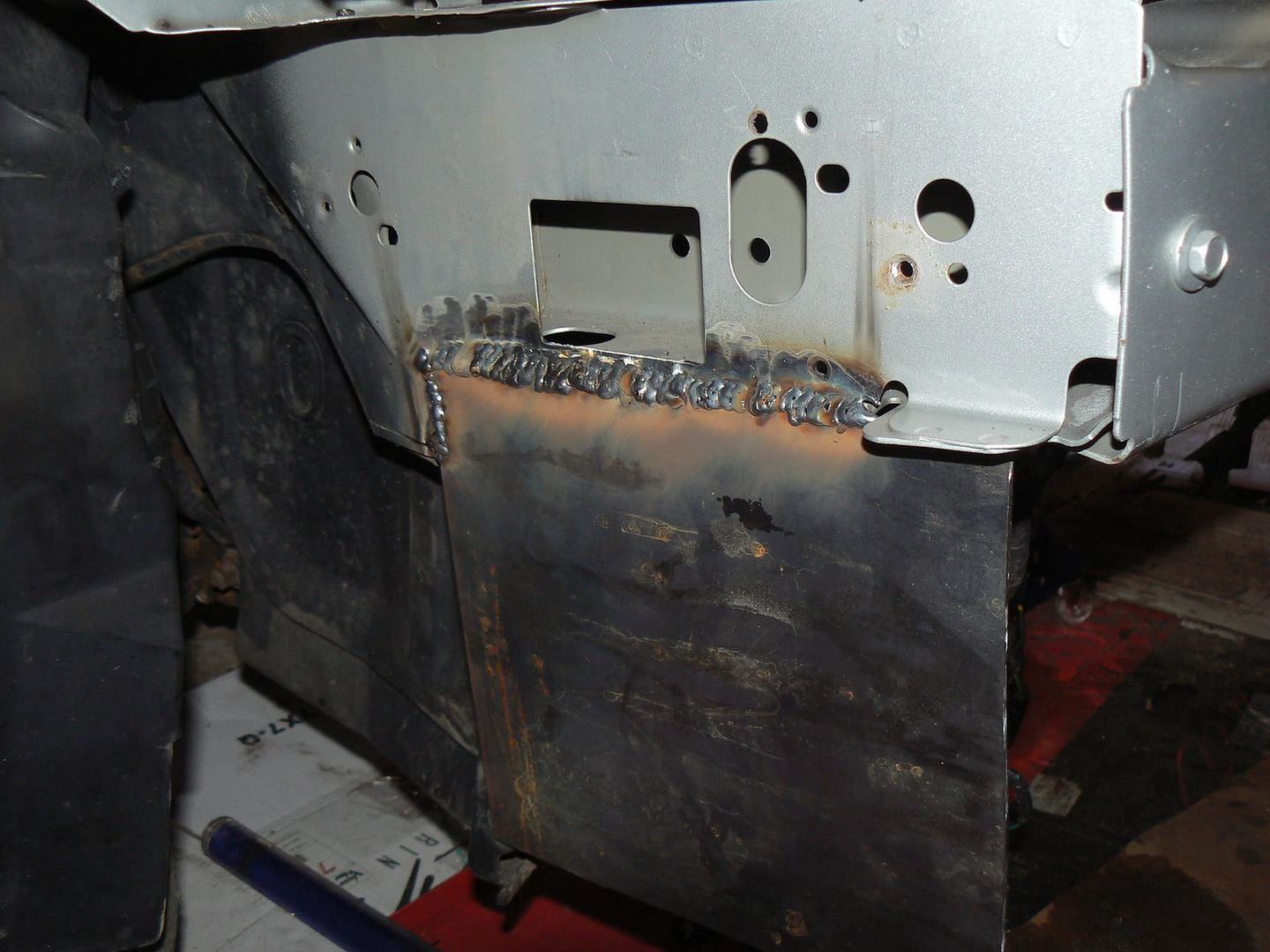

The passenger side bracket welded on

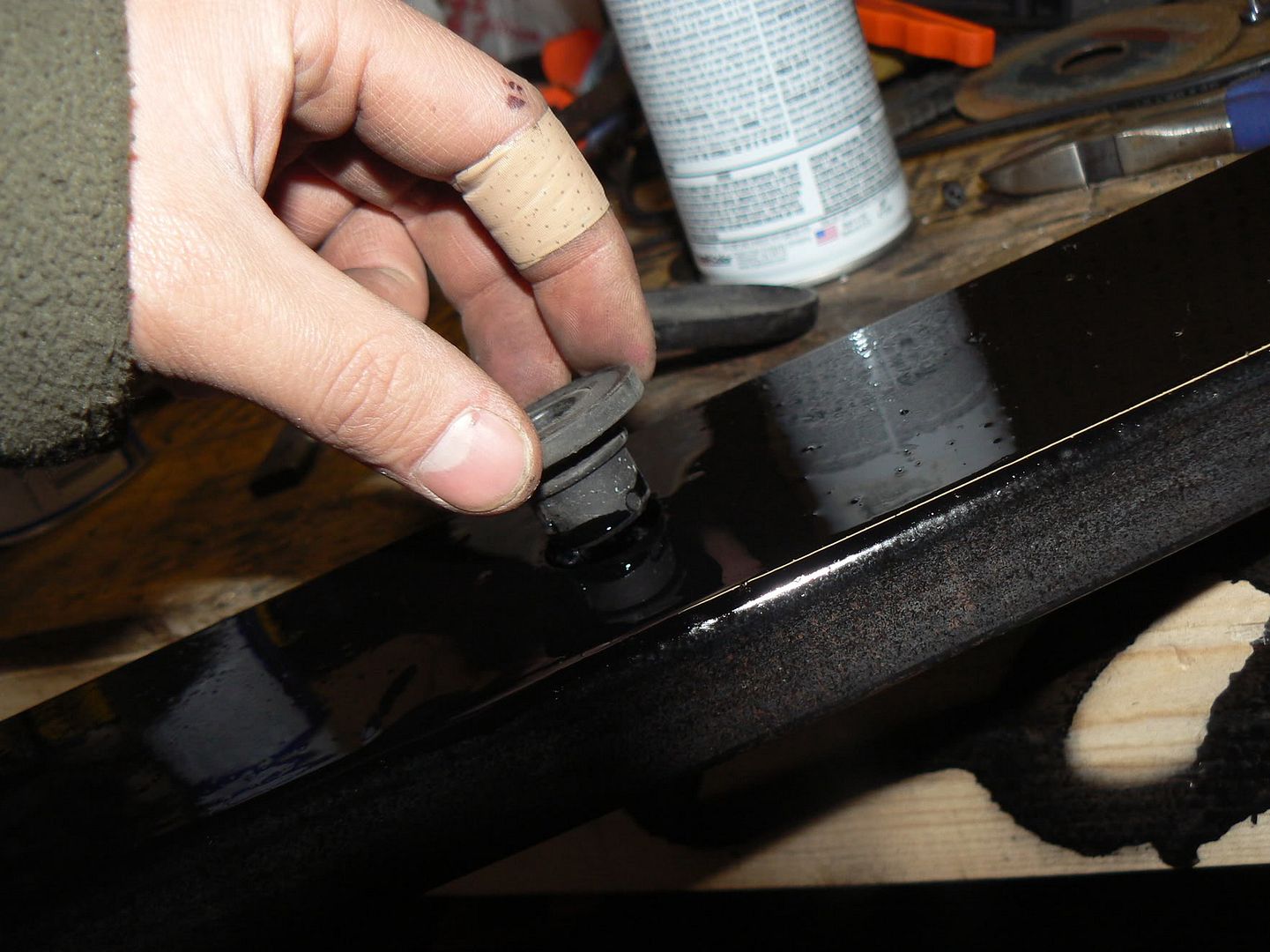

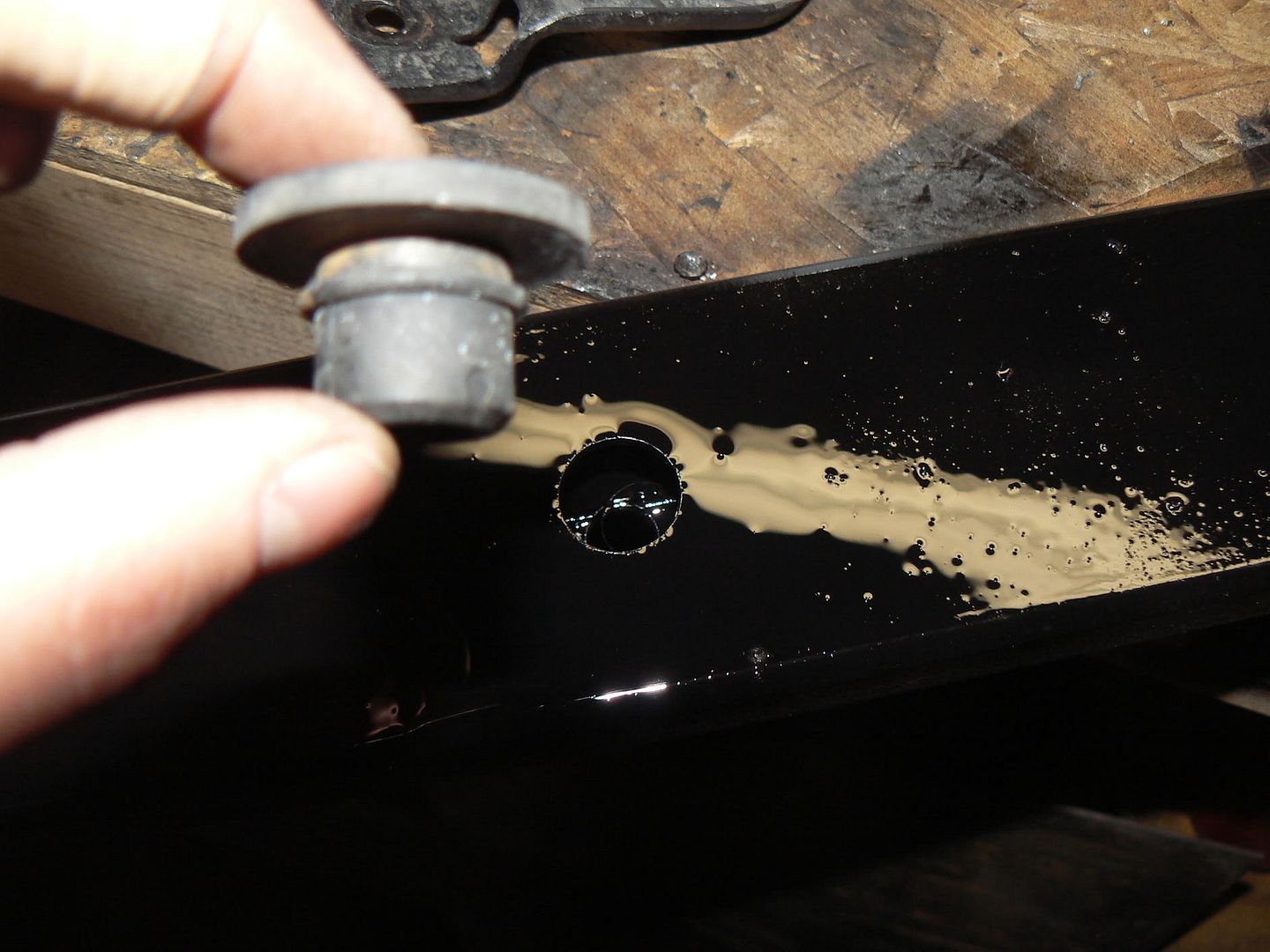

Rubber grommet and the hold drilled for it in the bottom support.
($10 to the first person to tell me were else on the 2gn chassis I got the grommets from. Well actually Im broke but Ill call you a huge neon freak if you can guess correctly)

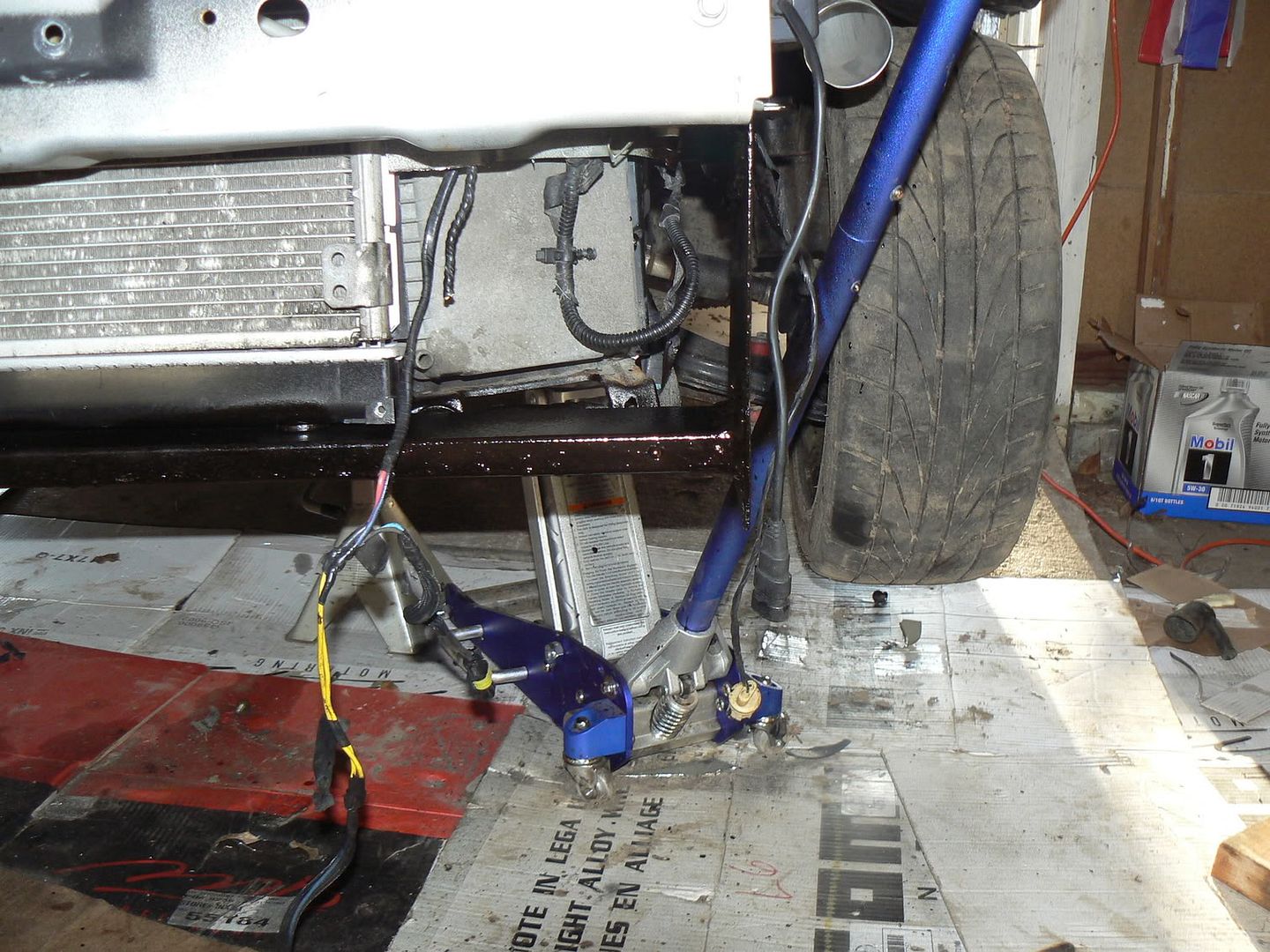

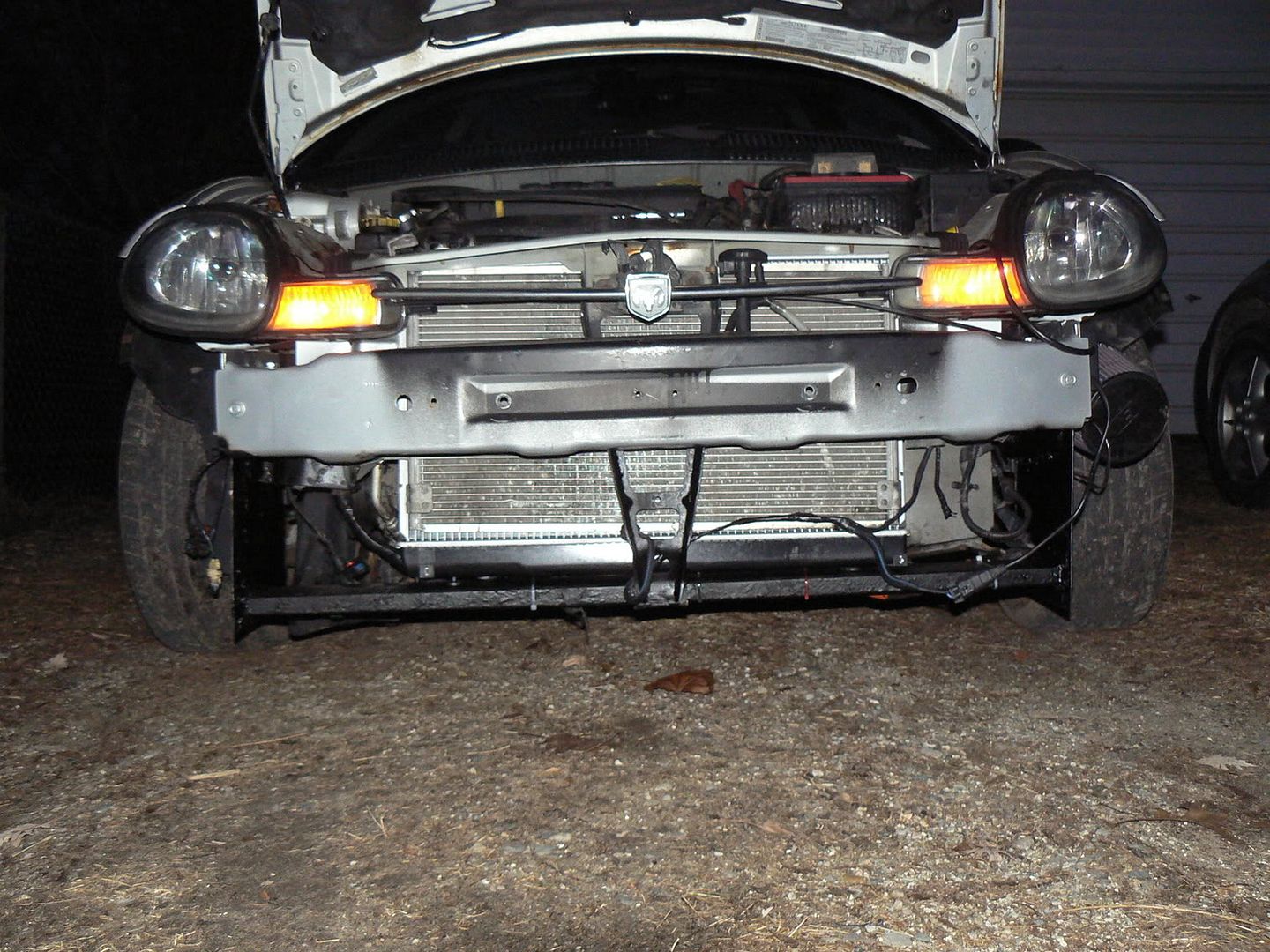

New radiator test fitted in the new support.

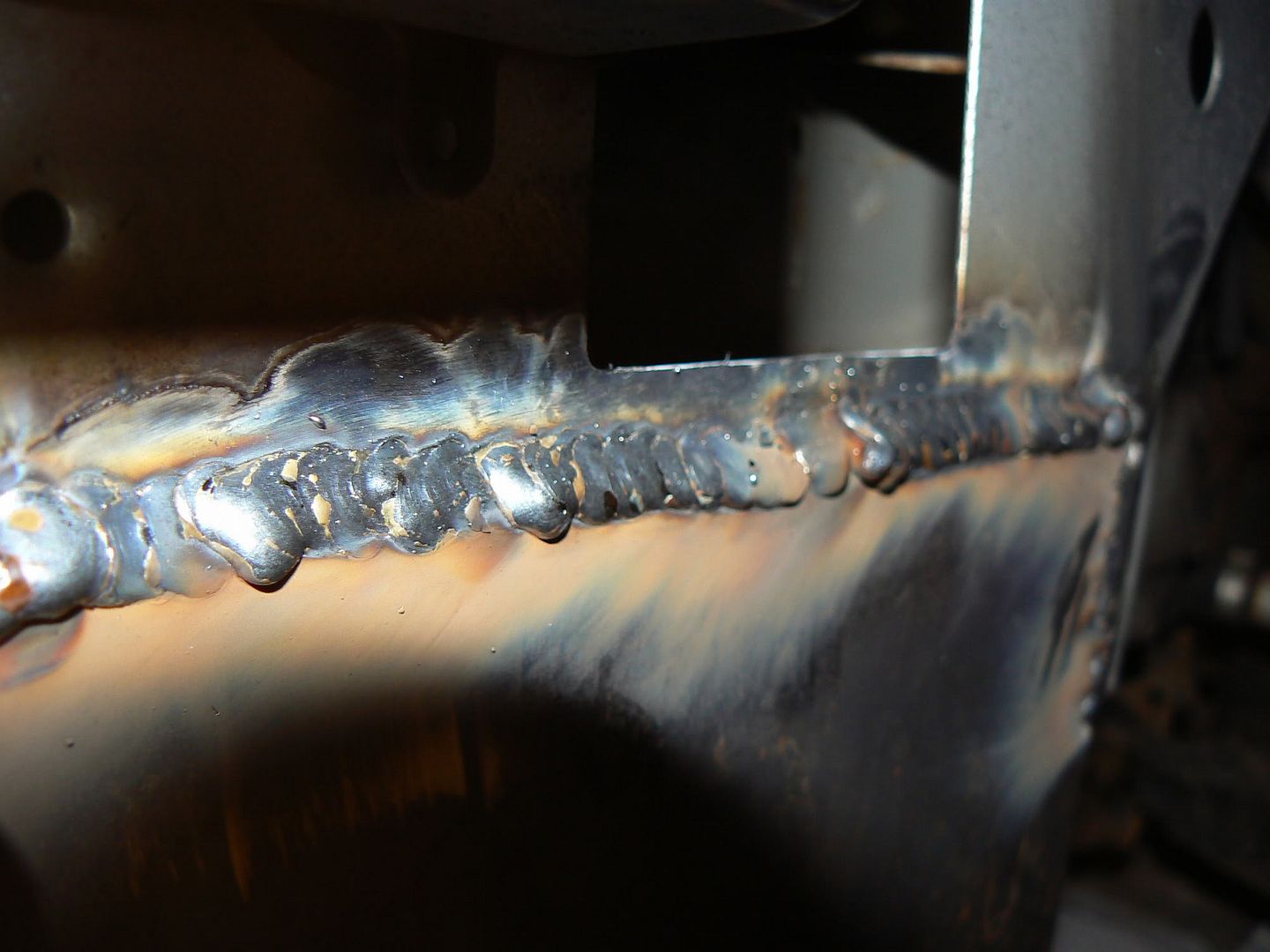

Welded in place. They are not the cleanest welds. The welder was acting funny.

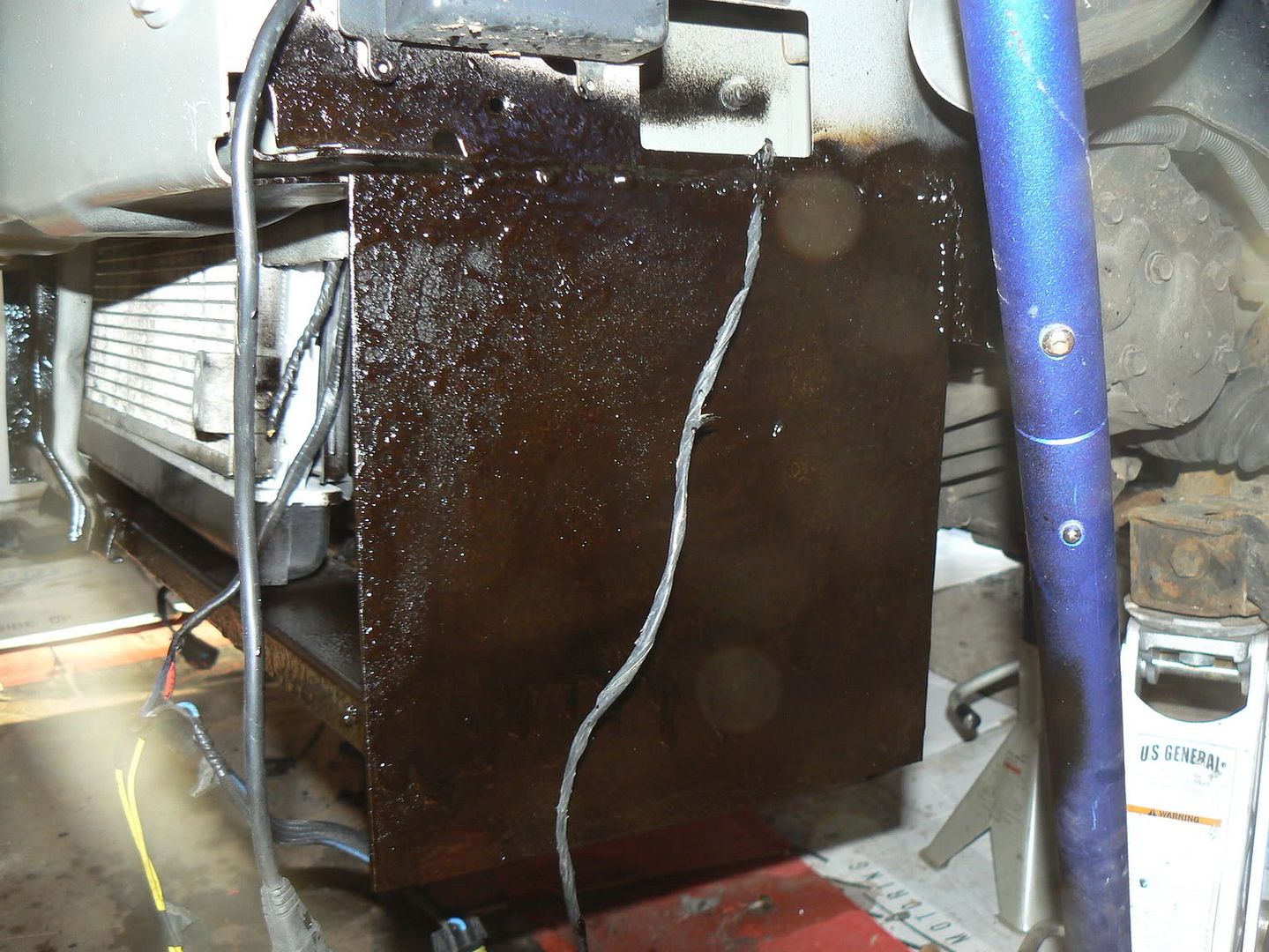

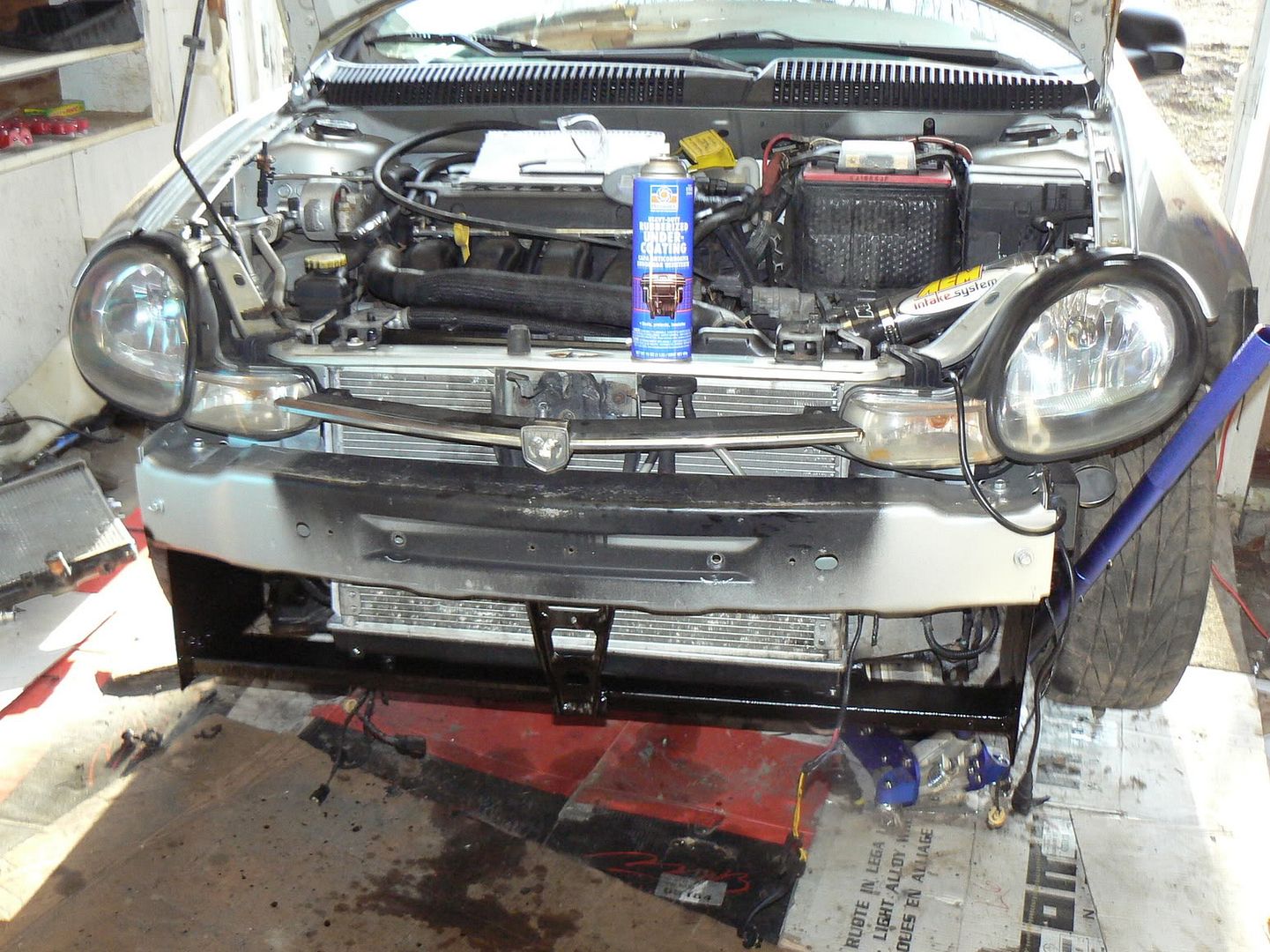

Coated it in that rubber undercoating stuff.

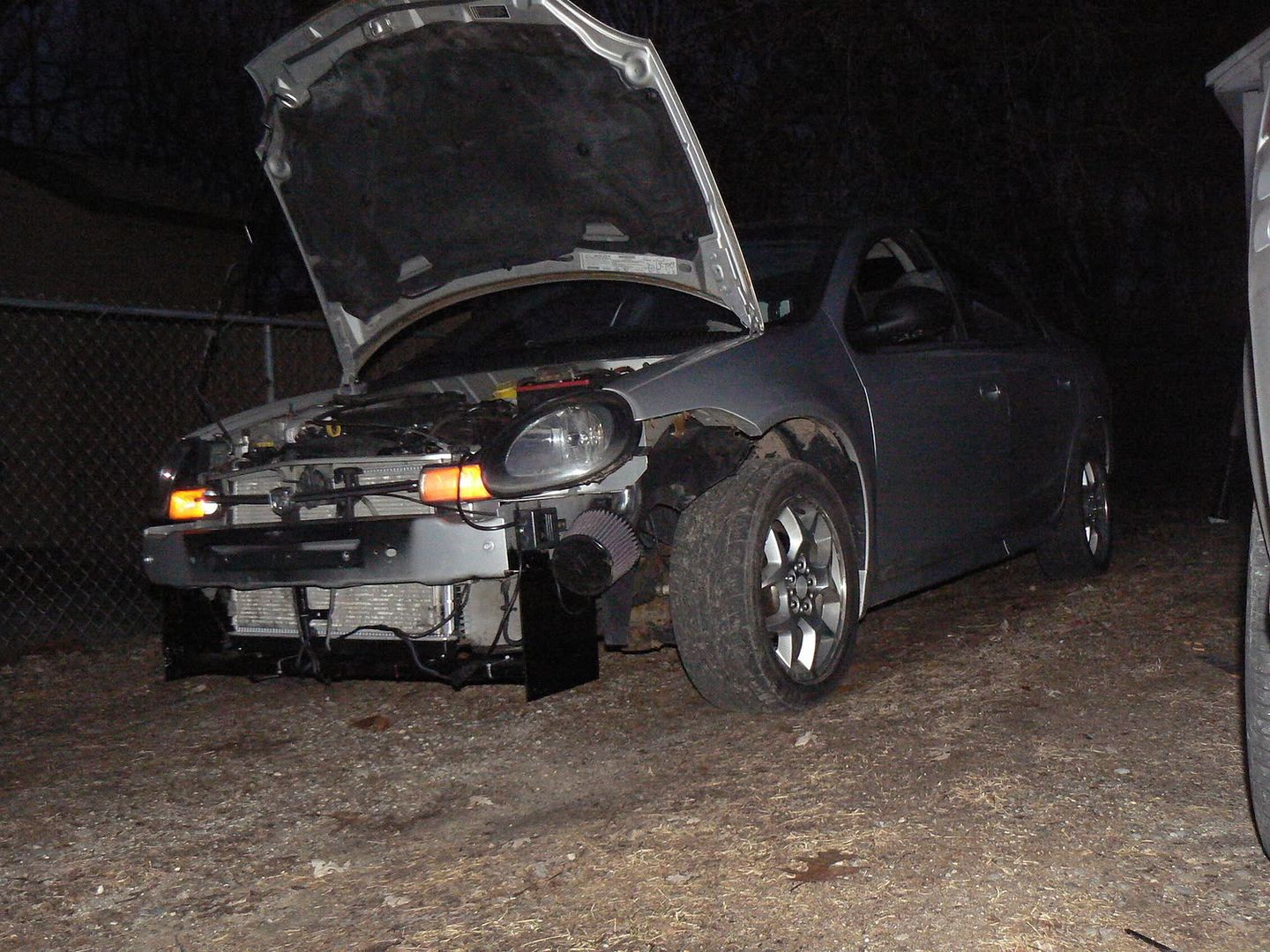

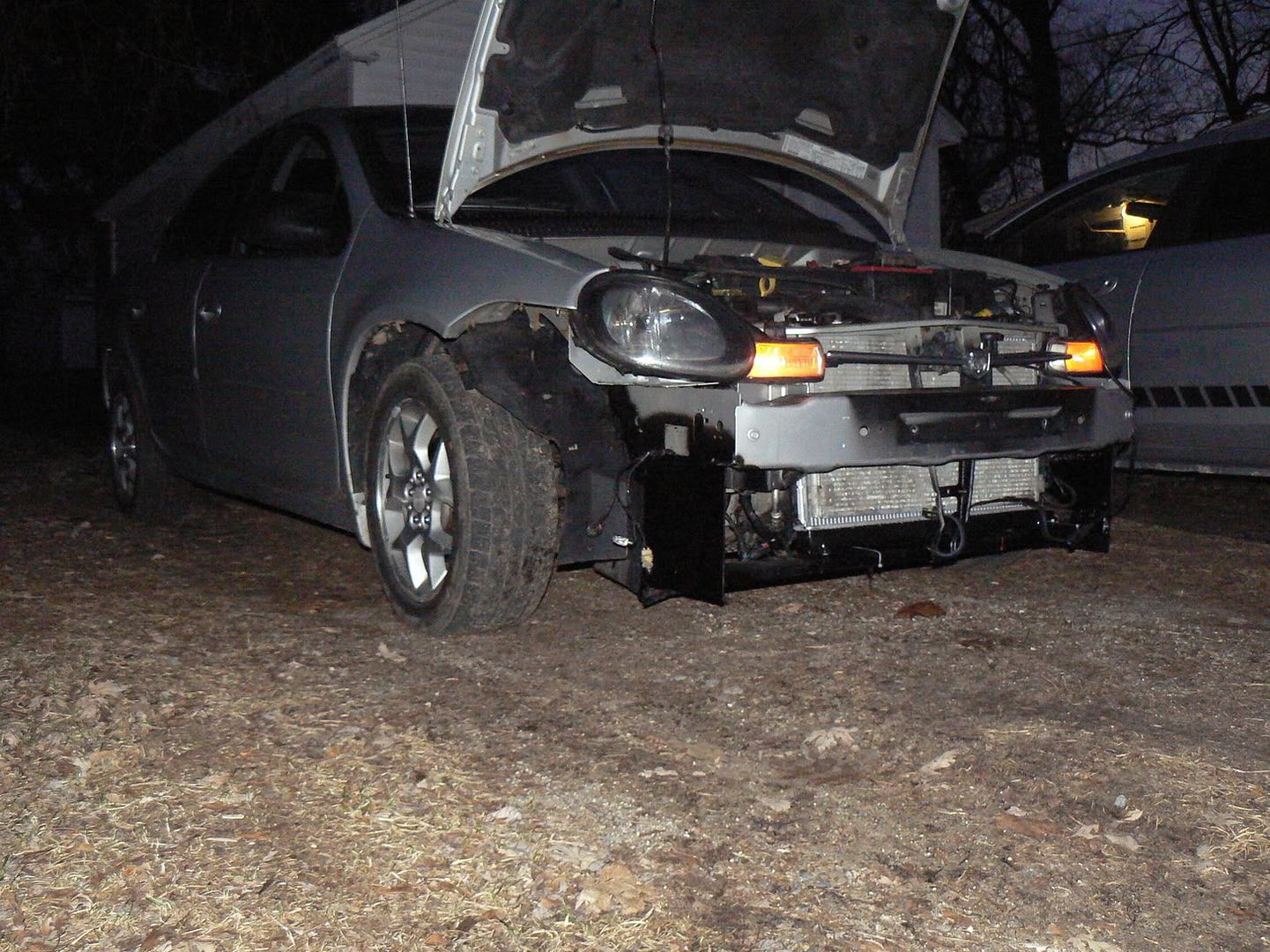

After the test drive. All done

There are a few things that still need to be done. I have to fit the washer fluid bottle, horn, passenger side HID ballast, and bumper cover. Overall the project went as I planned and Im very happy with the outcome.

Feedback is welcome!
