Rear window kit?

TheRandom1 · Post by **TheRandom1** » Sun Jun 14, 2009 6:32 pm

I know there are a bunch of old posts about JLM motorsports making a rear power window kit for our cars, but they have apparently gone out of business or something.

Does anybody know where to get this kit now? I want to get that and a cruise control kit in the near future.

sidepipe87 · Post by **sidepipe87** » Sun Jun 14, 2009 9:16 pm

I have no idea, but I remember someone modified switches from a jeep for the front. I'd love to at least have power switches for the rear windows in the front. Maybe I'd open the rear windows then. I've never had them open since I've owned the car.

Post by **racer12306** » Sun Jun 14, 2009 9:18 pm

I looked into it a while ago. I sent a PM to the guy on the org, but never received a response. The sight was down last I knew.

It will probably be difficult to get a hole of one.

TheRandom1 · Post by **TheRandom1** » Sun Jun 14, 2009 9:43 pm

Ryan, he did take one from a 98 Cherokee, but his photobucket is down or whatever, so I can't get the pics. He was on srtforums, found the thread and all, but that's it. Only switches, no kit. His kit came from JLM it seems.

Frank, I looked and JLM still seems to be down/out of business or something.

LilSparkPlug · Post by **LilSparkPlug** » Mon Jun 15, 2009 8:33 am

I had a link to another kit somewhere....I'll have to see if I can find it.

TheRandom1 · Post by **TheRandom1** » Mon Jun 15, 2009 8:53 am

Yes please do, I really don't want to have to hand fab a kit!

TheRandom1 · Post by **TheRandom1** » Thu Jun 18, 2009 8:58 pm

Nobody?

blueneo03 · Post by **blueneo03** » Fri Jun 19, 2009 12:05 am

http://www.slickcar.com/power-window-kit.asp

i got this kit for my front windows and it worked fine... i imagine it would be easier for the rear because it doesnt have the pockets... but the switches would have to be worked in somewhere... i have mine for the front on the center console... but to make them look factory would be a task...

loko498 · Post by **loko498** » Fri Jun 19, 2009 10:33 am

Can you post what they look like installed in your car blueneo03.

excon · Post by **excon** » Fri Jun 19, 2009 3:06 pm

reach back and roll down FTW.

blueneo03 · Post by **blueneo03** » Fri Jun 19, 2009 6:25 pm

umm i dont have pics of them on but i can try to get some over the weekend.

blueneo03 · Post by **blueneo03** » Tue Jul 14, 2009 8:47 pm

alright i finally got the time to take some pictures of the setup of the windows

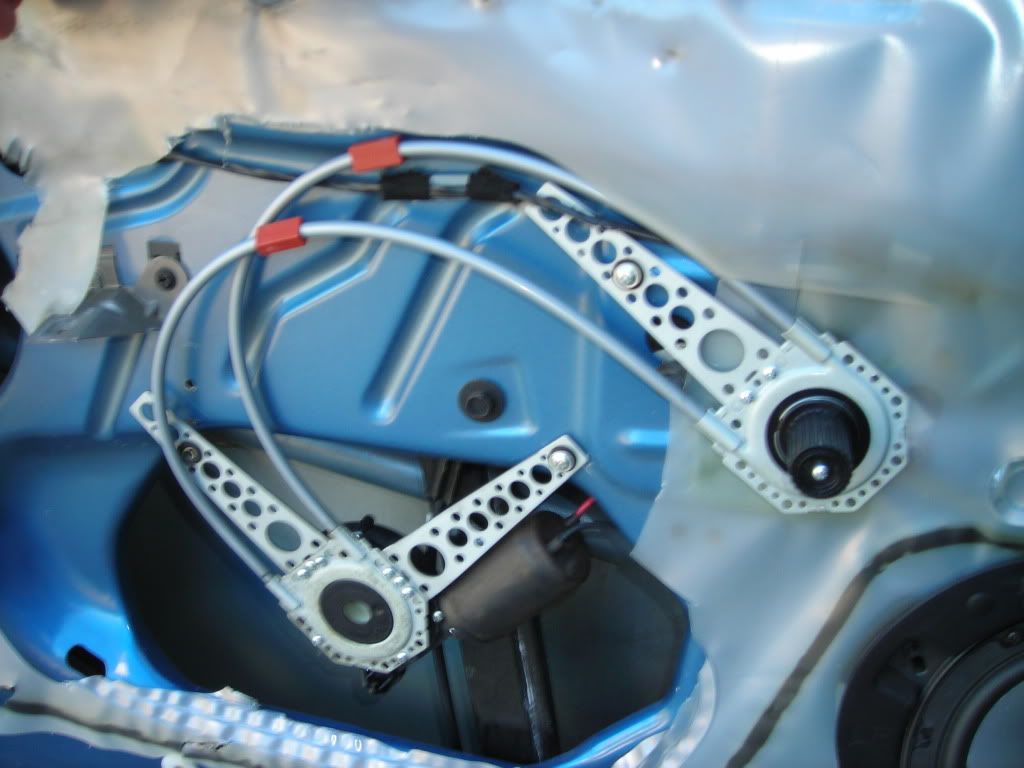

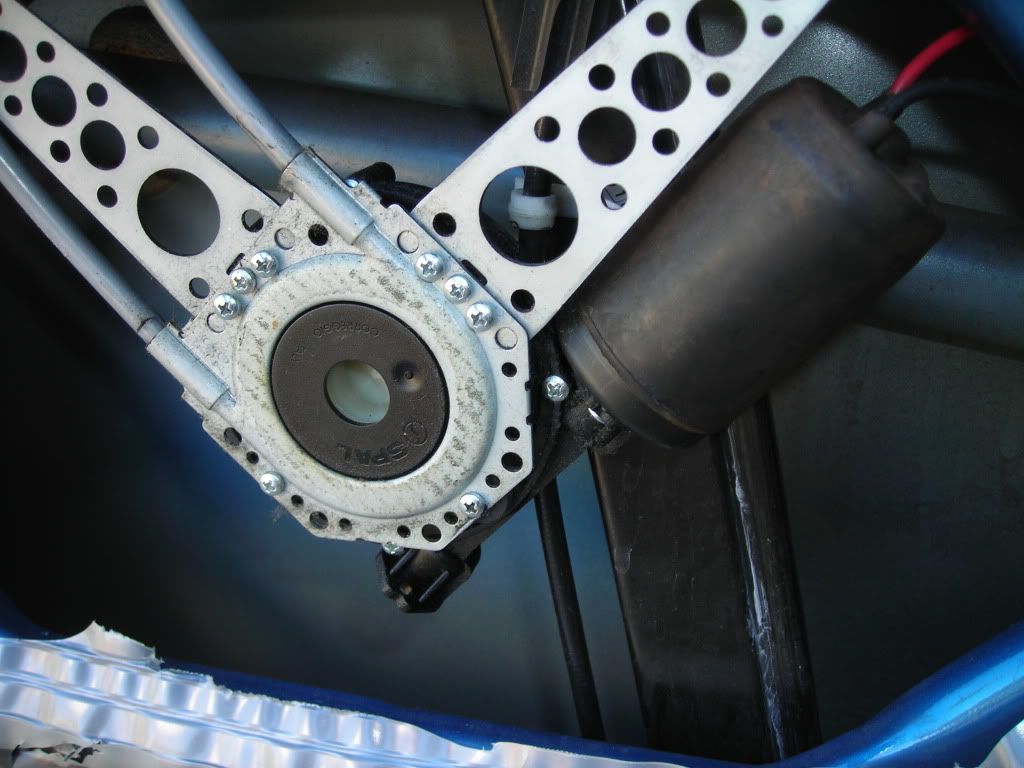

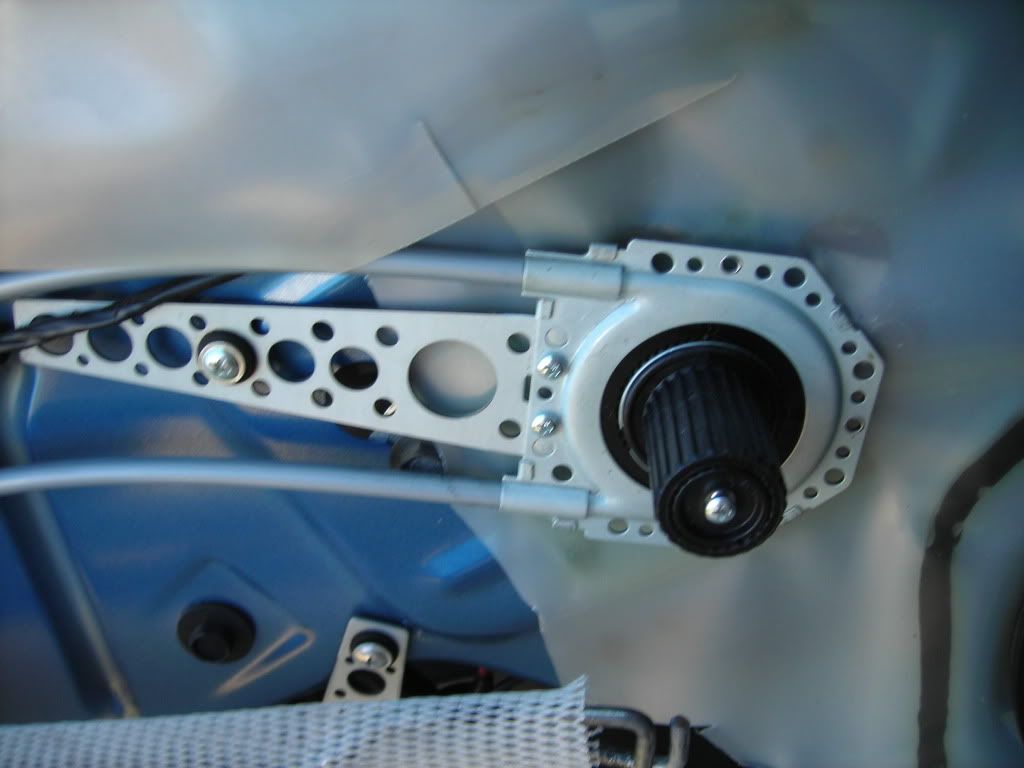

this is the motor and such. it uses the manual crank and just basically rolls the window down.

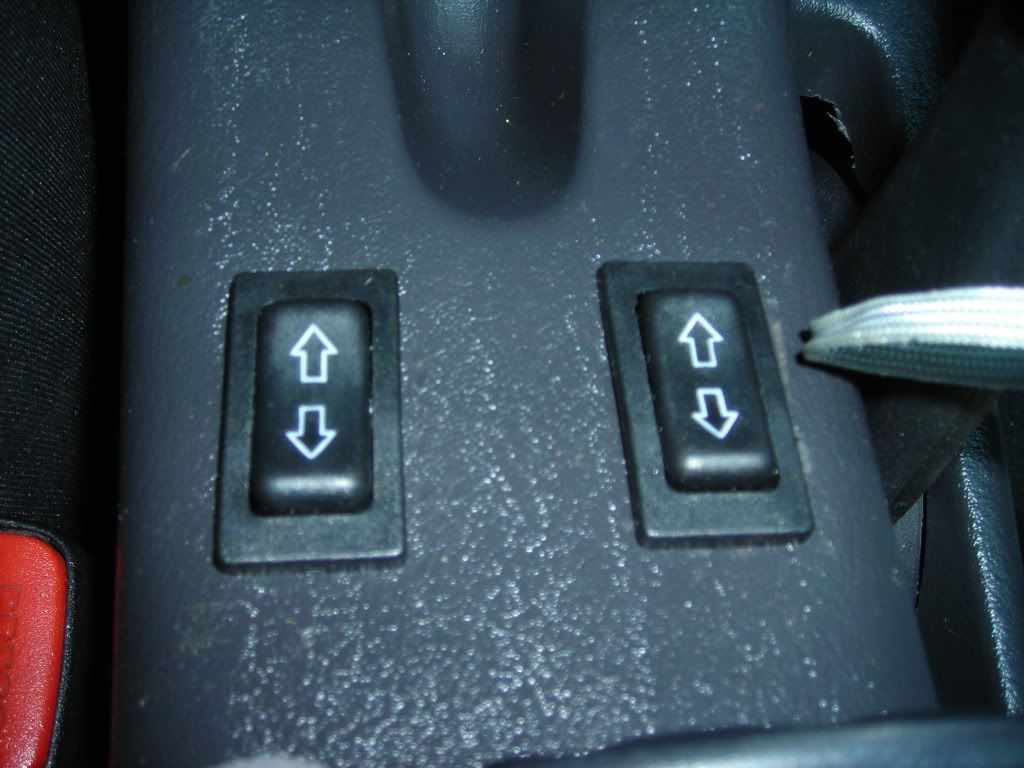

these are the switches that it came with i put them in the center for my fronts

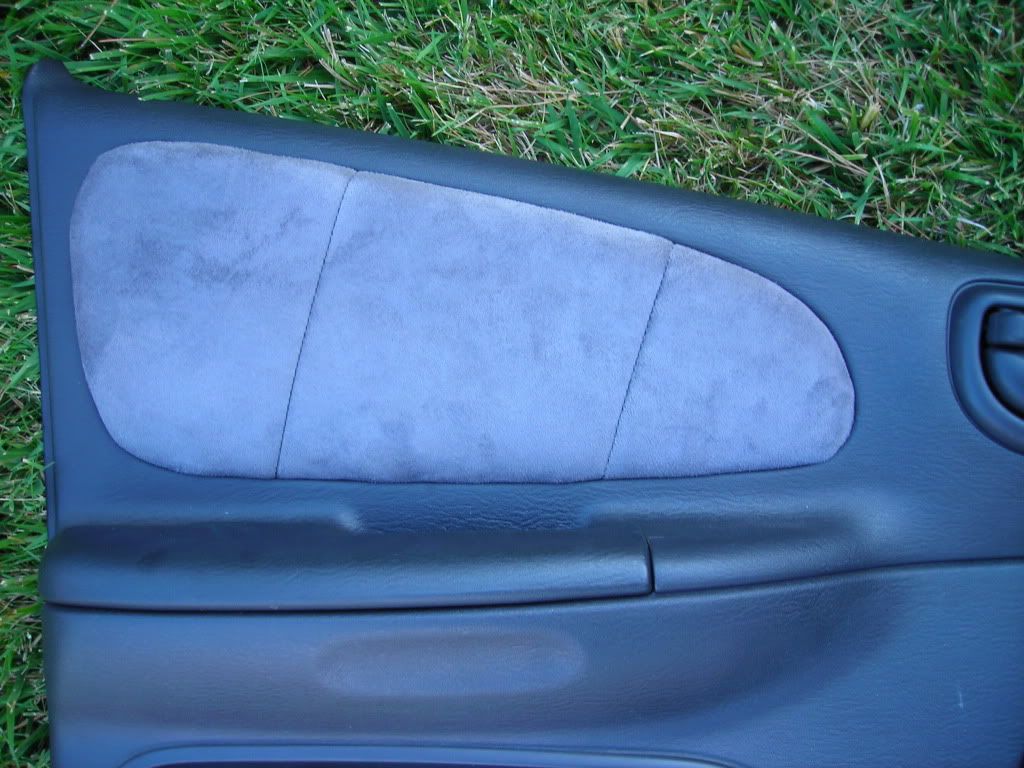

and to show off my new door inserts a little..

they are fake suede from some old seat covers.. all free =]

TheRandom1 · Post by **TheRandom1** » Tue Jul 14, 2009 9:06 pm

So on the rear doors the crank still pokes out of the door panel?

sxxxt · Post by **sxxxt** » Tue Jul 14, 2009 9:29 pm

iv seen were the switch to make the window go up and down cover that hole

LilSparkPlug · Post by **LilSparkPlug** » Tue Jul 14, 2009 9:41 pm

From the pictures it looks like it comes with various plugs....

blueneo03 · Post by **blueneo03** » Tue Jul 14, 2009 10:14 pm

ya thats right it comes with a bunch of plugs with various sizes and such that cover up the hole. go to slickcar.com they have the kits there. wiring kits and switch kits too

TheRandom1 · Post by **TheRandom1** » Tue Jul 14, 2009 10:27 pm

Hmm, and 135 for the set isn't bad... would just have to find a different place for those switches, not a big fan.

blueneo03 · Post by **blueneo03** » Tue Jul 14, 2009 11:43 pm

ya i thought it was pretty good.. but ya the switches was a place i wanted to do it but they have different kits available so u can mount them different places. like factory too with two on the drivers side and one on the passenger. and illuminated ones too. i like them there. but if i had factory fronts i wouldnt have done it there..

Caraudioholic24 · Post by **Caraudioholic24** » Wed Jul 15, 2009 1:18 am

Hey sorry i didnt chime in earlier.

This is a SPAL kit if Im not mistaken. I have installedand used them for years and am putting a set in my car. They are an awesome kit. I am mounting the switches behind the rear console so that if I even do have passengers they have access to them.

They basically work by turning the stock crank with a little motor as you see pictured above. You put a cover over the hole where the handle used to be and it blends in nicely. Kind of a pain to install and time consuming but worth it.

If anyone "local" wants a set installed let me know. I would be more than happy to help.

LilSparkPlug · Post by **LilSparkPlug** » Wed Jul 15, 2009 9:12 am

You have pictures of what the plug looks like?

Caraudioholic24 · Post by **Caraudioholic24** » Wed Jul 15, 2009 10:53 am

I can see if i can find some old pics. They basically fill in the hole and cover the gearing mechanism where the stock handle would be. They are black and plastic. im sure someone else can chime in with more.

TheRandom1 · Post by **TheRandom1** » Wed Jul 15, 2009 10:56 am

OK blue... got any pics of the rear doors reassembled? Just wanna see how noticeable those rear window covers are.

trinity_rush2001 · Post by **trinity_rush2001** » Wed Jul 15, 2009 2:19 pm

just curious how u wired the kit into ur car? any info on that

blueneo03 · Post by **blueneo03** » Wed Jul 15, 2009 2:55 pm

that is actually my front doors. so i can take a pic of the door on it and all..

and as far as the wiring goes it came with a kit to wire it up.. it was kinda simple.. i think routing the wires through the door grommet things was the hardest part.. but it wasnt too bad. i wired it from the radio power cuz i know that is a 12v switched. then a ground and runnin through the doors and center console..

Caraudioholic24 · Post by **Caraudioholic24** » Thu Jul 16, 2009 2:38 am

Yea wiring i s easy. Depending on what kit you get its all plug and play. Then power and ground.

I cant find my pics and I hjavent done it in my own car yet so Im sorry. Hopefully Blue can help us.

blueneo03 · Post by **blueneo03** » Thu Jul 16, 2009 3:17 am

i wish i would have known earlier i had my car gutted 2 days ago.. would have been perfect.. ill see what i can find tho.

LilSparkPlug · Post by **LilSparkPlug** » Thu Jul 16, 2009 8:22 am

We want the pictures of it together, not gutted silly

Just what the panel looks like with the cap installed on the crank.

Caraudioholic24 · Post by **Caraudioholic24** » Thu Jul 16, 2009 11:21 am

Yea sorry Im still looking. Not a very popular pic for my install library. LOL

r/tguy02 · Post by **r/tguy02** » Thu Jul 16, 2009 12:33 pm

heres a link to a kit i got off someone else a long time ago, it looks oem for the most part. Functions similar to the above mentioned kit. The pods would then cover the crank hole, the extra switches go up front.

last one on the page
http://www.automotivepartsandaccessorie ... werwindow/

blueneo03 · Post by **blueneo03** » Thu Jul 16, 2009 12:42 pm

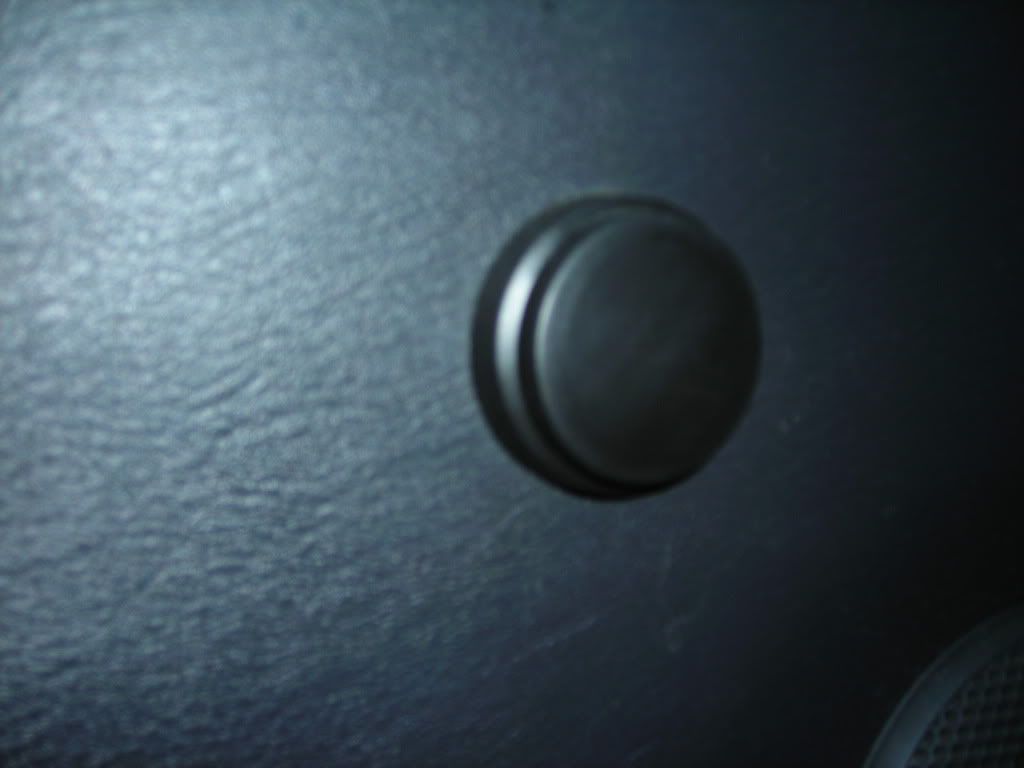

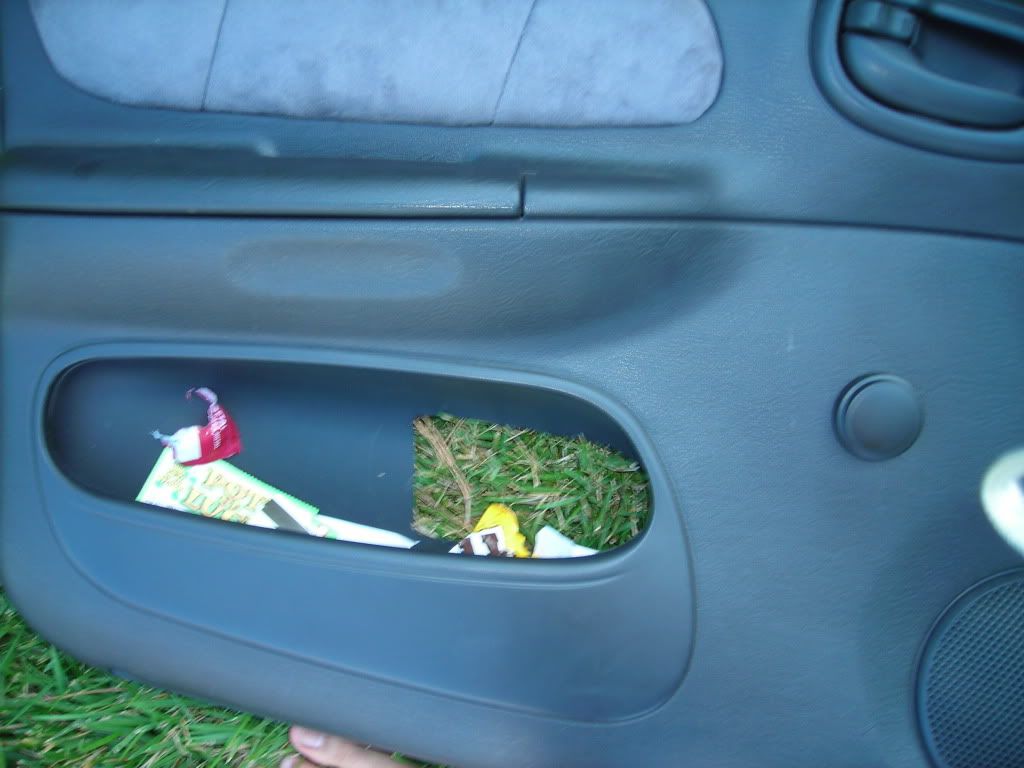

oh i have that okay i have one up close and another one from more away.

they had a ton of different sized inserts.. it was really aa universal kit and it could have fit any way. no two would be installed the same.. but as you can see it can mount many diff ways.
