RETRO UPDATE!!! i'm now a vendor on srtforums

Do you have a project going or will you be starting a project here very soon and just want to keep a log of everything you and when? Share with everyone every step of the way what sort of progress you are making on your project.
Post Reply
asanti
2GN Member
Posts: 1548
Joined: Wed Mar 28, 2007 7:52 pm
Location: Waterbury CT

Post by asanti » Wed Dec 02, 2009 5:18 pm

aww sheet wrote:
asanti wrote:Slow connection @ work FTL! Question, do you do this just for the Neons, or for any vehicle?????
i do mainly neons and vw's. but i'm doing an 85 camero right now as well. so i'm open to try anything
Niice! I'd like to see if I can get a set done for my HHR SS. I'd have to source the headlamps for ya (I've heard they're a PITA to pop open, something about "several heating cycles"?), so it may be a while though... (Question: How expensive would it be to source those crazy Q45 style HID shrouds?? The ones that look like a flower, you know which ones I'm talking about?)

Later
Allex
Official "I drove my Neon till it died" member #??? Parted out the '01 so that she can live on through others! (Now driving + modding my '09 Chevy HHR SS!)
Mat00ES wrote:Find me a buyer and I'll sell some body parts for car parts.
Top
User avatar
z3roneo
2GN Member
Posts: 3543
Joined: Mon Jan 31, 2005 12:08 am
Location: Humble,Tx
Contact:
Contact z3roneo

Post by z3roneo » Thu Dec 03, 2009 2:34 pm

Ok, I gotta quetsion bro..

"Demon Eyes"... To make them like that, do you put a led into the projector itself or do you just paint the shield so it reflects the color??

I've been reading up on alot info on hidplanet and I plan on retro'ing a set pretty soon. (e55's maybe but I pushing towards the fx35's)

Great job by the way.. :thumbup:
2000 2.4L Turbocharged Neon (The Monster)
2005 5.7L Hemi Jeep Grand Cherokee (SRT8 Clone)

Top
aww sheet
2GN Member
Posts: 158
Joined: Mon Jun 08, 2009 10:17 pm
Location: burtonsville, md

Post by aww sheet » Fri Dec 04, 2009 2:38 pm

z3roneo wrote:Ok, I gotta quetsion bro..

"Demon Eyes"... To make them like that, do you put a led into the projector itself or do you just paint the shield so it reflects the color??

I've been reading up on alot info on hidplanet and I plan on retro'ing a set pretty soon. (e55's maybe but I pushing towards the fx35's)

Great job by the way.. :thumbup:

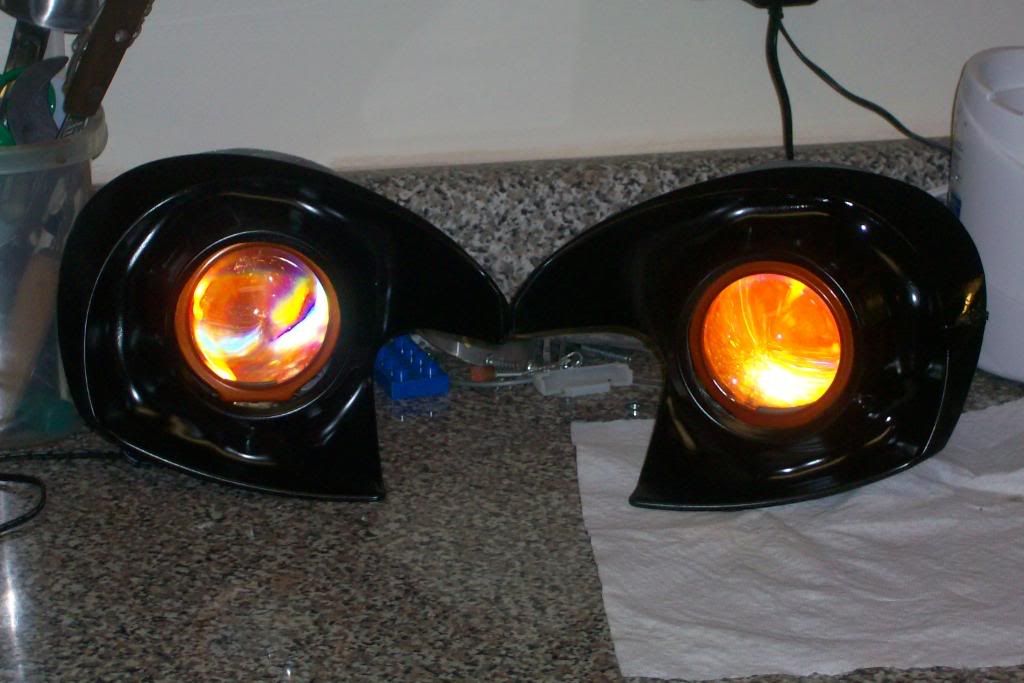

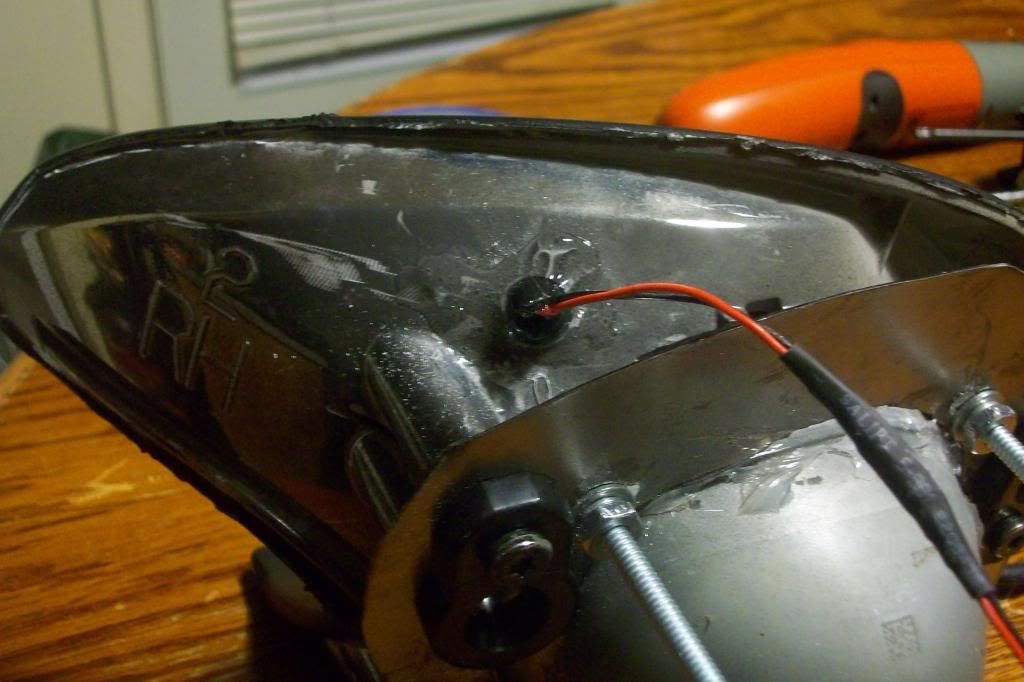

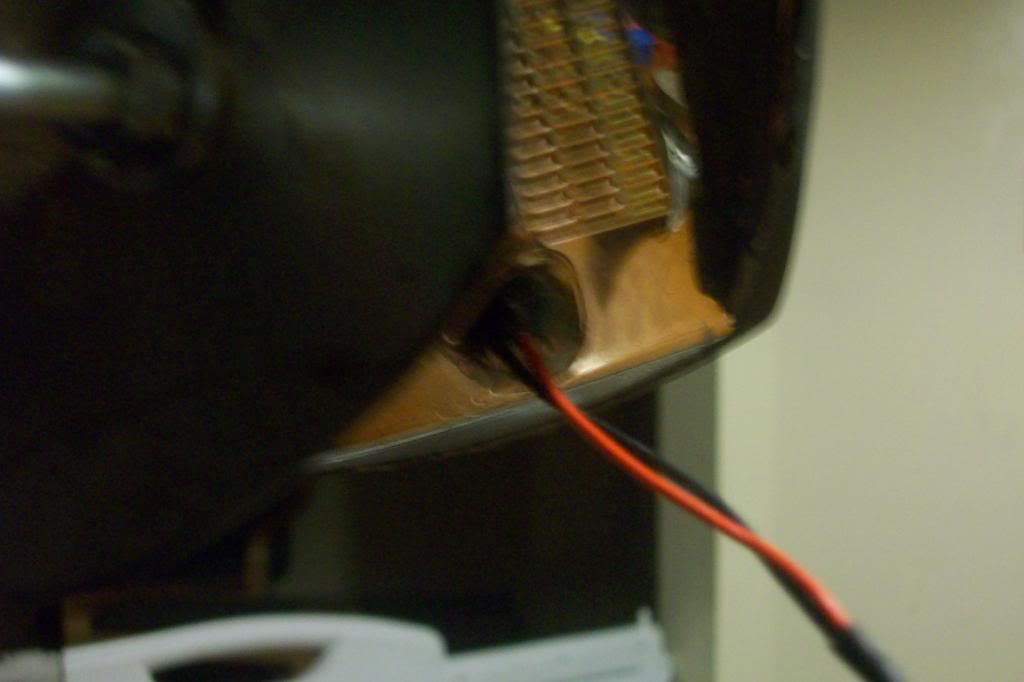

with the demon eyes i took two leds per reflectors, and attached them that way thats so the color will project outwards


painting the sheild will reflect the what ever color you chose when looking at the projector head on as light hits it.

i used the flash here to show the effect

Fast, Cheap, Reliable. you can only chose two
Top
User avatar
z3roneo
2GN Member
Posts: 3543
Joined: Mon Jan 31, 2005 12:08 am
Location: Humble,Tx
Contact:
Contact z3roneo

Post by z3roneo » Fri Dec 04, 2009 6:06 pm

Gotcha... But wouldn't the heat from the bulb overheat the led??
2000 2.4L Turbocharged Neon (The Monster)
2005 5.7L Hemi Jeep Grand Cherokee (SRT8 Clone)

Top
Da Reaper
2GN Member
Posts: 187
Joined: Tue Nov 03, 2009 6:28 pm
Location: New York

Post by Da Reaper » Sat Dec 05, 2009 11:55 am

how much for 03 neon headlights with the fx 35 ( i have these) red demon eyes and the audi led style. I pmed you about this but cant see your messages.
Da Reaper returns
Top
aww sheet
2GN Member
Posts: 158
Joined: Mon Jun 08, 2009 10:17 pm
Location: burtonsville, md

Post by aww sheet » Sun Dec 06, 2009 1:42 am

no the heat doesn't affect the leds
Da Reaper wrote:how much for 03 neon headlights with the fx 35 ( i have these) red demon eyes and the audi led style. I pmed you about this but cant see your messages.
i charge 250 in labor and misc materials after the parts are all collected.
Last edited by aww sheet on Mon Dec 07, 2009 9:29 pm, edited 1 time in total.
Fast, Cheap, Reliable. you can only chose two
Top
aww sheet
2GN Member
Posts: 158
Joined: Mon Jun 08, 2009 10:17 pm
Location: burtonsville, md

the lasted retro not a neon but a 86 camaro

Post by aww sheet » Mon Dec 07, 2009 9:27 pm

ok after alot of testing this and that with these; i've finally made progress. i haven't be able to locate my camera usb cable to upload pics, so i went and got one today.

so on with the pics:

1 acura tsx projectors

2 housing cut to fit

the original plan was mount the projector to the reflector (you'll notice holes made in the previous pics) the bolts wouldn't be visible since i'm gonna be vacu-forming these. however, after bolting these up the reflector began to bow. so i had to come up with a new solution.

i decided to make a bracket out of the scape acrylic i have from vacuforming.

3 sheet of acylic

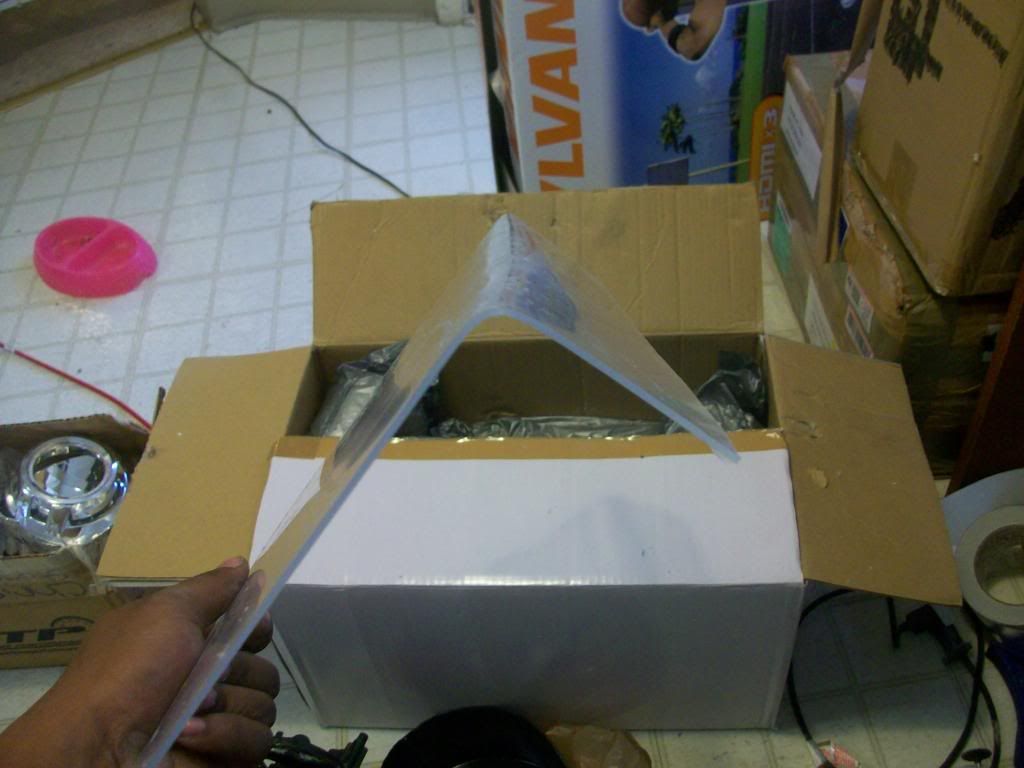

4 heated on the edge of a table to bend

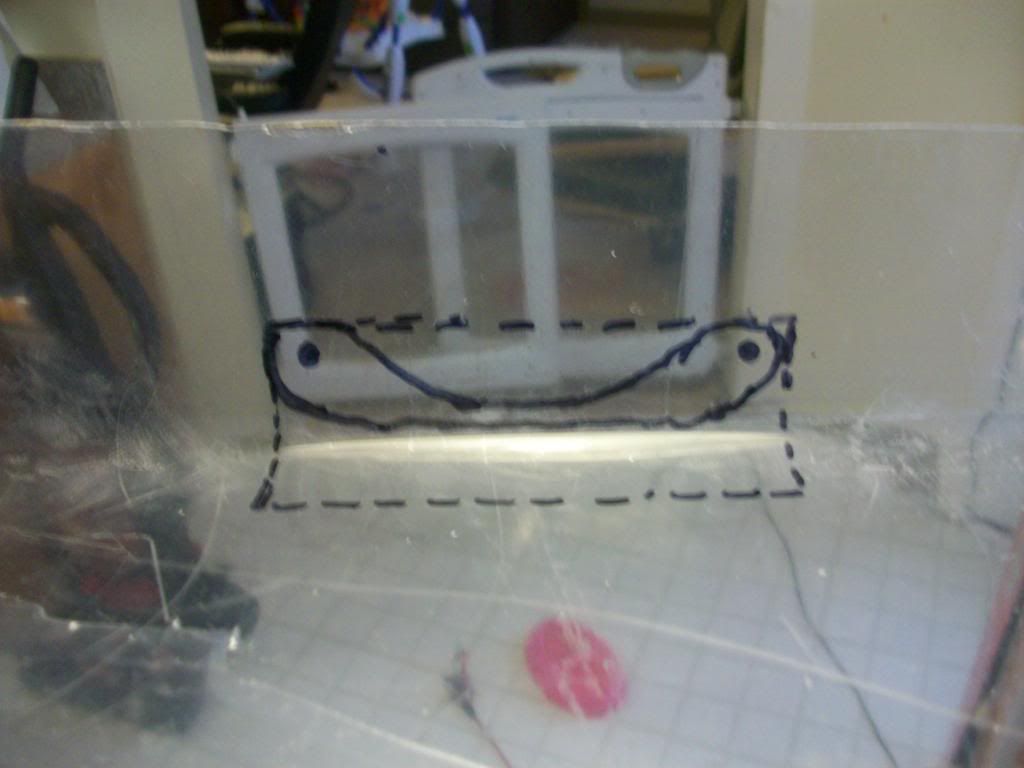

5 mocked up a template and transferred

6 cutout, painted, and test fitted

7 upper bracket made

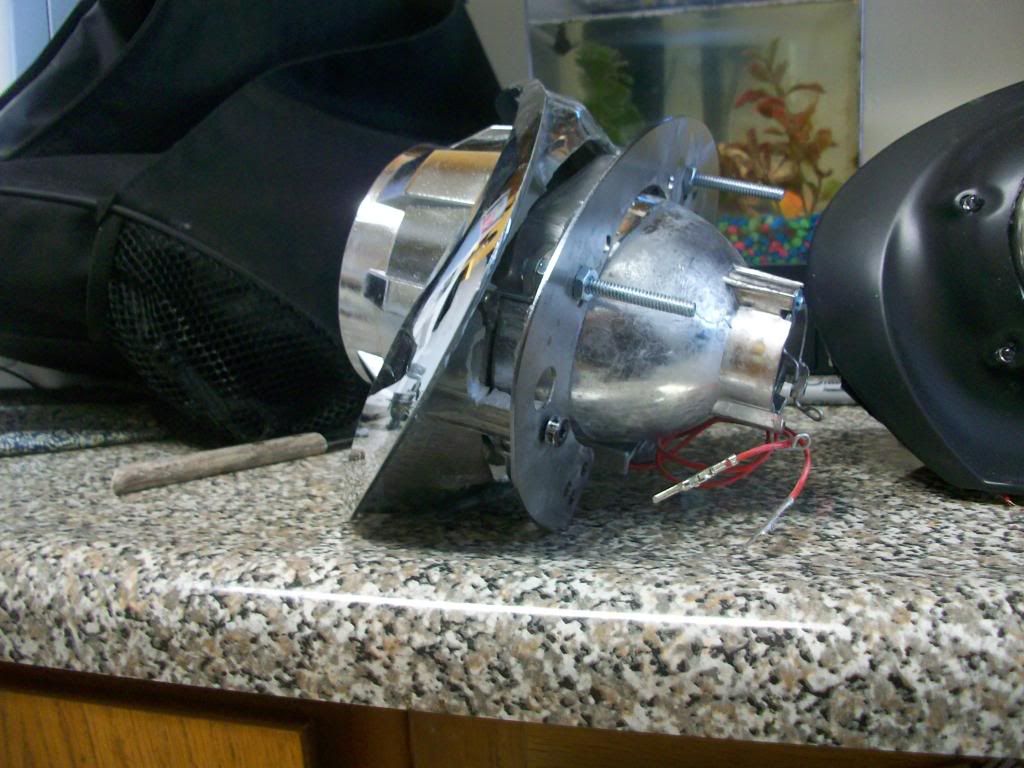

8. assembly

up next is to deal with a problem
one of the projectors has a broken cutoff shield, i have to order another reflector bowl to fix this problem.

vacuforming pics on the way!!!!
Fast, Cheap, Reliable. you can only chose two
Top
NeonOn19s
2GN Member
Posts: 2074
Joined: Mon Nov 07, 2005 11:44 am
Location: Spring,TX

Post by NeonOn19s » Tue Dec 08, 2009 11:23 am

very cool man... I wish I had the time to do this....

I really want a my TYC retro'ed... I'm not feeling the projectors from MP that I bought...
| Nathan |


Official "I'm Going to Drive My Neon til it Dies" Club Member # 72
Semper Fi!!! USMC
Top
aww sheet
2GN Member
Posts: 158
Joined: Mon Jun 08, 2009 10:17 pm
Location: burtonsville, md

more on the camaro

Post by aww sheet » Sun Dec 13, 2009 5:46 pm

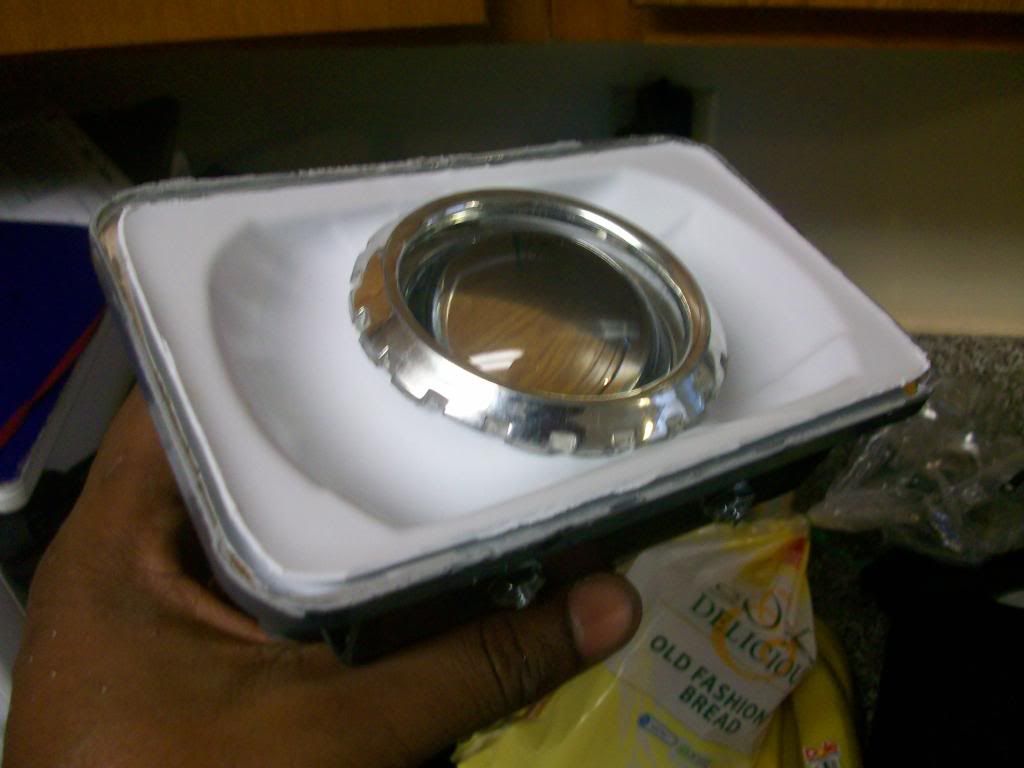

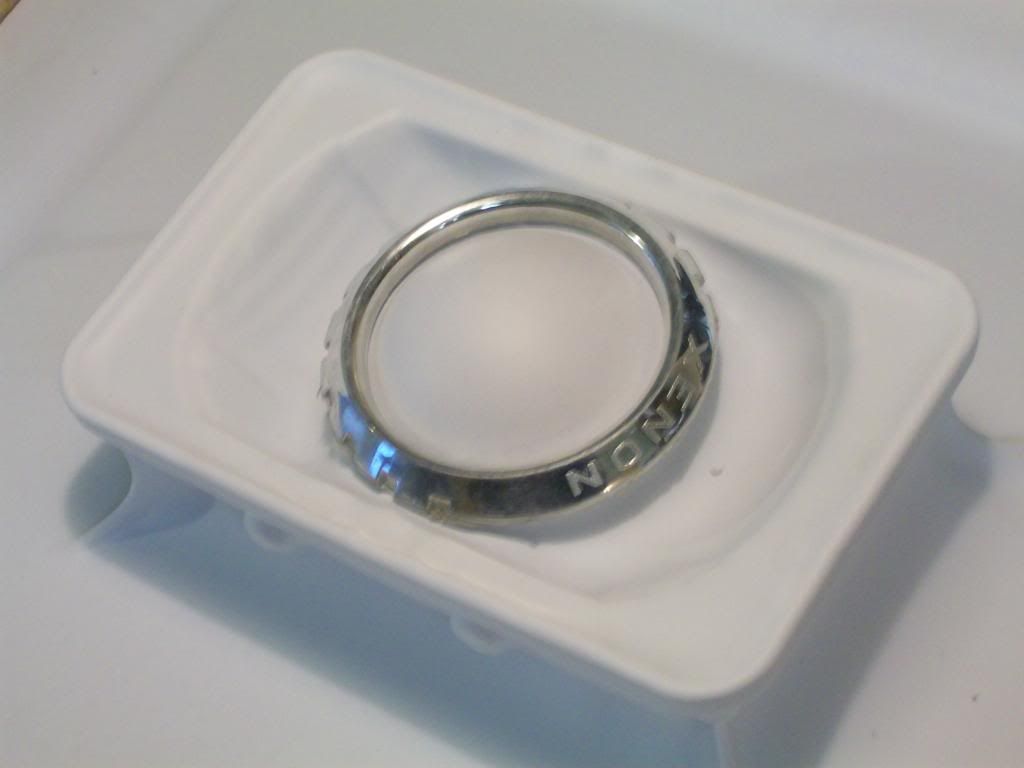

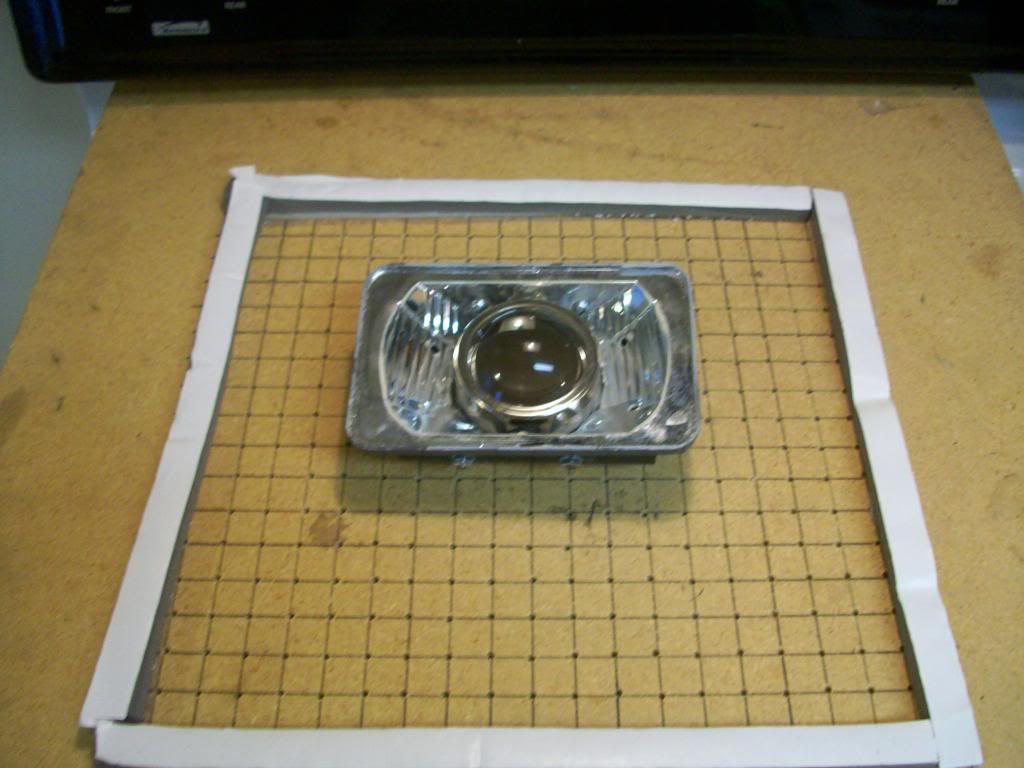

this was the easiest vacuform i have ever done!!!!


just need to paint
Fast, Cheap, Reliable. you can only chose two
Top
Sabersoul
2GN Member
Posts: 333
Joined: Thu Mar 19, 2009 5:45 pm
Location: Hampton, VA

Post by Sabersoul » Sun Dec 13, 2009 11:04 pm

Those look sweet! If I had the cash, parts and found a harness for H13 bulb, I'd totally pay you to make a set for my Caliber.
Top
aww sheet
2GN Member
Posts: 158
Joined: Mon Jun 08, 2009 10:17 pm
Location: burtonsville, md

Post by aww sheet » Mon Dec 14, 2009 6:23 pm

Sabersoul wrote:Those look sweet! If I had the cash, parts and found a harness for H13 bulb, I'd totally pay you to make a set for my Caliber.
well the harness part is easy
Fast, Cheap, Reliable. you can only chose two
Top
User avatar
wiggyx
2GN Member
Posts: 686
Joined: Thu Oct 02, 2008 2:04 pm
Location: Cleveland, Ohio

Post by wiggyx » Mon Dec 14, 2009 8:52 pm

Chris, when you gonna dump some of these jobs on me? :lol:

I know you're stressin' over them.
Top
aww sheet
2GN Member
Posts: 158
Joined: Mon Jun 08, 2009 10:17 pm
Location: burtonsville, md

Post by aww sheet » Tue Dec 15, 2009 1:34 pm

^^^just sent you a message on f/b!!
Fast, Cheap, Reliable. you can only chose two
Top
aww sheet
2GN Member
Posts: 158
Joined: Mon Jun 08, 2009 10:17 pm
Location: burtonsville, md

Post by aww sheet » Thu Dec 17, 2009 9:24 pm

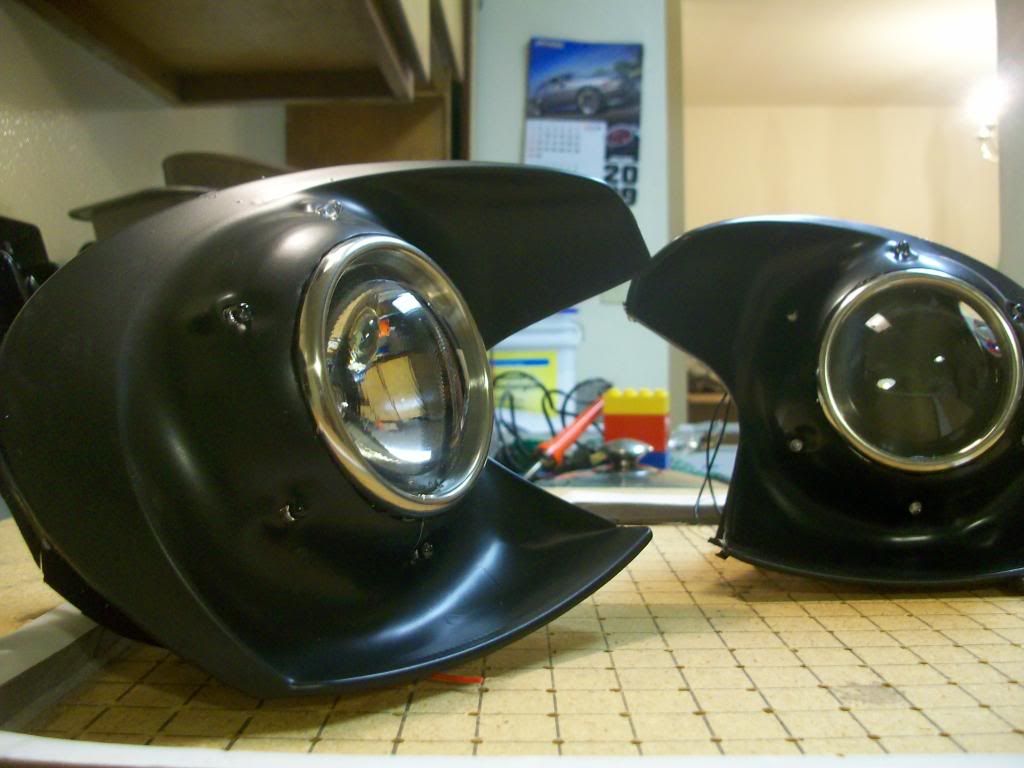

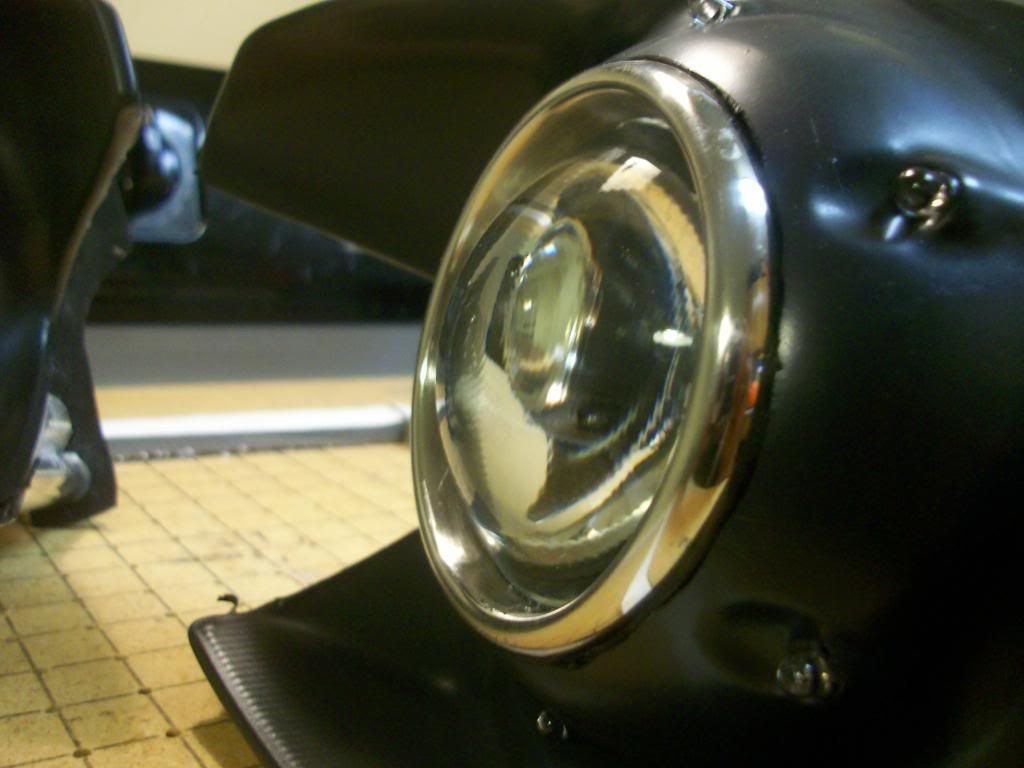

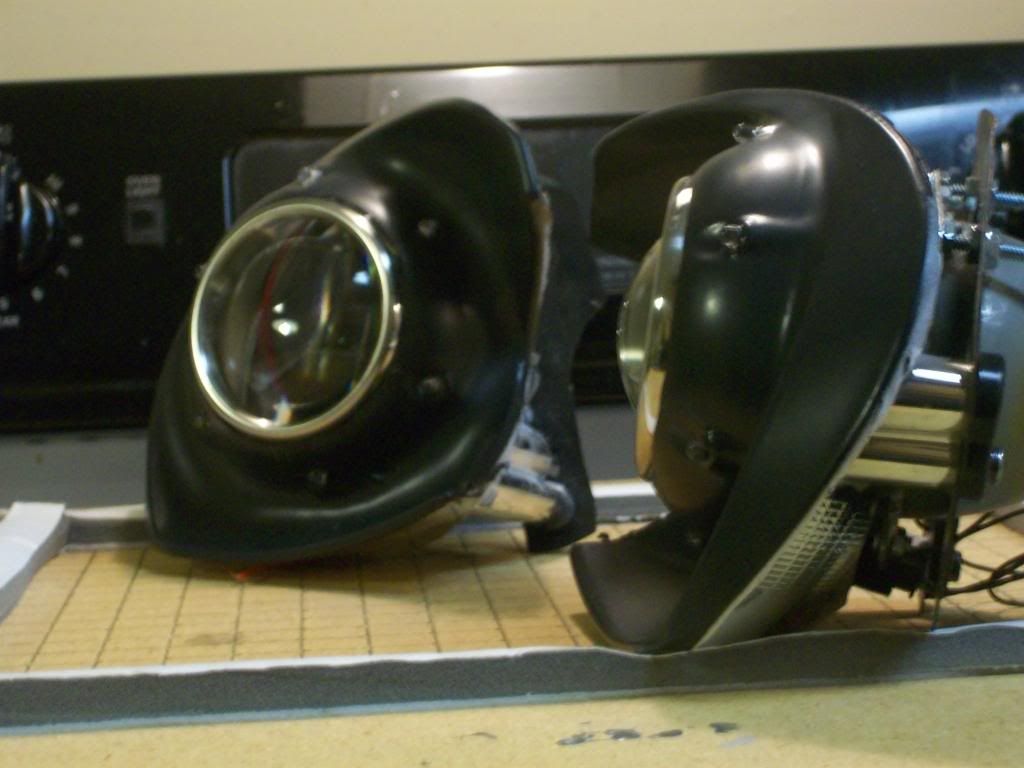

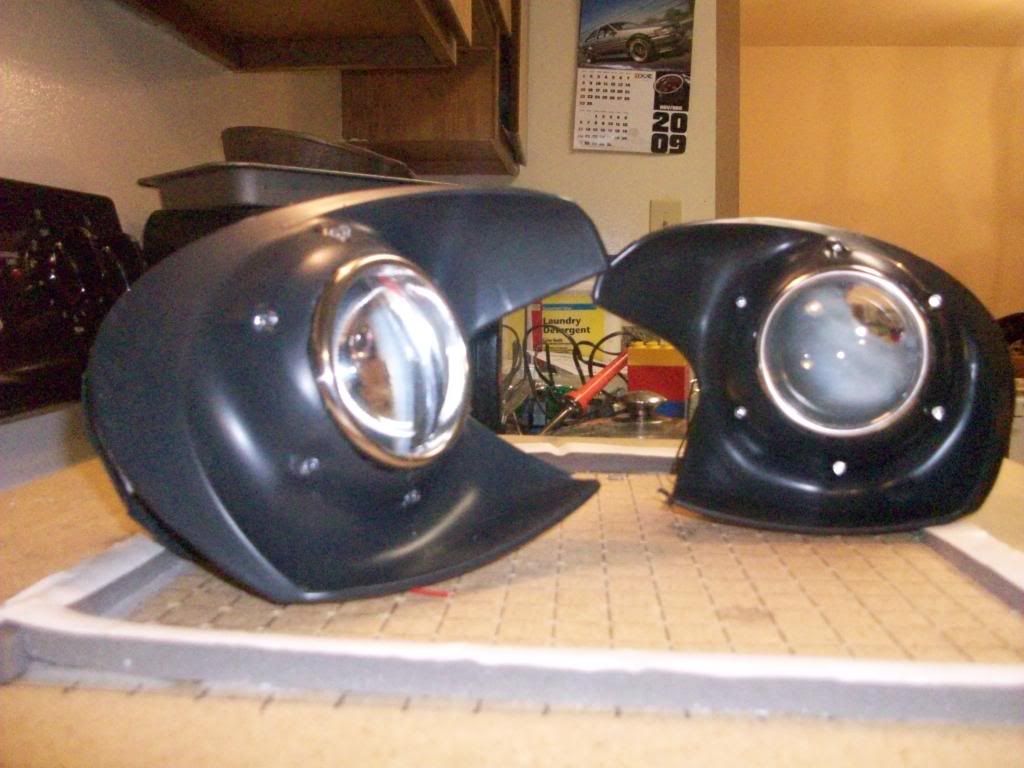

i was FINALLY able to get back to these!!! here are the specs

e-55
vacuformed shroud over a mk5 gti bezel
blue eds in the ports of said gti bezel
painted flat black




i'll take some more pics later with the leds lit up. i need to get more wire to extentions.
Fast, Cheap, Reliable. you can only chose two
Top
Ntyvirus1
2009 Silver Contributor
Posts: 2103
Joined: Tue Mar 25, 2008 4:30 pm
Location: Orlando, FL

Post by Ntyvirus1 » Thu Dec 17, 2009 9:33 pm

asanti wrote:
aww sheet wrote:
asanti wrote:Slow connection @ work FTL! Question, do you do this just for the Neons, or for any vehicle?????
i do mainly neons and vw's. but i'm doing an 85 camero right now as well. so i'm open to try anything
Niice! I'd like to see if I can get a set done for my HHR SS. I'd have to source the headlamps for ya (I've heard they're a PITA to pop open, something about "several heating cycles"?), so it may be a while though... (Question: How expensive would it be to source those crazy Q45 style HID shrouds?? The ones that look like a flower, you know which ones I'm talking about?)

Later
Allex
i was lookin at those projectors a while ago, definitely not cheap/easy to find.
Official "I'm Going to Drive My Neon till it Dies" Club #000038

hul kogan wrote: And from thy shadows he comes to rippeth thine buttholes. :lol
MoxHair wrote:You should never throw parts at a car.. You'll dent the exterior.
Top
aww sheet
2GN Member
Posts: 158
Joined: Mon Jun 08, 2009 10:17 pm
Location: burtonsville, md

Post by aww sheet » Thu Dec 17, 2009 9:55 pm

and definitely a P.I.T.A. to retro also
Fast, Cheap, Reliable. you can only chose two
Top
aww sheet
2GN Member
Posts: 158
Joined: Mon Jun 08, 2009 10:17 pm
Location: burtonsville, md

Post by aww sheet » Sat Dec 19, 2009 11:23 am

heres another one all chrome fx-r's
Fast, Cheap, Reliable. you can only chose two
Top
NeonOn19s
2GN Member
Posts: 2074
Joined: Mon Nov 07, 2005 11:44 am
Location: Spring,TX

Post by NeonOn19s » Sat Dec 19, 2009 1:04 pm

Very nice..

Is there a projector that will work with the MP projectors so I can use a DS2 bulb???
| Nathan |


Official "I'm Going to Drive My Neon til it Dies" Club Member # 72
Semper Fi!!! USMC
Top
LilSparkPlug
2GN Veteran
Posts: 12206
Joined: Thu Jan 10, 2008 4:49 pm
Location: RI

Post by LilSparkPlug » Sat Dec 19, 2009 2:19 pm

You're gonna have to cut that gattling damn near in half to get it to fit. Work looks good Chris :)
Top
User avatar
sidepipe87
2009 Silver Contributor
Posts: 9501
Joined: Fri May 30, 2008 5:35 pm
Location: Pittsburgh, PA
Contact:
Contact sidepipe87

Post by sidepipe87 » Sat Dec 19, 2009 7:01 pm

Is that the ND4SPD mounting bracket? I should have a set in the mail :lol:
PM me for your 03+ PCM SKIM/VIN flashing needs. Neon PCMs Plus
Top
aww sheet
2GN Member
Posts: 158
Joined: Mon Jun 08, 2009 10:17 pm
Location: burtonsville, md

Post by aww sheet » Sat Dec 19, 2009 7:16 pm

yes it is!
Fast, Cheap, Reliable. you can only chose two
Top
dank(r/t)
2GN Member
Posts: 474
Joined: Thu Jun 25, 2009 6:46 pm

Post by dank(r/t) » Sat Jan 30, 2010 11:12 pm

have you ever done them for an 01/02 neon?

i've wanted projectors but i hate all the normal ones
eye derive a neon! Image
Top
neonslg09
2GN Veteran
Posts: 5590
Joined: Wed May 06, 2009 7:17 pm
Location: Fredericksburg, Virginia

Post by neonslg09 » Sun Jan 31, 2010 11:28 am

dank(r/t) wrote:have you ever done them for an 01/02 neon?

i've wanted projectors but i hate all the normal ones

You just said in Crystal's thread, you don't like the look of them. :scratch: He hasn't done them for an 00-02 yet, but said it shouldn't be too much of a problem.
Top
