Which clip is which

ltr450r · Post by **ltr450r** » Fri Dec 03, 2010 2:02 pm

Which shift cable clips are bigger? is it the ones on the transmission side (#2)? I ordered the four from Mopar estore and of course they only sent me 2 small ones and 1 of the big ones. I need to order another big one.

r/tguy02 · Post by **r/tguy02** » Fri Dec 03, 2010 3:26 pm

i was thinking they were all the same, those clips should be universal on both ends. maybe i just never looked close enough

ltr450r · Post by **ltr450r** » Fri Dec 03, 2010 4:11 pm

I thought they would be too but i got two smaller clips and one big clip. and they are titled different on the mopar estore so they must be somewhat different

darthroush · Post by **darthroush** » Fri Dec 03, 2010 5:18 pm

Can't you just use the part number off of the big one, if you need one more?

JeffB#2 · Post by **JeffB#2** » Fri Dec 03, 2010 5:28 pm

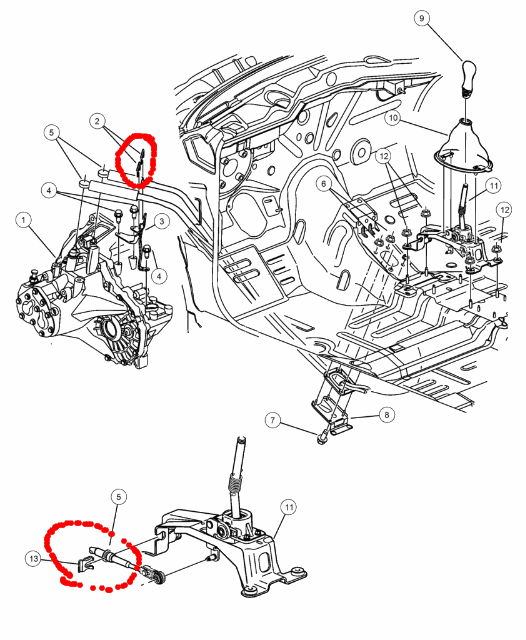

The larger ones go on the trans bracket under the hood. The smaller ones hold the cables to the shifter base bracket. They are not the same size. I've never tried to use them in the wrong place. Without going out to the garage to check, I don't know if the inside width is the same between them.

v95 · Post by **v95** » Fri Dec 03, 2010 6:51 pm

smaller is for shifter larger is for trans mount

ltr450r · Post by **ltr450r** » Fri Dec 03, 2010 7:58 pm

ok thanks thats what i was thinking.. i would of used the part number off the big one but the package had been open and you can't read the part number of course..
