Upper Motor Mount Bolt

GreeNeons03 · Post by **GreeNeons03** » Mon Dec 27, 2010 2:29 am

So the bolt in my upper motor mount that goes through the rubber things and into the block broke today on my way home from my girlfriends. I heard a thunk when I accelerated and wondered "what the hell was that?" I got home, popped the hood and checked around with my flashlight and saw the motor mount not connected. It looks like the bolt broke in three places, I'll take a picture tomorrow when it's light out.

Anyway, does anybody know what size that bolt is so I can go get a replacement.

gtxtreme19 · Post by **gtxtreme19** » Mon Dec 27, 2010 7:52 am

Go to the dealer and ask, they are roughly 15$ but its worth it.

Post by **Canada** » Mon Dec 27, 2010 8:26 am

More importantly...Where did it break? Inside that mount bolted to the block? Have fun getting that one out...

GreeNeons03 · Post by **GreeNeons03** » Mon Dec 27, 2010 9:47 am

I don't know yet, I haven't had a chance to really look at it. I just wanted to know the size so I can pick one up at auto zone or someplace like that and not have to drive out to the dealer.

Neon4Life · Post by **Neon4Life** » Mon Dec 27, 2010 10:04 am

you cant find that bolt at your local autoparts store or anywhere store wise.Trust me cause i once searched for one for days before going to the dealer.

either Dealer or junk yard might possibly have one but i doubt it on the junk yard.

TheRandom1 · Post by **TheRandom1** » Mon Dec 27, 2010 11:17 am

More importantly, why would you use a bolt that's rusty and crusty from a Junkyard when it will probably end up failing just like the stock one did. Buy a new one from the dealer.

esteinmaier · Post by **esteinmaier** » Mon Dec 27, 2010 12:13 pm

Get a better bolt. The stock ones are known to fail.

Vipercar93 · Post by **Vipercar93** » Mon Dec 27, 2010 12:35 pm

Neon4Life wrote:you cant find that bolt at your local autoparts store or anywhere store wise.Trust me cause i once searched for one for days before going to the dealer.

either Dealer or junk yard might possibly have one but i doubt it on the junk yard.

http://www.modernperformance.com/high-s ... -1132.html

Do these work for the 2.0? They are intended for the 2.4.

Modern performance sells a kit for the whole passenger side with 12.9. They are stronger than the 10.9 we have stock, but with the hardening process they become more brittle. I have put these 12.9's on my car and not had a problem.

Danteneon · Post by **Danteneon** » Mon Dec 27, 2010 1:40 pm

The uppers will work, but not the lower. The SRT uses a bigger bolt on the lower.

GreeNeons03 · Post by **GreeNeons03** » Mon Dec 27, 2010 7:55 pm

I got a new bolt from the dealer today and fixed everything. Wasn't too bad, took probably less than 30 mins. Eventually I'll get the Boomba solid mounts.

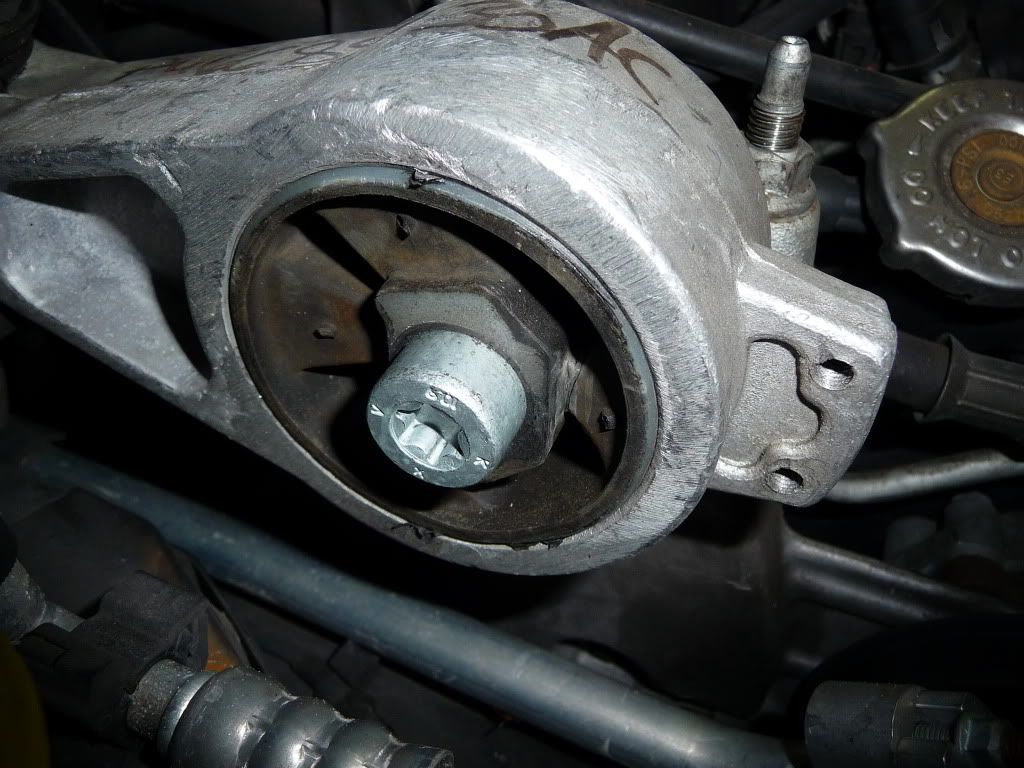

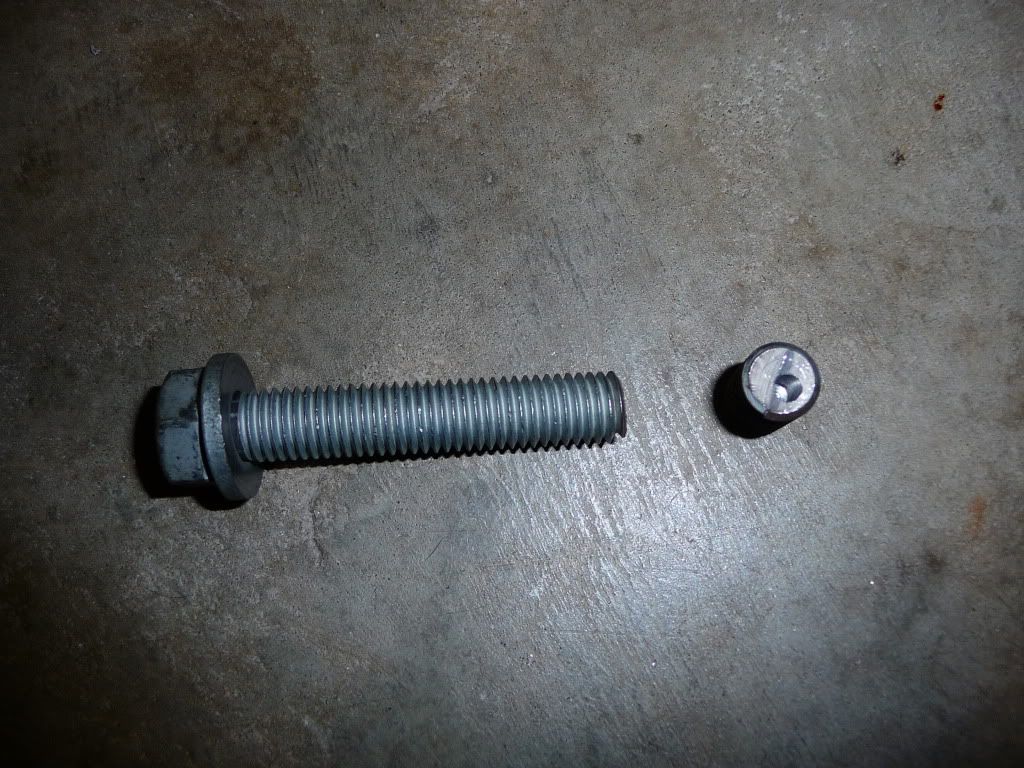

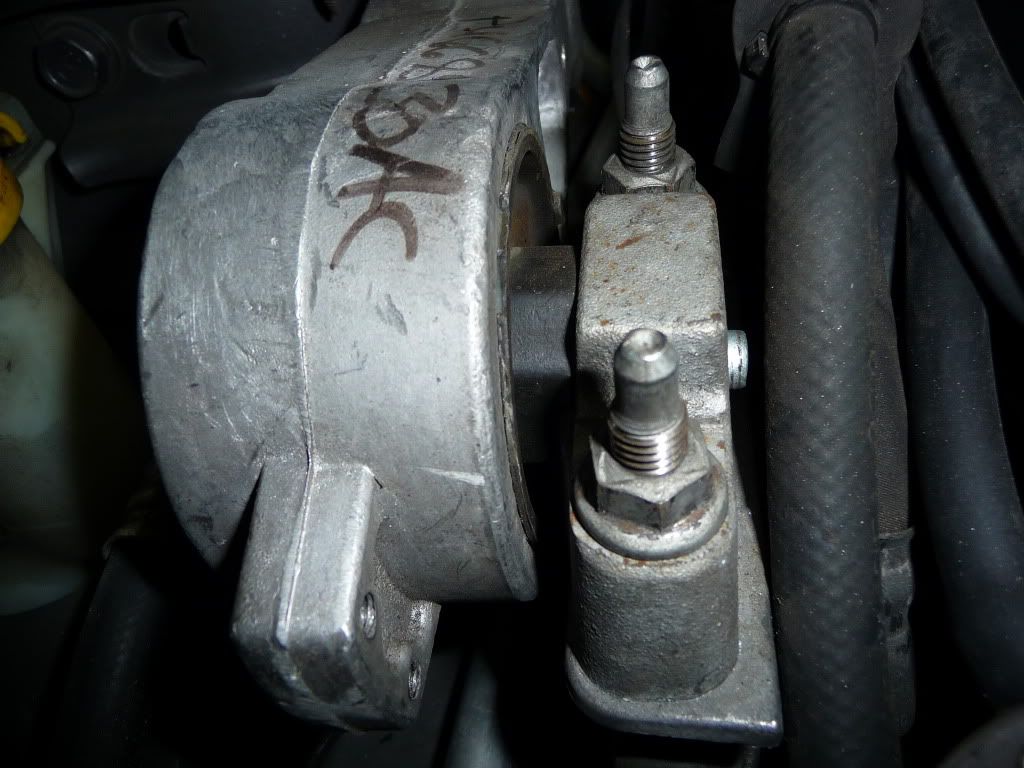

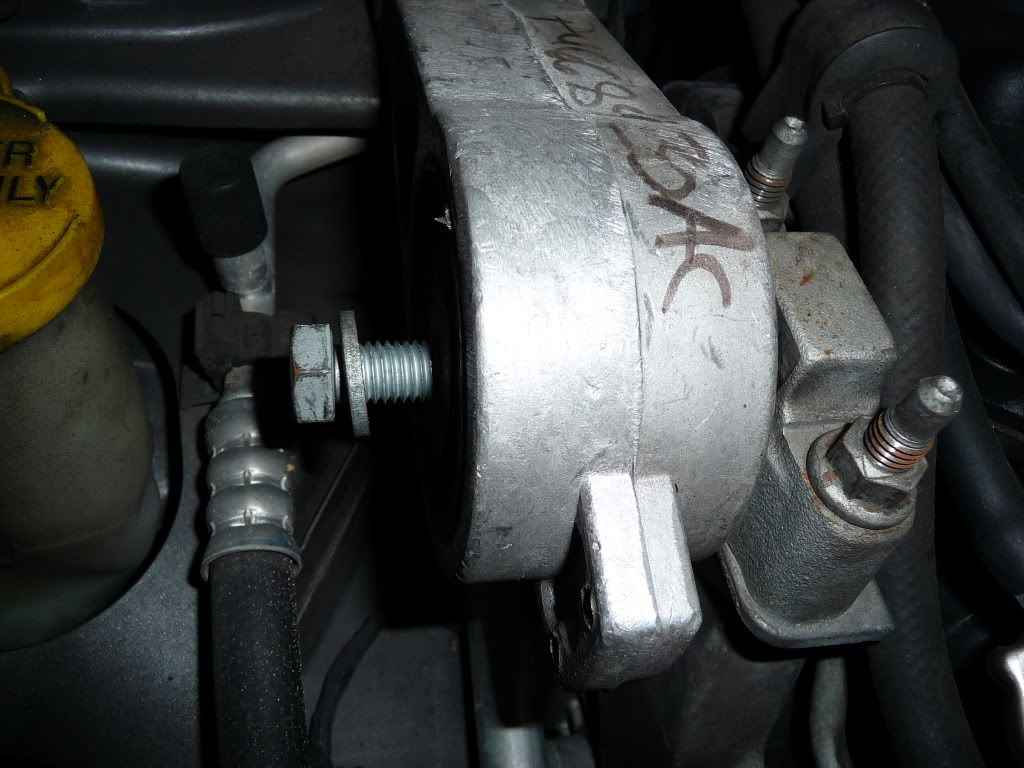

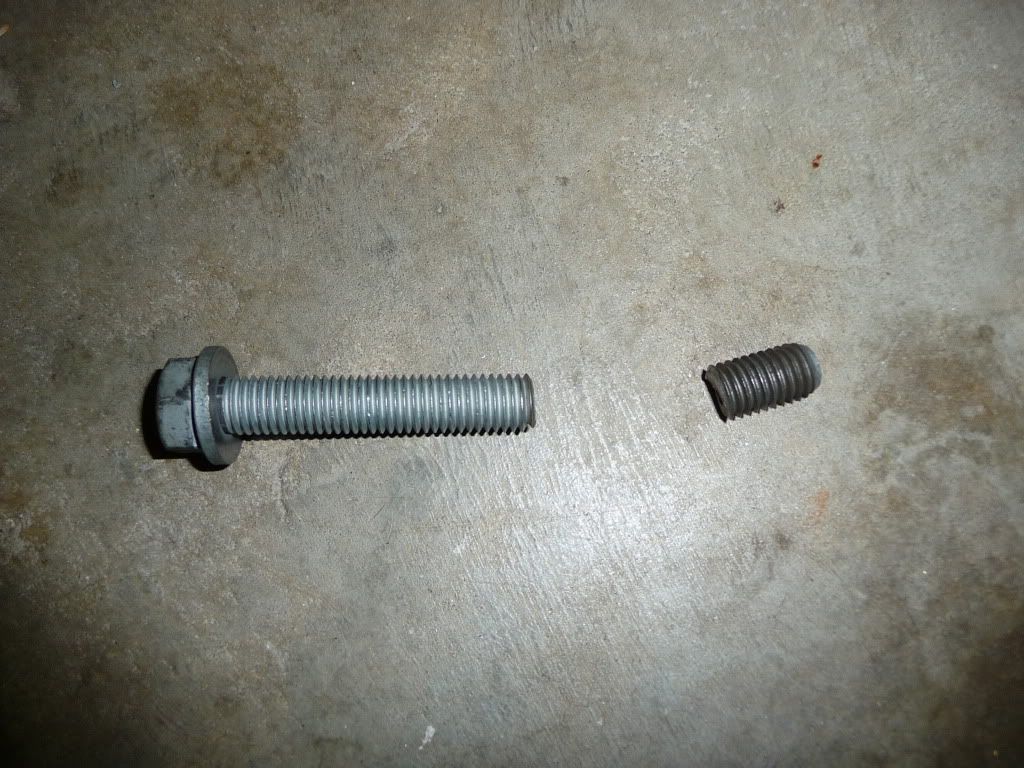

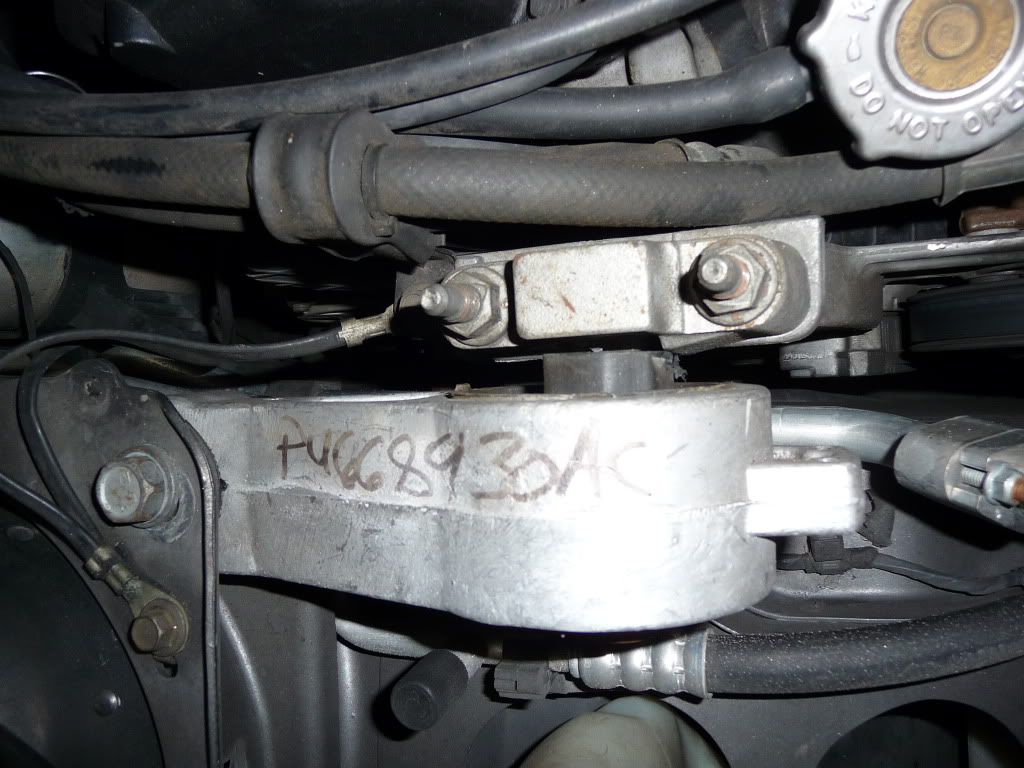

Pics:

Donkeypuncher · Post by **Donkeypuncher** » Mon Dec 27, 2010 8:05 pm

Sometimes the local hardware stores will carry that bolt in the correct grade. I have one called Turner Hardware that carries nearly any bolt I've ever needed, aside from those specialty bolts which only chrysler carries.

akirony · Post by **akirony** » Mon Dec 27, 2010 8:49 pm

try o'riellys. thats where i got mine from when i broke my bolt. only thing is that mine was the one inside the fenderwell that broke dropping my motor on the ac pulley. it was a 13 1/2 size. you pick the length though

GreeNeons03 · Post by **GreeNeons03** » Mon Dec 27, 2010 8:56 pm

I've never seen an O'Rielly's here in Tampa. Seen them in Atlanta though, but that doesn't help, lol.
