Porting Advice? *Pics*

[Notanexit92]

Well after doing hours and hours of research and getting all the tools needed, this is the result of about 10 hours of non-stop porting. I know it's still alittle rough, as I have not even started using the sanding rolls yet.

But I was wondering is there anything else I could do that you see here? I think I can raise the roof alittle higher maybe?

Any advice would be grateful.





^^ That dip just at the exit on the lower side, is an anti-reversion dip that I was told is beneficial

I've made them all to where I can slide my thumb in and it's just snug enough to move in and out

[INVUJerry]

That dip isn't necessary, you'd be better off without it. Post up on neons.org, there are a lot more people doing port work over there.

[Notanexit92]

Well after doing hours and hours of research and getting all the tools needed, this is the result of about 10 hours of non-stop porting. I know it's still alittle rough, as I have not even started using the sanding rolls yet.

But I was wondering is there anything else I could do that you see here? I think I can raise the roof alittle higher maybe?

Any advice would be grateful.





^^ That dip just at the exit on the lower side, is an anti-reversion dip that I was told is beneficial

I've made them all to where I can slide my thumb in and it's just snug enough to move in and out

[gtxtreme19]

viewtopic.php?t=60035

[Fuzzyneon]

That dip isn't necessary, you'd be better off without it. Post up on neons.org, there are a lot more people doing port work over there.

yes and i believe there is even a sticky over there about DIY porting tons of info

[neonrt_98]

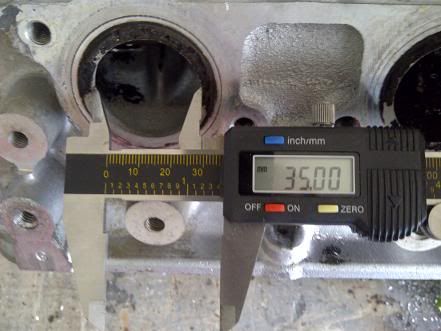

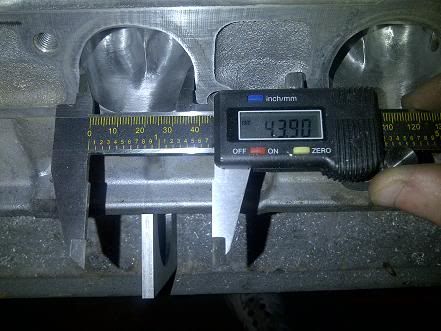

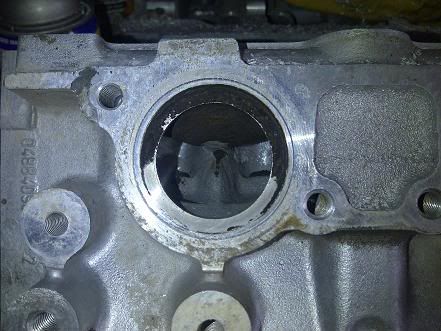

I did a slight port job on a Magnum head. I didn't spend much time on it so it just came out alright. You can remove some of the hump just not all of it.

Here are a few pics. I need to get some better ones.

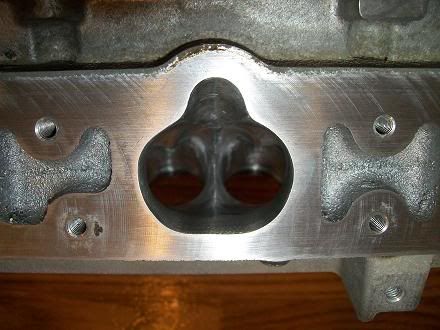

Before

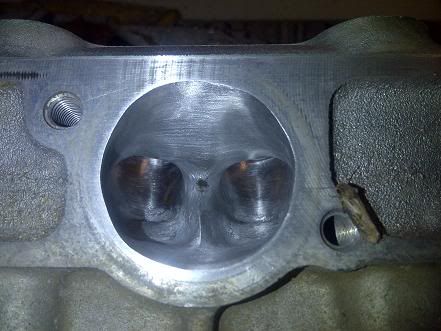

After

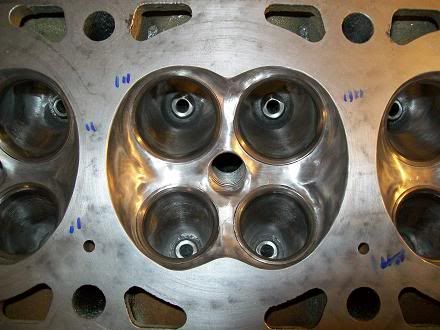

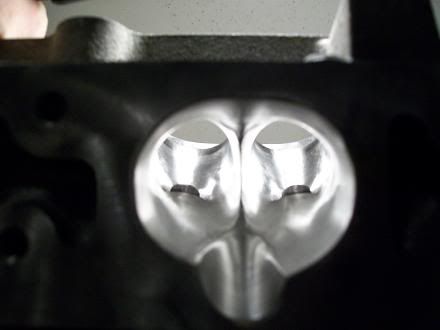

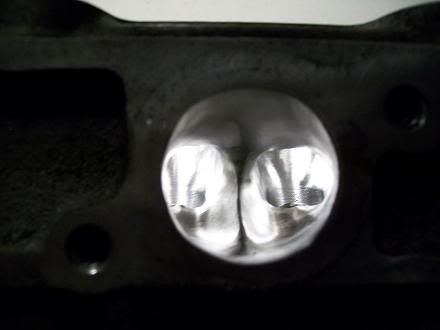

This was a standard non-magnum head I did last year.

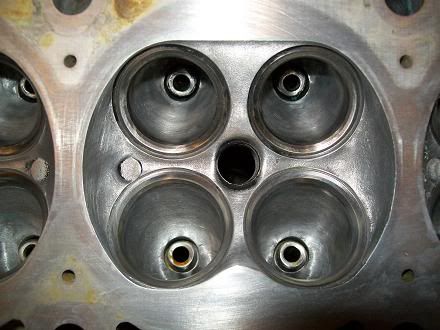

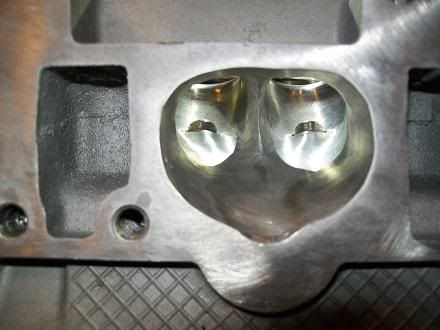

This is a DOHC head I did.

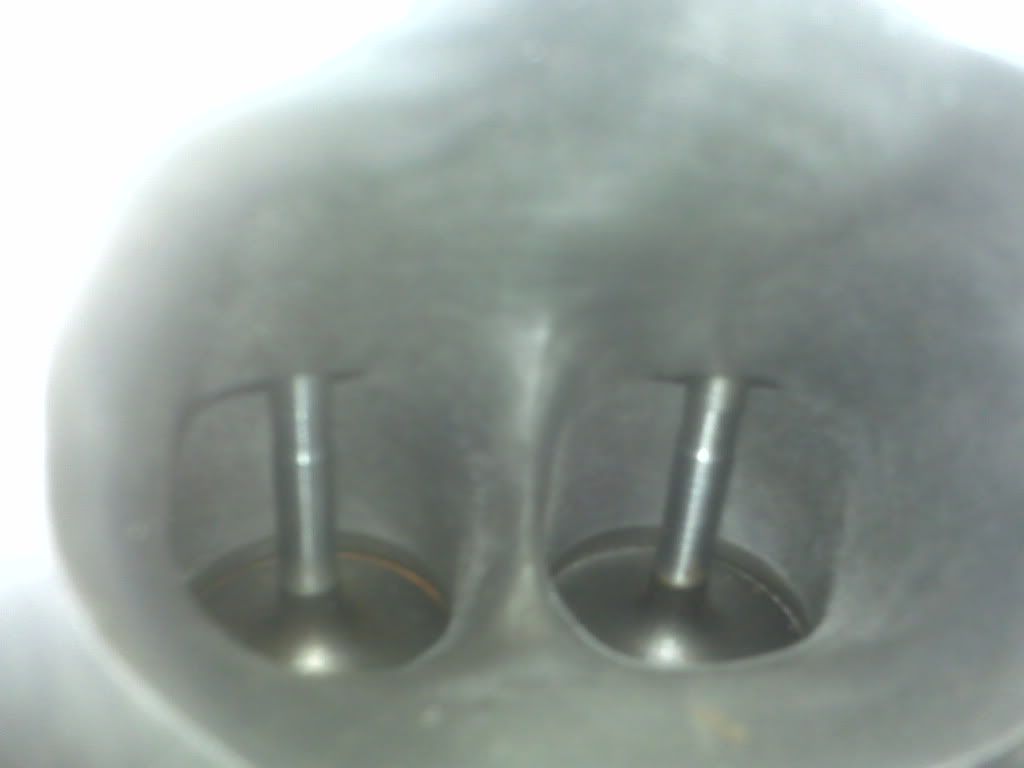

This is one I did several years ago and blended in the valve guides.
