Donkeypuncher's crappy car

Post by Donkeypuncher » Mon Dec 12, 2011 11:28 pm

Bought the car in march of 2008 after my avenger got totaled. Couldn't find another 5sp avenger so I moved on to neons. I wanted an r/t, but just finding a 5sp was hard. Found an 02 5sp with 68k and jumped on it.

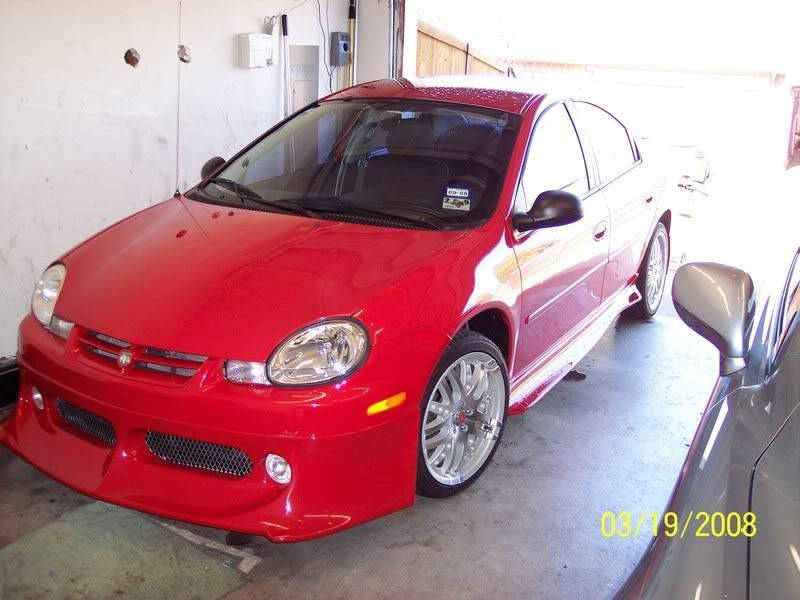

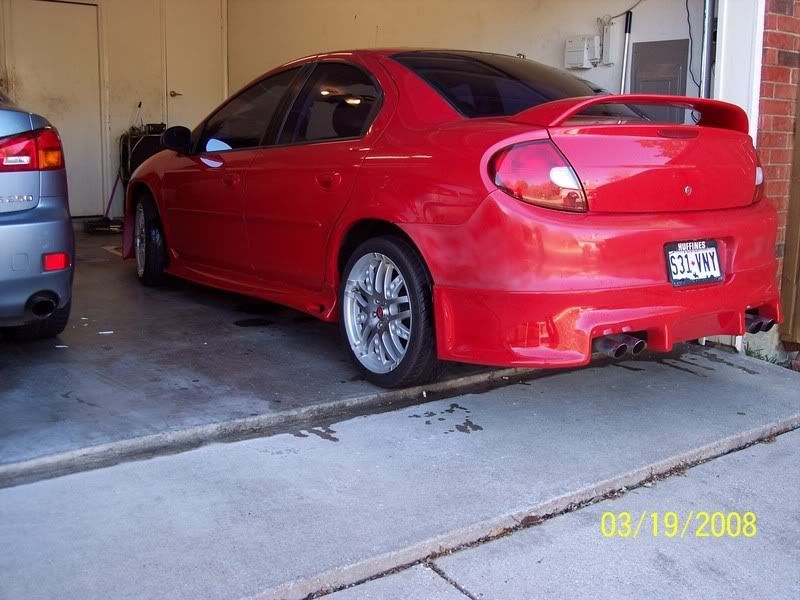

This is what it looked like then. And yes the Razzi body kit is pretty gross.


The shifter was extra sloppy, turns out the shifter bushing was just gone. Picked up some booger bushings and fixed that right up.



Next thing to go was the exhaust, it was pretty bad. The guy had welded in a y-pipe before the muffler to make a ghetto dual exhaust with ugly twin tips. I ordered a camaro muffler and had that welded in it's place.



After that I tinted the tail lights, then some douche hit my car in a parking lot and took off.


I added an srt4 rear sway bar with daboots adapter, and upgraded to a pt cruiser 24mm in the front. Car handled good enough to put off suspension for a while. I think I did the timing belt around this time as well.


Then came time to deal with that body kit. It was so ugly and scraped everything I had to get rid of it. Wanted to swap with another flame red neon, but nobody was close enough. The front bumper had been cut to fit the lip, so I had to buy a new bumper cover. That left me with a black front bumper and the chrysler grille I picked up.

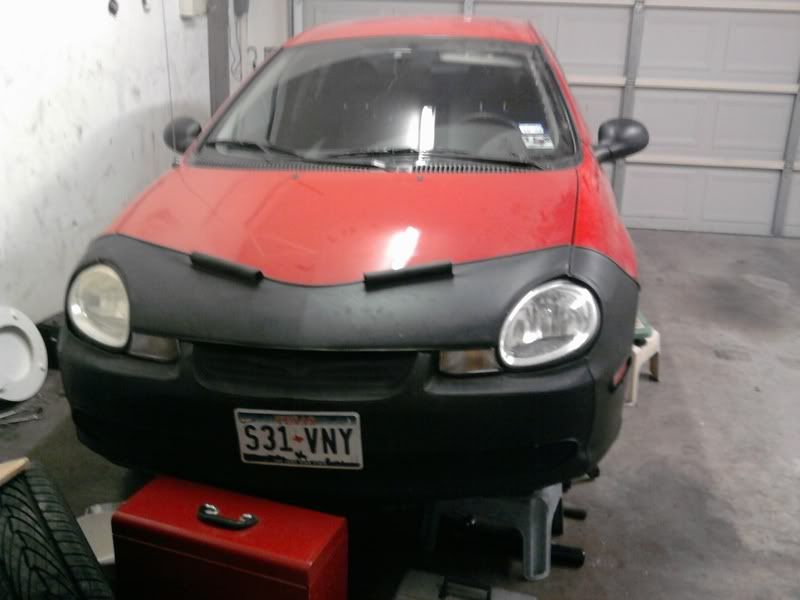

Having an unpainted bumper is kind of ghetto, but I didn't have the money to paint. I decided to buy a $35 car bra and it actually hides the bumper pretty well. I might get it painted in the future, maybe.

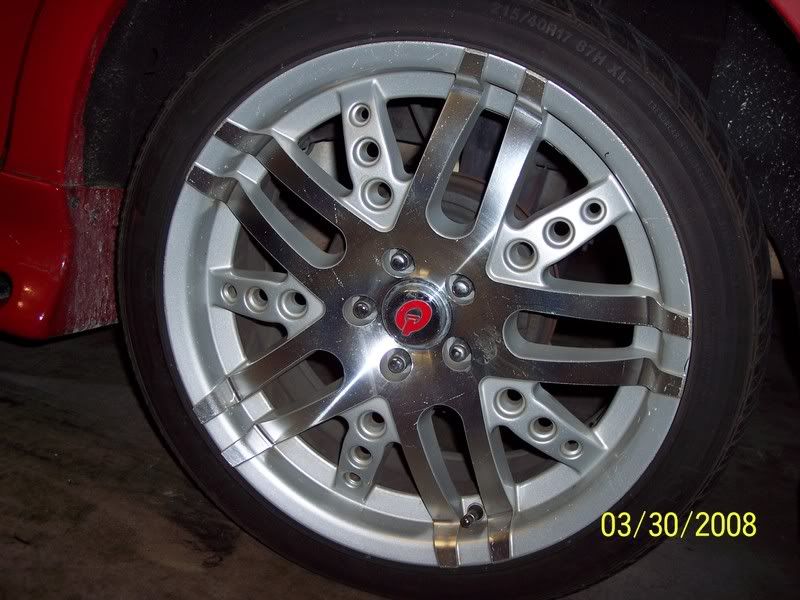

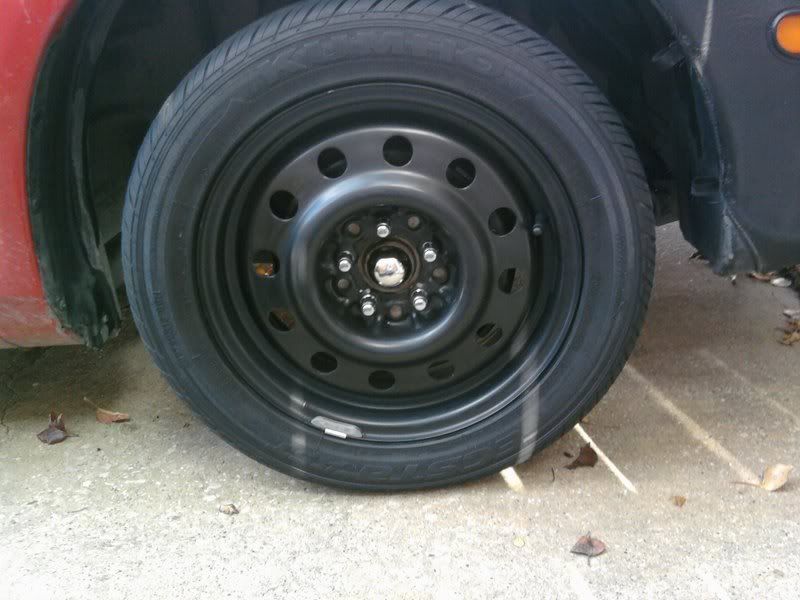

The wheels were really ugly and had to go. Luckily I had a set of steelies from my brothers old golf gti in the attic. Ordered some cheap khumo 205/50/15 tires and slapped them on.

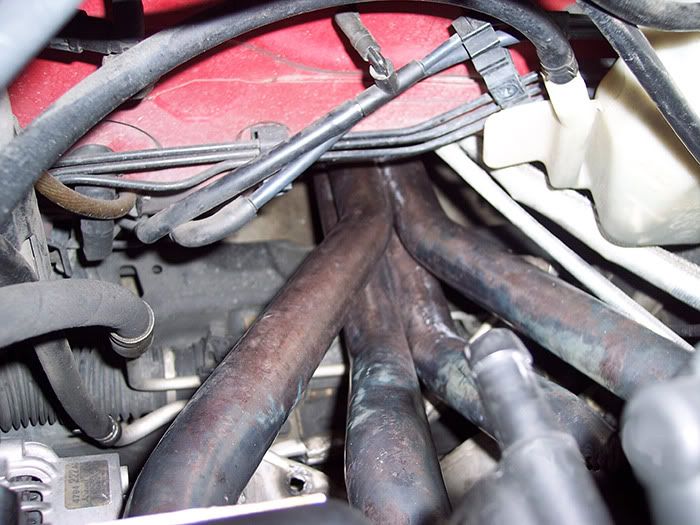

I put on an OBX long tube header and magnaflow high flow cat because the stock manifold was pretty bad. Extended the O2 sensors, switched to pennzoil synchromesh fluid and added energy suspension bushings to the front.




Had the car for 4 years so I figure it's about time for suspension. Have 89K miles on the stock struts, but they're still holding up pretty well. Will be replacing with Tokico Blues and H&R Limited Edition springs. Luckily I snatched up the tokico's when they were still $230, and the springs are still $100 I believe.

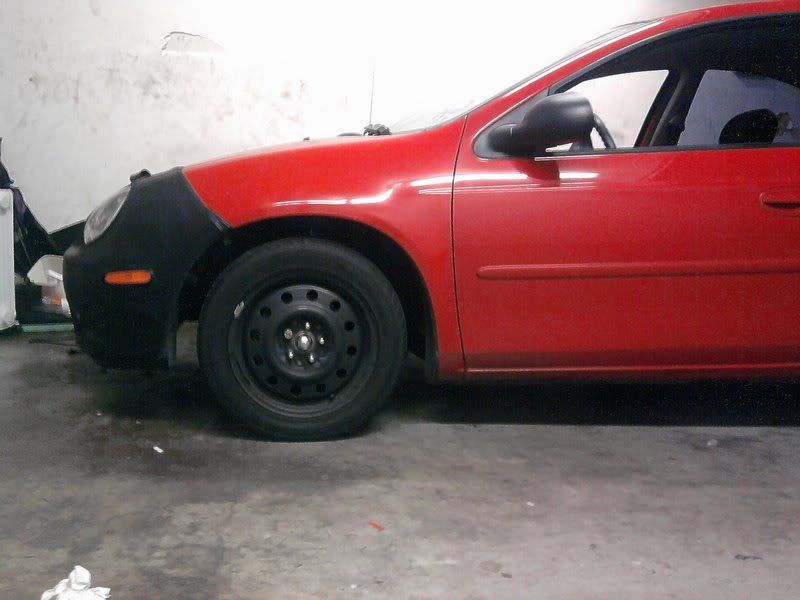

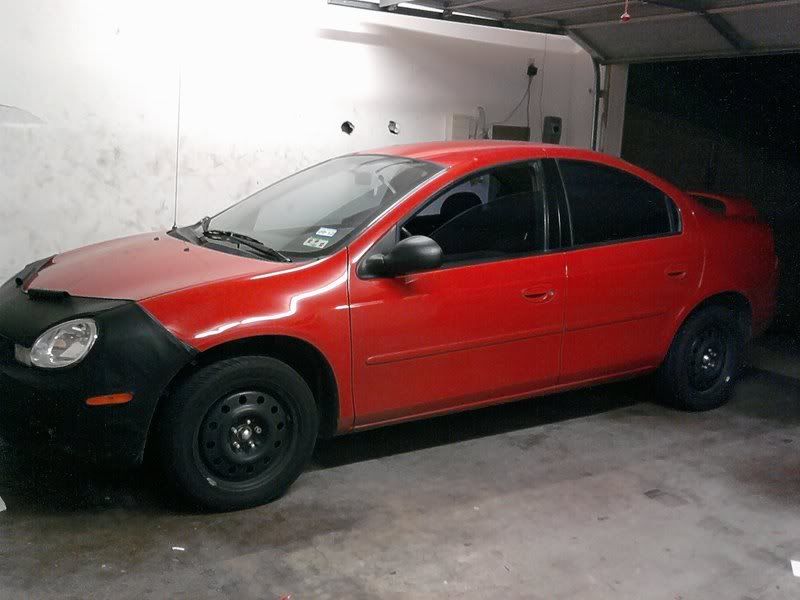

This is what we'll be starting with, and yeah it's got hella wheel gap:




They are a little dirty, but otherwise look pretty good. The left rear does seem to be a little easier to compress with my body weight, but not blown out like I've had on previous cars.

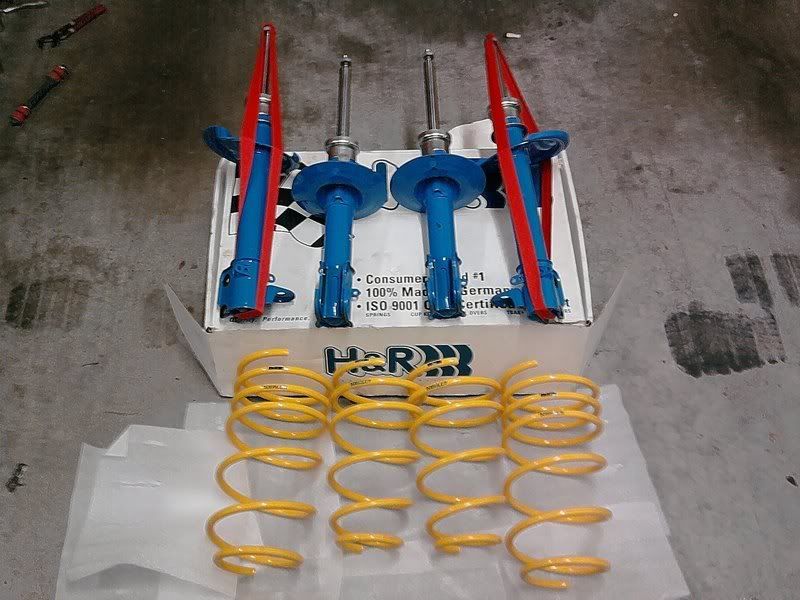

Here is what will be going in the old stock suspensions place. Everything is so shiny, too bad it's just gonna get dirty.



Will be filling the mounts with urethane and installing it all tomorrow as soon as it dries up, will post more pics then.
Last edited by Donkeypuncher on Wed Jan 25, 2012 1:51 pm, edited 4 times in total.

User avatar
Alex Kurdian
2GN Member
Posts: 1023
Joined: Mon Jul 23, 2007 2:14 am
Location: Australia

Sweeet

Post by Alex Kurdian » Tue Dec 13, 2011 12:06 am

Sweet dude...with regards to the Tokico's do you need to buy anything else with them ie camber bolts etc?
I drove My Neon till it "SOLD" And then bought a Mazda 3 Skyactiv
Australia 01
"So say We ALL"


Donkeypuncher
2GN Member
Posts: 2183
Joined: Wed Mar 12, 2008 6:14 am
Location: Dallas, Tx

Post by Donkeypuncher » Tue Dec 13, 2011 1:03 am

Shouldn't need anything else with them.

I gotta see what the camber is after the springs are on, some people say it's not necessary. I would probably have the struts slotted instead of camber bolts, I've heard bad things about them.

Donkeypuncher
2GN Member
Posts: 2183
Joined: Wed Mar 12, 2008 6:14 am
Location: Dallas, Tx

Post by Donkeypuncher » Tue Dec 13, 2011 6:00 am

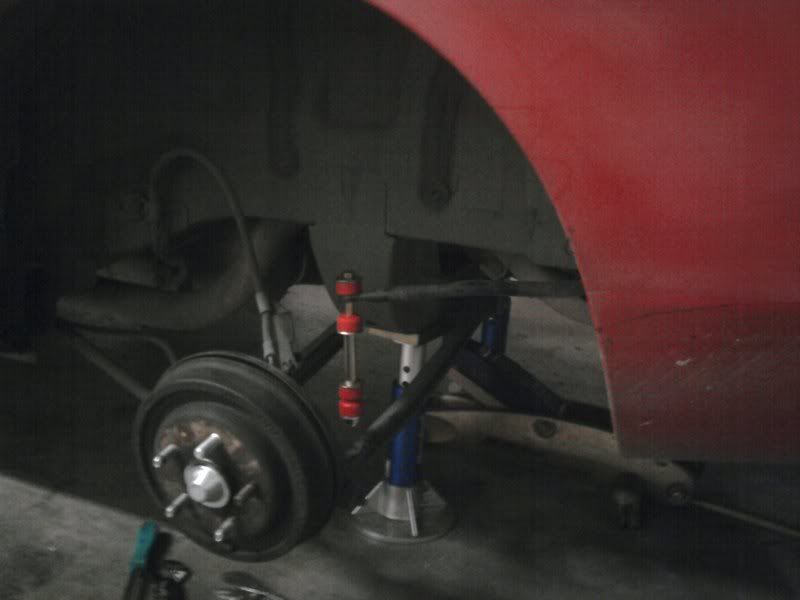

Put some shorter rear endlinks on, local autozone has energy suspension ones for $18.

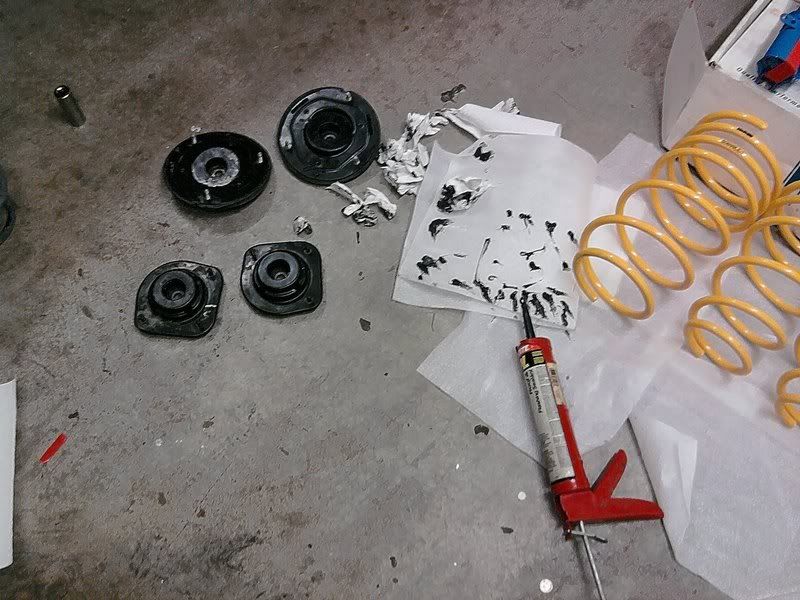

Filled all 4 upper mounts with urethane, it's a little messy but only $6 for a tube.

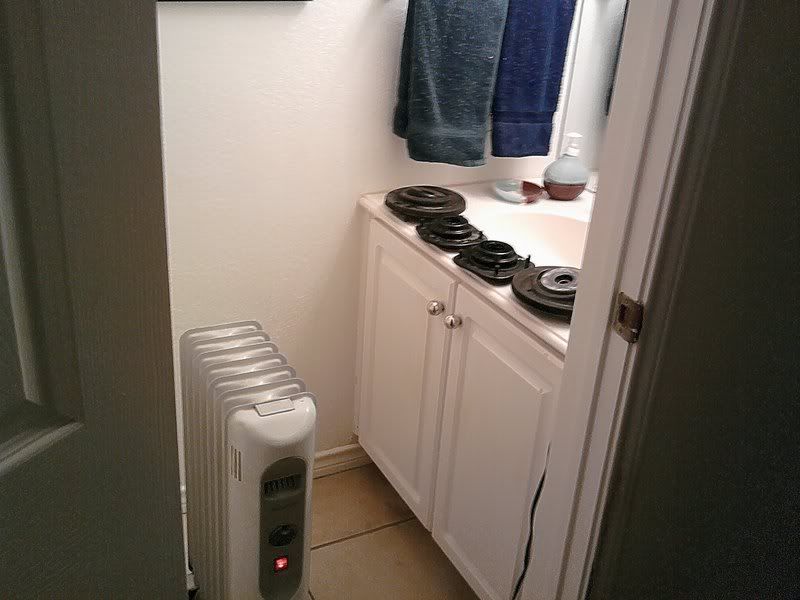

Set up my little 1/2 bathroom into a drying station with a space heater.




Gonna wait a good 12 hours for the urethane to dry, then slap it all back together and test it out.

LilSparkPlug
2GN Veteran
Posts: 12206
Joined: Thu Jan 10, 2008 4:49 pm
Location: RI

Post by LilSparkPlug » Tue Dec 13, 2011 9:36 pm

Nice! The urethane in the rear mounts makes a huge difference!

FAC3L3SS
2GN Veteran
Posts: 6517
Joined: Thu Apr 12, 2007 8:58 pm
Location: NIN

Post by FAC3L3SS » Tue Dec 13, 2011 10:45 pm

I thought the urethane was supposed to be done once the entire assembly was put together?

Or did I do that because mine were blown to shit and if I ever took them out it would be to flip into the trash?
el. oh. el.

wickedgood4684
2GN Member
Posts: 312
Joined: Sat Aug 14, 2010 5:30 pm
Location: Lisbon Falls, ME

Post by wickedgood4684 » Wed Dec 14, 2011 6:34 am

Whats the reasoning behind filling the strut hats with urethane? noise reduction? suspension stiffness? I've never heard of it.
SRT-4 Challenge series
Season 1 Champion: gotheframe/tim and corey
Season 2 Champion: Greasydeuce/Dmonday
NTCC
Winter Series:
Drivers Chamion: Neon Nick/Squat BIG
Team Champions: Team Acura: miniMench & wicked221
Rookie of the year: Patriot 01/xxPATRIOT 01xx

chew*
2GN Member
Posts: 655
Joined: Thu Nov 17, 2011 12:14 am
Location: Rhode island

Post by chew* » Wed Dec 14, 2011 12:10 pm

wickedgood4684 wrote:Whats the reasoning behind filling the strut hats with urethane? noise reduction? suspension stiffness? I've never heard of it.
My guess would be the rubber bushings in strut top hats fatigue just like the motor mounts. One of mine is a perfect example, my pass rear one is so fatigued the rubber cracked and the strut walked in housing and rubs the housing metal to metal on shaft.

I guess it would also give a stiffer response.

Donkeypuncher
2GN Member
Posts: 2183
Joined: Wed Mar 12, 2008 6:14 am
Location: Dallas, Tx

Post by Donkeypuncher » Wed Dec 14, 2011 3:07 pm

wickedgood4684 wrote:Whats the reasoning behind filling the strut hats with urethane? noise reduction? suspension stiffness? I've never heard of it.


Mainly for noise reduction, there is a sticky for it: viewtopic.php?t=9606
I didn't realize how loud it was until the noises were gone, it's much more enjoyable to drive now.

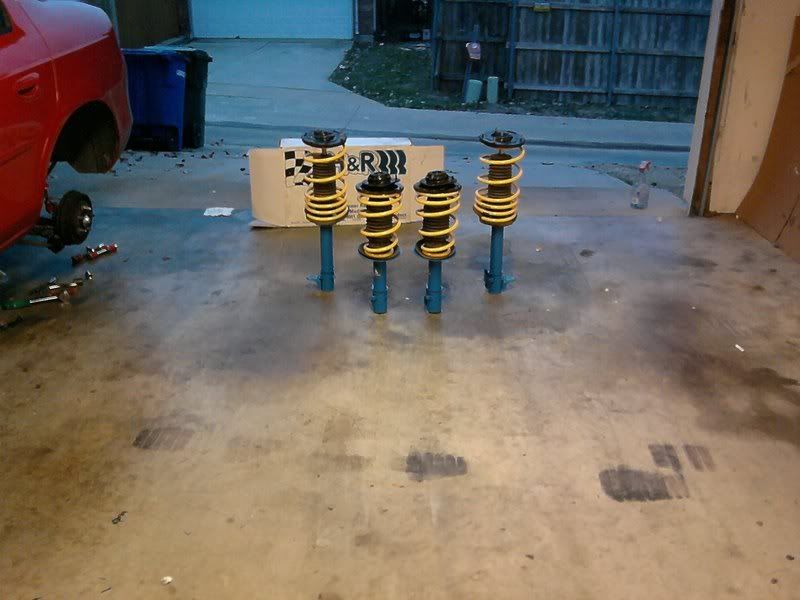

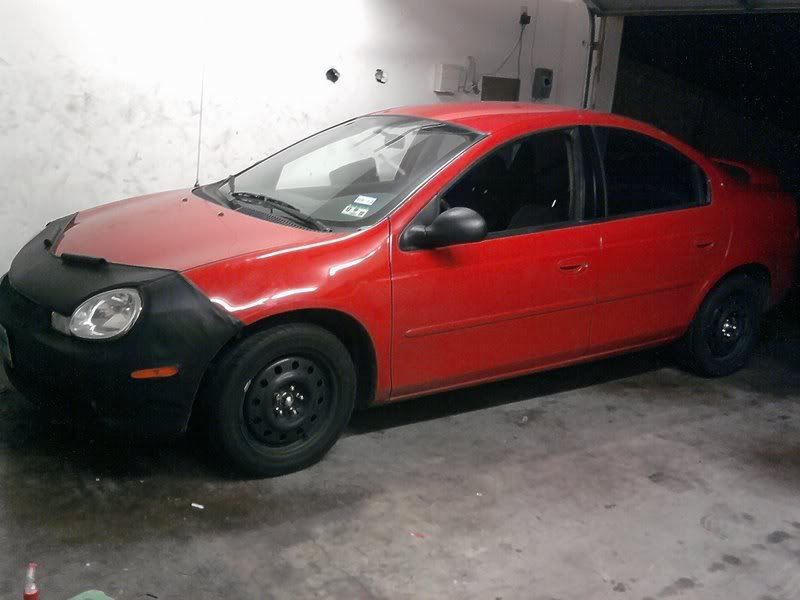

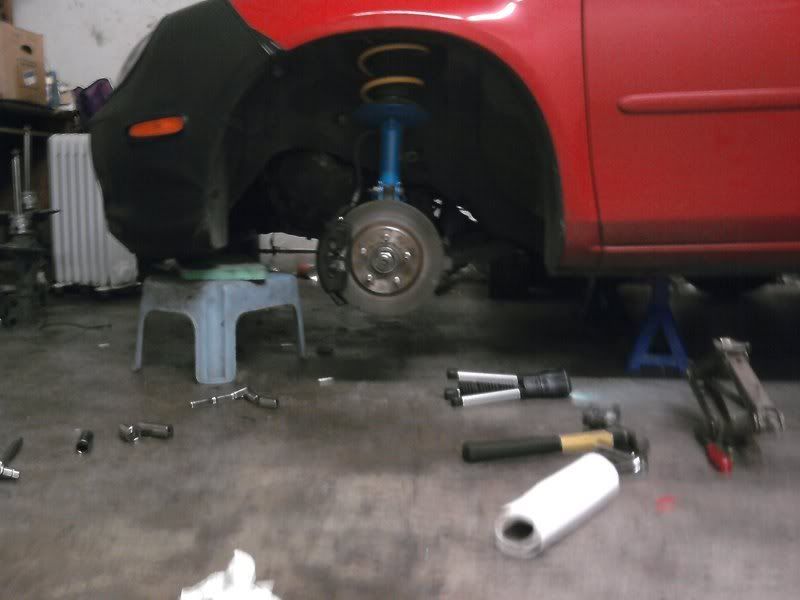

Slapped it all back together and it's very nice. It's stiff and very solid, but it's not slammed.




I'm also running 205/50/15 tires so the gap would be smaller with normal sized tires. The advertised drop is 1.7 front and 1.6 rear, so we'll see how much it settles in the next few weeks.



Will get some pics outside the garage in the next few days. It's been raining so I'm waiting for it to dry up.
Last edited by Donkeypuncher on Fri Jan 20, 2012 9:45 am, edited 1 time in total.

LilSparkPlug
2GN Veteran
Posts: 12206
Joined: Thu Jan 10, 2008 4:49 pm
Location: RI

Post by LilSparkPlug » Wed Dec 14, 2011 6:14 pm

Much better :)

Donkeypuncher
2GN Member
Posts: 2183
Joined: Wed Mar 12, 2008 6:14 am
Location: Dallas, Tx

Post by Donkeypuncher » Wed Dec 14, 2011 9:36 pm

Just measured and it's about a 1" drop front and rear, nice and subtle. Wanted to keep the drop less than 2", but still be stiff and handle well. Being slammed looks nice, but gets old pretty quick on the roads around here.

Gonna wait a week or 2 for an alignment, just in case it does settle down more. I think I need to adjust the sway bar links though, forgot to do that with the weight of the car on the ground.

User avatar
Public Disturbance
2GN Member
Posts: 877
Joined: Mon Aug 22, 2011 1:38 pm
Location: Rapid City, SD

Post by Public Disturbance » Fri Dec 16, 2011 11:37 pm

Very nice bud

User avatar
sidepipe87
2009 Silver Contributor
Posts: 9501
Joined: Fri May 30, 2008 5:35 pm
Location: Pittsburgh, PA
Contact:

Post by sidepipe87 » Sat Dec 17, 2011 8:22 am

Holy crap! Can't beliebe you haven't put those on until now. I remember when i posted way back about the $99toaster H&R LEs and you bought em. You remember the pics of mine from when i had them? You won'mt be slammed. Don't expect them to settle a hell of a lot
PM me for your 03+ PCM SKIM/VIN flashing needs. Neon PCMs Plus

Donkeypuncher
2GN Member
Posts: 2183
Joined: Wed Mar 12, 2008 6:14 am
Location: Dallas, Tx

Post by Donkeypuncher » Sat Dec 17, 2011 4:17 pm

Yeah, they had been sitting in the garage for 2 years just waiting. I was going to do it back then, but I was busy trying to track down what eventually turned out to be the right center motor mount. Didn't want put suspension on until I fixed everything else. My stock suspension was still in good shape, so I wasn't in a giant hurry.

I don't think it's gonna settle much lower which is fine by me. Handles pretty well, I didn't realize just how much body roll there was before. I think a beefier rear sway bar would be nice, maybe a strut tower brace.

Donkeypuncher
2GN Member
Posts: 2183
Joined: Wed Mar 12, 2008 6:14 am
Location: Dallas, Tx

Post by Donkeypuncher » Fri Jan 20, 2012 9:39 am

Figured I would set up the first post properly. Found some old pictures and tried to put together a timeline as best I could.

slaw
2GN Member
Posts: 1915
Joined: Tue Apr 03, 2007 6:05 am
Location: new milford CT

Post by slaw » Fri Jan 20, 2012 9:42 am

nice progress, came a long way from the ugly rims and razzi kit

great job, keep it up

Donkeypuncher
2GN Member
Posts: 2183
Joined: Wed Mar 12, 2008 6:14 am
Location: Dallas, Tx

Post by Donkeypuncher » Fri Jan 20, 2012 9:52 am

The only good thing about that razzi kit was that I made a few hundred bucks selling it which paid for the new bumper and tires.


User avatar
speed127
2011 Gold Contributor
Posts: 895
Joined: Mon Jan 11, 2010 6:40 pm
Location: Philly

Post by speed127 » Fri Jan 20, 2012 11:55 pm

looks much better
- Custom or Nuthin -
-My SRT4 swap project log-
viewtopic.php?p=923967#923967
-My 2nd gen progress log-
viewtopic.php?t=52665&highlight=
-My 1st gen project log-
http://forums.neons.org/viewtopic.php?f ... 7#p3090897

Donkeypuncher
2GN Member
Posts: 2183
Joined: Wed Mar 12, 2008 6:14 am
Location: Dallas, Tx

Post by Donkeypuncher » Thu Feb 16, 2012 2:56 pm

Put on a sebring wing emblem, the neon one is way overpriced.


Midnight_Rider
2014 Platinum Contributor
Posts: 8458
Joined: Wed Aug 02, 2006 2:49 am
Location: Indianapolis, IN

Post by Midnight_Rider » Fri Feb 17, 2012 4:04 am

I had missed this thread. "Crappy car"? Not hardly- looks good to me! :thumbup:
Official "I'm Going To Drive My Neon 'til It Dies" Club #10

Donkeypuncher
2GN Member
Posts: 2183
Joined: Wed Mar 12, 2008 6:14 am
Location: Dallas, Tx

Post by Donkeypuncher » Fri Feb 17, 2012 11:33 pm

I'm all about low expectations.

FAC3L3SS
2GN Veteran
Posts: 6517
Joined: Thu Apr 12, 2007 8:58 pm
Location: NIN

Post by FAC3L3SS » Sat Feb 18, 2012 10:51 am

Donkeypuncher wrote:I'm all about low expectations.
Then you delivered, because that grille looks like poopy. Haha just keep your eyes peeled for the right one.
