OBD pin grid

Post by alsey_seven » Sun Jan 22, 2012 9:21 pm

guys my old harness poped out of the harness, cant figure out which pins goes where. I need help this is for my 2k neon needs smog this week. BTW if u guys could get a picture Color codes wires what goest where thanks guys
Official "I'm Going to Drive My Neon till it Dies" Club #000043 For 2000 neon

Official "I'm Going to Drive My Neon till it Dies" Club #000125 For 2001 R/T


Top
occasional demons
Junior Admin
Posts: 20067
Joined: Thu May 03, 2007 12:14 pm
Location: Ashland Ohio

Post by occasional demons » Mon Jan 23, 2012 7:57 am

This one? The left hand side is 16 top, 8 bottom.

Bill
Probably shouldn't listen to anything your penis says, that guy's a dick.
Patience, of course, is a very powerful weapon, but sometimes I start to regret that it is not a firearm.
Too much time spent here is a sign of a bad case of Ownaneonvirus.

2000 Neon MTX swap with '02 R/T PCM
1999 neon coupe 2.4 swap
Top
Themaggots
2GN Member
Posts: 393
Joined: Fri Jan 11, 2008 3:12 pm
Location: Quebec, Canada

Post by Themaggots » Mon Jan 23, 2012 11:39 am

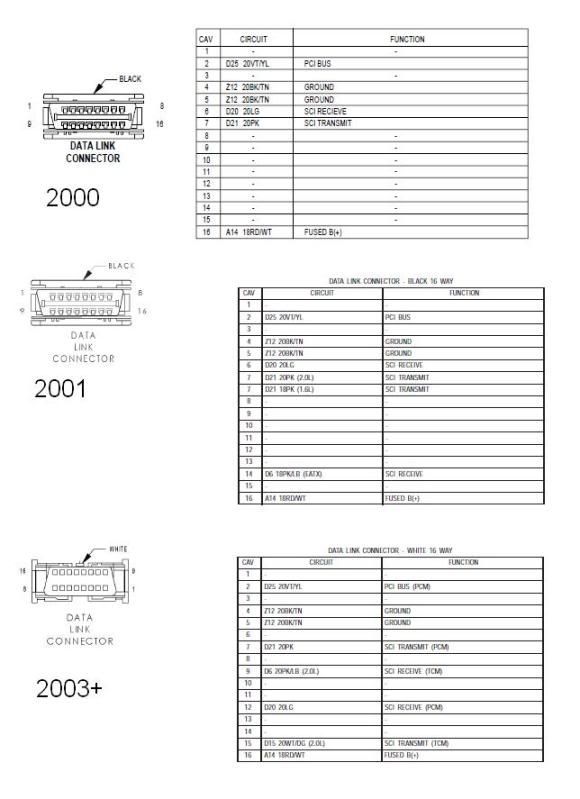

2003+ Connector is upside down on the picture vs 2000 and 2001
Jimmy
Top
occasional demons
Junior Admin
Posts: 20067
Joined: Thu May 03, 2007 12:14 pm
Location: Ashland Ohio

Post by occasional demons » Mon Jan 23, 2012 12:26 pm

Show off.












:lol:
Bill
Probably shouldn't listen to anything your penis says, that guy's a dick.
Patience, of course, is a very powerful weapon, but sometimes I start to regret that it is not a firearm.
Too much time spent here is a sign of a bad case of Ownaneonvirus.

2000 Neon MTX swap with '02 R/T PCM
1999 neon coupe 2.4 swap
Top
Themaggots
2GN Member
Posts: 393
Joined: Fri Jan 11, 2008 3:12 pm
Location: Quebec, Canada

Post by Themaggots » Mon Jan 23, 2012 1:38 pm

:rofl:

Dunno if it changes anything.
Jimmy
