I <3 delete panels (I have extra resistors) :)

OhNoA2.0 · Post by **OhNoA2.0** » Sun Feb 05, 2012 10:37 am

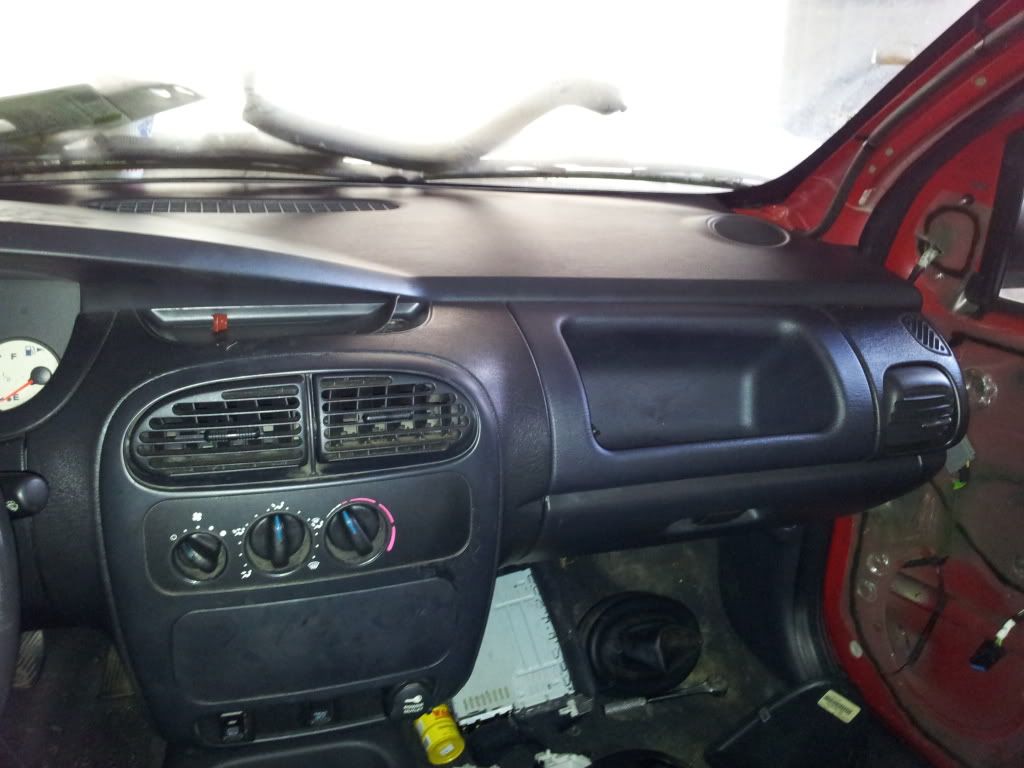

These are in my R/T (Nikki). I cant wait to get her back on the road.

Passenger side air bag delete
A/C delete HVAC
Radio delete

Getgonesrt · Post by **Getgonesrt** » Sun Feb 05, 2012 10:52 am

Did you get the airbag light to stay off??

OhNoA2.0 · Post by **OhNoA2.0** » Sun Feb 05, 2012 11:11 am

Getgonesrt wrote:Did you get the airbag light to stay off??

The car hasn't even had a battery in about 6 months lol. I will be wiring in (2) 1 ohm resistors to hopefully eliminate the air bag light when i get her back up and running. The damn motor build is killing my driving time lol

wickedgood4684 · Post by **wickedgood4684** » Sun Feb 05, 2012 1:33 pm

I like it!!! The minimalist look rocks!

Gutted interior too?

RADARsx 2.0 · Post by **RADARsx 2.0** » Sun Feb 05, 2012 1:57 pm

I so want a airbag delete that you have...where you get that?

OhNoA2.0 · Post by **OhNoA2.0** » Sun Feb 05, 2012 2:03 pm

You can get them from the dealer but they are cheaper from Modern Performance

LowNSlow · Post by **LowNSlow** » Sun Feb 05, 2012 3:00 pm

1 seat, dash and steering wheel?

RADARsx 2.0 · Post by **RADARsx 2.0** » Sun Feb 05, 2012 4:41 pm

Awesome thanks OhNo. I just got a link again from Colonel last nite. So i'm going shopping lol

Looks good thus far. Can't wait to see it back on the road.

ianguilly · Post by **ianguilly** » Sun Feb 05, 2012 10:44 pm

Looks more like an interior delete.

OhNoA2.0 · Post by **OhNoA2.0** » Sun Feb 05, 2012 11:33 pm

ianguilly wrote:Looks more like an interior delete.

Haha. That's all back together now

Getgonesrt · Post by **Getgonesrt** » Mon Feb 06, 2012 4:52 am

So I've been looking at doing this just want to make sure on the resistors that you use on the airbag connector. Anyone know for sure which ones?

XxWhiteNeonxX · Post by **XxWhiteNeonxX** » Mon Feb 06, 2012 10:19 am

Getgonesrt wrote:So I've been looking at doing this just want to make sure on the resistors that you use on the airbag connector. Anyone know for sure which ones?

if you install a 1/8th watt 2 ohm resistor, you will have no more light

I cant remember, but one of those numbers doesnt mean a whole lot. Meaning, if you cant find the exact one, you can get one a hair different.. I dont remember if it was the ohms or watts though. Maybe somebody will chime in for that part.

Edit: iirc the watts can be higher than a 1/8th watt resistor. The ohms is the part that needs to be 2 because it has to do with resistance.

Getgonesrt · Post by **Getgonesrt** » Mon Feb 06, 2012 11:56 am

That's where I get confused is with the watts and ohms lol.

XxWhiteNeonxX · Post by **XxWhiteNeonxX** » Mon Feb 06, 2012 1:21 pm

Getgonesrt wrote:That's where I get confused is with the watts and ohms lol.

yeah, concentrate more on the ohms than the watts. For example lets say a 1 watt, 2ohm, that would work

Getgonesrt · Post by **Getgonesrt** » Mon Feb 06, 2012 3:07 pm

So that's what it takes to work? 1 watt 2 ohm?

ragek23 · Post by **ragek23** » Mon Feb 06, 2012 3:46 pm

The wattage is just the power limitations of the resistor. I think you need a 1/8th watt or higher raited resistor that is 2ohms.

if you had a 200Watt circuit with a 1/8watt 2ohm resistor you still would get 2ohms but you would eventually melt the resistor and bad things would happen.

V=IR VI=W

.

Getgonesrt · Post by **Getgonesrt** » Mon Feb 06, 2012 4:39 pm

Nice maybe I'll start looking a little more.

Getgonesrt · Post by **Getgonesrt** » Wed Feb 08, 2012 11:41 am

Can't find these damn resistors.

OhNoA2.0 · Post by **OhNoA2.0** » Wed Feb 08, 2012 11:59 am

Radioshack!

Getgonesrt · Post by **Getgonesrt** » Wed Feb 08, 2012 12:08 pm

Can't find these damn resistors.

OhNoA2.0 · Post by **OhNoA2.0** » Wed Feb 08, 2012 12:28 pm

Getgonesrt wrote:Can't find these damn resistors.

Once again, RADIOSHACK!

Getgonesrt · Post by **Getgonesrt** » Wed Feb 08, 2012 12:55 pm

I don't know if I got some that didn't know what he was talking about but they said they didn't carry any....

Post by **occasional demons** » Wed Feb 08, 2012 1:33 pm

You just need two 1 ohm resistors, and connect them end to end. Don't even worry about the wattage. There isn't going to be enough current there to ever worry about. The module is only looking for that specific 2 ohms of resistance in the circuit.

I would try a different RS, they are relatively plentiful here in OH.

Getgonesrt · Post by **Getgonesrt** » Wed Feb 08, 2012 4:52 pm

Copy that. Thanks

OhNoA2.0 · Post by **OhNoA2.0** » Fri Feb 10, 2012 8:16 am

I just ordered 10 of the resistors. If anyone wants one, ill sell them for the low-low price of shipping lol

Getgonesrt · Post by **Getgonesrt** » Fri Feb 10, 2012 8:25 pm

I may take one lol. Pm me.

OhNoA2.0 · Post by **OhNoA2.0** » Fri Feb 10, 2012 8:48 pm

I will pm you once they arrive. Anyone else want a resistor?

Getgonesrt · Post by **Getgonesrt** » Fri Feb 10, 2012 9:28 pm

Do you need 2?

OhNoA2.0 · Post by **OhNoA2.0** » Fri Feb 10, 2012 10:06 pm

Nope, just one. They are 2 Ohm

andrewh530 · Post by **andrewh530** » Mon Feb 13, 2012 12:19 am

i need the part number for the a/c delete panel....please
