Takin seats out

Post by rt_neon04 » Tue May 02, 2006 2:21 am

I dont use my rear seats that often so i was think about taking them out..i knw the padding were ur ass sits is like 2 pounds not even, but the back part is wat i wanna take out..any noticable diffrence when taken out, expect for lighter rear end which will make my ass swing more
04 Dodge Neon R/T (SOLD)
04 Dodge Neon SRT-4 (STOLEN)
05 Cobalt SS/SC (SOLD)
04 Dodge Neon SRT-4

JRM
2GN Member
Posts: 3512
Joined: Mon Sep 12, 2005 7:35 pm
Location: MO

Post by JRM » Tue May 02, 2006 2:28 am

take that shit out if you dont need it....

10 lbs for the Rear Passenger Seat....
Rear Pass Seat Back....30


some more easy weight reduction includes:

AC system.........................22.5
Front Passenger Seat.......43(srt model)
Front Seatbelts...................5
Rear Passenger Seat.........10
Rear Pass Seat Back..........30
Rear Seatbelts....................7
Rear Deck Cover................10
Carpet...............................22.5
Trunk Carpet and Pads......12.5
Sound Deadening/Insul.....20
Floor mats...........................6
Spare Tire and Hardware...28
Jack.....................................4.5
CD Play................................4
Wing....................................5
Passenger Air Bag................7
Driver Air Bag........................?
Head Liner............................2
Moonroof............................26
06 Ford F150 Stock truck 23x,xxx miles and running strong
05 Chevy Equinox Wifey's

Official I sold my Neon Member #482

2003silverneonsxt
2GN Member
Posts: 3002
Joined: Sat Oct 02, 2004 2:48 pm
Location: Lebanon PA
Contact:

Post by 2003silverneonsxt » Tue May 02, 2006 3:32 am

no way that piece of foam u sit on weighs 10lbs, i say 5 tops!

its alot noiser without the seat back in, i have an exhaust on my car and its SOOOOO much louder without it (inside the car)
hmmmmm

JRM
2GN Member
Posts: 3512
Joined: Mon Sep 12, 2005 7:35 pm
Location: MO

Post by JRM » Tue May 02, 2006 3:44 am

lies all lies :lol:
Last edited by JRM on Tue May 02, 2006 1:19 pm, edited 1 time in total.
06 Ford F150 Stock truck 23x,xxx miles and running strong
05 Chevy Equinox Wifey's

Official I sold my Neon Member #482

OB
Former Moderator
Posts: 9686
Joined: Tue Nov 15, 2005 9:38 pm
Location: Bay Area, CA

Post by OB » Tue May 02, 2006 10:16 am

what has to be done to take out the rear seat? ive been thinkin of doing this as well but i do use it sometimes (tho id rather have an excuse not to 8) )
-Derek

|Donate to 2gn|Feedback || OB's | GozziFab | All Business |


JRM
2GN Member
Posts: 3512
Joined: Mon Sep 12, 2005 7:35 pm
Location: MO

Post by JRM » Tue May 02, 2006 10:19 am

Here is the site where I found the weight redux crap....

http://www.dodgeforum.com/m_201425/mpag ... htm#213341





Edit:
orangeblastsxt wrote:what has to be done to take out the rear seat? ive been thinkin of doing this as well but i do use it sometimes (tho id rather have an excuse not to 8) )
Takes like 10-15 minutes tops to put back in if you ever do need it....


the bottom part pulls up and out...

and the top has like 3-4 bolts, i dunnno its been over a year since i pulled my shiznit out 8)

hmmmm.... get a haynes manual and follow it step by step take ya less than 2 minutes flat to pull out.
06 Ford F150 Stock truck 23x,xxx miles and running strong
05 Chevy Equinox Wifey's

Official I sold my Neon Member #482

OB
Former Moderator
Posts: 9686
Joined: Tue Nov 15, 2005 9:38 pm
Location: Bay Area, CA

Post by OB » Tue May 02, 2006 10:26 am

no kidding? thanks, ive heard that some rear seats are a bitch to get out. guess i know what ill be doin next time i run at the track!
-Derek

|Donate to 2gn|Feedback || OB's | GozziFab | All Business |


2003silverneonsxt
2GN Member
Posts: 3002
Joined: Sat Oct 02, 2004 2:48 pm
Location: Lebanon PA
Contact:

Post by 2003silverneonsxt » Tue May 02, 2006 12:53 pm

bottom pad pulls up and out in two spots, thts the easy part. the mildly harder part is the top section. 4 torx bolts (55m size) one on each side and 2 in the middle, very easy to see once u pull the bottom piece out, then pull up on each side to pull it out of the locking mechanism and take out....


if u need more explanation or pics or somthing let me know..i can try to get u some!
hmmmmm

OB
Former Moderator
Posts: 9686
Joined: Tue Nov 15, 2005 9:38 pm
Location: Bay Area, CA

Post by OB » Tue May 02, 2006 6:41 pm

pics would be great, especailly before and after ones! id really appreciate it (dont worry about the before pics i can just open my rear door andd look for myself, duuuh :lol: )
-Derek

|Donate to 2gn|Feedback || OB's | GozziFab | All Business |


2003silverneonsxt
2GN Member
Posts: 3002
Joined: Sat Oct 02, 2004 2:48 pm
Location: Lebanon PA
Contact:

Post by 2003silverneonsxt » Tue May 02, 2006 7:28 pm

ill get them for u tomorrow, i have to go to work now
hmmmmm

2003silverneonsxt
2GN Member
Posts: 3002
Joined: Sat Oct 02, 2004 2:48 pm
Location: Lebanon PA
Contact:

Post by 2003silverneonsxt » Wed May 03, 2006 7:31 pm

ok as promised here we go!!!

tools needed

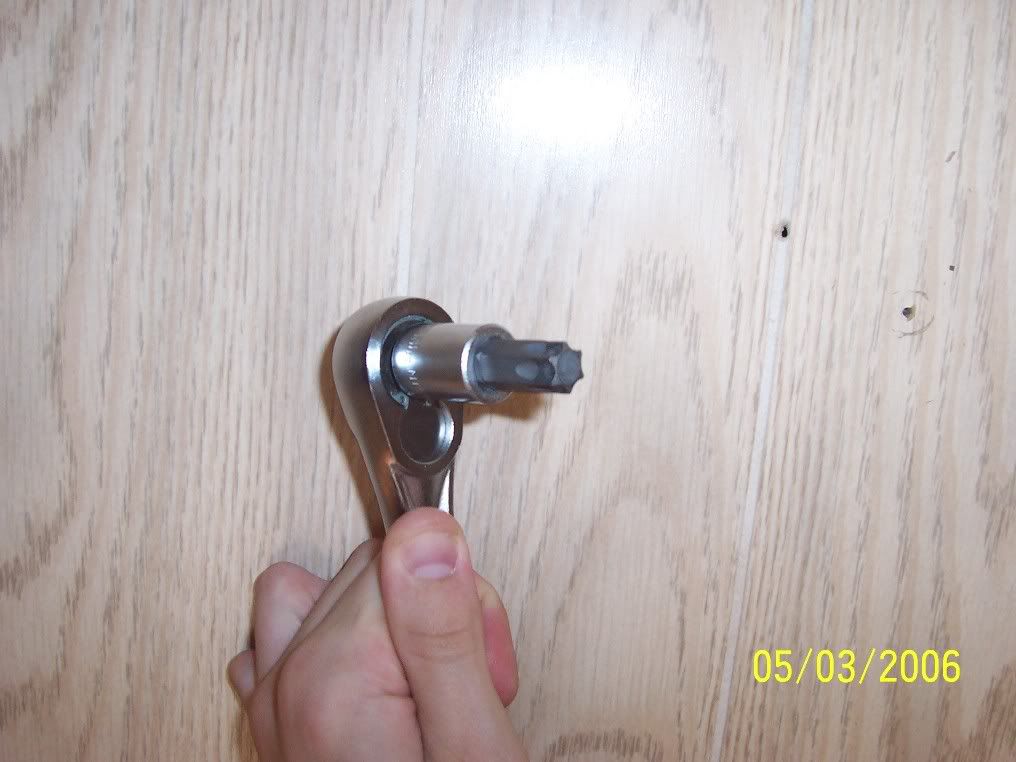

T55 Torx Head
Hands
Time



instructions

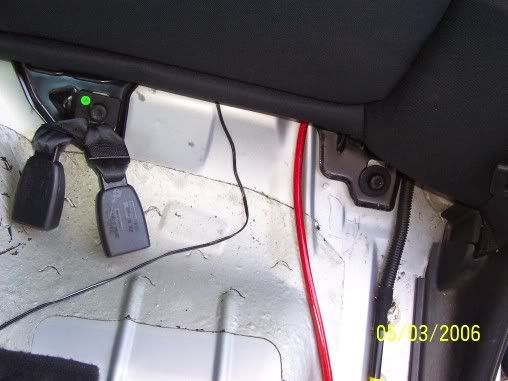

1. remove bottom seat pad

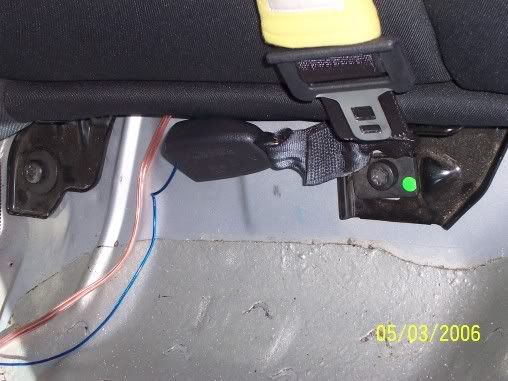

2. Remove 4 torx head bolts


3. Pull the back seat up and out

DONE!


to put back in

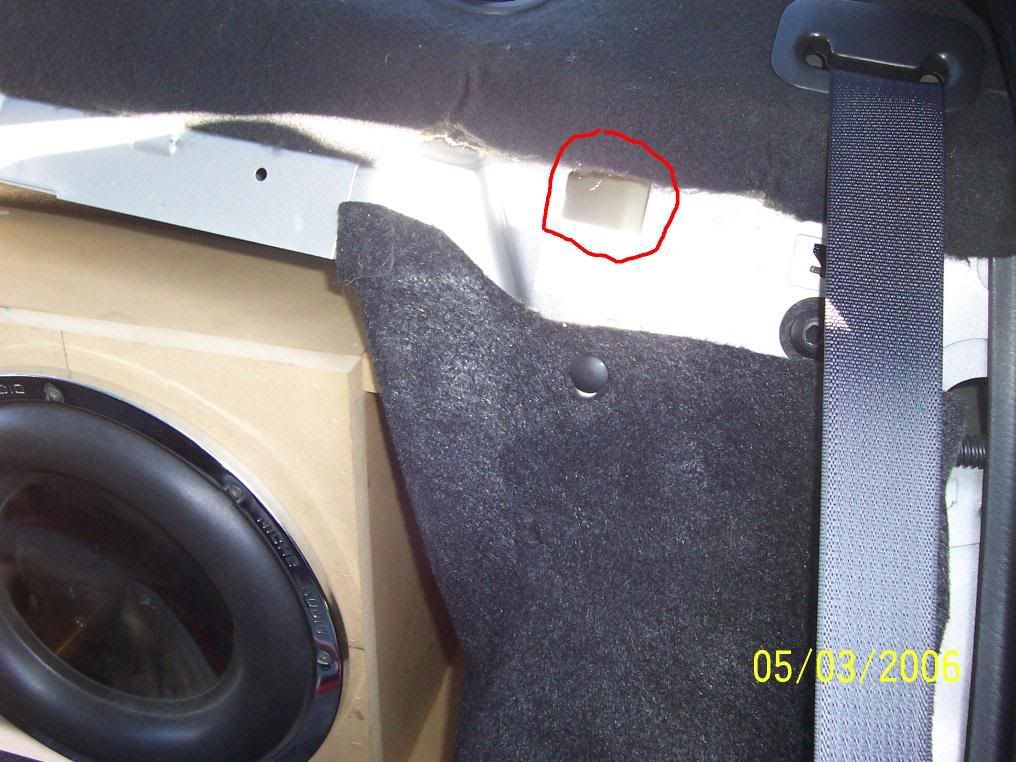

1. put the back seat back in. put the hooks in their openings by putting each one above the opening and drop into place


2. put 4 torx head bolts back in

3. put bottom seat pad back in
hmmmmm

User avatar
MoxHair
2GN Member
Posts: 3801
Joined: Mon Feb 27, 2006 5:41 pm
Location: Atwater, CA; Orlando, FL
Contact:

Post by MoxHair » Wed May 03, 2006 8:26 pm

OMG Best write up EVER!
2017 Subaru WRX STI
Road Racing > Autocross > Spirited Driving > Sitting in Traffic > Mowing Lawns > Drag Racing

OB
Former Moderator
Posts: 9686
Joined: Tue Nov 15, 2005 9:38 pm
Location: Bay Area, CA

Post by OB » Wed May 03, 2006 8:48 pm

haha that was funny, your hand looks abnormal in that pic lol. I gave my seat a yank earlier and it didnt feel like it was coming out, and i gave it a GOOD pull. i dont wanna break anything, is there some trick to getting it out?
-Derek

|Donate to 2gn|Feedback || OB's | GozziFab | All Business |


User avatar
MoxHair
2GN Member
Posts: 3801
Joined: Mon Feb 27, 2006 5:41 pm
Location: Atwater, CA; Orlando, FL
Contact:

Post by MoxHair » Wed May 03, 2006 8:52 pm

pull up and then out. :)
2017 Subaru WRX STI
Road Racing > Autocross > Spirited Driving > Sitting in Traffic > Mowing Lawns > Drag Racing

2003silverneonsxt
2GN Member
Posts: 3002
Joined: Sat Oct 02, 2004 2:48 pm
Location: Lebanon PA
Contact:

Post by 2003silverneonsxt » Wed May 03, 2006 9:20 pm

moxhairr/t wrote:pull up and then out. :)

as in instruction #3 :)
hmmmmm

User avatar
03sxt
Former Jr. Admin
Posts: 11389
Joined: Wed May 11, 2005 10:53 am
Location: Conneaut, Ohio
Contact:

Post by 03sxt » Wed May 03, 2006 9:32 pm

You got a hell of a grip on that ratchet. :lol:

Nice writeup! :thumbup: Looks pretty damn simple.

scneonchic
2GN Veteran
Posts: 8884
Joined: Tue Mar 22, 2005 12:44 am
Location: Aiken, SC

Post by scneonchic » Sat May 06, 2006 1:33 am

good write up...the rear seats are pretty simple to do, long as you have the right tools. dont forget TIME, that is the most important one!! :)

User avatar
dblsg
2GN Veteran
Posts: 10719
Joined: Fri Jun 03, 2005 3:20 am
Location: Aurora, IL
Contact:

Post by dblsg » Sat May 06, 2006 4:13 am

orangeblastsxt wrote: I gave my seat a yank earlier and it didnt feel like it was coming out, and i gave it a GOOD pull.
you might need this special tool then



Image :lol:
Image Sam-I-Am
Official "I'm Going to Drive My Neon till it Dies" Club #000046
Diablo0 wrote: "eh... your opinion doesn't matter... I'm doing what I want..."

User avatar
03sxt
Former Jr. Admin
Posts: 11389
Joined: Wed May 11, 2005 10:53 am
Location: Conneaut, Ohio
Contact:

Post by 03sxt » Sat May 06, 2006 7:31 am

:laughing3:

OB
Former Moderator
Posts: 9686
Joined: Tue Nov 15, 2005 9:38 pm
Location: Bay Area, CA

Post by OB » Mon May 08, 2006 11:15 am

03sxt wrote::laughing3:
shit aint that the truth. hahahaha

---

anyways, where can i get one of those torx heads? i have a set of smaller ones, but ive never seen those at a store before, mine came with some set awhile ago. they sell em everywhere like home depot and shit? ive been meaning to go but im lazy.
-Derek

|Donate to 2gn|Feedback || OB's | GozziFab | All Business |


scneonchic
2GN Veteran
Posts: 8884
Joined: Tue Mar 22, 2005 12:44 am
Location: Aiken, SC

Post by scneonchic » Mon May 08, 2006 6:27 pm

Anywhere really...Advance auto, auto zone, any tool store....even walmart probably.

User avatar
Marthby
2GN Member
Posts: 482
Joined: Fri Jan 20, 2006 6:24 am
Location: NorCal

Post by Marthby » Wed May 10, 2006 12:45 am

I just took my rear seats + back out andyou can feel a little tiny difference. The road noise is louder... :( but on the plus side the car feels a lil lighter and you can hear the Kicker BUMP better :)

Naranjablast I bought a T-55 torx head @ Napa. $4 bucks I think
Sig Applications.

Apply here. haha tricked ya' bitch!

OB
Former Moderator
Posts: 9686
Joined: Tue Nov 15, 2005 9:38 pm
Location: Bay Area, CA

Post by OB » Wed May 10, 2006 12:51 am

went to home depot an they aint got em so i checked autozone and got a set, and came home and yanked em out. sucks cuz i had nowhere to store them till i move and get my own garage, so i had to put em back in. haha it was cool tho, easy as cake like stated above! thanks everyone.
-Derek

|Donate to 2gn|Feedback || OB's | GozziFab | All Business |


2003silverneonsxt
2GN Member
Posts: 3002
Joined: Sat Oct 02, 2004 2:48 pm
Location: Lebanon PA
Contact:

Post by 2003silverneonsxt » Wed May 10, 2006 9:01 am

sure thing..hope my write-up was more useful then it was funnY!!!
hmmmmm

User avatar
dblsg
2GN Veteran
Posts: 10719
Joined: Fri Jun 03, 2005 3:20 am
Location: Aurora, IL
Contact:

Post by dblsg » Thu May 11, 2006 9:53 am

2003silverneonsxt wrote:sure thing..hope my write-up was more useful then it was funnY!!!
it was pretty funny :lol:

but very useful too :D
